本文详细介绍如何在SpringBoot项目中集成Swagger2，包括添加依赖、配置类编写、控制器注解使用及最终效果展示，帮助开发者快速实现RESTful API文档自动生成。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

第一步

<!-- https://mvnrepository.com/artifact/io.springfox/springfox-swagger-ui -->
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger-ui</artifactId>
    <version>2.9.2</version>
</dependency>
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger2</artifactId>
    <version>2.9.2</version>
</dependency>

第二步新增配置类

package com.zzh.elite.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.bind.annotation.RestController;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Parameter;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.util.ArrayList;
import java.util.List;

@Configuration
@EnableSwagger2
public class Swagger2Config {
    @Bean
    public Docket createRestApi() {
        List<Parameter> pars = new ArrayList<Parameter>();
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.withClassAnnotation(RestController.class))
                .paths(PathSelectors.any())
                .build()
                .globalOperationParameters(pars)
                .apiInfo(apiInfo());
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("流程引擎 RESTful API")
                .description("同志们 大家辛苦了")
                .termsOfServiceUrl("https://blog.youkuaiyun.com/z446981439?viewmode=contents")
                .version("1.0")
                .build();
    }
}

第三步使用

package com.zzh.elite.controller;

import com.fasterxml.jackson.databind.ObjectMapper;
import com.zzh.elite.dto.MongodbDTO;
import com.zzh.elite.dto.MysqlTestDTO;
import com.zzh.elite.dto.RedisTestDTO;
import com.zzh.elite.entity.MongodbTest;
import com.zzh.elite.entity.UserLog;
import com.zzh.elite.service.MongodbService;
import com.zzh.elite.service.UserService;
import com.zzh.elite.utils.CommonUtils;
import com.zzh.elite.utils.RedisUtils;
import com.zzh.elite.viewModel.ResponseMessage;
import com.zzh.elite.vo.MysqlTestVO;
import com.zzh.elite.vo.RedisTestVO;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageBuilder;
import org.springframework.amqp.core.MessageDeliveryMode;
import org.springframework.amqp.core.MessageProperties;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.amqp.support.converter.AbstractJavaTypeMapper;
import org.springframework.amqp.support.converter.Jackson2JsonMessageConverter;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.core.env.Environment;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

import java.util.Date;

@Slf4j
@RestController("elite")
@Api(description = "配置测试")public class EliteController {
    @Autowired
    RedisUtils redisUtils;
    @Autowired
    UserService userService;
    @Autowired
    private ObjectMapper objectMapper;
    @Autowired
    private RabbitTemplate rabbitTemplate;
    @Autowired
    private Environment env;
    @Autowired
    MongodbService mongodbService;
    @RequestMapping(value = "test/swagger",method = RequestMethod.POST)
    @ApiOperation("swagger测试")
    public ResponseMessage<Object> login(){
        log.info("成功");
        return CommonUtils.okResponseVO(null);
    }
    @RequestMapping(value = "test/redis",method = RequestMethod.POST)
    @ApiOperation("redis测试")
    public ResponseMessage<RedisTestVO> redis(@RequestBody RedisTestDTO redisTestDTO){
        redisUtils.set(redisTestDTO.getRedisKey(),redisTestDTO.getRedisValue());
        RedisTestVO redisTestVO=new RedisTestVO();
        redisTestVO.setRedisKey(redisTestDTO.getRedisKey());
        redisTestVO.setRedisValue(redisUtils.get(redisTestDTO.getRedisKey()));
        return CommonUtils.okResponseVO(redisTestVO);
    }
    @RequestMapping(value = "test/mysql",method = RequestMethod.POST)
    @ApiOperation("mysql测试")
    public ResponseMessage<MysqlTestVO> mysql(@RequestBody MysqlTestDTO mysqlTestDTO){
        return CommonUtils.okResponseVO(userService.mysql(mysqlTestDTO));
    }
    @RequestMapping(value = "test/rabbitMq",method = RequestMethod.POST)
    @ApiOperation("rabbitMq 生产者测试")
    public ResponseMessage<MysqlTestVO> rabbitMq(@RequestBody MysqlTestDTO mysqlTestDTO){
        try {
            UserLog userLog = new UserLog(mysqlTestDTO.getUser(), "Login", objectMapper.writeValueAsString(mysqlTestDTO));//
            userLog.setCreateTime(new Date());
            rabbitTemplate.setMessageConverter(new Jackson2JsonMessageConverter());
            rabbitTemplate.setExchange(env.getProperty("log.user.exchange.name"));
            rabbitTemplate.setRoutingKey(env.getProperty("log.user.routing.key.name"));
            Message message = MessageBuilder.withBody(objectMapper.writeValueAsBytes(userLog)).setDeliveryMode(MessageDeliveryMode.PERSISTENT).build();
            message.getMessageProperties().setHeader(AbstractJavaTypeMapper.DEFAULT_CONTENT_CLASSID_FIELD_NAME, MessageProperties.CONTENT_TYPE_JSON);
            rabbitTemplate.convertAndSend(message);
        } catch (Exception e) {
            e.printStackTrace();
        }
        return CommonUtils.okResponseVO(null);
    }
    @RequestMapping(value = "test/mongo/save",method = RequestMethod.POST)
    @ApiOperation("mongodb新增测试")
    public ResponseMessage<Object> mongoSave(@RequestBody MongodbDTO mongodbDTO){
        mongodbService.saveTest(mongodbDTO);
        return CommonUtils.okResponseVO(null);
    }
    @RequestMapping(value = "test/mongo/find",method = RequestMethod.POST)
    @ApiOperation("mongodb查询测试")
    public ResponseMessage<MongodbTest> mongoSave(String Name){
        return CommonUtils.okResponseVO(mongodbService.findTestByName(Name));
    }
    @RequestMapping(value = "test/mongo/update",method = RequestMethod.POST)
    @ApiOperation("mongodb修改测试")
    public ResponseMessage<MongodbTest> mongoUpdate(MongodbDTO mongodbDTO){
        mongodbService.updateTest(mongodbDTO);
        return CommonUtils.okResponseVO(null);
    }
    @RequestMapping(value = "test/mongo/delete",method = RequestMethod.POST)
    @ApiOperation("mongodb删除测试")
    public ResponseMessage<MongodbTest> mongoDelete(Integer id){
        mongodbService.deleteTestById(id);
        return CommonUtils.okResponseVO(null);
    }
}

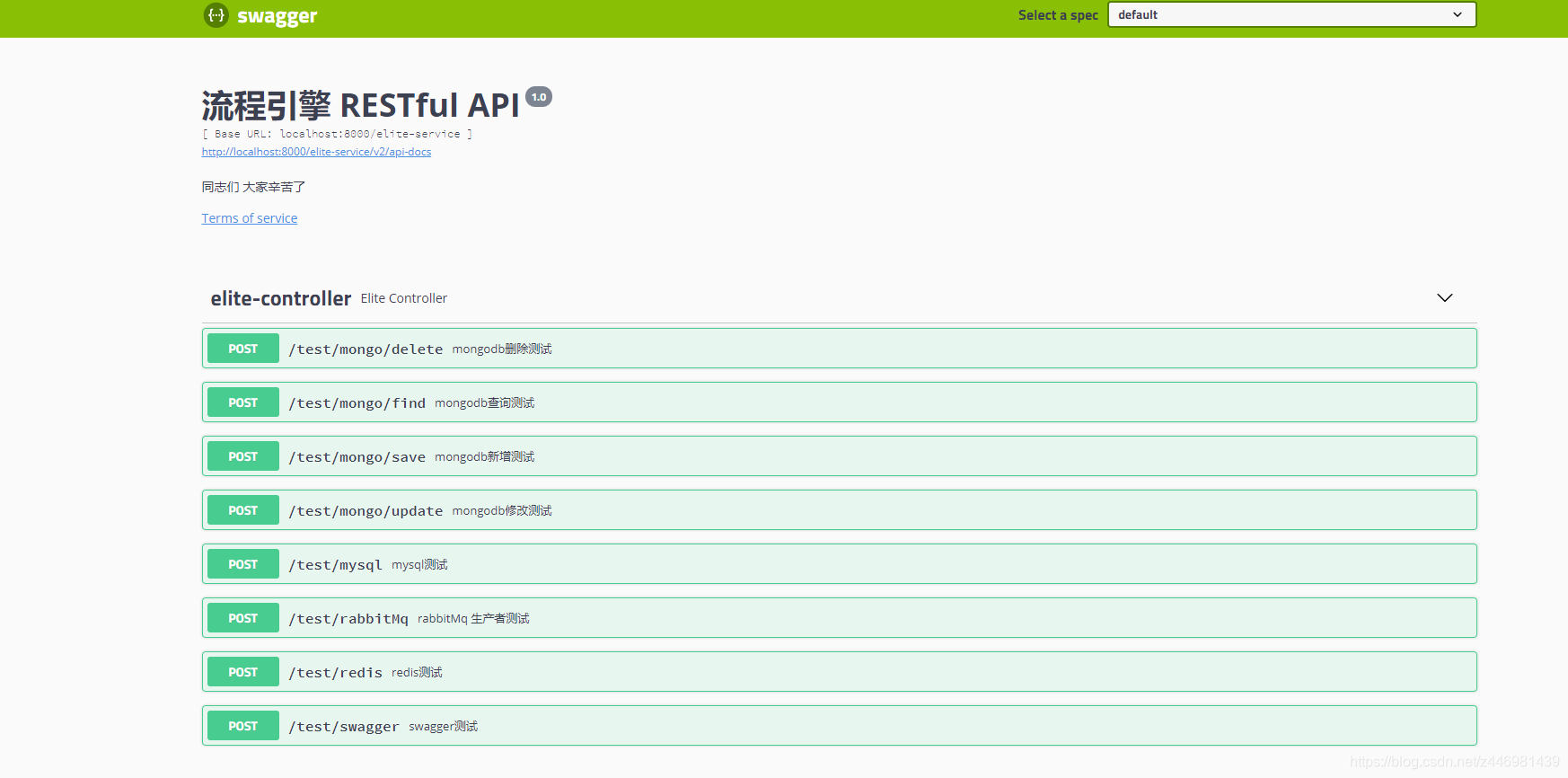

第四步效果

http://localhost:8000/elite-service/swagger-ui.html#/
