Myeclipse下SpringBoot+MySQL简单搭建

一. 简单项目搭建

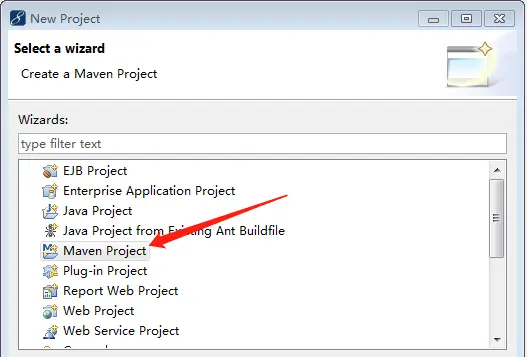

1. 右键目录空白new project选择Maven Project

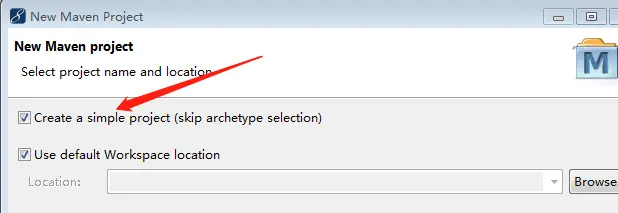

2. 创建一个简单的项目

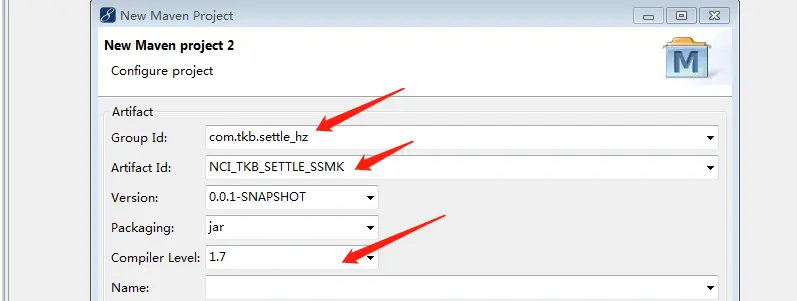

3. Group Id，Artifact Id，Compiler Level填写

Group Id和Artifact Id是为了保证项目唯一性而提出的，如果你要把你项目弄到maven本地仓库去，你想要找到你的项目就必须根据这两个id去查找。一般分为多个段，常用的为两段，第一段为域，第二段为公司名称。域又分为org、com、cn等等许多，其中org为非营利组织，com为商业组织。列如tomcat：这个项目的groupId是org.apache，它的域是org（因为tomcat是非营利项目），公司名称是apache，artigactId是tomcat。
Artifact Id :　项目的名称
Compiler Level : 选择jdk版本

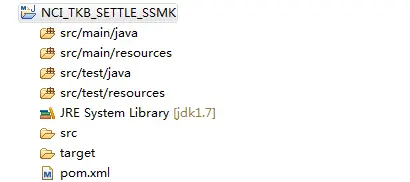

4. 点击完成


5. pom文件

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.tkb.settle</groupId>
  <artifactId>NCI_TKB_SETTLE_SSMK</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <build>
    <plugins>
      <plugin>
        <artifactId>maven-compiler-plugin</artifactId>
        <configuration>
          <source>1.6</source>
          <target>1.6</target>
        </configuration>
      </plugin>
    </plugins>
  </build>
</project>

• 添加parent

<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>1.5.6.RELEASE</version>
</parent>

• 添加web支持

<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>1.5.6.RELEASE</version>
</parent>

• 添加插件

<plugin>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-maven-plugin</artifactId>
</plugin>

添加之后：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.tkb.settle</groupId>
  <artifactId>NCI_TKB_SETTLE_SSMK</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>1.5.6.RELEASE</version>
  </parent>
  <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
  </dependencies>
  <build>
    <plugins>
      <plugin>
        <artifactId>maven-compiler-plugin</artifactId>
        <configuration>
          <source>1.7</source>
          <target>1.7</target>
        </configuration>
      </plugin>
      <plugin>
         <groupId>org.springframework.boot</groupId>
         <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>
</project>

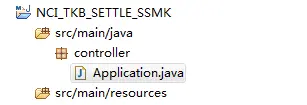

6.创建Application.java类


package controller;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
//Spring Boot项目的核心注解，主要目的是开启自动配置
@SpringBootApplication
@Controller
public class Application {
    @RequestMapping("/hello")
    @ResponseBody
    public String hello() {
        return "hello world";
    }
    //应用入口
    public static void main(String[] args) {
        SpringApplication.run(Application.class, args);
    }
}

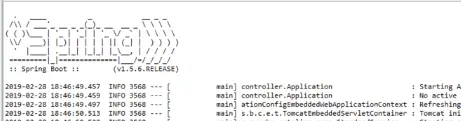

7. 右键Run as


8. 浏览器输入localhost:8080/hello回车测试效果


二. 添加MySQL支持

1. pom文件导入依赖包

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <scope>runtime</scope>
</dependency>
<!--mybatis-->
<dependency>
    <groupId>org.mybatis.spring.boot</groupId>
    <artifactId>mybatis-spring-boot-starter</artifactId>
    <version>1.1.1</version>
</dependency>

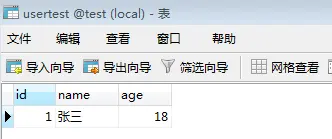

2. 创建测试表，此处省略过程


3. 添加资源配置文件application.properties

spring.datasource.url=jdbc:mysql://127.0.0.1:3306/test?useUnicode=true&characterEncoding=UTF-8
spring.datasource.username=root
spring.datasource.password=12345678
spring.datasource.driver-class-name=com.mysql.jdbc.Driver

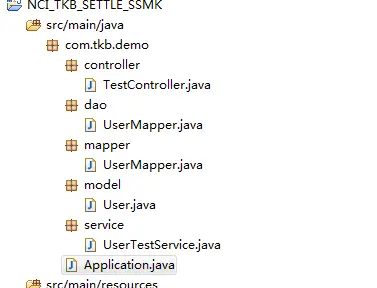

4. 建立MySQL业务流程




Application.java



//Spring Boot项目的核心注解，主要目的是开启自动配置
@MapperScan("com.tkb.demo.dao")
@SpringBootApplication
@Controller
public class Application {
    @RequestMapping("/hello")
    @ResponseBody
    public String hello() {
        return "hello world";
    }

    //应用入口
    public static void main(String[] args) {
        SpringApplication.run(Application.class, args);
    }
}

TestController.java

@RestController
@EnableAutoConfiguration
public class TestController {
    @Resource
    private UserTestService service;

    @RequestMapping("/getUser/{id}")
    @ResponseBody
    String getUser(@PathVariable Long id) {
        System.out.println("接收到浏览器的id为:" + id);
        return service.getById(id).toString();
    }
}

UserMapper.java

@Mapper
public interface UserMapper {

    @Select("select id,name,age from usertest where id=#{id}")
    User getById(@Param("id") Long id);
}

UserTestService.java

@Service
public class UserTestService {
    @Autowired
    private UserMapper userMapper;

    public User getById(long id){
        return   userMapper.getById(id);
    }
}

启动之后浏览器输入http://localhost:8080/getUser/1




参考

SpringBoot学习－（一）如何在MyEclipse中创建SpringBoot项目
SpringBoot整合Mybatis完整详细版
