Spring Aop源码调试

SpringAOP 面向切面编程（Aspect Oriented Programming）

aop效果：

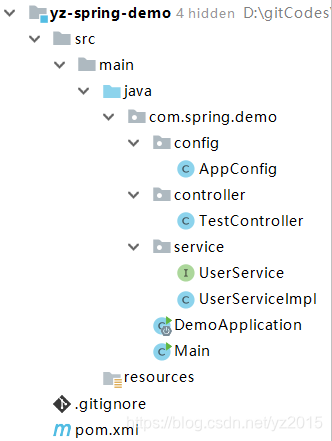

项目demo：

代码：

import org.aspectj.lang.annotation.*;
import org.springframework.stereotype.Component;

@Aspect
@Component
public class AppConfig {

    @Pointcut("execution(* com.spring.demo.service.*.*(..))")
    public void businessService() {}

    @Before(value = "businessService()")
    public void doBefore() {
        System.out.println("----------------- doBefore -----------------");
    }
    @AfterReturning(value = "businessService()")
    public void doAfterReturning() {
        System.out.println("----------------- doAfterReturning -----------------");
    }
    @After(value = "businessService()")
    public void doAfter() {
        System.out.println("----------------- doAfter -----------------");
    }
}

import com.spring.demo.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @description:
 * @author: yz
 * @create: 2019/5/27 15:33
 */
@RestController
public class TestController {

    @Autowired
    UserService userService;

    @RequestMapping("/test")
    public String test(){
        return userService.query();
    }
}

public interface UserService {
    String query();
}

@Service("userService")
public class UserServiceImpl implements UserService {
    @Override
    public String query() {
        System.out.println("------------ yz ------------");
        return "------------ yz ------------";
    }
}

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class DemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(DemoApplication.class, args);
    }

}

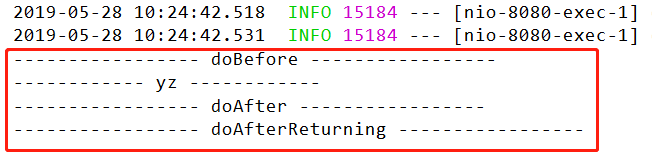

请求url：http://localhost:8080/test

源码调试，编写main方法，使用注解方式：

import com.spring.demo.service.UserService;
import org.springframework.context.annotation.AnnotationConfigApplicationContext;
import org.springframework.context.annotation.ComponentScan;

/**
 * @description:
 * @author: yz
 * @create: 2019/5/27 15:23
 */
@ComponentScan("com.spring.demo")
public class Main {
    public static void main(String[] args) {
        ApplicationContext applicationContext = new AnnotationConfigApplicationContext(Main.class);
        UserService userService = applicationContext.getBean(UserService.class);
//        UserService userService = (UserService) applicationContext.getBean("userService");
        userService.query();
    }
}

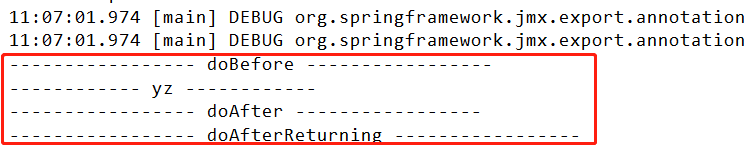

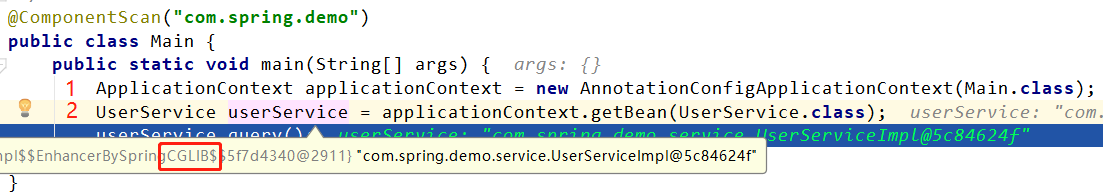

断点发现，拿到的service对象已经是被Aop CGLIB代理过的对象,main方法打印aop代理service后的信息：

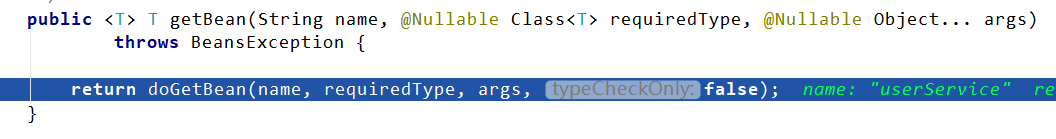

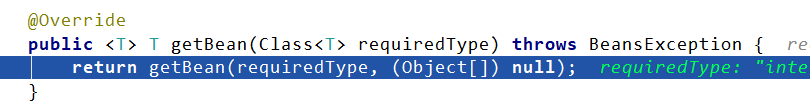

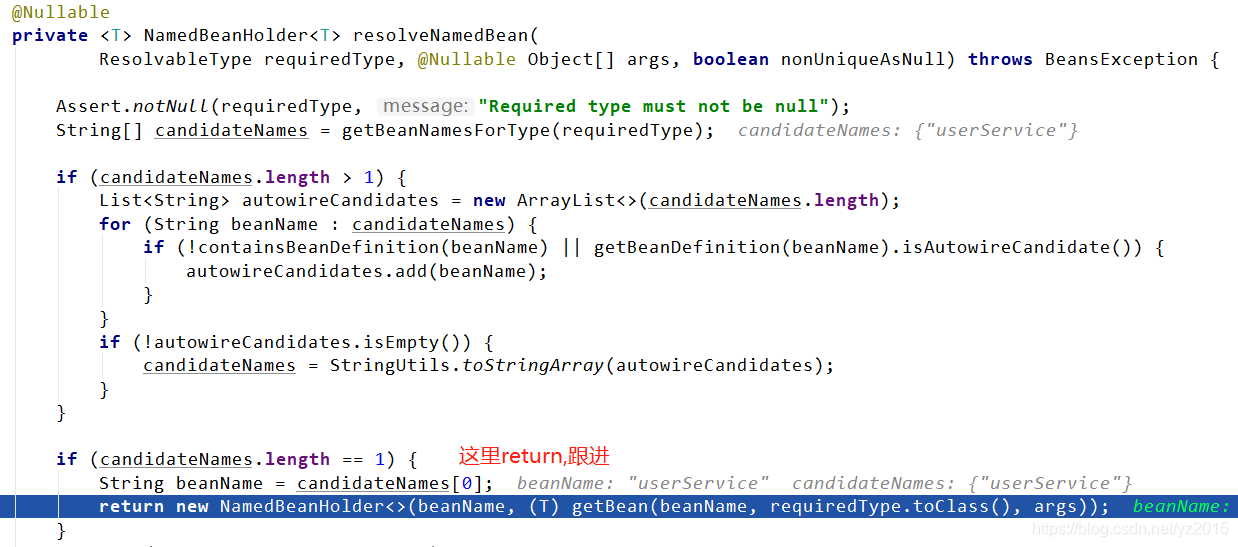

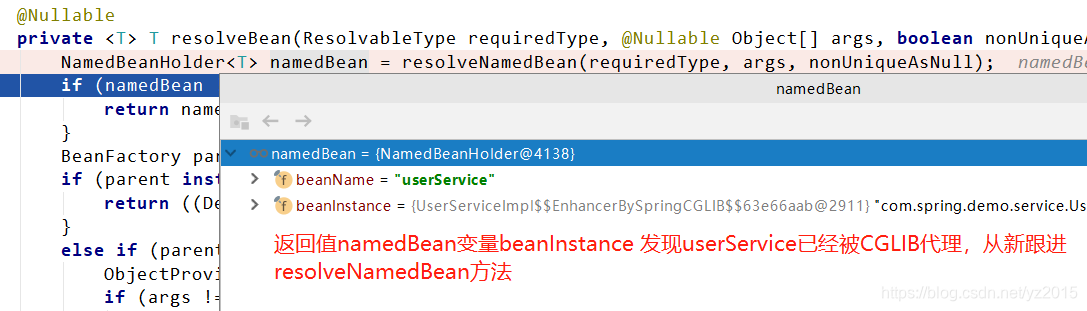

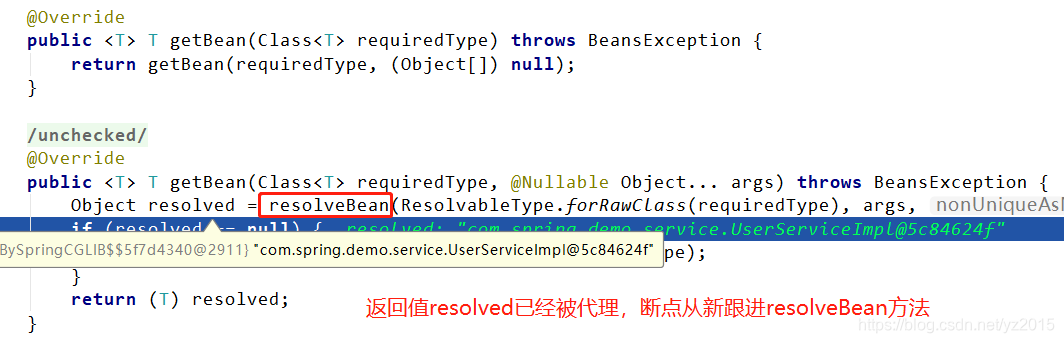

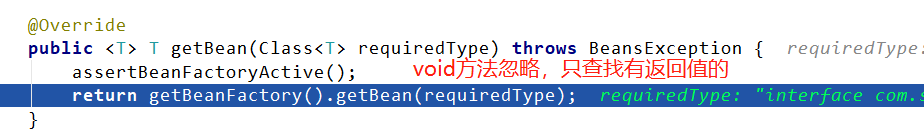

被代理时间可能发生在第一步，也可能发生在第二步，此时假设发生在第二步，断点打在getBean进行跟踪：

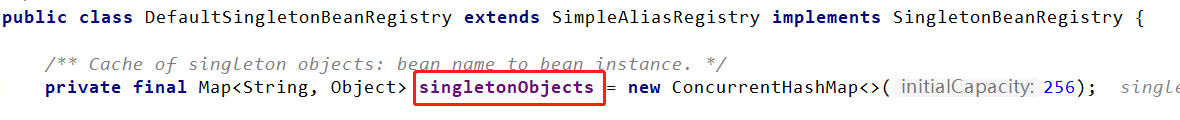

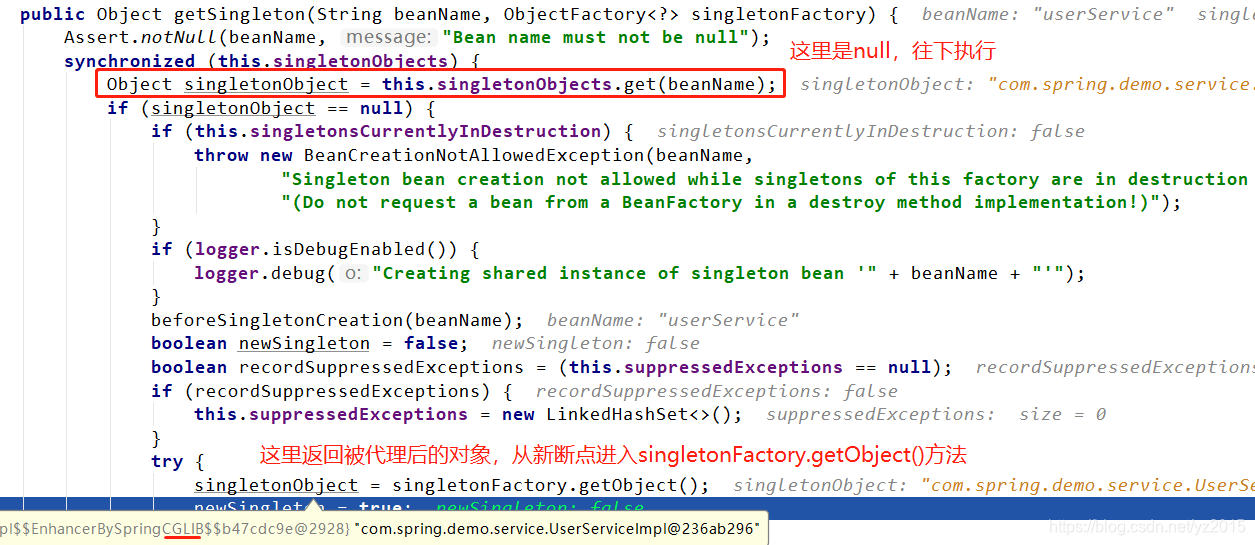

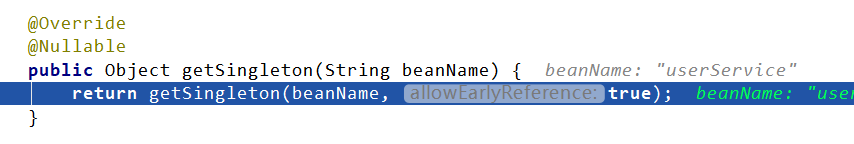

发现singletonObjects 是个map

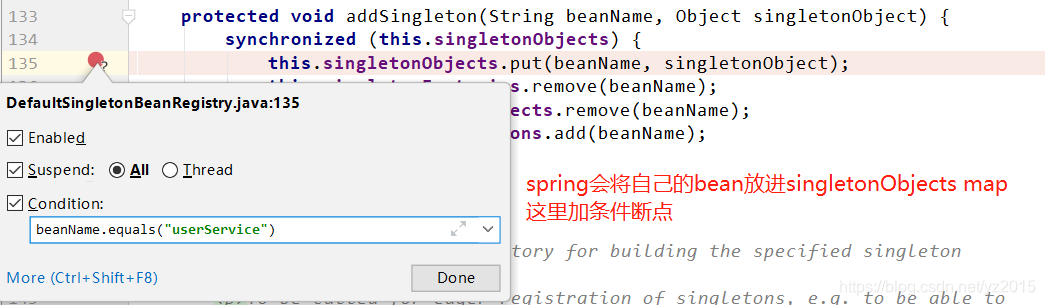

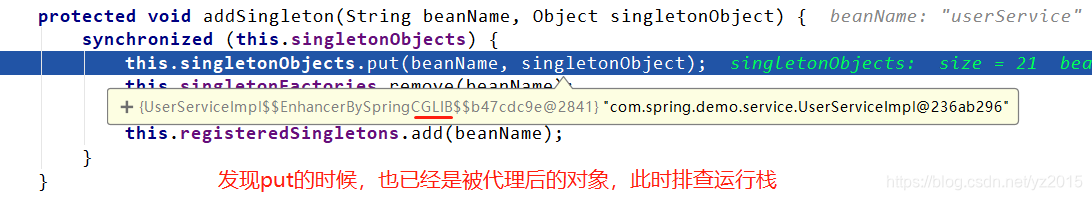

既然singletonObjects有get，那么就有put,此时切入点查找this.singletonObjects.put

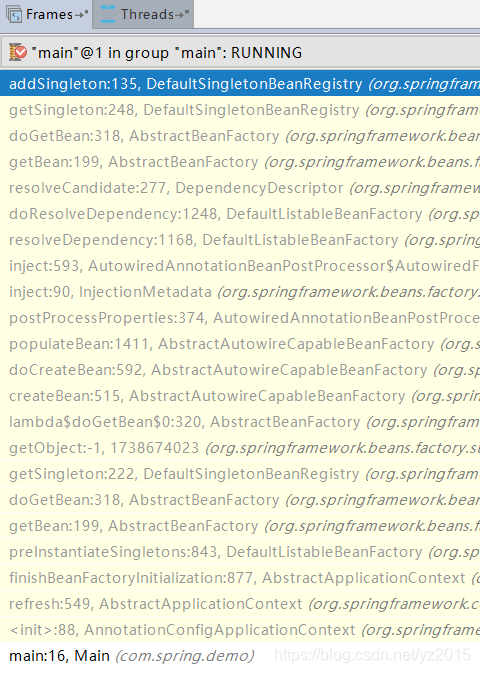

用2分查找法排查jvm运行栈，具体在哪一个方法userService被aop代理。

注意：此时还没有执行到UserService userService = applicationContext.getBean(UserService.class);

也就是说spring aop创建代理代理对象是在第一步执行的：

ApplicationContext applicationContext = new AnnotationConfigApplicationContext(Main.class);

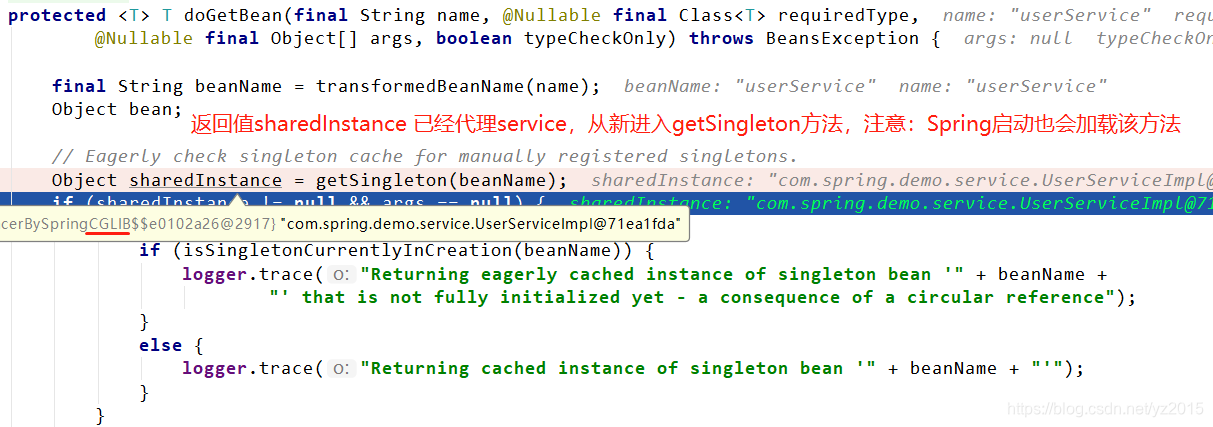

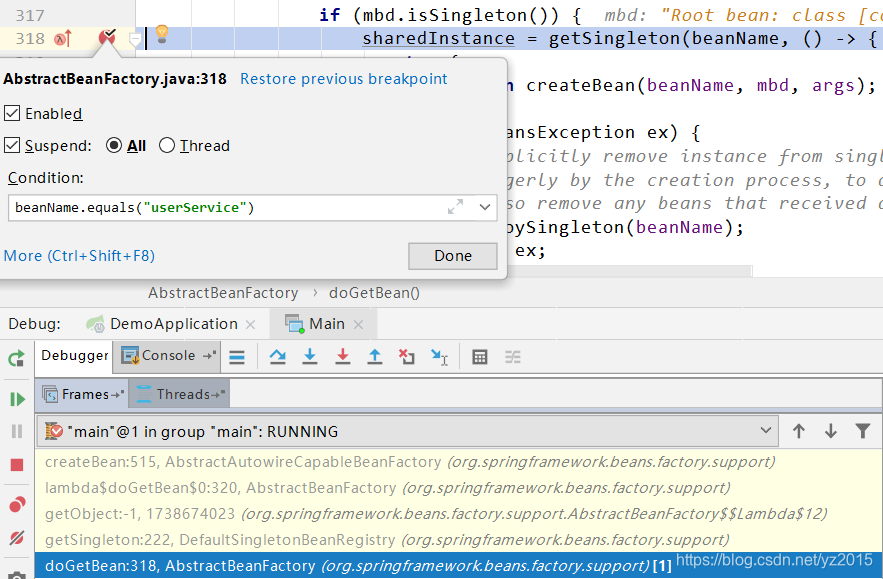

我们将断点打在doGetBean的getSingleton方法，加条件断点，这是个Lambda表达式

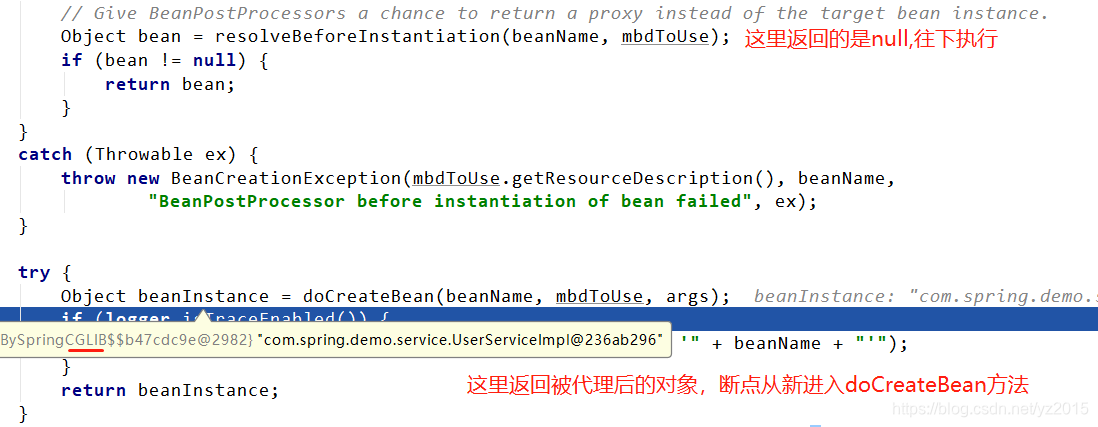

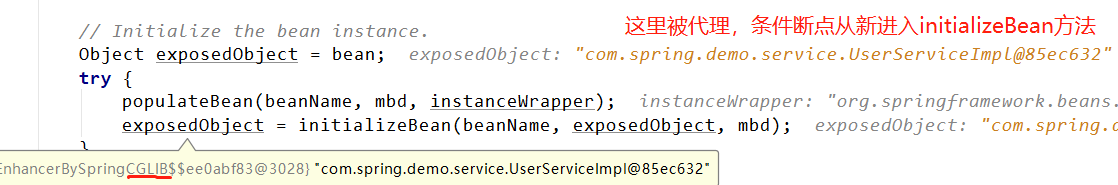

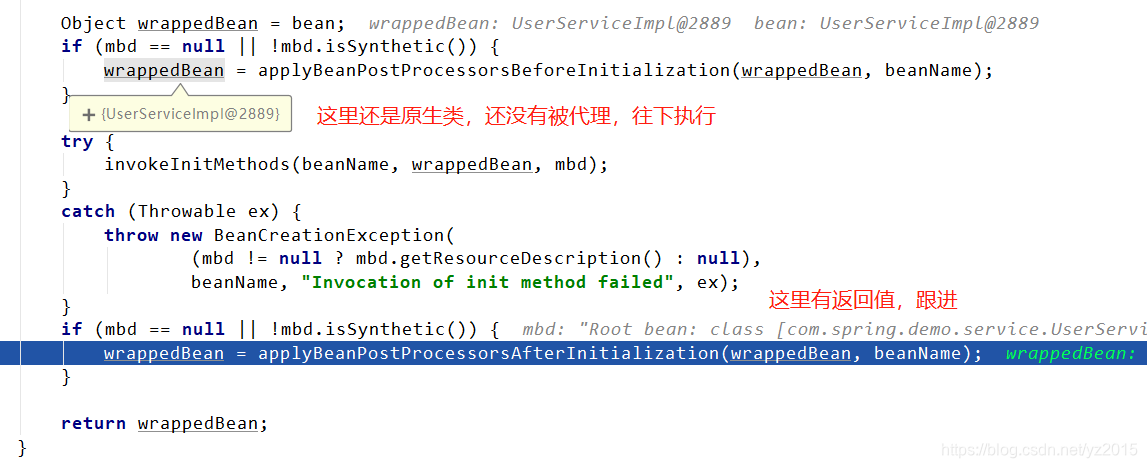

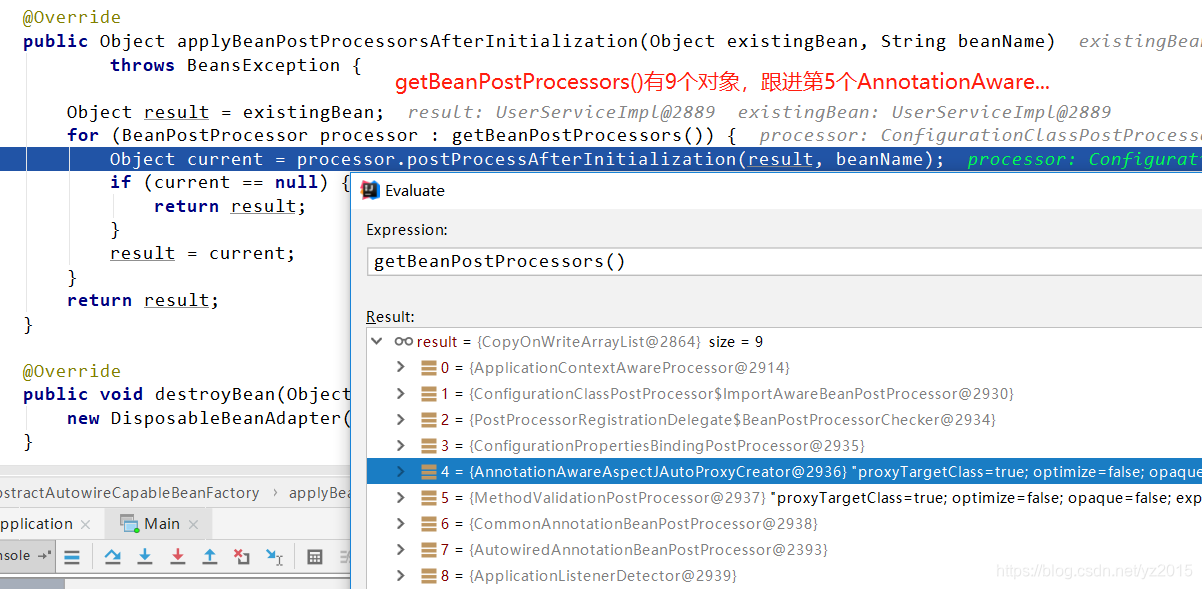

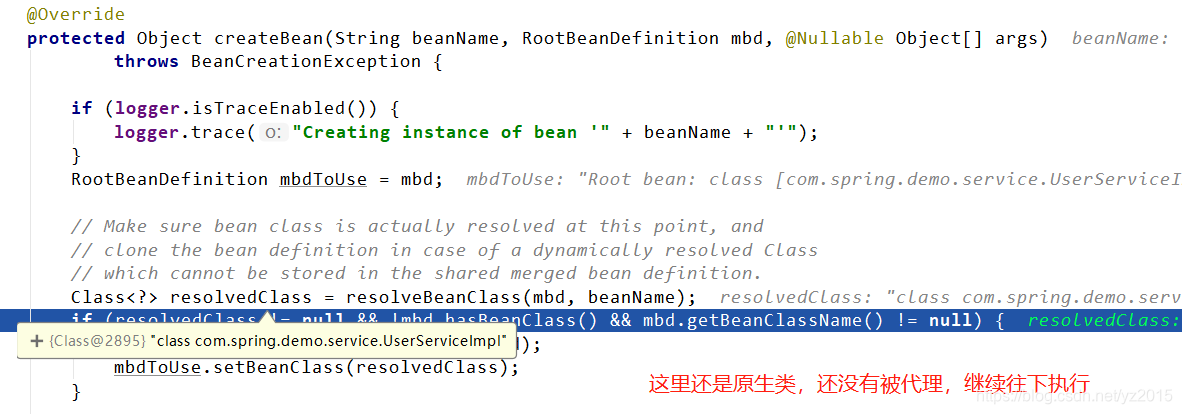

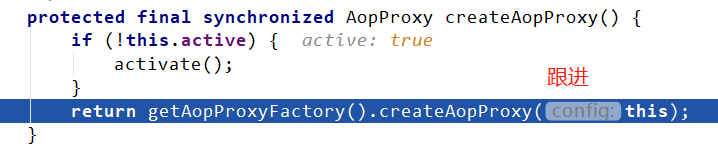

重新运行，进入getSingleton方法

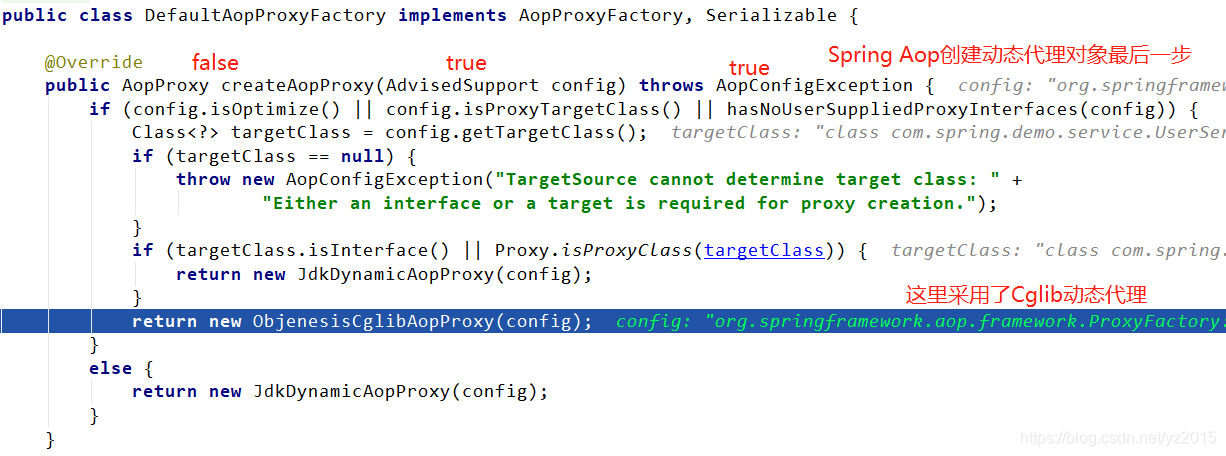

至此Spring Aop源码调试完毕。

Spring Aop官网资料：

https://docs.spring.io/spring/docs/5.2.0.BUILD-SNAPSHOT/spring-framework-reference/core.html#aop

其他资料：https://blog.youkuaiyun.com/u010890358/article/details/80640433
