随着RxJava及RxAndroid的逐渐推广，使用者越来越多，但是有一个问题，RxJava的使用不当极有可能会导致内存泄漏

目前网上对RxJava的内存泄漏有几种方案：

1、RxLifecycle

2、AutoDispose

3、自己封装，手动为RxJava的每一次订阅进行控制，在指定的时机进行取消订阅

个人对RxLifecycle使用比较多，简单直接，并且能够在Activity/Fragment容器的指定生命周期取消订阅

此处不对AutoDispose作分析，原理大致相同

1、依赖并使用RxLifecycle

1、首先在build.gradle文件中添加依赖

compile 'com.trello.rxlifecycle2:rxlifecycle:2.2.1'
compile 'com.trello.rxlifecycle2:rxlifecycle-android:2.2.1'
compile 'com.trello.rxlifecycle2:rxlifecycle-components:2.2.1'

2、配置Activity/Fragment容器

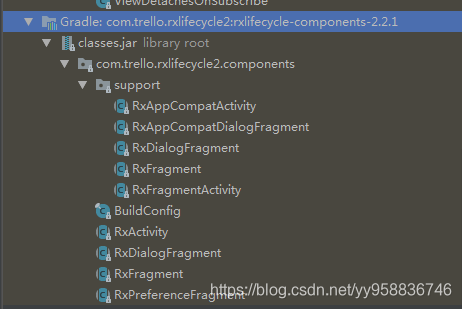

Activity/Fragment需继承其中的RxActivity/RxFragment

代码如下：

public abstract class BaseActivity extends RxActivity{

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
        setContentView(initActivityLayoutID());
        initUI();
        test();
    }

    /**
     * 初始化Activity的布局ID
     */
    protected abstract int initActivityLayoutID();

    /**
     * 初始化UI
     */
    protected abstract void initUI();


    @Override
    public LifecycleProvider getLifecycleProvider() {
        return this;
    }


    private void test(){
       // 当执行onDestory()时， 自动解除订阅
        Observable.interval(1, TimeUnit.SECONDS)
            .doOnDispose(new Action() {
                @Override
                public void run() throws Exception {
                    Log.i(TAG, "Unsubscribing subscription from onCreate()");
                }
            })
            .compose(getLifecycleProvider())
            .subscribe(new Consumer<Long>() {
                @Override
                public void accept(Long num) throws Exception {
                    Log.i(TAG, "Started in onCreate(), running until onDestory(): " +      num);
                }
            });

        }
}

只需要三步：依赖、继承、compose操作符，即可完成在容器的指定生命周期内，RxJava的自动取消订阅。

2、分析原理（以RxActivity为例）

2.1、RxActivity

public abstract class RxActivity extends Activity implements LifecycleProvider<ActivityEvent> {

    //释放订阅前最后一个数据和订阅后接收到的所有数据
    private final BehaviorSubject<ActivityEvent> lifecycleSubject = BehaviorSubject.create();

    @Override
    @NonNull
    @CheckResult
    public final Observable<ActivityEvent> lifecycle() {
        return lifecycleSubject.hide();
    }


    @Override
    @NonNull
    @CheckResult
    public final <T> LifecycleTransformer<T> bindUntilEvent(@NonNull ActivityEvent event) {
        return RxLifecycle.bindUntilEvent(lifecycleSubject, event);
    }

    //实际上返回了一个LifecycleTransformer
    @Override
    @NonNull
    @CheckResult
    public final <T> LifecycleTransformer<T> bindToLifecycle() {
        return RxLifecycleAndroid.bindActivity(lifecycleSubject);
    }

    //Activity不同的生命周期，BehaviorSubject对象会发射对应的ActivityEvent
    @Override
    @CallSuper
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        lifecycleSubject.onNext(ActivityEvent.CREATE);
    }

    @Override
    @CallSuper
    protected void onStart() {
        super.onStart();
        lifecycleSubject.onNext(ActivityEvent.START);
    }

    @Override
    @CallSuper
    protected void onResume() {
        super.onResume();
        lifecycleSubject.onNext(ActivityEvent.RESUME);
    }

    @Override
    @CallSuper
    protected void onPause() {
        lifecycleSubject.onNext(ActivityEvent.PAUSE);
        super.onPause();
    }

    @Override
    @CallSuper
    protected void onStop() {
        lifecycleSubject.onNext(ActivityEvent.STOP);
        super.onStop();
    }

    @Override
    @CallSuper
    protected void onDestroy() {
        lifecycleSubject.onNext(ActivityEvent.DESTROY);
        super.onDestroy();
    }
}

关于RxJava 中Subject里的BehaviorSubject原理，这个BehaviorSubject会在不同的生命周期发射不同的ActivityEvent，比如在onCreate()生命周期发射ActivityEvent.CREATE，在onStop()发射ActivityEvent.STOP

2.2、LifecycleTransformer

public final class LifecycleTransformer<T> implements ObservableTransformer<T, T>,
                                                      FlowableTransformer<T, T>,
                                                      SingleTransformer<T, T>,
                                                      MaybeTransformer<T, T>,
                                                      CompletableTransformer
{
    final Observable<?> observable;

    LifecycleTransformer(Observable<?> observable) {
        checkNotNull(observable, "observable == null");
        this.observable = observable;
    }

    @Override
    public ObservableSource<T> apply(Observable<T> upstream) {
        //当observable为true是终止
        return upstream.takeUntil(observable);
    }

关于takeUntil原理

3、回过头看bindToLifecycle，本质上RxActivity 中的BehaviorSubject成员变量（它本身就是一个Observable）！

public abstract class RxActivity extends Activity implements LifecycleProvider<ActivityEvent> {

    private final BehaviorSubject<ActivityEvent> lifecycleSubject = BehaviorSubject.create();


    @Override
    @NonNull
    @CheckResult
    public final <T> LifecycleTransformer<T> bindToLifecycle() {
        return RxLifecycleAndroid.bindActivity(lifecycleSubject);
    }

3.1、RxLifecycleAndroid

public class RxLifecycleAndroid {

    ***省略代码
 @NonNull
    @CheckResult
    public static <T> LifecycleTransformer<T> bindActivity(@NonNull final Observable<ActivityEvent> lifecycle) {
        return bind(lifecycle, ACTIVITY_LIFECYCLE);
    }

    ***省略代码

 // Figures out which corresponding next lifecycle event in which to unsubscribe, for Activities
    private static final Function<ActivityEvent, ActivityEvent> ACTIVITY_LIFECYCLE =
        new Function<ActivityEvent, ActivityEvent>() {
            @Override
            public ActivityEvent apply(ActivityEvent lastEvent) throws Exception {
                switch (lastEvent) {
                    case CREATE:
                        return ActivityEvent.DESTROY;
                    case START:
                        return ActivityEvent.STOP;
                    case RESUME:
                        return ActivityEvent.PAUSE;
                    case PAUSE:
                        return ActivityEvent.STOP;
                    case STOP:
                        return ActivityEvent.DESTROY;
                    case DESTROY:
                        throw new OutsideLifecycleException("Cannot bind to Activity lifecycle when outside of it.");
                    default:
                        throw new UnsupportedOperationException("Binding to " + lastEvent + " not yet implemented");
                }
            }
        };

}

    ***省略代码


}

3.2、RxLifecycle

public class RxLifecycle {

    ***省略代码
 @Nonnull
    @CheckReturnValue
    public static <T, R> LifecycleTransformer<T> bind(@Nonnull Observable<R> lifecycle,
                                                      @Nonnull final Function<R, R> correspondingEvents) {
        checkNotNull(lifecycle, "lifecycle == null");
        checkNotNull(correspondingEvents, "correspondingEvents == null");
        return bind(takeUntilCorrespondingEvent(lifecycle.share(), correspondingEvents));
    }

    private static <R> Observable<Boolean> takeUntilCorrespondingEvent(final Observable<R> lifecycle,
                                                                       final Function<R, R> correspondingEvents) {
        return Observable.combineLatest(
            lifecycle.take(1).map(correspondingEvents),
            lifecycle.skip(1),
            new BiFunction<R, R, Boolean>() {
                @Override
                public Boolean apply(R bindUntilEvent, R lifecycleEvent) throws Exception {
                    return lifecycleEvent.equals(bindUntilEvent);
                }
            })
            .onErrorReturn(Functions.RESUME_FUNCTION)
            .filter(Functions.SHOULD_COMPLETE);
    }
}

最终发现是调用combineLatest方法，逐步分析一下

1、lifecycle.take(1)指的是最近发射的事件，比如说我们在onCreate()中执行了bindToLifecycle，那么lifecycle.take(1)指的就是ActivityEvent.CREATE，经过map(correspondingEvents)，这个map中传的函数就是 RxLifecycleAndroid中的ACTIVITY_LIFECYCLE。

也就是说，lifecycle.take(1).map(correspondingEvents)实际上是返回了 CREATE 对应的事件 DESTROY ,它意味着本次订阅将在Activity的onDestory进行取消

2、lifecycle.skip(1)就简单了，除去第一个保留剩下的，以ActivityEvent.Create为例，这里就剩下：

ActivityEvent.START
ActivityEvent.RESUME
ActivityEvent.PAUSE
ActivityEvent.STOP
ActivityEvent.DESTROY

3、第三个参数意味着，lifecycle.take(1).map(correspondingEvents)的序列和 lifecycle.skip(1)进行combine，形成一个新的序列：

false,false,fasle,false,true

即是说，当Activity走到onStart生命周期时，为false,这次订阅不会取消，直到onDestroy，为true，订阅取消

4、而后的onErrorReturn和filter是对异常的处理和判断是否应该结束订阅：

//异常处理
    static final Function<Throwable, Boolean> RESUME_FUNCTION = new Function<Throwable, Boolean>() {
        @Override
        public Boolean apply(Throwable throwable) throws Exception {
            if (throwable instanceof OutsideLifecycleException) {
                return true;
            }
            Exceptions.propagate(throwable);
            return false;
        }
    };
    //是否应该取消订阅，可以看到，这依赖于上游的boolean
    static final Predicate<Boolean> SHOULD_COMPLETE = new Predicate<Boolean>() {
        @Override
        public boolean test(Boolean shouldComplete) throws Exception {
            return shouldComplete;
        }
    };

至此对RxLifecycle已经很清晰！！
