docker一键安装RocketMQ集群

原创已于 2023-03-19 11:16:00 修改 · 569 阅读

2 ·

CC 4.0 BY-SA版权

文章标签：

#docker #前端 #java-rocketmq

于 2023-03-16 22:44:37 首次发布

文章描述了如何使用docker-compose创建一个RocketMQ集群，包括namesrv和broker服务，以及配置文件broker.conf的设置。此外，还提到了rocketmq-console的配置和启动，以及如何验证集群运行情况和通过控制台进行管理。

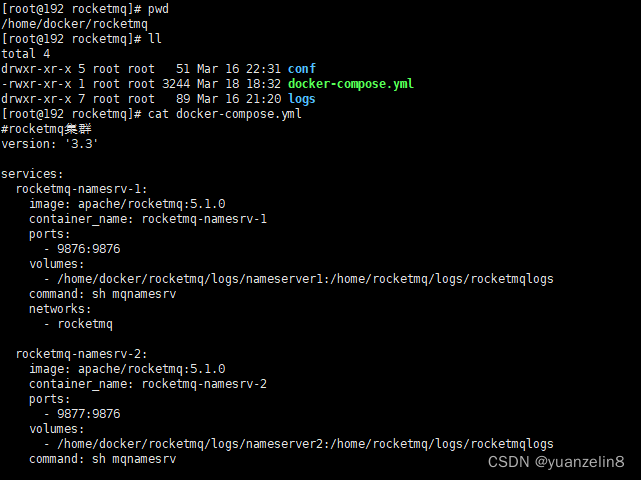

创建docker-compose的docker-compose.yml启动脚本

#rocketmq集群
version: '3.3'

services:
  rocketmq-namesrv-1:
    image: apache/rocketmq:5.1.0
    container_name: rocketmq-namesrv-1
    ports:
      - 9876:9876
    volumes:
      - /home/docker/rocketmq/logs/nameserver1:/home/rocketmq/logs/rocketmqlogs
    command: sh mqnamesrv
    networks:
      - rocketmq

  rocketmq-namesrv-2:
    image: apache/rocketmq:5.1.0
    container_name: rocketmq-namesrv-2
    ports:
      - 9877:9876
    volumes:
      - /home/docker/rocketmq/logs/nameserver2:/home/rocketmq/logs/rocketmqlogs
    command: sh mqnamesrv
    networks:
      - rocketmq

  rocketmq-broker-1:
    image: apache/rocketmq:5.1.0
    container_name: rocketmq-broker-1
    ports:
      - 10911:10911
    volumes:
      - /home/docker/rocketmq/logs/broker1:/home/rocketmq/logs/rocketmqlogs
      - /home/docker/rocketmq/conf/broker1/broker.conf:/home/rocketmq/rocketmq-5.1.0/conf/broker.conf
    environment:
      TZ: Asia/Shanghai
      NAMESRV_ADDR: "rocketmq-namesrv-1:9876;rocketmq-namesrv-2:9876"
      JAVA_OPTS: "-Duser.home=/opt"
      JAVA_OPT_EXT: "-server -Xms256m -Xmx256m -Xmn256m"
    command: sh mqbroker -c /home/rocketmq/rocketmq-5.1.0/conf/broker.conf autoCreateTopicEnable=true &
    depends_on:
      - rocketmq-namesrv-1
      - rocketmq-namesrv-2
    networks:
      - rocketmq

  rocketmq-broker-2:
    image: apache/rocketmq:5.1.0
    container_name: rocketmq-broker-2
    ports:
      - 10912:10911
    volumes:
      - /home/docker/rocketmq/logs/broker2:/home/rocketmq/logs/rocketmqlogs
      - /home/docker/rocketmq/conf/broker2/broker.conf:/home/rocketmq/rocketmq-5.1.0/conf/broker.conf
    environment:
      TZ: Asia/Shanghai
      NAMESRV_ADDR: "rocketmq-namesrv-1:9876;rocketmq-namesrv-2:9876"
      JAVA_OPTS: " -Duser.home=/opt"
      JAVA_OPT_EXT: "-server -Xms256m -Xmx256m -Xmn256m"
    command: sh mqbroker -c /home/rocketmq/rocketmq-5.1.0/conf/broker.conf autoCreateTopicEnable=true &
    depends_on:
      - rocketmq-namesrv-1
      - rocketmq-namesrv-2
    networks:
      - rocketmq

  rocketmq-broker-3:
    image: apache/rocketmq:5.1.0
    container_name: rocketmq-broker-3
    ports:
      - 10913:10911
    volumes:
      - /home/docker/rocketmq/logs/broker3:/home/rocketmq/logs/rocketmqlogs
      - /home/docker/rocketmq/conf/broker3/broker.conf:/home/rocketmq/rocketmq-5.1.0/conf/broker.conf
    environment:
      TZ: Asia/Shanghai
      NAMESRV_ADDR: "rocketmq-namesrv-1:9876;rocketmq-namesrv-2:9876"
      JAVA_OPTS: " -Duser.home=/opt"
      JAVA_OPT_EXT: "-server -Xms256m -Xmx256m -Xmn256m"
    command: sh mqbroker -c /home/rocketmq/rocketmq-5.1.0/conf/broker.conf autoCreateTopicEnable=true &
    depends_on:
      - rocketmq-namesrv-1
      - rocketmq-namesrv-2
    networks:
      - rocketmq

  rocketmq-console:
    image: styletang/rocketmq-console-ng
    container_name: rocketmq-console
    ports:
      - 9091:8080
    environment:
      JAVA_OPTS: -Drocketmq.namesrv.addr=rocketmq-namesrv-1:9876;rocketmq-namesrv-2:9876 -Dcom.rocketmq.sendMessageWithVIPChannel=false
    networks:
      - rocketmq
    depends_on:
      - rocketmq-broker-1
      - rocketmq-broker-2
      - rocketmq-broker-3

networks:
  rocketmq:
    driver: bridge

创建broker服务器配置文件broker.conf

本次我们搭建三台broker服务器，分别在宿主机卷映射目录下创建我们的配置文件

/home/docker/rocketmq/conf/broker1/broker.conf
/home/docker/rocketmq/conf/broker2/broker.conf
/home/docker/rocketmq/conf/broker3/broker.conf

（1）创建配置文件目录，以broker1为例：

命令：mkdir -p /home/docker/rocketmq/conf/broker1

2）使用vi编辑器创建broker配置文件broker.conf，只需更改服务器名称即可

brokerClusterName = DefaultCluster
#broker名称
brokerName = rocketmq-broker-1
brokerId = 0
deleteWhen = 04
fileReservedTime = 48
brokerRole = ASYNC_MASTER
flushDiskType = ASYNC_FLUSH

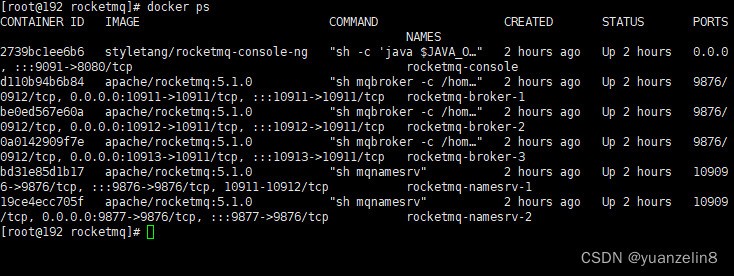

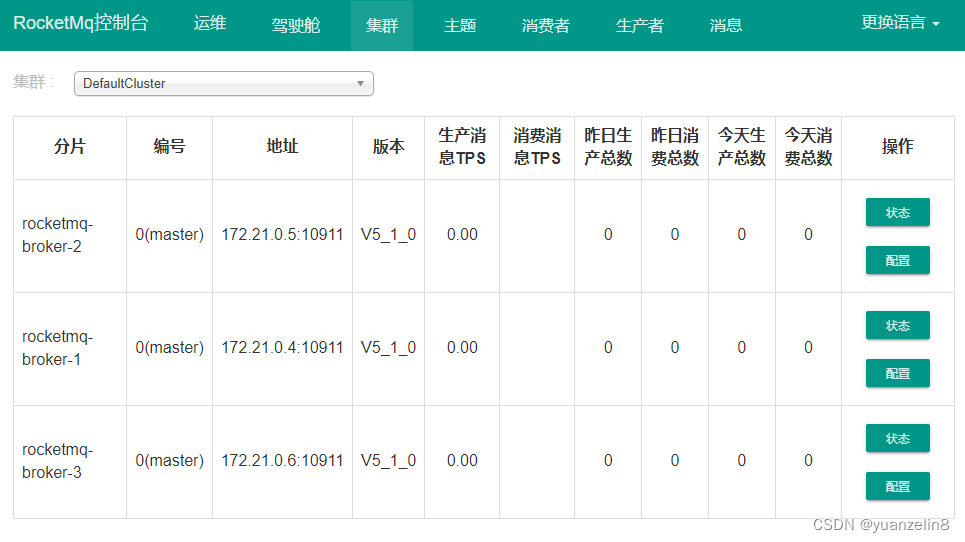

启动集群并验证

命令：docker-compose -p rocketmq up -d
