【学习笔记】pyQt5学习笔记(5）——Google object detection API训练用软件

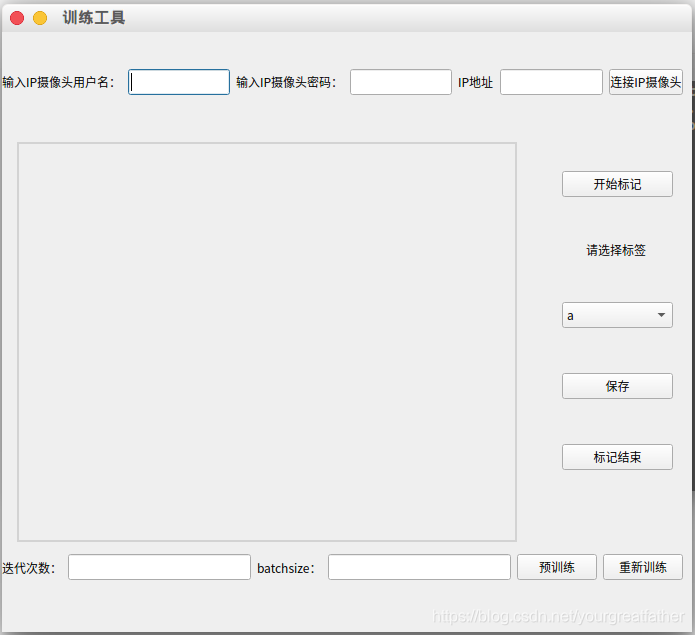

之前的学习笔记是调用训练好的结果来做识别，分为加载本地图片识别和调用usb摄像头实时识别（IP摄像头暂时不可用）；但是首先有了训练才能有训练好的模型文件供我们使用。加之训练过程比较复杂，调用多个脚本，上手不便；制作训练用的软件一方面是方便自己使用，另一方面也对自己是个锻炼。软件最终的界面如下图所示，可以使用IP、USB摄像头实时将图片显示在界面中，并在界面中实时进行标记（类似于labelImg软件），标记结束后将标准xml文件、原始图像保存在软件脚本所在的目录下，xml保存于annotatis文件夹，图像保存于img文件夹，同时自动分配训练集及验证集，并生成对应的tfrecord格式，这些数据一并保存在data文件夹下。在标记过程中亦可自动生成lable map文件。

软件目前需加载预训练模型进行训练（重新训练按钮暂无作用），使用ssd_mobilenet_v2_coco的预训练数据集（API原始代码就带）。软件可以完成从图像采集----->标注图像----->生成所需数据----->进行训练----->生成pb模型文件的整个过程。

存在问题就是目前想完成自动修改config文件的功能，用户在界面中指定训练次数以及batchsize，但是还不能实现。

软件需进一步优化。所有的源代码如下，本软件只是将object detection API的各个脚本封装在了一起。

# -*- coding: utf-8 -*-
from __future__ import absolute_import
from __future__ import division
from __future__ import print_function

import hashlib
import io
import logging
import sys
import cv2
import os
import random
import PIL.Image
import tensorflow as tf
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'
import functools
import json
from lxml import etree
from PyQt5 import QtCore, QtGui, QtWidgets
from PyQt5.QtWidgets import *
from PyQt5.QtCore import *
from PyQt5.QtGui import *
from xml.dom.minidom import Document
from object_detection.utils import dataset_util
from object_detection.utils import label_map_util
from object_detection.utils import config_util
from object_detection.builders import dataset_builder
from object_detection.builders import graph_rewriter_builder
from object_detection.builders import model_builder
from object_detection.legacy import trainer
from google.protobuf import text_format
from object_detection import exporter
from object_detection.protos import pipeline_pb2

class MyLabel(QLabel):
	x0 = 0
	y0 = 0
	x1 = 0
	y1 = 0
	flag = False
    #鼠标点击事件
	def mousePressEvent(self,event):
		global x_start
		global y_start
		if event.buttons () == QtCore.Qt.LeftButton:
			self.flag = True
			self.x0 = event.x()
			self.y0 = event.y()
			x_start = self.x0
			y_start = self.y0

    #鼠标释放事件
	def mouseReleaseEvent(self,event):
			self.flag = False

    #鼠标移动事件
	def mouseMoveEvent(self,event):
		global x_end
		global y_end
		if event.buttons () == QtCore.Qt.LeftButton:
			if self.flag:
				self.x1 = event.x()
				self.y1 = event.y()
				self.update()
				x_end = self.x1
				y_end = self.y1
    #绘制事件
	def paintEvent(self, event):
		super().paintEvent(event)
		rect =QRect(self.x0, self.y0, abs(self.x1-self.x0), abs(self.y1-self.y0))
		painter = QPainter(self)
		painter.setPen(QPen(Qt.green,2,Qt.SolidLine))
		painter.drawRect(rect)


class Ui_train_window(QtWidgets.QWidget):
	def setupUi(self):
		self.setObjectName("train_window")
		self.resize(690, 600)
		self.setMinimumSize(QtCore.QSize(690, 600))
		self.setMaximumSize(QtCore.QSize(690, 600))
		self.horizontalLayoutWidget = QtWidgets.QWidget(self)
		self.horizontalLayoutWidget.setGeometry(QtCore.QRect(0, 10, 681, 80))
		self.horizontalLayoutWidget.setObjectName("horizontalLayoutWidget")
		self.horizontalLayout = QtWidgets.QHBoxLayout(self.horizontalLayoutWidget)
		self.horizontalLayout.setContentsMargins(0, 0, 0, 0)
		self.horizontalLayout.setObjectName("horizontalLayout")
		self.lab_enter_name = QtWidgets.QLabel(self.horizontalLayoutWidget)
		self.lab_enter_name.setObjectName("lab_enter_name")
		self.horizontalLayout.addWidget(self.lab_enter_name)
		self.le_username = QtWidgets.QLineEdit(self.horizontalLayoutWidget)
		self.le_username.setObjectName("le_username")
		self.horizontalLayout.addWidget(self.le_username)
		self.lab_enter_pw = QtWidgets.QLabel(self.horizontalLayoutWidget)
		self.lab_enter_pw.setObjectName("lab_enter_pw")
		self.horizontalLayout.addWidget(self.lab_enter_pw)
		self.le_userpw = QtWidgets.QLineEdit(self.horizontalLayoutWidget)
		self.le_userpw.setObjectName("le_userpw")
		self.le_userpw.setEchoMode(QLineEdit.Password)
		self.horizontalLayout.addWidget(self.le_userpw)
		self.label = QtWidgets.QLabel(self.horizontalLayoutWidget)
		self.label.setObjectName("label")
		self.horizontalLayout.addWidget(self.label)
		self.le_ipadr = QtWidgets.QLineEdit(self.horizontalLayoutWidget)
		self.le_ipadr.setObjectName("le_ipadr")
		self.horizontalLayout.addWidget(self.le_ipadr)
		self.btn_openIPcam = QtWidgets.QPushButton(self.horizontalLayoutWidget)
		self.btn_openIPcam.setMinimumSize(QtCore.QSize(50, 10))
		self.btn_openIPcam.setObjectName("btn_openIPcam")
		self.horizontalLayout.addWidget(self.btn_openIPcam)

		self.showpic= MyLabel(self)
		self.showpic.setGeometry(QtCore.QRect(15, 110, 500, 400))
		self.showpic.setMinimumSize(QtCore.QSize(500, 400))
		self.showpic.setMaximumSize(QtCore.QSize(500, 400))
		self.showpic.setObjectName("show")
		self.showpic.setStyleSheet(("border:2px solid lightgray"))

		self.verticalLayoutWidget = QtWidgets.QWidget(self)
		self.verticalLayoutWidget.setGeometry(QtCore.QRect(560, 100, 111, 381))
		self.verticalLayoutWidget.setObjectName("verticalLayoutWidget")
		self.verticalLayout = QtWidgets.QVBoxLayout(self.verticalLayoutWidget)
		self.verticalLayout.setContentsMargins(0, 0, 0, 0)
		self.verticalLayout.setObjectName("verticalLayout")

		self.btn_start = QtWidgets.QPushButton(self.verticalLayoutWidget)
		self.btn_start.setObjectName("btn_start")
		self.verticalLayout.addWidget(self.btn_start)

		self.lab_herelable = QtWidgets.QLabel(self.verticalLayoutWidget)
		self.lab_herelable.setObjectName("lab_herelable")
		self.lab_herelable.setMaximumSize(QtCore.QSize(16777215, 15))
		self.verticalLayout.addWidget(self.lab_herelable)

		self.combo_label = QtWidgets.QComboBox(self.verticalLayoutWidget)
		self.combo_label.setObjectName("combo_label")
		self.combo_label.addItem("")
		self.combo_label.addItem("")
		self.combo_label.addItem("")
		self.combo_label.addItem("")
		self.combo_label.addItem("")
		self.combo_label.addItem("")
		self.verticalLayout.addWidget(self.combo_label)
		self.btn_save = QtWidgets.QPushButton(self.verticalLayoutWidget)
		self.btn_save.setObjectName("btn_save")
		self.verticalLayout.addWidget(self.btn_save)
		self.btn_finish = QtWidgets.QPushButton(self.verticalLayoutWidget)
		self.btn_finish.setObjectName("btn_finish")
		self.verticalLayout.addWidget(self.btn_finish)
		self.horizontalLay
