本文介绍如何利用PCL库实现点云数据的加载与显示。通过C++代码示例，展示了设置背景颜色、添加球体元素及文本等操作，并实现了点云文件的加载与渲染。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

利用pcl库来显示点云

1. CMakeLists.txt

cmake_minimum_required(VERSION 2.8 FATAL_ERROR)

project(show_pointcloud)

find_package(PCL 1.7 REQUIRED)

include_directories(${PCL_INCLUDE_DIRS})
link_directories(${PCL_LIBRARY_DIRS})
add_definitions(${PCL_DEFINITIONS})

add_executable (show_pointcloud show_pointcloud.cpp)
target_link_libraries (show_pointcloud ${PCL_LIBRARIES})

2. show_pointcloud.cpp

    #include <pcl/visualization/cloud_viewer.h>
    #include <iostream>
    #include <pcl/io/io.h>
    #include <pcl/io/pcd_io.h>

    int user_data;

    void
    viewerOneOff (pcl::visualization::PCLVisualizer& viewer)
    {
        viewer.setBackgroundColor (1.0, 0.5, 1.0);
        pcl::PointXYZ o;
        o.x = 1.0;
        o.y = 0;
        o.z = 0;
        viewer.addSphere (o, 0.25, "sphere", 0);
        std::cout << "i only run once" << std::endl;

    }

    void
    viewerPsycho (pcl::visualization::PCLVisualizer& viewer)
    {
        static unsigned count = 0;
        std::stringstream ss;
        ss << "Once per viewer loop: " << count++;
        viewer.removeShape ("text", 0);
        viewer.addText (ss.str(), 200, 300, "text", 0);

        //FIXME: possible race condition here:
        user_data++;
    }

    int
    main ()
    {
        pcl::PointCloud<pcl::PointXYZRGBA>::Ptr cloud (new pcl::PointCloud<pcl::PointXYZRGBA>);
        pcl::io::loadPCDFile ("./../map.pcd", *cloud);

        pcl::visualization::CloudViewer viewer("Cloud Viewer");

        //blocks until the cloud is actually rendered
        viewer.showCloud(cloud);

        //use the following functions to get access to the underlying more advanced/powerful
        //PCLVisualizer

        //This will only get called once
        viewer.runOnVisualizationThreadOnce (viewerOneOff);

        //This will get called once per visualization iteration
        viewer.runOnVisualizationThread (viewerPsycho);
        while (!viewer.wasStopped ())
        {
        //you can also do cool processing here
        //FIXME: Note that this is running in a separate thread from viewerPsycho
        //and you should guard against race conditions yourself...
        user_data++;
        }
        return 0;
    }

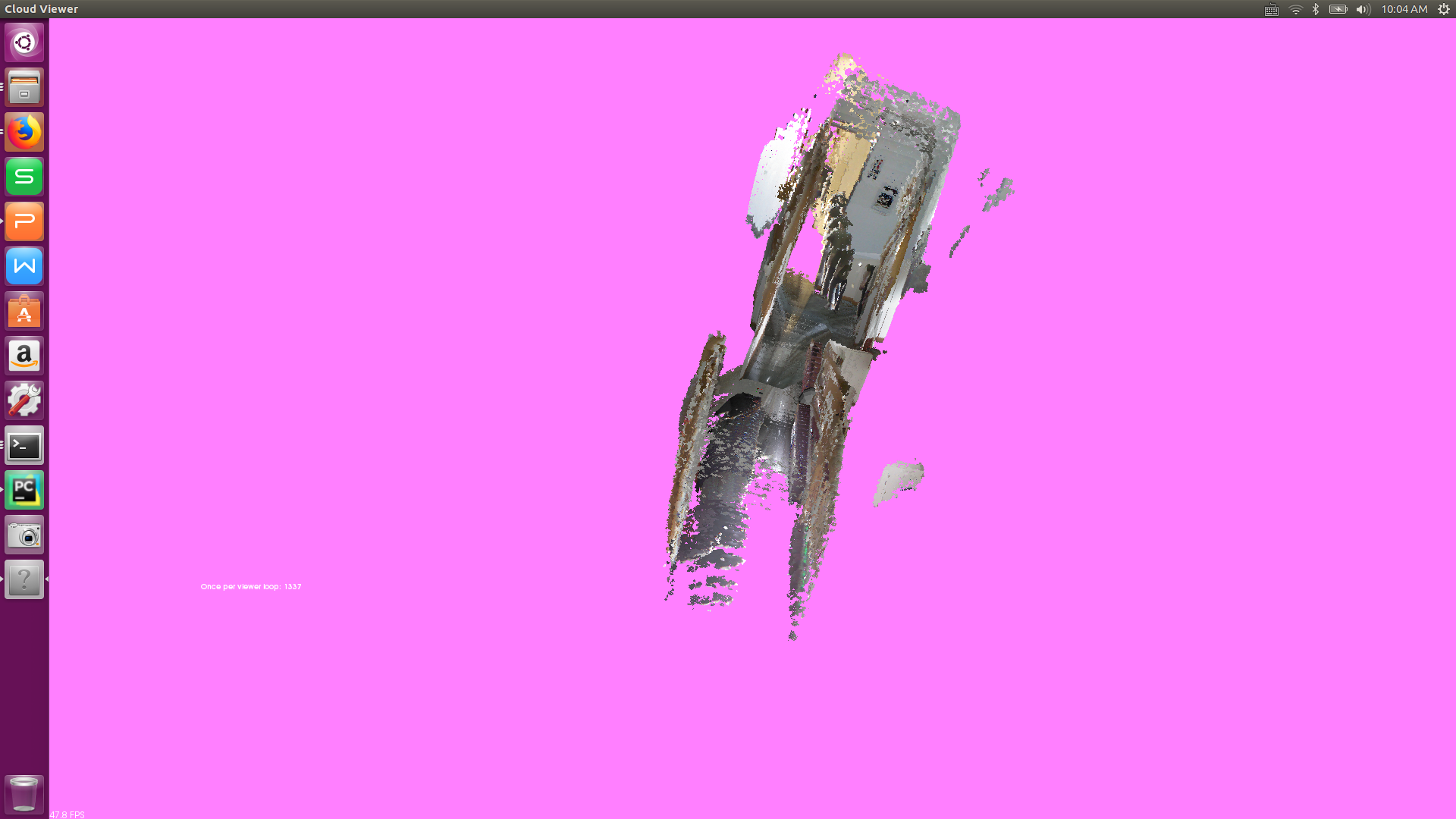

3. 显示的结果
