HID标准规定的Usage Pages

HID（Human Interface Devices）设备的Usage用于向计算机传达设备的功能用途等。Usage（用法）提供了对HID设备的输入、输出和特性报告中的数据项的描述。HID规范已经定义的用法的存在，并不保证计算机系统或应用软件将识别或利用该数据项。

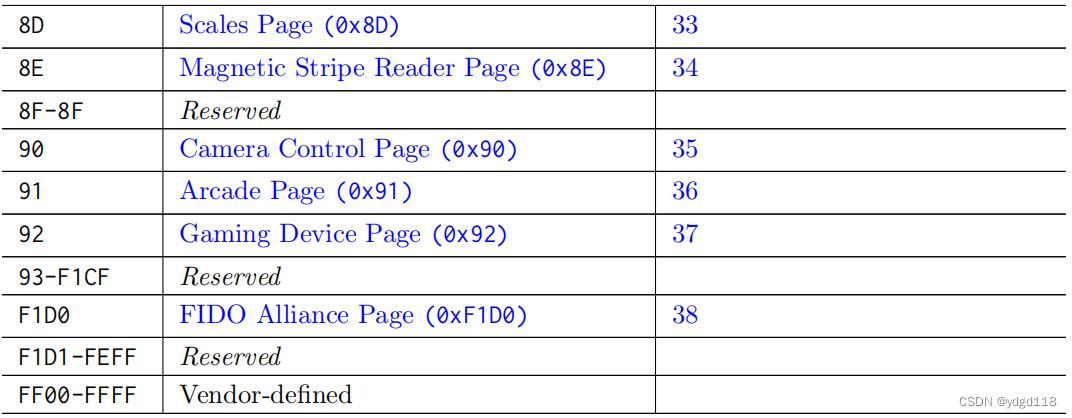

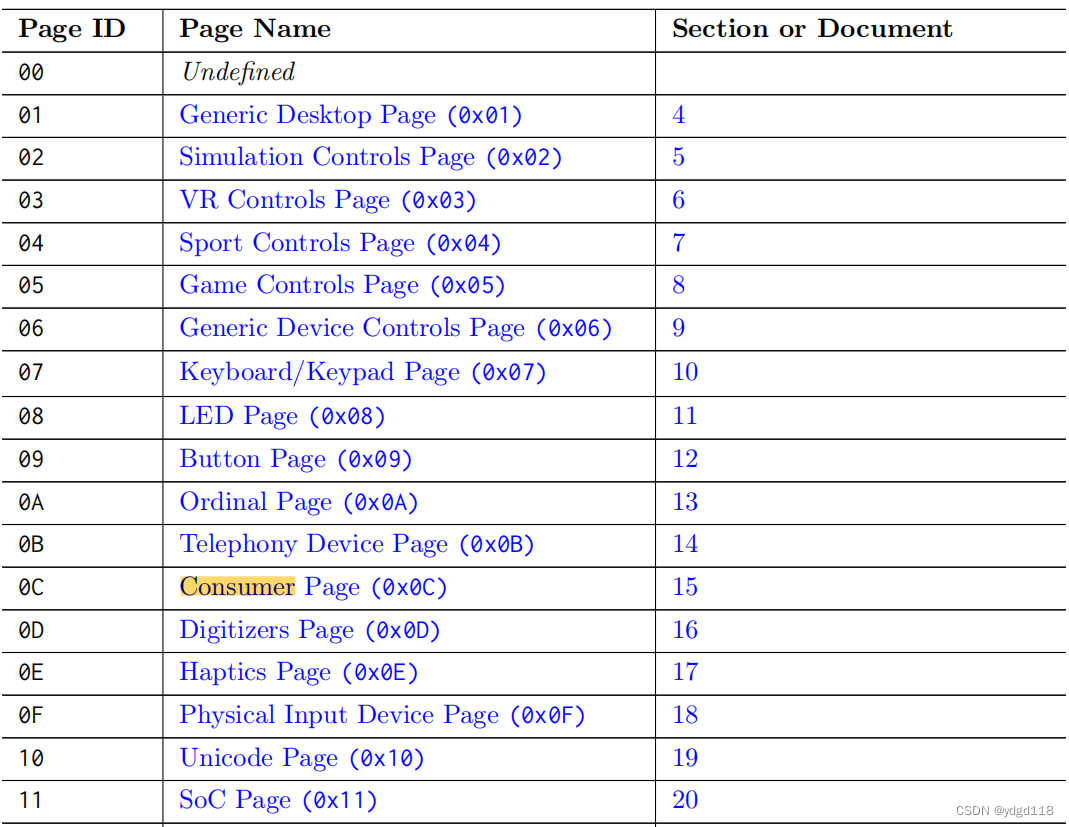

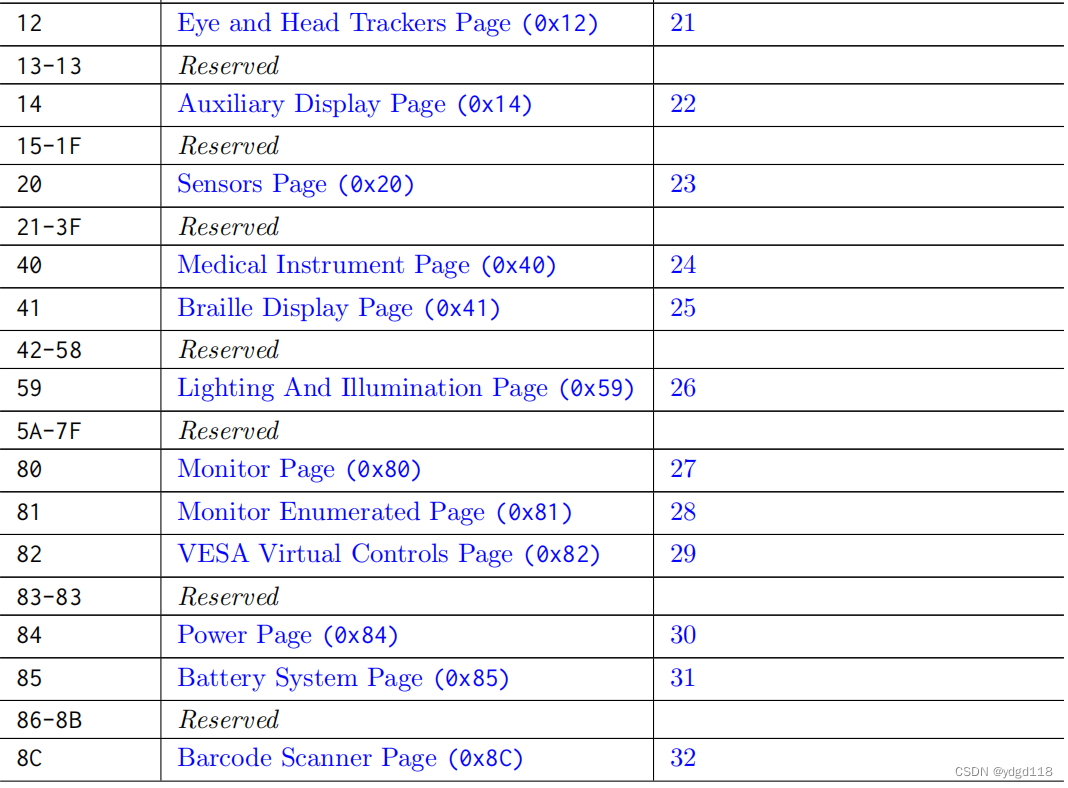

HID标准规定的Usage Pages（Page ID和Page Name），详细见下表：

Page ID Page Name Section or Document
00 Undefined
01 Generic Desktop Page (0x01) 4
02 Simulation Controls Page (0x02) 5
03 VR Controls Page (0x03) 6
04 Sport Controls Page (0x04) 7
05 Game Controls Page (0x05) 8
06 Generic Device Controls Page (0x06) 9
07 Keyboard/Keypad Page (0x07) 10
08 LED Page (0x08) 11
09 Button Page (0x09) 12
0A Ordinal Page (0x0A) 13
0B Telephony Device Page (0x0B) 14
0C Consumer Page (0x0C) 15
0D Digitizers Page (0x0D) 16
0E Haptics Page (0x0E) 17
0F Physical Input Device Page (0x0F) 18
10 Unicode Page (0x10) 19
11 SoC Page (0x11) 20
12 Eye and Head Trackers Page (0x12) 21
13-13 Reserved
14 Auxiliary Display Page (0x14) 22
15-1F Reserved
20 Sensors Page (0x20) 23
21-3F Reserved
40 Medical Instrument Page (0x40) 24
41 Braille Display Page (0x41) 25
42-58 Reserved
59 Lighting And Illumination Page (0x59) 26
5A-7F Reserved
80 Monitor Page (0x80) 27
81 Monitor Enumerated Page (0x81) 28
82 VESA Virtual Controls Page (0x82) 29
83-83 Reserved
84 Power Page (0x84) 30
85 Battery System Page (0x85) 31
86-8B Reserved
8C Barcode Scanner Page (0x8C) 32
