1.简价

webflux

依赖及启动

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-webflux</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

启动

@SpringBootApplication
@RestController
public class FluxWebApplication {
	public static void main(String[] args) {
		SpringApplication.run(FluxWebApplication.class, args);
	}
	@GetMapping("hello")
	public String hello(){
		return"hello";
	}
	@GetMapping("hello2")
	public Mono<String> hello2(){
		return Mono.just("hello2");
	}
	@GetMapping("hello3")
	public Flux<String> hello3(){
		String[] str = {"123","abc"};
		return Flux.fromArray(str).filter(s -> "123".equals(s));
	}
}

基于spring-boot的初始化

WebFluxAutoConfiguration

@Configuration
@ConditionalOnWebApplication(type = ConditionalOnWebApplication.Type.REACTIVE)
@ConditionalOnClass(WebFluxConfigurer.class)
//定义初始化requestmapper请求处理(fluxweb主配置)
@ConditionalOnMissingBean({ WebFluxConfigurationSupport.class })
//服务容器配置/序列化/反序列化/参数校验
@AutoConfigureAfter({ ReactiveWebServerFactoryAutoConfiguration.class,
		CodecsAutoConfiguration.class, ValidationAutoConfiguration.class })
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE + 10)
public class WebFluxAutoConfiguration {

	//略去一些代码

	//下面fluxweb基础配置初始,包含 beanfactory,view转换器,请求参数处器等
	//这块其实跟springmvc类似
	@Configuration
	@EnableConfigurationProperties({ ResourceProperties.class, WebFluxProperties.class })
	@Import({ EnableWebFluxConfiguration.class })
	public static class WebFluxConfig implements WebFluxConfigurer {

		private final ResourceProperties resourceProperties;

		private final WebFluxProperties webFluxProperties;

		private final ListableBeanFactory beanFactory;
		//方法参数处理器
		private final List<HandlerMethodArgumentResolver> argumentResolvers;
		//处定义http编解码器
		private final List<CodecCustomizer> codecCustomizers;

		private final ResourceHandlerRegistrationCustomizer resourceHandlerRegistrationCustomizer;
		//视图转换器
		private final List<ViewResolver> viewResolvers;
		//略去一些代码

	}
    //略去一些代码
}

fluxweb主配置
WebFluxConfigurationSupport
在这里插入图片描述

/**
 * The main class for Spring WebFlux configuration.
 * <p>Import directly or extend and override protected methods to customize.
 */
public class WebFluxConfigurationSupport implements ApplicationContextAware {
    //跨域配置列表
	@Nullable
	private Map<String, CorsConfiguration> corsConfigurations;
	//请求路径匹配配置器
	@Nullable
	private PathMatchConfigurer pathMatchConfigurer;
    //视图转器注册器
	@Nullable
	private ViewResolverRegistry viewResolverRegistry;
	//请求分发处理器,类似mvc的DispatcherServlet
	@Bean
	public DispatcherHandler webHandler() {
		return new DispatcherHandler();
	}
    //响应异常处理器
	@Bean
	@Order(0)
	public WebExceptionHandler responseStatusExceptionHandler() {
		return new WebFluxResponseStatusExceptionHandler();
	}

	//请求mapping处理器,跟mvc的差不多,找出请求与方法的映射关系
	@Bean
	public RequestMappingHandlerMapping requestMappingHandlerMapping() {
		RequestMappingHandlerMapping mapping = createRequestMappingHandlerMapping();
		mapping.setOrder(0);
		mapping.setContentTypeResolver(webFluxContentTypeResolver());
		mapping.setCorsConfigurations(getCorsConfigurations());
        //path匹配配置
		PathMatchConfigurer configurer = getPathMatchConfigurer();
		Boolean useTrailingSlashMatch = configurer.isUseTrailingSlashMatch();
		if (useTrailingSlashMatch != null) {
			mapping.setUseTrailingSlashMatch(useTrailingSlashMatch);
		}
		Boolean useCaseSensitiveMatch = configurer.isUseCaseSensitiveMatch();
		if (useCaseSensitiveMatch != null) {
			mapping.setUseCaseSensitiveMatch(useCaseSensitiveMatch);
		}

		return mapping;
	}
	//略去一些代码
	//请求media类型策略处理器,如application/jsion;text/html等对应不用处理策略
	@Bean
	public RequestedContentTypeResolver webFluxContentTypeResolver() {
		RequestedContentTypeResolverBuilder builder = new RequestedContentTypeResolverBuilder();
		configureContentTypeResolver(builder);
		return builder.build();
	}
	//略去一些代码
    //路由功能mapping ,请求路由与处理器的关系映射,跟上面的RequestMappingHandlerMapping 实现一样的功能
	@Bean
	public RouterFunctionMapping routerFunctionMapping() {
		RouterFunctionMapping mapping = createRouterFunctionMapping();
		mapping.setOrder(-1); // go before RequestMappingHandlerMapping
		mapping.setMessageReaders(serverCodecConfigurer().getReaders());
		mapping.setCorsConfigurations(getCorsConfigurations());
		return mapping;
	}
	//略去一些代码

	/**
	 * Return a handler mapping ordered at Integer.MAX_VALUE-1 with mapped
	 * resource handlers. To configure resource handling, override
	 * {@link #addResourceHandlers}.
	 */
	@Bean
	public HandlerMapping resourceHandlerMapping() {
		ResourceLoader resourceLoader = this.applicationContext;
		if (resourceLoader == null) {
			resourceLoader = new DefaultResourceLoader();
		}
		ResourceHandlerRegistry registry = new ResourceHandlerRegistry(resourceLoader);
		addResourceHandlers(registry);

		AbstractHandlerMapping handlerMapping = registry.getHandlerMapping();
		if (handlerMapping != null) {
			PathMatchConfigurer configurer = getPathMatchConfigurer();
			Boolean useTrailingSlashMatch = configurer.isUseTrailingSlashMatch();
			Boolean useCaseSensitiveMatch = configurer.isUseCaseSensitiveMatch();
			if (useTrailingSlashMatch != null) {
				handlerMapping.setUseTrailingSlashMatch(useTrailingSlashMatch);
			}
			if (useCaseSensitiveMatch != null) {
				handlerMapping.setUseCaseSensitiveMatch(useCaseSensitiveMatch);
			}
		}
		else {
			handlerMapping = new EmptyHandlerMapping();
		}
		return handlerMapping;
	}

	/**
	 * Override this method to add resource handlers for serving static resources.
	 * @see ResourceHandlerRegistry
	 */
	protected void addResourceHandlers(ResourceHandlerRegistry registry) {
	}

	//mappinghandler 适配器
	@Bean
	public RequestMappingHandlerAdapter requestMappingHandlerAdapter() {
		RequestMappingHandlerAdapter adapter = createRequestMappingHandlerAdapter();
		adapter.setMessageReaders(serverCodecConfigurer().getReaders());
		adapter.setWebBindingInitializer(getConfigurableWebBindingInitializer());
		adapter.setReactiveAdapterRegistry(webFluxAdapterRegistry());

		ArgumentResolverConfigurer configurer = new ArgumentResolverConfigurer();
		configureArgumentResolvers(configurer);
		adapter.setArgumentResolverConfigurer(configurer);

		return adapter;
	}

	/**
	 * http请求消息编解码器
	 * Return the configurer for HTTP message readers and writers.
	 */
	@Bean
	public ServerCodecConfigurer serverCodecConfigurer() {
		ServerCodecConfigurer serverCodecConfigurer = ServerCodecConfigurer.create();
		configureHttpMessageCodecs(serverCodecConfigurer);
		return serverCodecConfigurer;
	}

	/**
	 * Return the {@link ConfigurableWebBindingInitializer} to use for
	 * initializing all {@link WebDataBinder} instances.
	 */
	protected ConfigurableWebBindingInitializer getConfigurableWebBindingInitializer() {
		ConfigurableWebBindingInitializer initializer = new ConfigurableWebBindingInitializer();
		initializer.setConversionService(webFluxConversionService());
		initializer.setValidator(webFluxValidator());
		MessageCodesResolver messageCodesResolver = getMessageCodesResolver();
		if (messageCodesResolver != null) {
			initializer.setMessageCodesResolver(messageCodesResolver);
		}
		return initializer;
	}

	//略去一些代码

	//响应结果处理器
	@Bean
	public ResponseEntityResultHandler responseEntityResultHandler() {
		return new ResponseEntityResultHandler(serverCodecConfigurer().getWriters(),
				webFluxContentTypeResolver(), webFluxAdapterRegistry());
	}
    //响应体处理器
	@Bean
	public ResponseBodyResultHandler responseBodyResultHandler() {
		return new ResponseBodyResultHandler(serverCodecConfigurer().getWriters(),
				webFluxContentTypeResolver(), webFluxAdapterRegistry());
	}

	//视图处理器
	@Bean
	public ViewResolutionResultHandler viewResolutionResultHandler() {
		ViewResolverRegistry registry = getViewResolverRegistry();
		List<ViewResolver> resolvers = registry.getViewResolvers();
		ViewResolutionResultHandler handler = new ViewResolutionResultHandler(
				resolvers, webFluxContentTypeResolver(), webFluxAdapterRegistry());
		handler.setDefaultViews(registry.getDefaultViews());
		handler.setOrder(registry.getOrder());
		return handler;
	}
    //服务响应处理器
	@Bean
	public ServerResponseResultHandler serverResponseResultHandler() {
		List<ViewResolver> resolvers = getViewResolverRegistry().getViewResolvers();
		ServerResponseResultHandler handler = new ServerResponseResultHandler();
		handler.setMessageWriters(serverCodecConfigurer().getWriters());
		handler.setViewResolvers(resolvers);
		return handler;
	}
}

扫描路由与handler method映射

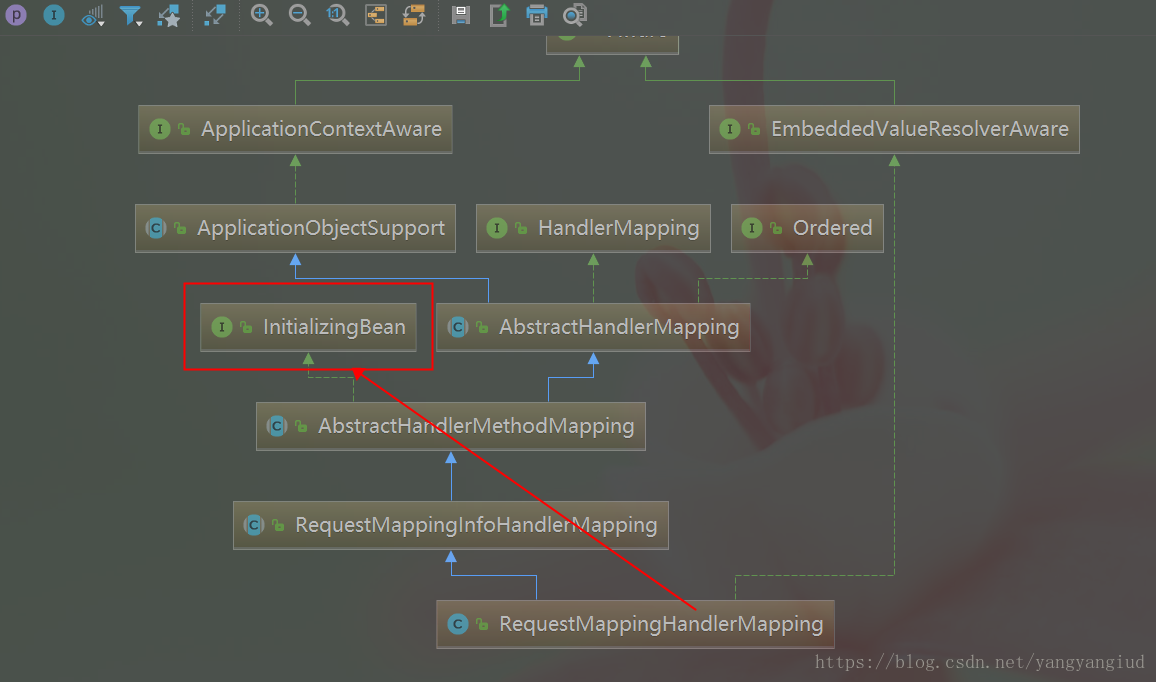

a . RequestMappingHandlerMapping
在这里插入图片描述

   //该方法被InitializingBean 的afterPropertiesSet 调用
    protected void initHandlerMethods() {
        //扫描容器所有对象
        String[] beanNames = obtainApplicationContext().getBeanNamesForType(Object.class);
        for (String beanName : beanNames) {
            if (!beanName.startsWith(SCOPED_TARGET_NAME_PREFIX)) {
                Class<?> beanType = null;
                try {
                    beanType = obtainApplicationContext().getType(beanName);
                }
                catch (Throwable ex) {
                    // An unresolvable bean type, probably from a lazy bean - let's ignore it.
                    if (logger.isDebugEnabled()) {
                        logger.debug("Could not resolve target class for bean with name '" + beanName + "'", ex);
                    }
                }
                //检是是否为handler method
                if (beanType != null && isHandler(beanType)) {
                    detectHandlerMethods(beanName);
                }
            }
        }
        handlerMethodsInitialized(getHandlerMethods());
    }

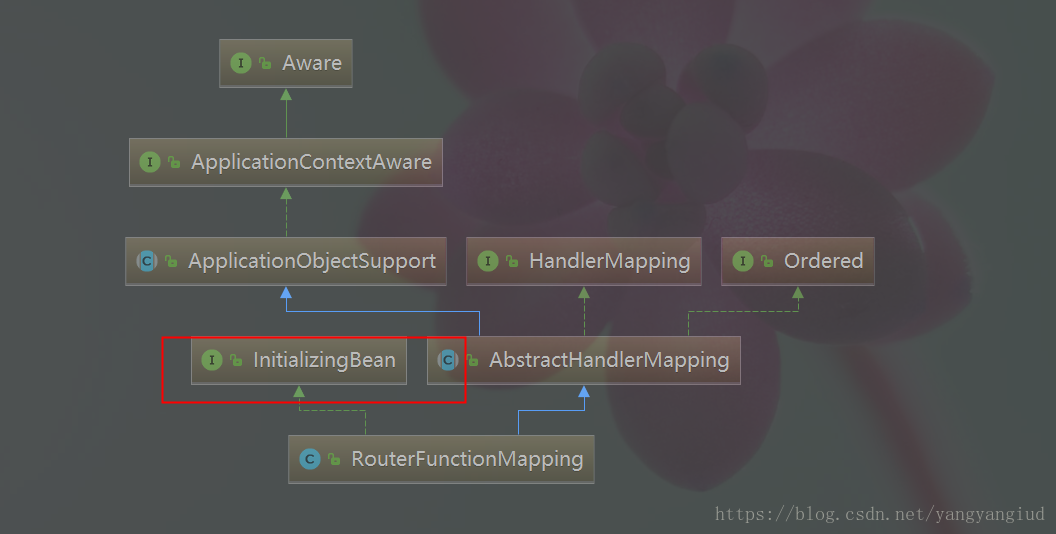

b. RouterFunctionMapping
在这里插入图片描述

    /**
     * Initialized the router functions by detecting them in the application context.
     */
    protected void initRouterFunctions() {
        if (logger.isDebugEnabled()) {
            logger.debug("Looking for router functions in application context: " +
                    getApplicationContext());
        }
        //获取路由信息
        List<RouterFunction<?>> routerFunctions = routerFunctions();
        if (!CollectionUtils.isEmpty(routerFunctions) && logger.isInfoEnabled()) {
            routerFunctions.forEach(routerFunction -> logger.info("Mapped " + routerFunction));
        }
        //转为一个组合由路信息
        this.routerFunction = routerFunctions.stream()
                .reduce(RouterFunction::andOther)
                .orElse(null);
    }

    private List<RouterFunction<?>> routerFunctions() {
        //创建rooter容器,并从beanfactory获取rooter并注入该容器
        RouterFunctionMapping.SortedRouterFunctionsContainer container = new RouterFunctionMapping.SortedRouterFunctionsContainer();
        obtainApplicationContext().getAutowireCapableBeanFactory().autowireBean(container);

        return CollectionUtils.isEmpty(container.routerFunctions) ? Collections.emptyList() :
                container.routerFunctions;
    }

路由转发处理器
DispatcherHandler

    //初始化
    protected void initStrategies(ApplicationContext context) {
        //handlermapping 包含requesthandlermapping 和 RouterFunctionMapping
        Map<String, HandlerMapping> mappingBeans = BeanFactoryUtils.beansOfTypeIncludingAncestors(
                context, HandlerMapping.class, true, false);

        ArrayList<HandlerMapping> mappings = new ArrayList<>(mappingBeans.values());
        AnnotationAwareOrderComparator.sort(mappings);
        this.handlerMappings = Collections.unmodifiableList(mappings);

        Map<String, HandlerAdapter> adapterBeans = BeanFactoryUtils.beansOfTypeIncludingAncestors(
                context, HandlerAdapter.class, true, false);

        this.handlerAdapters = new ArrayList<>(adapterBeans.values());
        AnnotationAwareOrderComparator.sort(this.handlerAdapters);

        Map<String, HandlerResultHandler> beans = BeanFactoryUtils.beansOfTypeIncludingAncestors(
                context, HandlerResultHandler.class, true, false);

        this.resultHandlers = new ArrayList<>(beans.values());
        //排一下序
        AnnotationAwareOrderComparator.sort(this.resultHandlers);
    }

内嵌容器启用

ReactiveWebServerFactoryConfiguration

abstract class ReactiveWebServerFactoryConfiguration {
	//内置启用netty容器
	@Configuration
	@ConditionalOnMissingBean(ReactiveWebServerFactory.class)
	@ConditionalOnClass({ HttpServer.class })
	static class EmbeddedNetty {
		@Bean
		public NettyReactiveWebServerFactory nettyReactiveWebServerFactory() {
			return new NettyReactiveWebServerFactory();
		}

	}
	//内置启用tomcat容器
	@Configuration
	@ConditionalOnMissingBean(ReactiveWebServerFactory.class)
	@ConditionalOnClass({ org.apache.catalina.startup.Tomcat.class })
	static class EmbeddedTomcat {
		@Bean
		public TomcatReactiveWebServerFactory tomcatReactiveWebServerFactory() {
			return new TomcatReactiveWebServerFactory();
		}
	}
	//内置启用webservser容器
	@Configuration
	@ConditionalOnMissingBean(ReactiveWebServerFactory.class)
	@ConditionalOnClass({ org.eclipse.jetty.server.Server.class })
	static class EmbeddedJetty {

		@Bean
		public JettyReactiveWebServerFactory jettyReactiveWebServerFactory() {
			return new JettyReactiveWebServerFactory();
		}

	}
	//内置启用Undertow容器
	@ConditionalOnMissingBean(ReactiveWebServerFactory.class)
	@ConditionalOnClass({ Undertow.class })
	static class EmbeddedUndertow {

		@Bean
		public UndertowReactiveWebServerFactory undertowReactiveWebServerFactory() {
			return new UndertowReactiveWebServerFactory();
		}
	}
}

http协议处理
HttpHandlerAutoConfiguration

@Configuration
@ConditionalOnClass({ DispatcherHandler.class, HttpHandler.class })
@ConditionalOnWebApplication(type = ConditionalOnWebApplication.Type.REACTIVE)
@ConditionalOnMissingBean(HttpHandler.class)
@AutoConfigureAfter({ WebFluxAutoConfiguration.class })
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE + 10)
public class HttpHandlerAutoConfiguration {
	@Configuration
	public static class AnnotationConfig {

		private ApplicationContext applicationContext;

		public AnnotationConfig(ApplicationContext applicationContext) {
			this.applicationContext = applicationContext;
		}

		@Bean
		public HttpHandler httpHandler() {
			return WebHttpHandlerBuilder.applicationContext(this.applicationContext)
					.build();
		}
	}
}
评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
