同台PC上虚拟设备之间组网

1. 组网需求

如图所示，MSR36-20_1和MSR36-20_2是运行在同一台PC上的两台MSR36类型虚拟设备。要求将MSR36-20_1的GE_0/0与MSR36-20_2的GE_0/0连接在一起，实现两台虚拟设备的组网。

2. 组网图

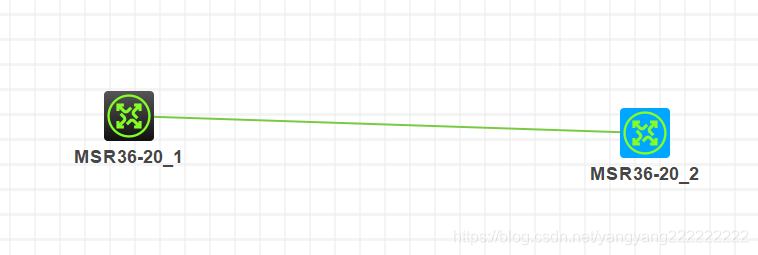

虚拟设备组网图



3. 配置步骤

(1)      添加设备

在设备选择区点击路由器图标，在弹出的设备类型窗口中拖拽两台MSR36设备到工作台。

(2)      添加连线

右键单击设备MSR36-20_1，在弹出的右键菜单中点击“连线”菜单项，鼠标进入连线模式。单击设备MSR36-20_2，在弹出的接口选择菜单中选择“GE_0/0”作为连线源接口，然后单击设备MSR36-20_2，在弹出的接口选择菜单中选择GE_0/0作为连线目的接口。连线完成后，鼠标右击退出连线状态。

(3)      启动设备

选中两台设备并右击，在弹出菜单中点击“启动”菜单项，启动设备。

(4)      登陆设备

设备启动后双击设备，或者在右键菜单中点击“启动命令行终端”菜单项来启动命令行终端。

4. 验证配置

通过命令行终端将连线两端的接口IP配置成同一网段，通过ping命令验证连接。

路由器一：

<H3C>system-view
System View: return to User View with Ctrl+Z.
[H3C]interface GigabitEthernet 0/0
[H3C-GigabitEthernet0/0]IP address 192.168.1.254 24
[H3C-GigabitEthernet0/0]exit
[H3C]telnet server enable
[H3C]line vty 0 4
[H3C-line-vty0-4]set authentication password simple 123456
[H3C-line-vty0-4]user-role network-admin
[H3C-line-vty0-4]exit

路由器二：

<H3C>system-view
System View: return to User View with Ctrl+Z.
[H3C]interface GigabitEthernet 0/0
[H3C-GigabitEthernet0/0]IP address 192.168.1.101 24
[H3C-GigabitEthernet0/0]exit
[H3C]telnet server enable
[H3C]line vty 0 4
[H3C-line-vty0-4]set authentication password simple 123456
[H3C-line-vty0-4]user-role network-admin
[H3C-line-vty0-4]exit

IP地址互ping:

[H3C]ping 192.168.1.254
Ping 192.168.1.254 (192.168.1.254): 56 data bytes, press CTRL_C to break
56 bytes from 192.168.1.254: icmp_seq=0 ttl=255 time=1.000 ms
56 bytes from 192.168.1.254: icmp_seq=1 ttl=255 time=1.000 ms
56 bytes from 192.168.1.254: icmp_seq=2 ttl=255 time=1.000 ms
56 bytes from 192.168.1.254: icmp_seq=3 ttl=255 time=1.000 ms
56 bytes from 192.168.1.254: icmp_seq=4 ttl=255 time=1.000 ms

--- Ping statistics for 192.168.1.254 ---
5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss
round-trip min/avg/max/std-dev = 1.000/1.000/1.000/0.000 ms
[H3C]%May 10 18:18:45:280 2021 H3C PING/6/PING_STATISTICS: Ping statistics for 192.168.1.254: 5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss, round-trip min/avg/max/std-dev = 1.000/1.000/1.000/0.000 ms.

[H3C]ping 192.168.1.101
Ping 192.168.1.101 (192.168.1.101): 56 data bytes, press CTRL_C to break
56 bytes from 192.168.1.101: icmp_seq=0 ttl=255 time=1.418 ms
56 bytes from 192.168.1.101: icmp_seq=1 ttl=255 time=0.814 ms
56 bytes from 192.168.1.101: icmp_seq=2 ttl=255 time=0.727 ms
56 bytes from 192.168.1.101: icmp_seq=3 ttl=255 time=0.761 ms
56 bytes from 192.168.1.101: icmp_seq=4 ttl=255 time=0.576 ms

--- Ping statistics for 192.168.1.101 ---
5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss
round-trip min/avg/max/std-dev = 0.576/0.859/1.418/0.290 ms
[H3C]%May 10 18:16:49:258 2021 H3C PING/6/PING_STATISTICS: Ping statistics for 192.168.1.101: 5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss, round-trip min/avg/max/std-dev = 0.576/0.859/1.418/0.290 ms.
