Opencv VideoCapture File, Camera and stream

Opencv VideoCapture File, Camera and stream

Opencv tutorial simple code in C++ to capture video from File, Ip camera stream and also the web camera plug into the computer.. The key is to have installed the FFMPEG espetially in case of reading the strem of IP cameras. In windows just use Opencv Installation by Nugets packages Here. Simple easy under 2 minutes instalation. In Linux you need to follow the instruction bellow. If you are on Debian Like package system. Under Fedora Red hat dist just use different aproach. Code is simple and installation is the key..

Windows use nugets packages

Linux you have to install and build Opencv With FFMPEG. Also simple.

It is easy capture video in opencv

Video capture
 in opencv is really easy task, but for little bit experienced user.



What is problem?
Problem is instalation of Opencv without recommended dependencies.

Just install all basic libs that is recommended on website.

# Basic packages
sudo apt-get -y install build-essential
sudo apt-get -y install cmake
sudo apt-get -y install pkg-config

# Basic dependencies
sudo apt-get -y install libgtk2.0-dev python-dev python-numpy

# OpenCV dependencies part II. sudo apt-get -y install libgstreamer0.10-0-dbg libgstreamer0.10-0 libgstreamer0.10-dev libgstreamer-plugins-base0.10-dev libunicap2 libunicap2-dev libdc1394-22-dev libdc1394-22 libdc1394-utils libv4l-0 libv4l-dev  sudo apt-get -y install libavcodec-dev libavformat-dev libswscale-dev  sudo apt-get -y install libdc1394-22-dev libdc1394-utils  sudo apt-get -y install libjpeg-dev libpng-dev libtiff-dev libjasper-dev  sudo apt-get -y install libtiff5 libtiff5-dev sudo apt-get -y install libopenexr-dev sudo apt-get -y install libjasper-dev # Algebra sudo apt-get -y install libeigen3-dev

Install ffmpeg .

You need to download and build by own in case of Debian Jessie or some version of Ubuntu.
Just download, extract tar archive ffmpeg.tar.bz2.

1 configure instalation ./configure -- with Right Params.

2 Make - make -j4

3 install - make install



4 write config ldconfig -v





Compile opencv

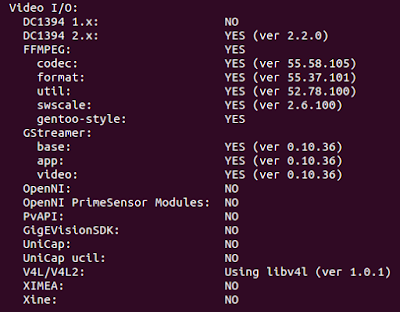

Check this table during the opencv instalation. if you have FFMPEG and all AV libs

AVCODEC AVFORMAT AVUTIL AVSWSCALE you can continue with opencv installation.

Opencv config



Read video file in Opencv

VideoCapture capture("input.mp4");

Read rtsp stream in Opencv

VideoCapture capture("rtsp://USER:PASS@xxx.xxx.xxx.xxx/axis-media/media.amp?camera=2");
Some of my next post will be about rtsp stream format. PLS subscribe.

Read web camera in Opencv

VideoCapture capture(0);



Opencv 3 and higher c++ code





#include
#include
#include

using namespace std;
using namespace cv;

//Chose input

//VideoCapture capture(0);
VideoCapture capture("rtsp://USER:PASS@xxx.xxx.xxx.xxx/axis-media/media.amp?camera=2");
//VideoCapture capture("input.mp4");


// create mat to fill by external source
Mat frame;

for(;;)

{
       bool OK = capture.grab();

        if (OK == false){
        cout << "cannot grab" << endl;
        }
        else{
          // retrieve a frame of your source
           capture.read(frame);
          //OR
         // capture >> frame;
       }
}
