TDD(测试驱动开发)演示案例：SpringBoot+Junit4+myBatis

简介

通过一个小型的电商系统，来演示TDD开发过程

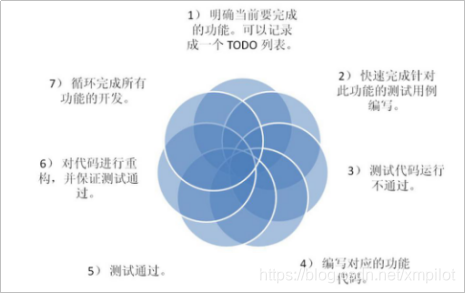

TDD开发流程



技术环境

IDEA

SpringBoot 2.1.1.RELEASE

Junit4.12

myBatis

案例源码

https://gitee.com/sujianfeng/lab-tdd

功能需求

用户模块

用户信息：用户名、密码、年龄、累计充值金额、累计使用金额、当前余额、消费积分

模块功能：新增用户、查询用户

充值模块

用户充值

消费模块

用户购买

功能说明

积分规则：

当用户累计消费100元以下，每元1累积积分

当用户累计消费101元到1000元，每1元累计2积分

当用户累计消费1001元以上，每1元累计3积分

开发设计

技术与规范

RESTful规范

三层体系：controller、service、dao层

持久化框架：myBatis

数据库：mySql

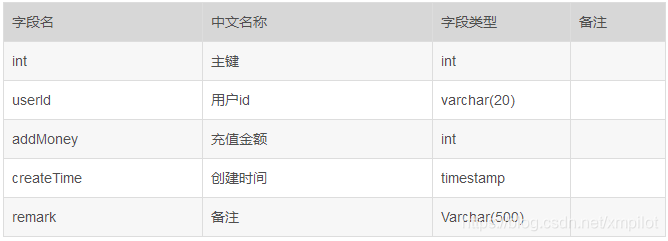

数据库设计

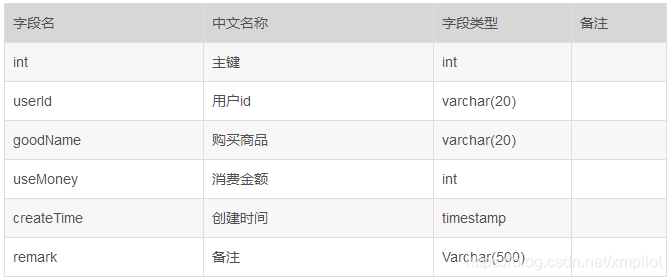

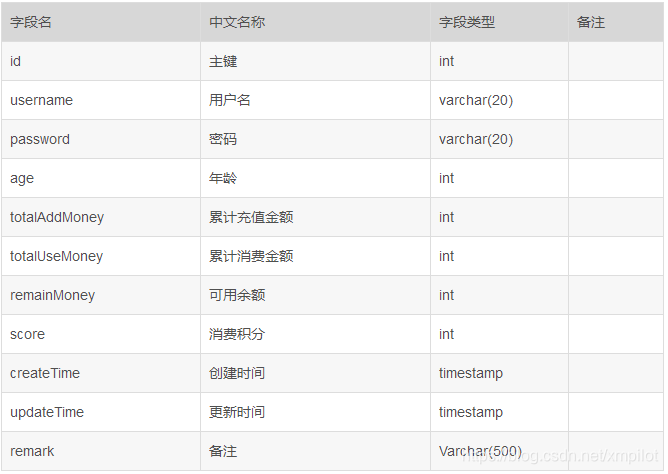

用户表、充值记录表、消费记录表

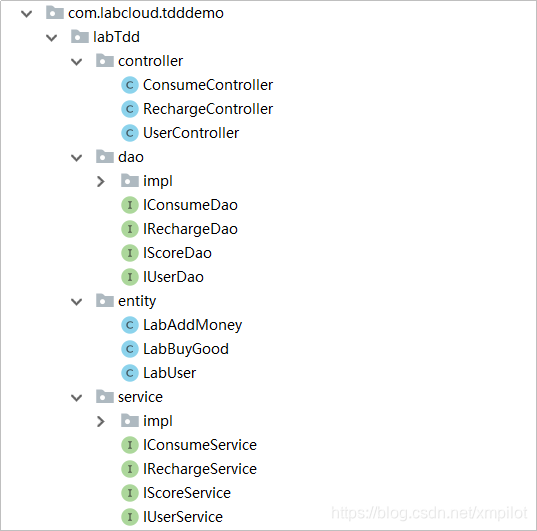

模块与类定义

实体类定义

用户：LabUser

充值记录：LabAddMoney

购买记录：LabBuyGood

接口方法定义

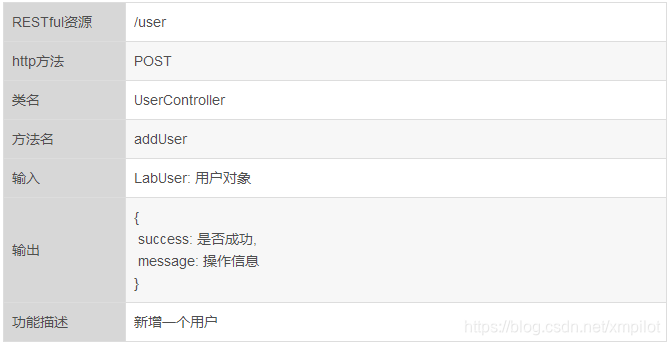

新增用户

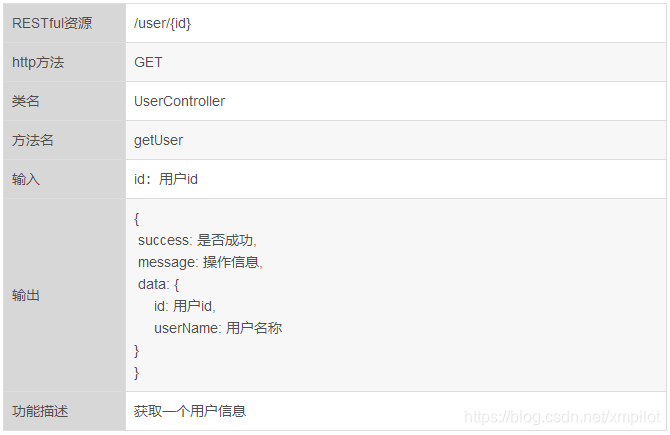

查询用户

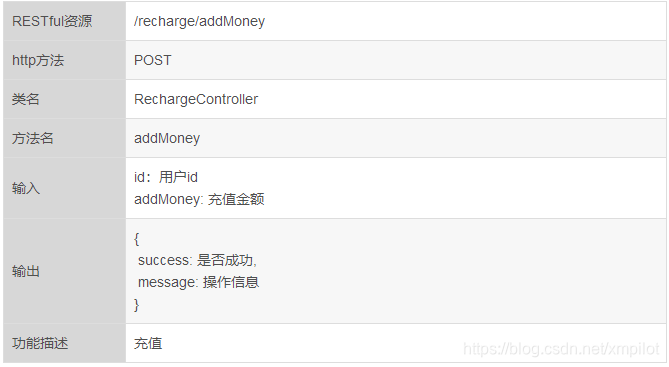

充值接口

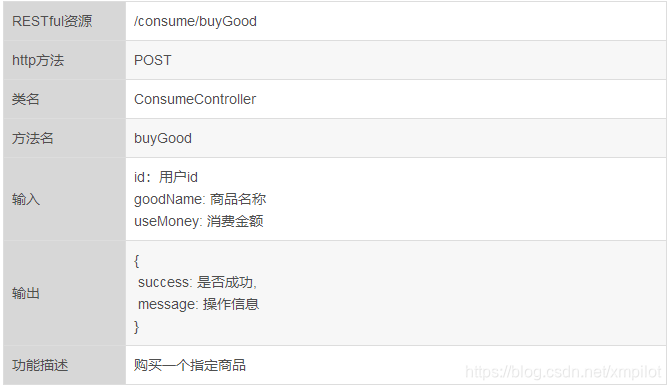

消费接口

TDD开发过程

利用模板自动生成测试和生成代码框架

开发标准化后，完全可以使用模板化生成框架代码



Controller测试代码编写

先准备好一个ControllerTestBase基础类，主要是使用mockMvc方式模拟好web请求，并将rest请求和返回的结果检查统一写好，方便调用，可用通过源码网址（https://gitee.com/sujianfeng/lab-tdd

）获取代码。

从这里大家可用看出，编写测试代码只要根据开发设计好的文档进行编写，基本上不怎么思考，从这里我们应该可用体会到，TDD是以需求为中心进行编写单元测试代码。

一个模块对应单元测试类，一个接口对应一个单元测试方法：

UserControllerKotlinTest 用户测试

public class UserControllerTest extends ControllerTestBase {

    @Override
    public void beforeTest() {
        //测试前环境准备
        //初始化session等
    }

    @Override
    public void afterTest() {
        //测试后恢复现场
    }

    @Test
    public void addUser() throws Exception {
        post("/user",
                new HashMap<String, String>(){{put("username", "张三"); put("password", "123");}},
                new HashMap<String, Object>(){{put("$.success", true); put("$.message", "新增成功!");}}
        );
    }

    @Test
    public void getUser() throws Exception {
        get("/getUser",
                new HashMap<String, String>(){{put("id", "1");}},
                new HashMap<String, Object>(){{put("$.success", true);}}
        );
    }
}

RechargeControllerTest 充值测试

public class RechargeControllerTest extends ControllerTestBase {
    @Override
    public void beforeTest() {
        //测试前环境准备
        //初始化session等
    }

    @Override
    public void afterTest() {
        //测试后恢复现场
    }

    /**
     * 充值
     * @throws Exception
     */
    @Test
    public void addMoney() throws Exception {
        post("/addMoney",
                new HashMap<String, String>(){{put("id", "1"); put("addMoney", "1000");}},
                new HashMap<String, Object>(){{put("$.success", true);}}
        );
    }
}

ConsumeControllerTest 消费测试


public class ConsumeControllerTest extends ControllerTestBase {
    @Override
    public void beforeTest() {
        //测试前环境准备
        //初始化session等
    }

    @Override
    public void afterTest() {
        //测试后恢复现场
    }

    /**
     * 消费测试
     * @throws Exception
     */
    @Test
    public void buyGood() throws Exception {
        post("/buyGood",
                new HashMap<String, String>(){{put("id", "1"); put("useMoney", "1000"); put("goodName", "apple");}},
                new HashMap<String, Object>(){{put("$.success", true);}}
        );
    }
}

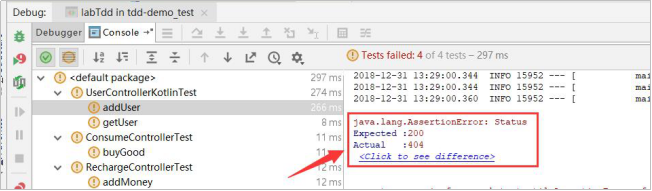

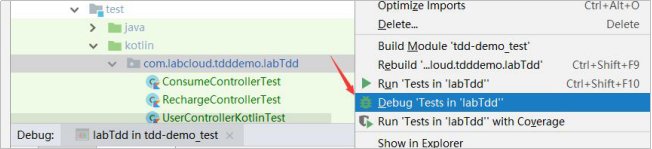

运行单元测试



几个接口测试都失败了，很显然这是正确的反馈，我们的产品代码都还没写，接下来开始准备编写产品代码。



Controller产品代码编写

UserController 用户

TDD就是先写测试代码后写产品代码，那么我们就可用根据测试代码编写产品代码了。

注意：这里只是简单写了下Controller的产品代码，目前是为了先让他测试通过（当然也可以先不管它测试是否通过，后面再测试也行，看个人习惯），后面再补充业务代码。这样写的意义在于：保证接口的输入输出是符合功能需求的。

一个单位测试类对应一个产品代码类，一个测试方法对应一个产品代码方法：

@RestController
public class UserController {

    @PostMapping("/user")
    public Map<String, Object> addUser(LabUser labUser){
        Map<String, Object> result = new HashMap<>();

        result.put("success", true);
        result.put("message", "新增成功!");
        return result;
    }

    @GetMapping("/getUser")
    public Map<String, Object> getUser(int id){
        Map<String, Object> result = new HashMap<>();

        result.put("success", true);
        return result;
    }
}

RechargeController 充值

@RestController
public class RechargeController {

    @PostMapping("/addMoney")
    public Map<String, Object> addMoney(int id, int addMoney){
        Map<String, Object> result = new HashMap<>();


        result.put("success", true);
        result.put("message", "充值成功!");
        return result;
    }
}

ConsumeController消费

@RestController
public class ConsumeController {

    @PostMapping("/buyGood")
    public Map<String, Object> buyGood(int id, int useMoney, String goodName){
        Map<String, Object> result = new HashMap<>();

        result.put("success", true);
        result.put("message", "消费成功!");
        return result;
    }
}

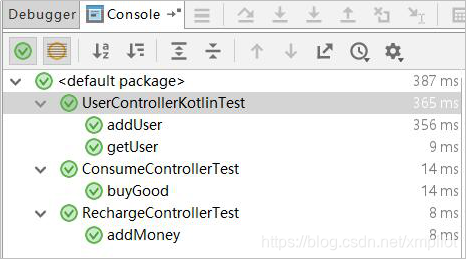

运行UserControllerKotlinTest

从上面代码看出，我们看出，只是写了接口的基本实现，写完，我们再来测试下：



Ok，那么我们基本实现了controller层的代码编写，并且通过单元测试保证了接口的基本功能是没有问题的，那么接下来我们可用进行service层代码的编写。

Servcice层测试代码编写

UserServiceTest用户测试

由于UserService依赖UserDao，需要使用mock把UserDao隔离出去：

userDao = mock(IUserDao.class);

当访问userDao时，根据模拟返回值：

when(userDao.addUser(opResult, labUser)).thenReturn(1);

when(userDao.getUser(opResult, 1)).thenReturn(labUserReturn);

使用反射工具类，将userDao注入到userService的私有属性中:

ReflectionTddUtils.setFieldValue(userService, "userDao", userDao);

public class UserServiceTest {

    private static UserService userService;
    private static RestResult opResult = RestResult.create();
    private static IUserDao userDao;



    @BeforeClass
    public void beforeTest() throws NoSuchFieldException, IllegalAccessException {
        userDao = mock(IUserDao.class);
        userService = new UserService();
        ReflectionTddUtils.setFieldValue(userService, "userDao", userDao);
    }

    /**
     * 创建用户测试
     */
    @Test
    public void addUser(){
        LabUser labUser = new LabUser();
        labUser.setUsername("张三");
        labUser.setAge(12);
        when(userDao.addUser(opResult, labUser)).thenReturn(1);
        int update = userService.addUser(opResult, labUser);
        assertThat(update, equalTo(1));
    }

    /**
     * 查询用户测试
     */
    @Test
    public void getUser(){
        LabUser labUserReturn = new LabUser();
        labUserReturn.setId(1);
        when(userDao.getUser(opResult, 1)).thenReturn(labUserReturn);
        LabUser labUser = userService.getUser(opResult, 1);
        assertThat(labUser.getId(), equalTo(1));
    }
}

UserService产品代码编写

@Service
public class UserService implements IUserService {

    @Autowired
    private IUserDao userDao;

    @Override
    public int addUser(RestResult opResult, LabUser labUser) {
        return userDao.addUser(opResult, labUser);
    }

    @Override
    public LabUser getUser(RestResult opResult, int id) {
        return userDao.getUser(opResult, id);
    }
}

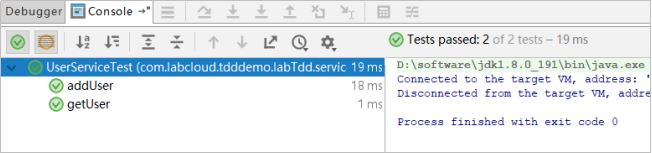

运行UserServiceTest

RechargeServiceTest充值测试代码

public class RechargeServiceTest {

    private static IRechargeService rechargeService;
    private static IRechargeDao rechargeDao;
    private static RestResult opResult = RestResult.create();

    @BeforeClass
    public static void beforeTest() throws NoSuchFieldException, IllegalAccessException {
        rechargeDao = mock(IRechargeDao.class);
        rechargeService = new RechargeService();
        ReflectionTddUtils.setFieldValue(rechargeService, "rechargeDao", rechargeDao);
    }

    @Test
    public void addMoney(){
        when(rechargeDao.addMoney(opResult, 1, 1000)).thenReturn(1);
        int update = rechargeService.addMoney(opResult, 1, 1000);
        assertThat(update, equalTo(1));
    }
}

RechargeService充值产品代码

public class RechargeService implements IRechargeService {

    @Autowired
    private IRechargeDao rechargeDao;

    @Override
    public int addMoney(RestResult opResult, int id, int addMoney) {
        return rechargeDao.addMoney(opResult, id, addMoney);
    }
}

ConsumeServiceTest消费测试代码

public class ConsumeServiceTest {

    private static IConsumeService consumeService;
    private static IConsumeDao consumeDao;
    private static RestResult restResult = RestResult.create();


    @BeforeClass
    public static void beforeClass() throws NoSuchFieldException, IllegalAccessException {
        consumeService = new ConsumeService();
        consumeDao = mock(IConsumeDao.class);
        ReflectionTddUtils.setFieldValue(consumeService, "consumeDao", consumeDao);
    }

    @Test
    public void test(){

        when(consumeDao.buyGood(restResult, 1, 3000, "apple")).thenReturn(1);
        int update = consumeService.buyGood(restResult, 1, 3000, "apple");
        assertThat(update, equalTo(1));
    }
}

ConsumeService消费产品代码

public class ConsumeService implements IConsumeService {

    @Autowired
    private IConsumeDao consumeDao;

    @Override
    public int buyGood(RestResult opResult, int id, int useMoney, String goodName) {
        return consumeDao.buyGood(opResult, id, useMoney, goodName);
    }
}

全部测试service的测试代码



Dao层测试代码编写

Dao层测试由于依赖sqlSessionTemplate ，那么也需要把sqlSessionTemplate 进行隔离：

sqlSessionTemplate = mock(SqlSessionTemplate.class);

UserDaoTest 用户dao测试

public class UserDaoTest {

    private static SqlSessionTemplate sqlSessionTemplate;
    private static IUserDao userDao;
    private static RestResult restResult = RestResult.create();

    @BeforeClass
    public static void beforeClass() throws NoSuchFieldException, IllegalAccessException {
        sqlSessionTemplate = mock(SqlSessionTemplate.class);
        userDao = new UserDao();
        ReflectionTddUtils.setFieldValue(userDao, "sqlSessionTemplate", sqlSessionTemplate);
    }

    @Test
    public void space(){
        assertThat(userDao.space(), equalTo("UserDao"));
    }

    @Test
    public void addUser(){
        LabUser labUser = new LabUser();
        labUser.setId(1);
        labUser.setUsername("张三");
        when(sqlSessionTemplate.insert(userDao.space() + ".insertUser", labUser)).thenReturn(1);
        int update = userDao.addUser(restResult, labUser);
        assertThat(update, equalTo(1));
    }

    @Test
    public void getUser(){
        Map<Object, Object> params = new HashMap<>();
        params.put("condition", " and id = 1");
        LabUser labUser = new LabUser();
        labUser.setId(1);
        labUser.setUsername("张三");
        List<Object> rows = new ArrayList<>();
        rows.add(labUser);
        when(sqlSessionTemplate.selectList(userDao.space() + ".queryLabUsers", params)).thenReturn(rows);
        LabUser labUserReturn = userDao.getUser(restResult, 1);
        assertThat(labUserReturn.getId(), equalTo(labUser.getId()));
    }


    @Test
    public void queryLabUsers(){
        Map<Object, Object> params = new HashMap<>();
        params.put("condition", " and id = 1");
        LabUser labUser = new LabUser();
        labUser.setId(1);
        labUser.setUsername("张三");
        List<Object> rows = new ArrayList<>();
        rows.add(labUser);
        when(sqlSessionTemplate.selectList(userDao.space() + ".queryLabUsers", params)).thenReturn(rows);
        List<LabUser> rowsReturn = userDao.queryLabUsers(restResult, " and id = 1");
        assertThat(rowsReturn.get(0).getId(), equalTo(labUser.getId()));
    }
}

UserDao用户dao产品代码

@Repository
public class UserDao implements IUserDao {

    @Autowired
    private SqlSessionTemplate sqlSessionTemplate;
    @Override
    public String space(){
        return StringUtilsEx.rightStr(this.getClass().getName(), ".");
    }

    /**
     * 新增用户
     * @param opResult
     * @param labUser
     * @return
     */
    @Override
    public int addUser(RestResult opResult, LabUser labUser) {
        return sqlSessionTemplate.insert(space() + ".insertUser", labUser);
    }

    /**
     * 查询用户
     * @param opResult
     * @param id
     * @return
     */
    @Override
    public LabUser getUser(RestResult opResult, int id) {
        List<LabUser> rows = queryLabUsers(opResult, String.format(" and id = %s", id));
        return rows.size() > 0 ? rows.get(0) : null;
    }

    /**
     * 根据条件查询多个用户信息
     * @param condition
     * @return
     */
    public List<LabUser> queryLabUsers(RestResult restResult, String condition){
        Map<Object, Object> params = new HashMap<>();
        params.put("condition", condition);
        List<LabUser> rows = sqlSessionTemplate.selectList(space() + ".queryLabUsers", params);
        return rows;
    }

    /**
     * 用户余额变更
     * @param restResult
     * @param userId
     * @param money
     */
    public int userMoneyUpdate(RestResult restResult, int userId, int money){
        Map<String, Object> params = new HashMap<>();
        params.put("userId", userId);
        params.put("money", money);
        params.put("totalAddMoney", money > 0 ? money : 0);
        params.put("totalUseMoney", money < 0 ? money : 0);
        int update = sqlSessionTemplate.update(space() + ".updateUserMoney", params);
        if (update == 0){
            LabUser labUser = new LabUser();
            labUser.setId(userId);
            labUser.setTotalAddMoney(0);
            labUser.setTotalAddMoney(0);
            labUser.setScore(0);
            labUser.setRemainMoney(money);
            update = addUser(restResult, labUser);
        }
        return update;
    }
}

其他三个dao代码类似，就不列出来了，完整代码在此（https://gitee.com/sujianfeng/lab-tdd）

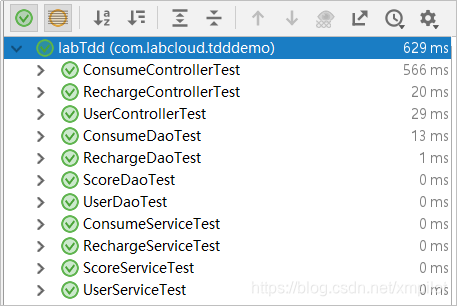

全部单元测试效果

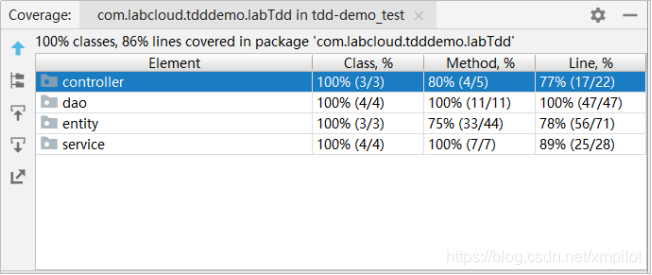

查看测试覆盖率



集成测试

集成测试整个系统所有模块联合起来进行测试，集成测试一定是要在单元测试全部通过后才进行测试。

@Transactional
public class labTddIntegrationTest extends ControllerTestBase {


    @Autowired
    private IUserService userService;
    @Autowired
    private IConsumeService consumeService;
    @Autowired
    private IRechargeService rechargeService;
    @Autowired
    private IScoreService scoreService;

    private LabUser labUser;


    @Override
    public void beforeTest() {
        RestResult restResult = RestResult.create();
        //新增一个用户
        userService.addUser(restResult, new LabUser(0, "张三"));
        //取出这个用户数据
        List<LabUser> labUsers = userService.queryLabUsers(restResult, "");
        labUser = labUsers.get(0);
    }

    private void assertUserInfo(LabUser labUserTmp, int totalAddMoney, int totalUseMoney, int remainMoney, int scoreMoney){
        assertThat("用户累计充值金额存储错误!", labUserTmp.getTotalAddMoney(), equalTo(totalAddMoney));
        assertThat("用户累计消费金额存储错误!", labUserTmp.getTotalUseMoney(), equalTo(totalUseMoney));
        assertThat("用户可用金额存储错误!", labUserTmp.getRemainMoney(), equalTo(remainMoney));
        assertThat("用户可用积分存储错误!", labUserTmp.getScore(), equalTo(scoreMoney));
    }

    @Override
    public void afterTest() {
   }

    @Test
    public void test(){
        LabUser labUserTmp = null;
        RestResult restResult = RestResult.create();

        //充值1000
        rechargeService.addMoney(restResult, labUser.getId(), 1000);
        labUserTmp = userService.getUser(restResult, labUser.getId());
        assertUserInfo(labUserTmp, 1000, 0, 1000, 0);

        //再充值12000
        rechargeService.addMoney(restResult, labUser.getId(), 12000);
        labUserTmp = userService.getUser(restResult, labUser.getId());
        assertUserInfo(labUserTmp, 13000, 0, 13000, 0);

        //消费5500
        consumeService.buyGood(restResult, labUser.getId(), 5500, "apple");
        labUserTmp = userService.getUser(restResult, labUser.getId());
        assertUserInfo(labUserTmp, 13000, 5500, 13000 - 5500, 100 + 900 * 2 + (5500 - 1000) * 3);

    }
}
