SpringBoot + Spring Security + Thymeleaf实现权限控制

第一步以来引入:

重要部分有两处

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.xm.demo</groupId>
  <artifactId>security</artifactId>
  <version>1.0-SNAPSHOT</version>

  <name>security</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

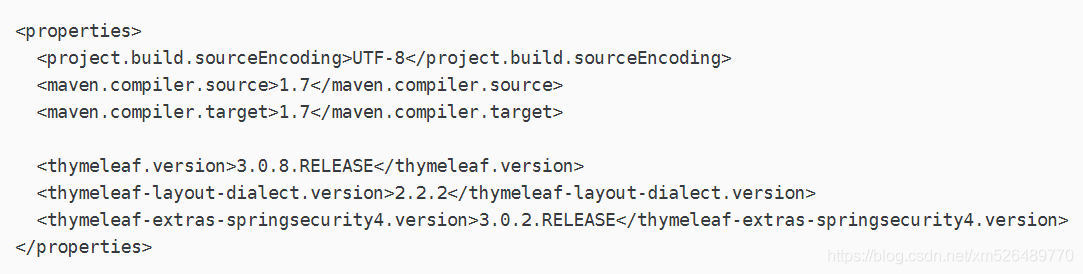

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>

    <thymeleaf.version>3.0.8.RELEASE</thymeleaf.version>
    <thymeleaf-layout-dialect.version>2.2.2</thymeleaf-layout-dialect.version>
    <thymeleaf-extras-springsecurity4.version>3.0.2.RELEASE</thymeleaf-extras-springsecurity4.version>
  </properties>

  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>1.5.9.RELEASE</version>
    <relativePath/> <!-- lookup parent from repository -->
  </parent>

  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.11</version>
      <scope>test</scope>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <!--数据库-->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.36</version>
    </dependency>
    <!--连接池-->
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>druid</artifactId>
      <version>1.0.14</version>
    </dependency>
    <!--mybatisplus-->
    <dependency>
      <groupId>com.baomidou</groupId>
      <artifactId>mybatisplus-spring-boot-starter</artifactId>
      <version>1.0.5</version>
    </dependency>
    <dependency>
      <groupId>com.baomidou</groupId>
      <artifactId>mybatis-plus</artifactId>
      <version>2.1.8</version>
    </dependency>
    <!--连接数据库加密-->
    <dependency>
      <groupId>com.github.ulisesbocchio</groupId>
      <artifactId>jasypt-spring-boot-starter</artifactId>
      <version>1.16</version>
    </dependency>
    <!--redis依赖-->
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-data-redis</artifactId>
    </dependency>
    <!--视图解析器依赖-->
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-thymeleaf</artifactId>
    </dependency>
    <dependency>
      <groupId>net.sourceforge.nekohtml</groupId>
      <artifactId>nekohtml</artifactId>
    </dependency>

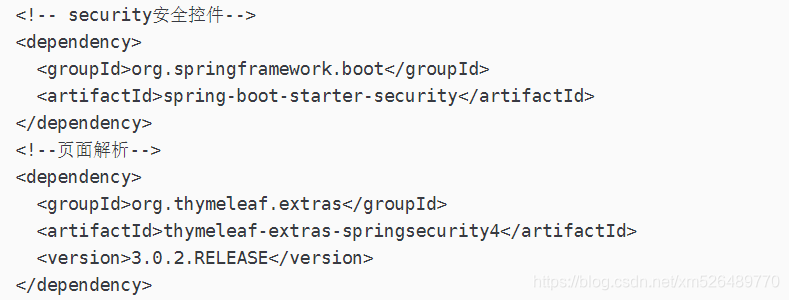

    <!-- security安全控件-->
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-security</artifactId>
    </dependency>
    <!--页面解析-->
    <dependency>
      <groupId>org.thymeleaf.extras</groupId>
      <artifactId>thymeleaf-extras-springsecurity4</artifactId>
      <version>3.0.2.RELEASE</version>
    </dependency>

  </dependencies>


  <build>
    <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
      <plugins>
        <!-- clean lifecycle, see https://maven.apache.org/ref/current/maven-core/lifecycles.html#clean_Lifecycle -->
        <plugin>
          <artifactId>maven-clean-plugin</artifactId>
          <version>3.1.0</version>
        </plugin>
        <!-- default lifecycle, jar packaging: see https://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_jar_packaging -->
        <plugin>
          <artifactId>maven-resources-plugin</artifactId>
          <version>3.0.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>3.8.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-surefire-plugin</artifactId>
          <version>2.22.1</version>
        </plugin>
        <plugin>
          <artifactId>maven-jar-plugin</artifactId>
          <version>3.0.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-install-plugin</artifactId>
          <version>2.5.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-deploy-plugin</artifactId>
          <version>2.8.2</version>
        </plugin>
        <!-- site lifecycle, see https://maven.apache.org/ref/current/maven-core/lifecycles.html#site_Lifecycle -->
        <plugin>
          <artifactId>maven-site-plugin</artifactId>
          <version>3.7.1</version>
        </plugin>
        <plugin>
          <artifactId>maven-project-info-reports-plugin</artifactId>
          <version>3.0.0</version>
        </plugin>
      </plugins>
    </pluginManagement>
  </build>
</project>

第二步数据库相关依赖

 第三步实体类

package com.security.entity;

import com.baomidou.mybatisplus.annotations.TableField;
import com.baomidou.mybatisplus.annotations.TableId;
import com.baomidou.mybatisplus.annotations.TableName;
import com.baomidou.mybatisplus.enums.IdType;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;

import java.io.Serializable;
import java.util.ArrayList;
import java.util.Collection;
import java.util.List;

/**

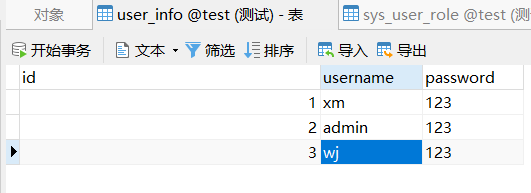

 * 用户信息
 *
 * @author
 * @date 2018/07/16
 */
@TableName("user_info")
public class UserInfo  {

	@TableId(value="id", type= IdType.AUTO)
	private Long id;
    //名称
	private String username;

	//密码
	private String password;

	//用户角色
	@TableField(exist = false)
	private List<SysRole> roles;

	public Long getId() {
		return id;
	}

	public void setId(Long id) {
		this.id = id;
	}

	public void setUsername(String username) {
		this.username = username;
	}

	public List<SysRole> getRoles() {
		return roles;
	}

	public void setRoles(List<SysRole> roles) {
		this.roles = roles;
	}

	public String getUsername() {
		return username;
	}


	public String getPassword() {
		return password;
	}

	public void setPassword(String password) {
		this.password = password;
	}
}

角色

package com.security.entity;

import com.baomidou.mybatisplus.annotations.TableId;
import com.baomidou.mybatisplus.annotations.TableName;
import com.baomidou.mybatisplus.enums.IdType;
import org.springframework.security.core.GrantedAuthority;

/**
 * 角色
 */
@TableName("sys_role")
public class SysRole  {

    //主键
    @TableId(value="id", type= IdType.AUTO)
    private Long id;

    //权限名称
    private String name;

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }
}

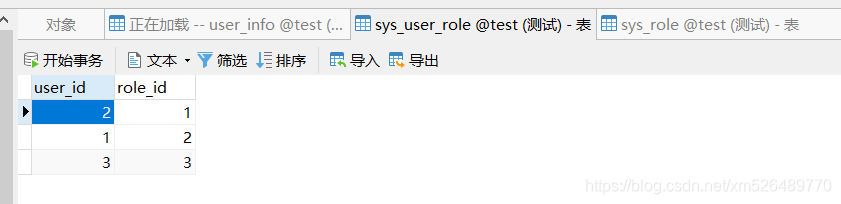

用户角色

package com.security.entity;

import com.baomidou.mybatisplus.annotations.TableField;
import com.baomidou.mybatisplus.annotations.TableName;

/**
 *
 */
@TableName("sys_user_role")
public class SysUserRole  {

    //用户ID
    @TableField("user_id")
    private Long userId;

    //权限ID
    @TableField("role_id")
    private Long roleId;

    public Long getUserId() {
        return userId;
    }

    public void setUserId(Long userId) {
        this.userId = userId;
    }

    public Long getRoleId() {
        return roleId;
    }

    public void setRoleId(Long roleId) {
        this.roleId = roleId;
    }
}

第四步权限配置

package com.security.config;

import com.security.security.CustomUserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.security.authentication.AuthenticationProvider;
import org.springframework.security.authentication.dao.DaoAuthenticationProvider;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.builders.WebSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;

/**
 * @Classname WebSecurityConfig
 * @Date 2019/6/6 16:20
 * @Created xm
 * @Description 权限配置
 */
@EnableWebSecurity
@EnableGlobalMethodSecurity(prePostEnabled = true) // 启用方法安全设置
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {


    //用户验证服务
    @Autowired
    private CustomUserService userDetailsService;

    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {

        auth.userDetailsService(userDetailsService).passwordEncoder(new PasswordEncoder() {
            @Override
            public String encode(CharSequence charSequence) {
                return charSequence.toString();
            }

            @Override
            public boolean matches(CharSequence charSequence, String s) {
                return s.equals(charSequence.toString());
            }
        });
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests()
                //指定无需拦截地址,一般为静态资源
                .antMatchers("/static","/register")
                .permitAll()
                .anyRequest().authenticated()
                .and()
                // 设置登陆页
                .formLogin().loginPage("/login")
                // 设置登陆成功页
                .defaultSuccessUrl("/index").permitAll()
                .and()
                .logout().permitAll()
                .and()
                //开启cookie保存用户数据
                .rememberMe()
                //设置cookie有效期
                .tokenValiditySeconds(3600);

        // 关闭CSRF跨域
        http.csrf().disable();
    }

    @Override
    public void configure(WebSecurity web) throws Exception {
        // 设置拦截忽略文件夹，可以对静态资源放行
        web.ignoring().antMatchers("/css/**", "/js/**");
    }



}

package com.security.security;

import com.security.entity.SysRole;
import com.security.entity.UserInfo;
import com.security.mapper.UserInfoMapper;
import com.security.service.SysRoleService;
import com.security.service.UserInfoService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;

import java.util.ArrayList;
import java.util.List;

/**
 * @Classname CustomUserService
 * @Date 2019/6/6 16:28
 * @Created xm
 * @Description 自定义验证实体
 */
@Service
public class CustomUserService implements UserDetailsService{

    //用户服务对象
    @Autowired
    private UserInfoService userInfoService;

    //权限服务对象
    @Autowired
    private SysRoleService sysRoleService;

    //用户名登录验证
    @Override
    public UserDetails loadUserByUsername(String username) { //重写loadUserByUsername 方法获得 userdetails 类型用户

        UserInfo user = userInfoService.findByName(username);
        if(user == null){
            System.out.println("用户不存在!");
            throw new UsernameNotFoundException("用户名不存在");
        }
        List<SimpleGrantedAuthority> authorities = new ArrayList<>();

        //根据用户ID查询权限
        List<SysRole> sysRoles = sysRoleService.findById(user.getId());
        for (SysRole sysRole : sysRoles) {
            authorities.add(new SimpleGrantedAuthority(sysRole.getName()));
        }

        return new org.springframework.security.core.userdetails.User(user.getUsername(),
                user.getPassword(), authorities);
    }

}

第五步,前端控制器

package com.security.controller;

import org.springframework.security.access.prepost.PreAuthorize;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;

/**
 * @Classname UserController
 * @Date 2019/6/6 15:19
 * @Created xm
 * @Description TODO
 */
@Controller
@RequestMapping
public class UserController {

    @GetMapping("/index")
    public String index(){
        String name = SecurityContextHolder.getContext().getAuthentication().getName();
        System.out.println("当前登录用户名:" + name);
        return "index";
    }

    @GetMapping("/admin")
    @PreAuthorize("hasRole('ROLE_ADMIN')")
    public String admin(){
        return "admin";
    }

    @GetMapping("/user1")
    @PreAuthorize("hasRole('ROLE_USER')")
    public String user1(){
        return "user1";
    }

    @GetMapping("/user2")
    @PreAuthorize("hasRole('ROLE_USER2')")
    public String user2(){
        return "user2";
    }

    @GetMapping("/login")
    public String login(){
        return "login";
    }


    @GetMapping("/403")
    public String error(){
        return "403";
    }
}

第六步前端页面

登录页面

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>登陆</title>
</head>
<body>
<h1>登陆</h1>
<form method="post" action="/login">
    <div>
        用户名：<input type="text" name="username">
    </div>
    <div>
        密码：<input type="password" name="password">
    </div>
    <div>
        <button type="submit">立即登陆</button>
    </div>
</form>
</body>
</html>

首页

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:th="http://www.thymeleaf.org"
      xmlns:sec="http://www.thymeleaf.org/thymeleaf-extras-springsecurity4">
<head>
    <meta charset="UTF-8">
    <title>主页</title>
</head>
<body sec:authorize="isAuthenticated()">
<button onclick="window.location.href='/logout'">退出登录</button>
<button sec:authorize="hasRole('ROLE_ADMIN')" onclick="window.location.href='/admin'">超级用户</button>
<button sec:authorize="hasRole('ROLE_USER')"  onclick="window.location.href='/user1'">普通用户1</button>
<button sec:authorize="hasRole('ROLE_USER2')" onclick="window.location.href='/user2'">普通用户2</button>
</body>
</html>

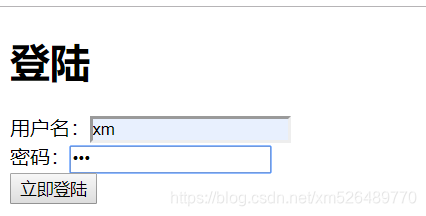

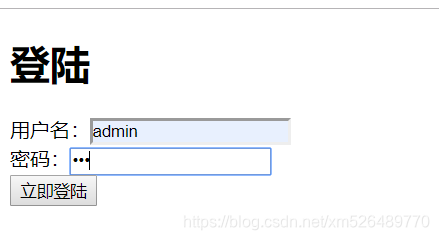

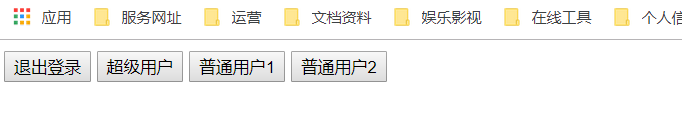

登录效果
