DiskLruCache的源码分析

1. 如何拿到一个DiskLruCache的对象？

   通过DiskLruCache的open方法，因为它的构造是私有的，所以你不是能够直接new的。open方法有四个参数：

   • directory：磁盘缓存的路径
   • appVersion：app的版本号，这个地方看清况传入，如果你想要当app升级时，之前的缓存失效，那么这个地方你就可以传入当前app的版本号；否则的话，缓存在app升级时仍然保留，那么这个就可以传入1即可
   • valueCount：一个节点的缓存文件个数，一般传入1

   • maxSize：缓存的最大容量，超过这个容量，就会按照最近最少使用算法（LRU）进行移除缓存

     public static DiskLruCache open(File directory, int appVersion, int valueCount, long maxSize)
           throws IOException {
         //1. 对传入的参数进行校验
         if (maxSize <= 0) {
           throw new IllegalArgumentException("maxSize <= 0");
         }
         if (valueCount <= 0) {
           throw new IllegalArgumentException("valueCount <= 0");
         }

         //2.
         // If a bkp file exists, use it instead.
         File backupFile = new File(directory, JOURNAL_FILE_BACKUP);
         if (backupFile.exists()) {
           File journalFile = new File(directory, JOURNAL_FILE);
           // If journal file also exists just delete backup file.
           if (journalFile.exists()) {
             backupFile.delete();
           } else {
             renameTo(backupFile, journalFile, false);
           }
         }

         // Prefer to pick up where we left off.
         DiskLruCache cache = new DiskLruCache(directory, appVersion, valueCount, maxSize);
         // 3.
         if (cache.journalFile.exists()) {
           try {
             cache.readJournal();
             cache.processJournal();
             cache.journalWriter = new BufferedWriter(
                 new OutputStreamWriter(new FileOutputStream(cache.journalFile, true), Util.US_ASCII));
             return cache;
           } catch (IOException journalIsCorrupt) {
             System.out
                 .println("DiskLruCache "
                     + directory
                     + " is corrupt: "
                     + journalIsCorrupt.getMessage()
                     + ", removing");
             cache.delete();
           }
         }

         // Create a new empty cache.
         directory.mkdirs();
         cache = new DiskLruCache(directory, appVersion, valueCount, maxSize);
         cache.rebuildJournal();
         return cache;
       }

   纵观上面的代码，实际上大部分都是在对所谓的日志文件进行处理，所以我们有必要先去看看这个日志文件是啥：

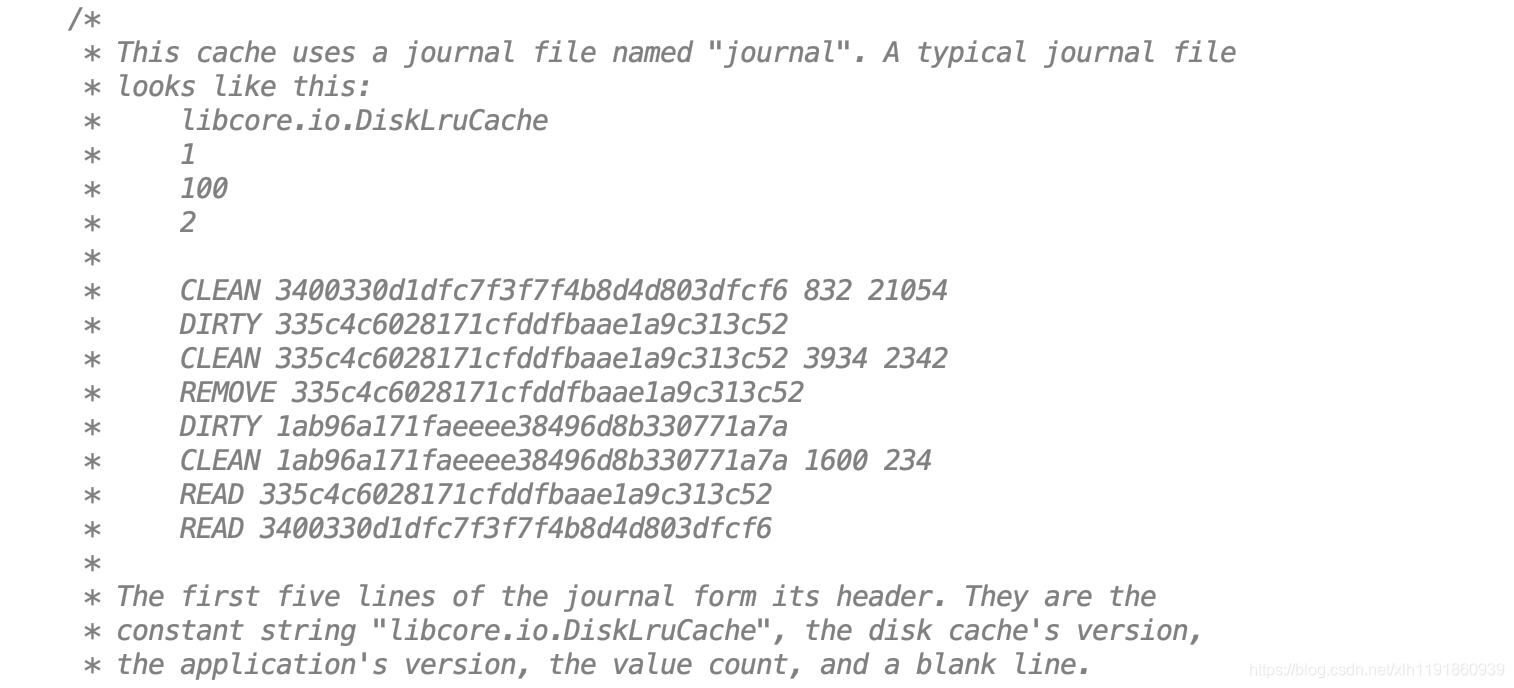

   这是源码中对于journal文件的说明：前面五行组成了文件的头：

   • 第一行，固定值
   • 第二行，缓存的版本号
   • 第三行，就是我们在open方法中传入的appVersion
   • 第四行，就是我们在open方法中传入的valueCount
   • 第五行，空行

   接下来的每一行都是对一个缓存节点状态的记录：状态（或者说操作），一个key以及一个可选的特定值，就是缓存文件的大小。操作一般有以下几种：

   • DIRTY:就是我们进行写入操作时，就会产生DIRTY记录
   • CLEAN:写入操作完成后，我们是需要进行commit的，这个时候就会产生CLEAN记录
   • READ:就是读取操作
   • REMOVE:就是移除操作

   可见，这个日志文件中记录了我们对于缓存数据的操作，这样做的目的是：

   • 实现LRU算法的必要性
   • 人为往DiskLruCache管理的缓存目录写入数据时，是不给予管理的。或者可以这么说，如果没有这个日志文件，那么DiskLruCache就只能是直接管理缓存目录下的所有文件，有了日志文件，就直接以日志文件为参照。

   然后我们再来看open方法的实现：

   • 注释2处：就是对于journal文件和它对应的临时文件（journal.bkp）的处理，如果.bkp存在journal文件不存在，那么直接将.bkp重命名为journal文件；如果两者都存在，那么删除.bkp文件使用journal文件

   • 注释3处：当journal文件存在时，就要读取journal文件，因为它里面包含了很多信息。我们来看readJournal方法：

       private void readJournal() throws IOException {
         StrictLineReader reader = new StrictLineReader(new FileInputStream(journalFile), Util.US_ASCII);
         try {
             // 读取五行文件头部
           String magic = reader.readLine();
           String version = reader.readLine();
           String appVersionString = reader.readLine();
           String valueCountString = reader.readLine();
           String blank = reader.readLine();
           if (!MAGIC.equals(magic)
               || !VERSION_1.equals(version)
               || !Integer.toString(appVersion).equals(appVersionString)
               || !Integer.toString(valueCount).equals(valueCountString)
               || !"".equals(blank)) {
             throw new IOException("unexpected journal header: [" + magic + ", " + version + ", "
                 + valueCountString + ", " + blank + "]");
           }

           int lineCount = 0;
           while (true) {
             try {
               readJournalLine(reader.readLine());
               lineCount++;
             } catch (EOFException endOfJournal) {
               break;
             }
           }
           redundantOpCount = lineCount - lruEntries.size();
         } finally {
           Util.closeQuietly(reader);
         }
       }

       private void readJournalLine(String line) throws IOException {
         int firstSpace = line.indexOf(' ');
         if (firstSpace == -1) {
           throw new IOException("unexpected journal line: " + line);
         }

         int keyBegin = firstSpace + 1;
         int secondSpace = line.indexOf(' ', keyBegin);
         final String key;
         if (secondSpace == -1) {
           key = line.substring(keyBegin);
           // 如果在journal中记录的是remove操作，那么就从lruEntries中移除相关元素
           if (firstSpace == REMOVE.length() && line.startsWith(REMOVE)) {
             lruEntries.remove(key);
             return;
           }
         } else {
           key = line.substring(keyBegin, secondSpace);
         }

         Entry entry = lruEntries.get(key);
         if (entry == null) {
           entry = new Entry(key);
           lruEntries.put(key, entry);
         }

         // 如果记录的是CLEAN操作
         if (secondSpace != -1 && firstSpace == CLEAN.length() && line.startsWith(CLEAN)) {
           String[] parts = line.substring(secondSpace + 1).split(" ");
           entry.readable = true;
           entry.currentEditor = null;
           entry.setLengths(parts);
         } else if (secondSpace == -1 && firstSpace == DIRTY.length() && line.startsWith(DIRTY)) {
         // DIRTY操作
           entry.currentEditor = new Editor(entry);
         } else if (secondSpace == -1 && firstSpace == READ.length() && line.startsWith(READ)) {
         // READ操作
           // This work was already done by calling lruEntries.get().
         } else {
           throw new IOException("unexpected journal line: " + line);
         }
       }

     这里会涉及到两个重要的部分：

     • lruEntries: 这是LinkedHashMap，key就是我们journal文件中的那个key，也就是我们MD5加密之后的文件名

         private final LinkedHashMap<String, Entry> lruEntries =
       new LinkedHashMap<String, Entry>(0, 0.75f, true);

     • Entry：

       private final class Entry {

           private final String key;  // md5后key

           /** Lengths of this entry's files. */
           private final long[] lengths;  // 记录文件的长度，这个数组本身的长度取决于我们传入的valueCount值

           /** True if this entry has ever been published. */
           private boolean readable;  //true时才可进行读取操作

           /** The ongoing edit or null if this entry is not being edited. */
           private Editor currentEditor;//它不为null时才可进行写入操作

           /** The sequence number of the most recently committed edit to this entry. */
           private long sequenceNumber;
       }

2. DiskLruCache的edit方法：

    //一般都是文件名md5后作为key
   public Editor edit(String key) throws IOException {
       return edit(key, ANY_SEQUENCE_NUMBER);
     }

   private synchronized Editor edit(String key, long expectedSequenceNumber) throws IOException {
       checkNotClosed();
       validateKey(key);
       Entry entry = lruEntries.get(key);
       if (expectedSequenceNumber != ANY_SEQUENCE_NUMBER && (entry == null
           || entry.sequenceNumber != expectedSequenceNumber)) {
         return null; // Snapshot is stale.
       }
       // 没有对应的Entry对象，就创建，并且放入LinkedHashMap中
       if (entry == null) {
         entry = new Entry(key);
         lruEntries.put(key, entry);
       } else if (entry.currentEditor != null) {
         return null; // Another edit is in progress.
       }

       Editor editor = new Editor(entry);
       entry.currentEditor = editor;

       // Flush the journal before creating files to prevent file leaks.
       // 看到了熟悉的DIRTY操作
       journalWriter.write(DIRTY + ' ' + key + '\n');
       journalWriter.flush();
       return editor;
     }

3. Editor的newOutputStream方法：

   public OutputStream newOutputStream(int index) throws IOException {
     synchronized (DiskLruCache.this) {
       if (entry.currentEditor != this) {
         throw new IllegalStateException();
       }
       if (!entry.readable) {
         written[index] = true;
       }
       File dirtyFile = entry.getDirtyFile(index);
       FileOutputStream outputStream;
       try {
         outputStream = new FileOutputStream(dirtyFile);
       } catch (FileNotFoundException e) {
         // Attempt to recreate the cache directory.
         directory.mkdirs();
         try {
           outputStream = new FileOutputStream(dirtyFile);
         } catch (FileNotFoundException e2) {
           // We are unable to recover. Silently eat the writes.
           return NULL_OUTPUT_STREAM;
         }
       }
       return new FaultHidingOutputStream(outputStream);
     }
   }

   //我们之前说过一个Entry中可以管理多个文件（取决于valueCount），但是key只有一个，怎么
   //区分不同index的对应不同的文件呢？从下面的两个方法中就可以看得出来，缓存文件名是
   //key.index这种形式构成的，自然而然也就能够区分了。

   private final class Entry{

       public File getCleanFile(int i) {
           return new File(directory, key + "." + i);
       }

       // 可以知道，我们写入的文件最初是一个.tmp文件          public File getDirtyFile(int i) {
         return new File(directory, key + "." + i + ".tmp");
       }

   }

4. Editor的commit方法：

   public void commit() throws IOException {
     if (hasErrors) {
       completeEdit(this, false);
       remove(entry.key); // The previous entry is stale.
     } else {
       completeEdit(this, true);
     }
     committed = true;
   }

   private synchronized void completeEdit(Editor editor, boolean success) throws IOException {
       Entry entry = editor.entry;
       if (entry.currentEditor != editor) {
         throw new IllegalStateException();
       }

       // If this edit is creating the entry for the first time, every index must have a value.
       if (success && !entry.readable) {
         for (int i = 0; i < valueCount; i++) {
           if (!editor.written[i]) {
             editor.abort();
             throw new IllegalStateException("Newly created entry didn't create value for index " + i);
           }
           if (!entry.getDirtyFile(i).exists()) {
             editor.abort();
             return;
           }
         }
       }

       for (int i = 0; i < valueCount; i++) {
         File dirty = entry.getDirtyFile(i);
         if (success) {
           if (dirty.exists()) {
               // 可以看出，commit操作实际上就是将原来写入的.tmp临时文件进行重命名
             File clean = entry.getCleanFile(i);
             dirty.renameTo(clean);
             long oldLength = entry.lengths[i];
             long newLength = clean.length();
             entry.lengths[i] = newLength;
             size = size - oldLength + newLength;
           }
         } else {
           deleteIfExists(dirty);
         }
       }

       redundantOpCount++;
       entry.currentEditor = null;
       if (entry.readable | success) {
         entry.readable = true;
         // 向journal文件中写入CLEAN操作
         journalWriter.write(CLEAN + ' ' + entry.key + entry.getLengths() + '\n');
         if (success) {
           entry.sequenceNumber = nextSequenceNumber++;
         }
       } else {
         lruEntries.remove(entry.key);
         journalWriter.write(REMOVE + ' ' + entry.key + '\n');
       }
       journalWriter.flush();

       // 如果此时缓存目录的实际容量大于最大容量，则需要进行移除清理操作
       if (size > maxSize || journalRebuildRequired()) {
           // execuotrService是一个没有核心线程，最大线程数为1的线程池
         executorService.submit(cleanupCallable);
       }
     }

     final ThreadPoolExecutor executorService =
         new ThreadPoolExecutor(0, 1, 60L, TimeUnit.SECONDS, new LinkedBlockingQueue<Runnable>());
     private final Callable<Void> cleanupCallable = new Callable<Void>() {
       public Void call() throws Exception {
         synchronized (DiskLruCache.this) {
           if (journalWriter == null) {
             return null; // Closed.
           }
           trimToSize();
           if (journalRebuildRequired()) {
             rebuildJournal();
             redundantOpCount = 0;
           }
         }
         return null;
       }
     };

   那么重点就是来看这个trimToSize()方法了：

   private void trimToSize() throws IOException {
       while (size > maxSize) {
         Map.Entry<String, Entry> toEvict = lruEntries.entrySet().iterator().next();
         remove(toEvict.getKey());
       }
   }

   public synchronized boolean remove(String key) throws IOException {
       checkNotClosed();
       validateKey(key);
       Entry entry = lruEntries.get(key);
       if (entry == null || entry.currentEditor != null) {
         return false;
       }

       for (int i = 0; i < valueCount; i++) {
         File file = entry.getCleanFile(i);
         // 过期文件删除
         if (file.exists() && !file.delete()) {
           throw new IOException("failed to delete " + file);
         }
         size -= entry.lengths[i];
         entry.lengths[i] = 0;
       }

       redundantOpCount++;
       //记录REMOVE操作
       journalWriter.append(REMOVE + ' ' + key + '\n');
       lruEntries.remove(key);

       if (journalRebuildRequired()) {
         executorService.submit(cleanupCallable);
       }

       return true;
    }

   删除操作就对lruEntries依次进行遍历，然后进行删除，直到size<maxSize停止循环。那么问题来了，既然是最近最少使用，那么依次遍历就是这样的最近最少使用的顺序吗？这就得益于LinkedHashMap的实现： LinkedHashMap基于HashMap实现，我们知道放入HashMap中的元素是无序的，HashMap中的Node节点的结构如下：

   final int hash;
   final K key;
   V value;
   Node<K,V> next;

   而LinkedHashMap在这基础上，又添加了两个Node指针：before和after。即通过一个双向链表来维护插入的顺序。并且在LinkedHashMap的get方法中：

     public V get(Object key) {
       Node<K,V> e;
       if ((e = getNode(hash(key), key)) == null)
           return null;
       if (accessOrder)
           afterNodeAccess(e);
       return e.value;
   }

   void afterNodeAccess(Node<K,V> e) { // move node to last
       LinkedHashMapEntry<K,V> last;
       if (accessOrder && (last = tail) != e) {
           LinkedHashMapEntry<K,V> p =
               (LinkedHashMapEntry<K,V>)e, b = p.before, a = p.after;
           p.after = null;
           if (b == null)  // p是头结点
               head = a;
           else
               b.after = a;
           if (a != null)  // p的后面还有其他元素
               a.before = b;
           else
               last = b;
           if (last == null)
               head = p;
           else {
               p.before = last;
               last.after = p;
           }
           tail = p;
           ++modCount;
       }
   }

   afterNodeAccess()方法就会e这个结点挪动到链表尾部，这段代码我觉得我们自己手动实现。

5. DiskLruCache的get方法（进行读取）：

   public synchronized Snapshot get(String key) throws IOException {
       checkNotClosed();
       validateKey(key);
       Entry entry = lruEntries.get(key);
       if (entry == null) {
         return null;
       }

       if (!entry.readable) {
         return null;
       }

       // Open all streams eagerly to guarantee that we see a single published
       // snapshot. If we opened streams lazily then the streams could come
       // from different edits.
       InputStream[] ins = new InputStream[valueCount];
       try {
         for (int i = 0; i < valueCount; i++) {
           // 缓存文件对应的输入流
           ins[i] = new FileInputStream(entry.getCleanFile(i));
         }
       } catch (FileNotFoundException e) {
         // A file must have been deleted manually!
         for (int i = 0; i < valueCount; i++) {
           if (ins[i] != null) {
             Util.closeQuietly(ins[i]);
           } else {
             break;
           }
         }
         return null;
       }

       redundantOpCount++;
       journalWriter.append(READ + ' ' + key + '\n');
       if (journalRebuildRequired()) {
         executorService.submit(cleanupCallable);
       }
       // 返回了包含结点管理文件的输入流数组，拿到了输入流，自然而然可以拿到缓存文件的内容
       return new Snapshot(key, entry.sequenceNumber, ins, entry.lengths);
   }
