本文详细介绍了如何通过Spring框架整合MyBatis，包括依赖引入、User类定义、Mapper接口、XML映射文件、核心配置及实现，最后展示了测试部分的代码实例。

spring整合mybatis 方式一【重要】

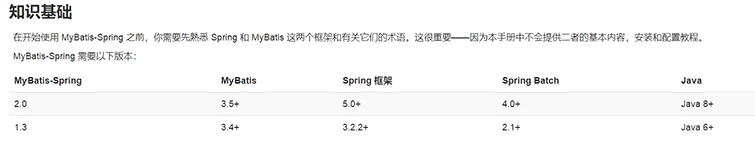

在这里插入图片描述

步骤:
1.导入相关jar包

junit
mybatis
mysql数据库
spring相关的
aop织入
mybatis-spring 【new】

<dependencies>
    <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>4.12</version>
    </dependency>
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>8.0.23</version>
    </dependency>
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis</artifactId>
        <version>3.5.2</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-webmvc</artifactId>
        <version>5.2.0.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-jdbc</artifactId>
        <version>5.1.9.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.aspectj</groupId>
        <artifactId>aspectjweaver</artifactId>
        <version>1.8.13</version>
    </dependency>
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis-spring</artifactId>
        <version>2.0.2</version>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <version>1.16.10</version>
    </dependency>
</dependencies>
    <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>

代码演示

第一步 User类

package com.kuang.pojo;
import lombok.Data;

@Data
public class User {
    private int id;
    private  String name;
    private String pwd;
}

第二步 UserMapper接口

package com.kuang.mapper;
import com.kuang.pojo.User;
import java.util.List;

public interface UserMapper {
    public List<User> selectUser();
}

第三步 UserMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.kuang.mapper.UserMapper">
    <select id="selectUser" resultType="user">
        select * from mybatis.user;
    </select>


</mapper>

第四步核心配置文件

db.properties

driver=com.mysql.jdbc.Driver
url=jdbc:mysql://localhost:3306/mybatis?useSSL=false&amp;characterEncoding=utf8
username=root
password=root

mybatis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <!--      引入外置配置文件 (可以使用可以不使用)
    <properties resource="db.properties"/> -->

    <!--起别名-->
    <typeAliases>
       <package name="com.kuang.pojo"/>
    </typeAliases>

</configuration>

spring-dao.xml(固定的)

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/aop
        https://www.springframework.org/schema/aop/spring-aop.xsd">

    <bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
        <property name="driverClassName" value="com.mysql.cj.jdbc.Driver"/>
        <property name="url" value="jdbc:mysql://localhost:3306/mybatis?useSSL=false&amp;characterEncoding=utf8"/>
        <property name="username" value="root"/>
        <property name="password" value="root"/>
    </bean>

<!--sqlSessionFactory-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>

<!--     绑定mybatis配置文件   -->
   <property name="configLocation" value="classpath:mybatis-config.xml"/>
        <property name="mapperLocations"    value="classpath:com/kuang/mapper/*.xml"/>
    </bean>

<!--SqlSessionTemplate:就是我们要使用的sqlSession-->
    <bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate">
<!--     只能使用构造器注入sqlSessionFactory ，因为它没有set方法   -->
        <constructor-arg index="0" ref="sqlSessionFactory"/>
    </bean>

</beans>

applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/aop
        https://www.springframework.org/schema/aop/spring-aop.xsd">

<import resource="spring-dao.xml"/>

    <bean id="userMapper" class="com.kuang.mapper.UserMapperImpl">
        <property name="sqlSession" ref="sqlSession"/>
    </bean>

</beans>

第五步 UserMapperImpl类

package com.kuang.mapper;

import com.kuang.pojo.User;
import org.mybatis.spring.SqlSessionTemplate;

import java.util.List;

public class UserMapperImpl implements UserMapper{
//在原来，我们所有的操作，都使用sqlSession来执行，现在都使用SqlSessionTemplate
    private SqlSessionTemplate sqlSession;

    public void setSqlSession(SqlSessionTemplate sqlSession) {
        this.sqlSession = sqlSession;
    }

    public List<User> selectUser() {
       UserMapper mapper=  sqlSession.getMapper(UserMapper.class);
        return  mapper.selectUser();
    }
}

第六步测试

import com.kuang.mapper.UserMapper;
import com.kuang.pojo.User;
import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

import java.io.IOException;
import java.io.InputStream;
import java.util.List;

public class MyTest {
    @Test
    public void test() throws IOException {
       ApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
        UserMapper userMapper = context.getBean("userMapper", UserMapper.class);
        for (User user:userMapper.selectUser()){
            System.out.println(user);
        }
    }
}
