什么是WebSocket

WebSocket 是一种网络通信协议，很多高级功能都需要它。
我们已经有了 HTTP 协议，为什么还需要另一个协议？它能带来什么好处？
因为 HTTP 协议有一个缺陷：通信只能由客户端发起。
如果我们想要服务器给客户端发信息，只能由客户端建立长连接这种消耗性能的操作。
WebSocket 协议在2008年诞生，2011年成为国际标准。所有浏览器都已经支持了。
它的最大特点就是，服务器可以主动向客户端推送信息，客户端也可以主动向服务器发送信息，是真正的双向平等对话，属于服务器推送技术的一种。

详细的WebSocket可以参考阮一峰的博客：http://www.ruanyifeng.com/blog/2017/05/websocket.html

Maven 依赖

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-websocket</artifactId>
</dependency>

SpringBoot配置

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.socket.server.standard.ServerEndpointExporter;

/**
 * Created with IntelliJ IDEA.
 *
 * @Auther: zlf
 * @Date: 2021/04/30/16:58
 * @Description:
 */
@Configuration
//@EnableWebSocketMessageBroker
public class WebSocketConfig {

    @Bean
    public ServerEndpointExporter serverEndpointExporter(){
        return new ServerEndpointExporter();
    }

}

WebSokect 通信

import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;

import javax.websocket.*;
import javax.websocket.server.PathParam;
import javax.websocket.server.ServerEndpoint;
import java.io.IOException;
import java.util.Objects;
import java.util.concurrent.ConcurrentHashMap;
import java.util.concurrent.CopyOnWriteArraySet;

/**
 * Created with IntelliJ IDEA.
 *
 * @Auther: zlf
 * @Date: 2021/04/30/17:48
 * @Description:
 */
@Slf4j
@ServerEndpoint("/webSocket/{code}")
@Component
public class WebSocketServer {
    /**
     * concurrent包的线程安全Set，用来存放每个客户端对应的WebSocket对象。
     */
    private static CopyOnWriteArraySet<WebSocketServer> webSocketSet = new CopyOnWriteArraySet<>();

    /**
     * 与客户端的连接会话，需要通过它来给客户端发送数据
     */
    private Session session;

    /**
     * 接收识别码
     */
    private String code = "";

    /**
     * 连接建立成功调用的方法
     */
    @OnOpen
    public void onOpen(Session session, @PathParam("code") String code) {
        this.session = session;
        //如果存在就先删除一个，防止重复推送消息，实际这里实现了set，不删除问题也不大
        webSocketSet.removeIf(webSocket -> webSocket.code.equals(code));
        webSocketSet.add(this);
        this.code = code;
        log.info("建立WebSocket连接，code：" + code+"，当前连接数："+webSocketSet.size());
    }

    /**
     * 连接关闭调用的方法
     */
    @OnClose
    public void onClose() {
        webSocketSet.remove(this);
        log.info("关闭WebSocket连接，code：" + this.code+"，当前连接数："+webSocketSet.size());
    }

    /**
     * 收到客户端消息后调用的方法
     *
     * @param message 客户端发送过来的消息
     */
    @OnMessage
    public void onMessage(String message, Session session) {
        log.info("收到来[" + code + "]的信息:" + message);

    }

    @OnError
    public void onError(Session session, Throwable error) {
        log.error("websocket发生错误");
        error.printStackTrace();
    }

    /**
     * 实现服务器主动推送
     */
    private void sendMessage(String message) throws IOException {
        this.session.getBasicRemote().sendText(message);
    }


    /**
     * 群发自定义消息
     */
    public void sendAll(String message) {
        log.info("推送消息到" + code + "，推送内容:" + message);
        for (WebSocketServer item : webSocketSet) {
            try {
                item.sendMessage(message);
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }

    /**
     * 定点推送
     */
    public void sendTo(String message, @PathParam("code") String code) {
        for (WebSocketServer item : webSocketSet) {
            try {
                if (item.code.equals(code)) {
                    log.info("推送消息到[" + code + "]，推送内容:" + message);
                    item.sendMessage(message);
                }
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }

    @Override
    public boolean equals(Object o) {
        if (this == o) {
            return true;
        }
        if (o == null || getClass() != o.getClass()) {
            return false;
        }
        WebSocketServer that = (WebSocketServer) o;
        return Objects.equals(session, that.session) &&
                Objects.equals(code, that.code);
    }

    @Override
    public int hashCode() {
        return Objects.hash(session, code);
    }
}

这样前端发起相应的请求就可以建立双向的通信。

#前端Vue代码

<template>
  <div>
      websocket
  </div>
</template>

<script>
export default {
    data(){
        return{
            user : JSON.parse(localStorage.getItem("user"))?JSON.parse(localStorage.getItem("user")):null

        }
    },
    created(){
        this.initWebSocket();
    },
    methods: {
      initWebSocket(){ //初始化weosocket
       // 建立连接  在请求中带上token 由SpringSecurity进行权限认证
        const wsuri = "ws://localhost:8001/webSocket/"+this.user.id+'?Authorization='+localStorage.getItem("token");
        this.websock = new WebSocket(wsuri);
        this.websock.onmessage = this.websocketonmessage;
        this.websock.onopen = this.websocketonopen;
        this.websock.onerror = this.websocketonerror;
        this.websock.onclose = this.websocketclose;
      },
      websocketonopen(){ //连接建立之后执行send方法发送数据
        let actions = {"test":"12345"};
        this.websocketsend(JSON.stringify(actions));
      },
      websocketonerror(){//连接建立失败重连
        console.log("----连接失败，，重连")
        this.initWebSocket();
      },
      websocketonmessage(e){ //数据接收

        //const redata = JSON.parse(e.data);
        console.log(e.data);
      },
      websocketsend(Data){//数据发送
        this.websock.send(Data);
      },
      websocketclose(e){  //关闭
        console.log('断开连接',e);
      },
    },
}
</script>

<style>

</style>

关于权限认证

import com.baomidou.mybatisplus.core.toolkit.StringUtils;
import com.youshe.mcp.utils.JwtTokenUtil;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.web.authentication.WebAuthenticationDetailsSource;
import org.springframework.stereotype.Component;
import org.springframework.web.filter.OncePerRequestFilter;

import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;


/**
 * @Description: JWT登录授权过滤器
 * @Author: zlf
 * @Date: 2021/3/30
 */
@Component
@Slf4j
public class JwtAuthenticationTokenFilter extends OncePerRequestFilter {


    @Autowired
    private JwtTokenUtil jwtTokenUtil;

    @Value("${jwt.tokenHeader}")
    private String tokenHeader;
    @Value("${jwt.tokenHead}")
    private String tokenHead;

    @Autowired
    private MyUserDetailsService userDetailsService;

    @Override
    protected void doFilterInternal(HttpServletRequest request,
                                    HttpServletResponse response,
                                    FilterChain chain) throws ServletException, IOException {
        String authHeader = request.getHeader(this.tokenHeader);
        if(StringUtils.isBlank(authHeader)){
        	// 由于webSocket 没有设置token在请求头里，而在url中
            // websocket连接时，令牌放在url参数上，
            authHeader = request.getParameter(this.tokenHeader);
        }
        if (authHeader != null && authHeader.startsWith(this.tokenHead)) {
            String authToken = authHeader.substring(this.tokenHead.length());// The part after "Bearer "
            String username = jwtTokenUtil.getUserNameFromToken(authToken);
            //log.info("checking username:{}", username);
            if (username != null && SecurityContextHolder.getContext().getAuthentication() == null) {
                UserDetails userDetails = userDetailsService.loadUserByUsername(username);
                if (jwtTokenUtil.validateToken(authToken, userDetails)) {
                    UsernamePasswordAuthenticationToken authentication = new UsernamePasswordAuthenticationToken(userDetails, new BCryptPasswordEncoder().encode(userDetails.getPassword()), userDetails.getAuthorities());
                    authentication.setDetails(new WebAuthenticationDetailsSource().buildDetails(request));
                    //log.info("authenticated user:{}", username);
                    SecurityContextHolder.getContext().setAuthentication(authentication);
                }
            }
        }
        chain.doFilter(request, response);
    }

}

测试

import com.youshe.commonutils.vo.ResultVo;
import com.youshe.mcp.entity.User;
import com.youshe.mcp.service.UserService;
import com.youshe.mcp.service.WebSocketServer;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import springfox.documentation.annotations.ApiIgnore;
import sun.plugin.liveconnect.SecurityContextHelper;

import javax.xml.transform.Result;
import java.security.Security;

/**
 * Created with IntelliJ IDEA.
 *
 * @Auther: zlf
 * @Date: 2021/04/30/18:03
 * @Description:
 */
@RestController
@RequestMapping("/test")
public class testController {

    @Autowired
    UserService userService;

    @Autowired
    WebSocketServer webSocketServer;
	// 向请求的用户 推送消息
    @GetMapping("test")
    public ResultVo test(){
        UserDetails userDetails = (UserDetails) org.springframework.security.core.context.SecurityContextHolder.getContext().getAuthentication().getPrincipal();
        String username = userDetails.getUsername();
        User user = userService.getUserByName(username);
        webSocketServer.sendTo("向客户端推送实时消息",user.getId());
        return ResultVo.ok();
    }
}

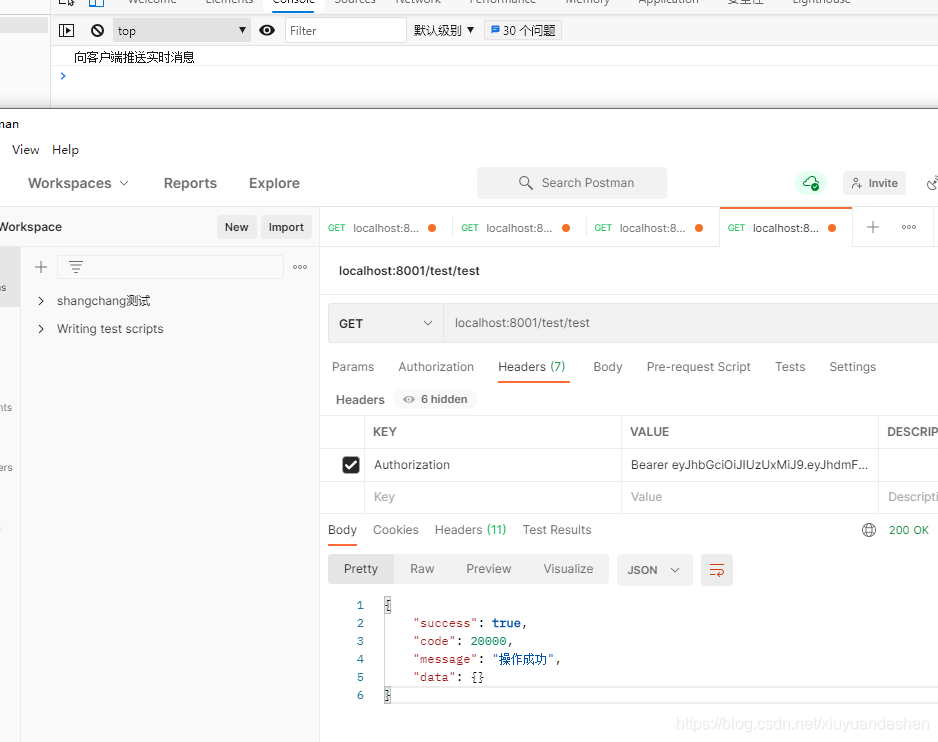

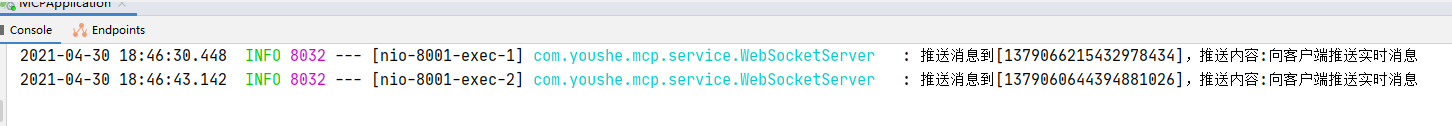

效果

在这里插入图片描述
