简单学习了一下shiro，简单记录一下。

1.shiro是什么

Apache Shiro是一个强大且易用的Java安全框架,执行身份验证、授权、密码和会话管理。使用Shiro的易于理解的API,您可以快速、轻松地获得任何应用程序,从最小的移动应用程序到最大的网络和企业应用程序。

2.主要功能

shiro主要有三大功能模块：

1. Subject：主体，一般指用户。
2. SecurityManager：安全管理器，管理所有Subject，可以配合内部安全组件。(类似于SpringMVC中的DispatcherServlet)
3. Realms：用于进行权限信息的验证，一般需要自己实现。

3.细分功能

1. Authentication：身份认证/登录(账号密码验证)。
2. Authorization：授权，即角色或者权限验证。
3. Session Manager：会话管理，用户登录后的session相关管理。
4. Cryptography：加密，密码加密等。
5. Web Support：Web支持，集成Web环境。
6. Caching：缓存，用户信息、角色、权限等缓存到如redis等缓存中。
7. Concurrency：多线程并发验证，在一个线程中开启另一个线程，可以把权限自动传播过去。
8. Testing：测试支持；
9. Run As：允许一个用户假装为另一个用户（如果他们允许）的身份进行访问。
10. Remember Me：记住我，登录后，下次再来的话不用登录了。

4.权限参数

Filter Name	功能
anno	不需要授权、登录就可以访问。eg:/index
authc	需要登录授权才能访问。eg：/用户中心
authcBasic	Basic HTTP身份验证拦截器
logout	退出拦截器。退出成功后，会 redirect到设置的/URI
noSessionCreation	不创建会话连接器
perms	授权拦截器:perm['user:create']
port	端口拦截器.eg:port[80]
rest	rest风格拦截器
roles	角色拦截器。eg：role[administrator]
ssl	ssl拦截器。通过https协议才能通过
user	用户拦截器。eg：登录后（authc），第二次没登陆但是有记住我(remmbner)都可以访问。

5.代码结构

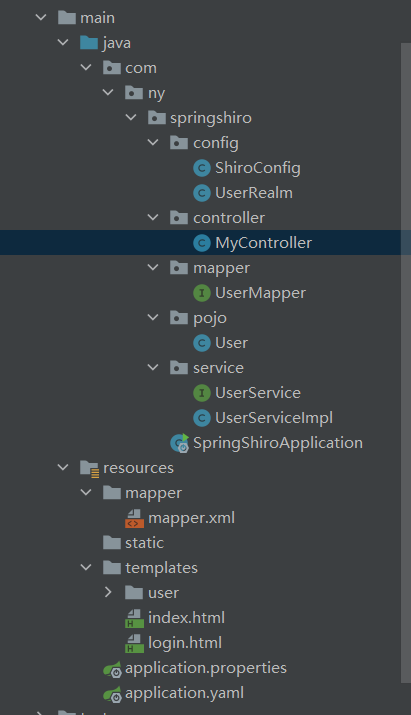

6.项目结构

1.pom.xml

<dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.20</version>
 </dependency>
 <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>2.1.1</version>
            </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.12</version>
        </dependency>
  <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.12</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>6.0.5</version>
        </dependency>
  <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.13.2</version>
            <scope>test</scope>
        </dependency>
 <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
            <version>2.5.4</version>
        </dependency>
  <dependency>
            <groupId>org.apache.shiro</groupId>
            <artifactId>shiro-spring</artifactId>
            <version>1.7.1</version>
        </dependency>
        <dependency>
            <groupId>org.thymeleaf</groupId>
            <artifactId>thymeleaf</artifactId>
            <version>3.0.12.RELEASE</version>
        </dependency>

2.application.yaml

spring:
  datasource:
    username: root
    password: 123456
    url: jdbc:mysql://localhost:3306/mybatis?useUnicode=true&characterEncoding=utf-8&useSSL=false&serverTimezone=UTC
    driver-class-name: com.mysql.jdbc.Driver
    type: com.alibaba.druid.pool.DruidDataSource

    # 下面为连接池的补充设置，应用到上面所有数据源中
    # 初始化大小，最小，最大
    initial-size: 5
    min-idle: 5
    max-active: 20
    # 配置获取连接等待超时的时间
    max-wait: 60000
    # 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒
    time-between-eviction-runs-millis: 60000
    # 配置一个连接在池中最小生存的时间，单位是毫秒
     min-evictable-idle-time-millis: 300000
    validation-query: SELECT 1 FROM DUAL
    test-while-idle: true
    test-on-borrow: false
    test-on-return: false
    # 打开PSCache，并且指定每个连接上PSCache的大小
    pool-prepared-statements: true
    #   配置监控统计拦截的filters，去掉后监控界面sql无法统计，'wall'用于防火墙
    max-pool-prepared-statement-per-connection-size: 20
    filters: stat,wall,log4j
    use-global-data-source-stat: true
    # 通过connectPropertie,属性来打开mergeSql功能；慢SQL记录
    connect-properties: druid.stat.mergeSql=true;druid.stat.slowSqlMillis=5000
    #配置监控统计拦截的filters,stat:监控统计、log4j:日志记录、wall:防御sql注入
   #如果允许时报错 java.lang.ClassNotFoundException: org.apache.log4j.Priority
   #则导入log4j依赖即可，Maven地址: https: //mvnrepository.com/artifact/log4j/log4jfilters: stat, wall,log4j

3.application.propertise

mybatis.type-aliases-package=com.ny.springshiro.pojo
mybatis.mapper-locations=classpath:mapper/*.xml

4.实体类

记得在数据库建对应的表

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class User {
    private int id;
    private String name;
    private String password;
    private String perms;//用户权限
}

5.config

shiroconfig.java

import org.apache.shiro.mgt.DefaultSecurityManager;
import org.apache.shiro.spring.web.ShiroFilterFactoryBean;
import org.apache.shiro.web.mgt.DefaultWebSecurityManager;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import java.util.HashMap;
import java.util.Map;

@Configuration
public class ShiroConfig {
//shiroFilterFactoryBean  subject
    @Bean
    public ShiroFilterFactoryBean shiroFilterFactoryBean(@Qualifier("manager") DefaultSecurityManager defaultSecurityManager){        ShiroFilterFactoryBean filterFactoryBean = new ShiroFilterFactoryBean();
        filterFactoryBean.setSecurityManager(defaultSecurityManager);
        Map<String,String>filterMap=new HashMap<>();
        //要授权的页面都在这里加
        filterMap.put("/user/add","perms[user:add]");//这里带user：add的才能进add页面
        filterMap.put("/user/update","perms[user:update]");//带user：update的才能进update页面
        filterMap.put("/user/*","authc");
        filterFactoryBean.setLoginUrl("/tologin");

        filterFactoryBean.setFilterChainDefinitionMap(filterMap);
        return filterFactoryBean;

    }
 //DefaultSecurityManager
    @Bean(name = "manager")//@Qualifier传入的是方法名
    public DefaultWebSecurityManager defaultSecurityManager(@Qualifier("userRealm") UserRealm userRealm){
        DefaultWebSecurityManager manager = new DefaultWebSecurityManager();
        manager.setRealm(userRealm);

        return manager;

    }
//realm
    @Bean
    public UserRealm userRealm(){
        return new UserRealm();
    }

userRealm.java

import com.ny.springshiro.pojo.User;
import com.ny.springshiro.service.UserService;
import com.ny.springshiro.service.UserServiceImpl;
import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.*;
import org.apache.shiro.authz.AuthorizationInfo;
import org.apache.shiro.authz.SimpleAuthorizationInfo;
import org.apache.shiro.realm.AuthenticatingRealm;
import org.apache.shiro.realm.AuthorizingRealm;
import org.apache.shiro.subject.PrincipalCollection;
import org.apache.shiro.subject.Subject;
import org.springframework.beans.factory.annotation.Autowired;
public class UserRealm extends AuthorizingRealm{
    @Autowired
    UserService userService;

    @Override
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) {
        System.out.println("=====>执行了授权");
        Subject subject = SecurityUtils.getSubject();
        User currentUser = (User) subject.getPrincipal();
        SimpleAuthorizationInfo info = new SimpleAuthorizationInfo();
        info.addStringPermission(currentUser.getPerms());
        return info;
    }
    @Override
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authenticationToken) throws AuthenticationException {
        System.out.println("======>执行了认证");
        UsernamePasswordToken token = (UsernamePasswordToken) authenticationToken;
        User user = userService.queryUserByName(token.getUsername());
        if (user==null){
            return null;//抛出异常
        }
        //密码验证，shiro做
        return new SimpleAuthenticationInfo(user,user.getPassword(),"");
    }
}

6.controller

import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.AuthenticationException;
import org.apache.shiro.authc.UnknownAccountException;
import org.apache.shiro.authc.UsernamePasswordToken;
import org.apache.shiro.subject.Subject;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;

@Controller
public class MyController {

    @RequestMapping({"/","/index"})
    public String toIndex(Model model){
        model.addAttribute("msg","hello shiro!");
        return "index";
    }

    @RequestMapping("/user/add")
    public String add(){
        return "user/add";
    }

    @RequestMapping("/user/update")
    public String update(){
        return "user/update";
    }

    @RequestMapping("/tologin")
    public String toLogin(){
        return "login";
    }


    @RequestMapping("/login")
    public String login(String username,String password,Model model){
        //获取当前用户
        Subject subject = SecurityUtils.getSubject();

        //封装用户的登录数据
        UsernamePasswordToken token = new UsernamePasswordToken(username,password);

        try {
            //进行验证，这里可以捕获异常，然后返回对应信息
            subject.login(token);
            return "index";
//            subject.checkRole("admin");
//            subject.checkPermissions("query", "add");
        } catch (UnknownAccountException e) {
            model.addAttribute("msg","用户名错误");
            return "login";
        } catch (AuthenticationException e) {
            model.addAttribute("msg","密码错误");
            return "login";
        }
    }

    }

7.mapper

import com.ny.springshiro.pojo.User;
import org.apache.ibatis.annotations.Mapper;
import org.springframework.stereotype.Repository;

@Mapper
@Repository
public interface UserMapper {
    public User queryUserByName(String name);
}

8.service

UserService.java

import com.ny.springshiro.pojo.User;
import org.springframework.stereotype.Service;

@Service
public interface UserService {
        public User queryUserByName(String name);

}

UserServiceImpl.java

import com.ny.springshiro.mapper.UserMapper;
import com.ny.springshiro.pojo.User;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

@Service
public class UserServiceImpl implements UserService{

    @Autowired
    UserMapper userMapper;


    @Override
    public User queryUserByName(String name) {
        return userMapper.queryUserByName(name);
    }
}

演示效果

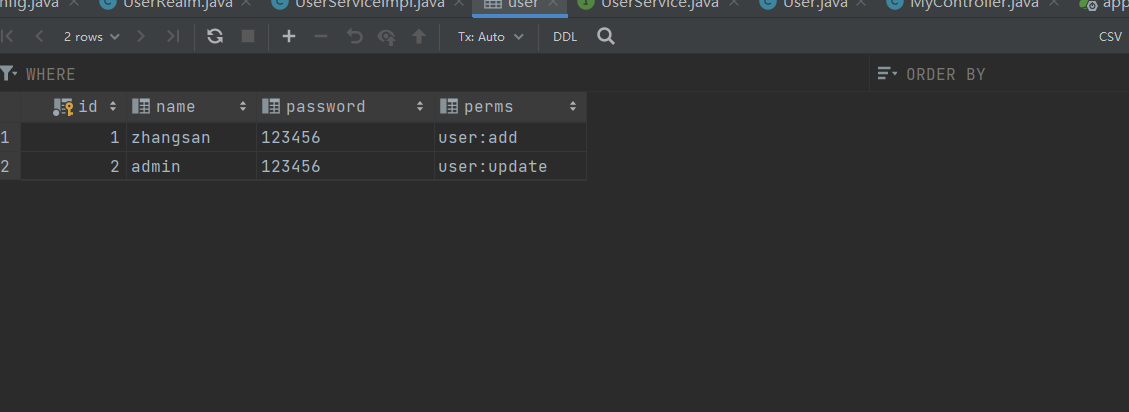

这是我的用户表，zhangsan只有有进入add页面的权限

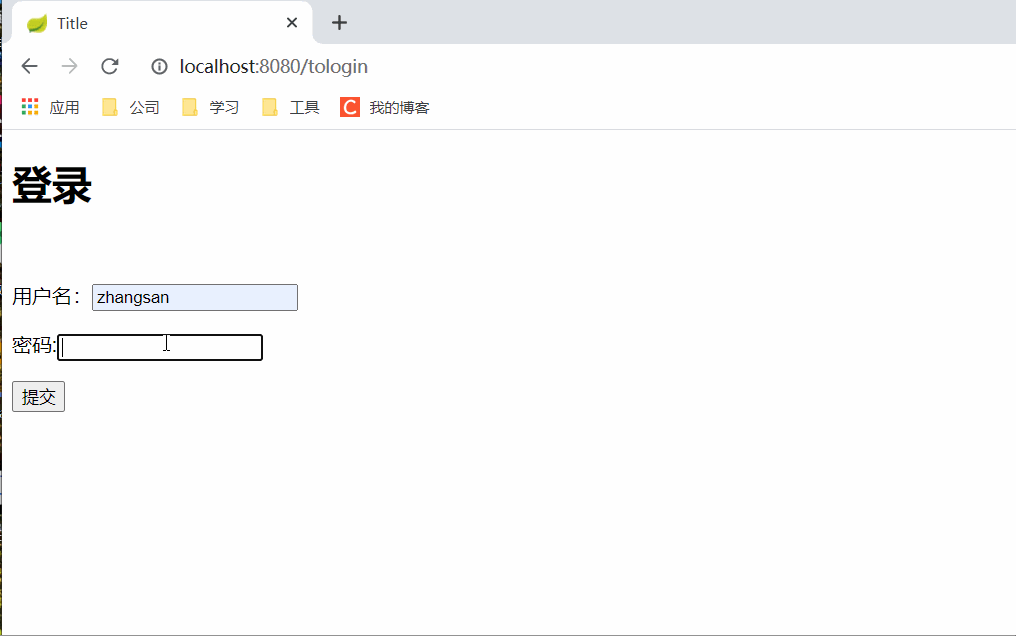

下面是演示效果

ps：这是我看网上的视频教程总结的，只是做个记录
