redis 源码分析---通信模块之服务端处理socket连接

gdb redis-server,   gdb调试，首先打断点，处理连接，需要找到对应函数，打上断点

在 anet.c 文件中找到 anetGenericAccept 函数，

输入:

b  anetGenericAccept

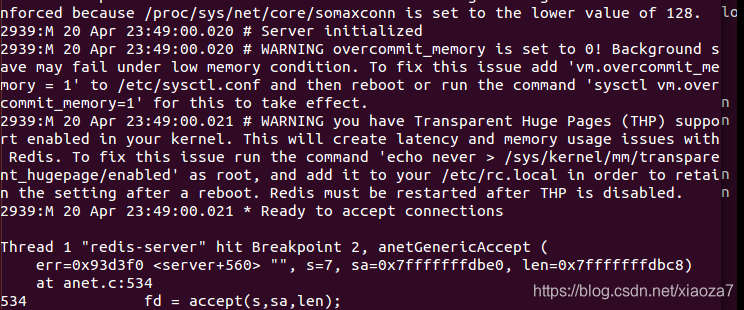

接着重新运行redis-server, 发现server运行起来后，并没有进入该断点，原因是还没有redis-cli发起连接，这里再打开一个 redis-cli，连接server, 发现断点停下，

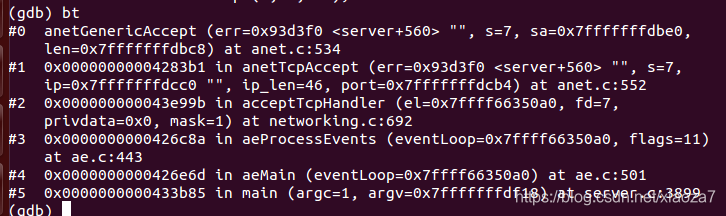

此时查看一下调用堆栈

由此关系，找到代码，大致在ae.c

aeMain 函数启动一个循环处理事件

void aeMain(aeEventLoop *eventLoop) {
    eventLoop->stop = 0;
    while (!eventLoop->stop) {
        if (eventLoop->beforesleep != NULL)
            eventLoop->beforesleep(eventLoop);
        aeProcessEvents(eventLoop, AE_ALL_EVENTS);
    }
}




其中 aeEventLoop定义如下

typedef struct aeEventLoop {
    int maxfd;   /* highest file descriptor currently registered */
    int setsize; /* max number of file descriptors tracked */
    long long timeEventNextId;
    time_t lastTime;     /* Used to detect system clock skew */
    aeFileEvent *events; /* Registered events */
    aeFiredEvent *fired; /* Fired events */
    aeTimeEvent *timeEventHead;
    int stop;
    void *apidata; /* This is used for polling API specific data */
    aeBeforeSleepProc *beforesleep;
} aeEventLoop;

对于aeProcessEvents，根据不同事件进行不同处理

/* Process every pending time event, then every pending file event
 * (that may be registered by time event callbacks just processed).
 * Without special flags the function sleeps until some file event
 * fires, or when the next time event occurs (if any).
 *
 * If flags is 0, the function does nothing and returns.
 * if flags has AE_ALL_EVENTS set, all the kind of events are processed.
 * if flags has AE_FILE_EVENTS set, file events are processed.
 * if flags has AE_TIME_EVENTS set, time events are processed.
 * if flags has AE_DONT_WAIT set the function returns ASAP until all
 * the events that's possible to process without to wait are processed.
 *
 * The function returns the number of events processed. */
int aeProcessEvents(aeEventLoop *eventLoop, int flags)
{
    int processed = 0, numevents;

    /* Nothing to do? return ASAP */
    if (!(flags & AE_TIME_EVENTS) && !(flags & AE_FILE_EVENTS)) return 0;

    /* Note that we want call select() even if there are no
     * file events to process as long as we want to process time
     * events, in order to sleep until the next time event is ready
     * to fire. */
    if (eventLoop->maxfd != -1 ||
        ((flags & AE_TIME_EVENTS) && !(flags & AE_DONT_WAIT))) {
        int j;
        aeTimeEvent *shortest = NULL;
        struct timeval tv, *tvp;

        if (flags & AE_TIME_EVENTS && !(flags & AE_DONT_WAIT))
            shortest = aeSearchNearestTimer(eventLoop);
        if (shortest) {
            long now_sec, now_ms;

            aeGetTime(&now_sec, &now_ms);
            tvp = &tv;

            /* How many milliseconds we need to wait for the next
             * time event to fire? */
            long long ms =
                (shortest->when_sec - now_sec)*1000 +
                shortest->when_ms - now_ms;

            if (ms > 0) {
                tvp->tv_sec = ms/1000;
                tvp->tv_usec = (ms % 1000)*1000;
            } else {
                tvp->tv_sec = 0;
                tvp->tv_usec = 0;
            }
        } else {
            /* If we have to check for events but need to return
             * ASAP because of AE_DONT_WAIT we need to set the timeout
             * to zero */
            if (flags & AE_DONT_WAIT) {
                tv.tv_sec = tv.tv_usec = 0;
                tvp = &tv;
            } else {
                /* Otherwise we can block */
                tvp = NULL; /* wait forever */
            }
        }

        numevents = aeApiPoll(eventLoop, tvp);  //关键
        for (j = 0; j < numevents; j++) {
            aeFileEvent *fe = &eventLoop->events[eventLoop->fired[j].fd];
            int mask = eventLoop->fired[j].mask;
            int fd = eventLoop->fired[j].fd;
            int rfired = 0;

        /* note the fe->mask & mask & ... code: maybe an already processed
             * event removed an element that fired and we still didn't
             * processed, so we check if the event is still valid. */
            if (fe->mask & mask & AE_READABLE) {//可读
                rfired = 1;
                fe->rfileProc(eventLoop,fd,fe->clientData,mask);
            }
            if (fe->mask & mask & AE_WRITABLE) {//可写
                if (!rfired || fe->wfileProc != fe->rfileProc)
                    fe->wfileProc(eventLoop,fd,fe->clientData,mask);
            }
            processed++;
        }
    }
    /* Check time events */
    if (flags & AE_TIME_EVENTS)
        processed += processTimeEvents(eventLoop);

    return processed; /* return the number of processed file/time events */
}

暂时忽略其他事件处理

对于读写事件的获取

numevents = aeApiPoll(eventLoop, tvp);

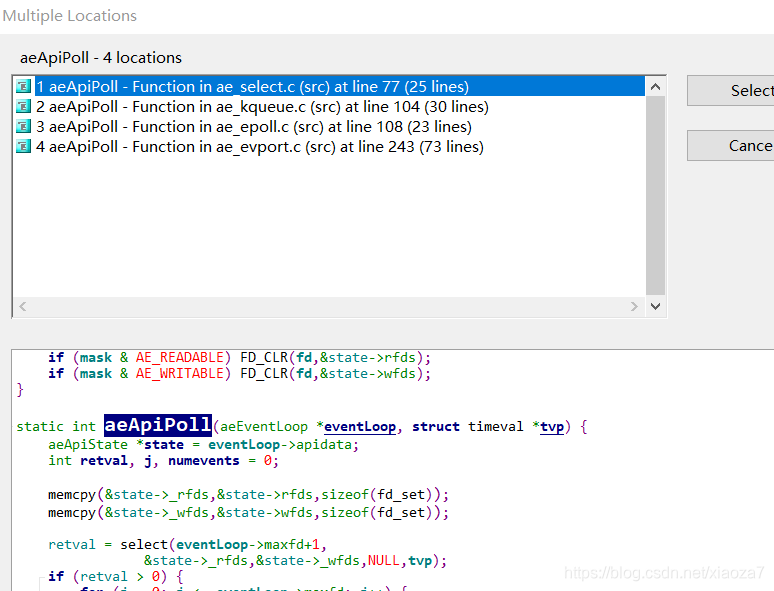

i/o多路复用函数aeApiPoll() 在 Linux 基于epoll ， Windows 基于 select， Mac基于kqueue。

这里看下linux的实现

static int aeApiPoll(aeEventLoop *eventLoop, struct timeval *tvp) {
    aeApiState *state = eventLoop->apidata;
    int retval, numevents = 0;

    retval = epoll_wait(state->epfd,state->events,eventLoop->setsize,
            tvp ? (tvp->tv_sec*1000 + tvp->tv_usec/1000) : -1);
    if (retval > 0) {
        int j;

        numevents = retval;
        for (j = 0; j < numevents; j++) {
            int mask = 0;
            struct epoll_event *e = state->events+j;

            if (e->events & EPOLLIN) mask |= AE_READABLE;
            if (e->events & EPOLLOUT) mask |= AE_WRITABLE;
            if (e->events & EPOLLERR) mask |= AE_WRITABLE;
            if (e->events & EPOLLHUP) mask |= AE_WRITABLE;
            eventLoop->fired[j].fd = e->data.fd;
            eventLoop->fired[j].mask = mask;
        }
    }
    return numevents;
}
可以打个断点

客户段写入时，

服务端如下

放开断点,输入c，客户端如下

对于读写事件，有下面处理函数



  fe->rfileProc(eventLoop,fd,fe->clientData,mask);

  fe->wfileProc(eventLoop,fd,fe->clientData,mask);

/* File event structure */
typedef struct aeFileEvent {
    int mask; /* one of AE_(READABLE|WRITABLE) */
    aeFileProc *rfileProc;  //读函数指针
    aeFileProc *wfileProc;//写函数指针
    void *clientData;
} aeFileEvent;



在ae_poll.c中,

static int aeApiCreate(aeEventLoop *eventLoop) {
    aeApiState *state = zmalloc(sizeof(aeApiState));

    if (!state) return -1;
    state->events = zmalloc(sizeof(struct epoll_event)*eventLoop->setsize);
    if (!state->events) {
        zfree(state);
        return -1;
    }
    state->epfd = epoll_create(1024); /* 1024 is just a hint for the kernel */
    if (state->epfd == -1) {
        zfree(state->events);
        zfree(state);
        return -1;
    }
    eventLoop->apidata = state;
    return 0;



}

对于生成 state->epfd ，也是在server初始化而来的，可以打断点，跟踪调用栈来进一步查看，

对于epoll实现

参见https://blog.youkuaiyun.com/pmt123456/article/details/77814936等
