Spring Ioc启动流程分析

上一篇我们解析了设计模式的代理模式，在这里再做一次Spring Ioc启动流程的分析，然后再引入到SpringAOP 的原理上来

ok，我们先看下Spring Ioc启动的大致流程吧

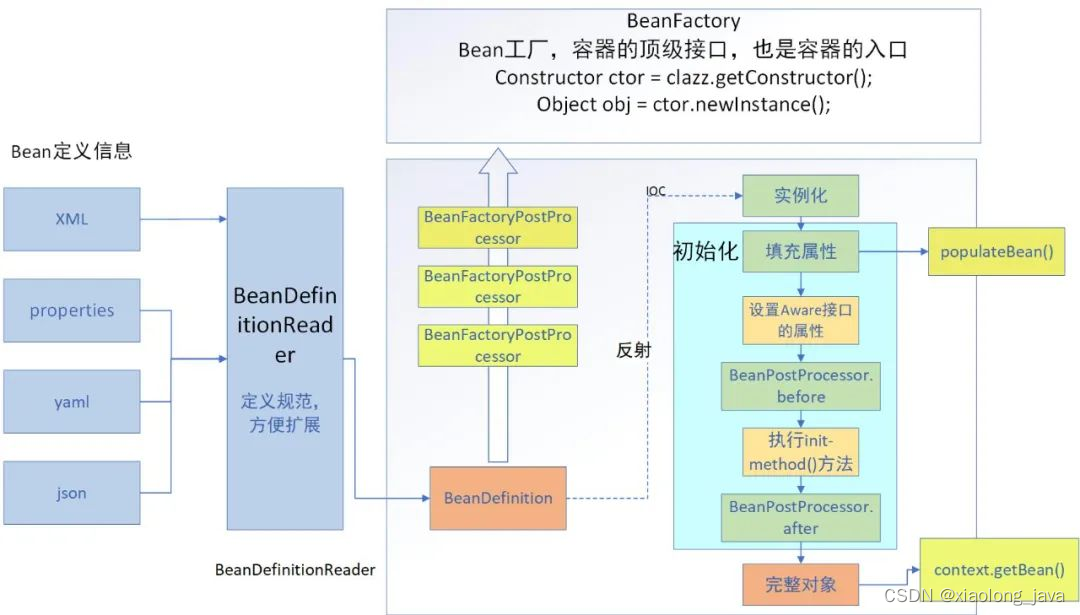

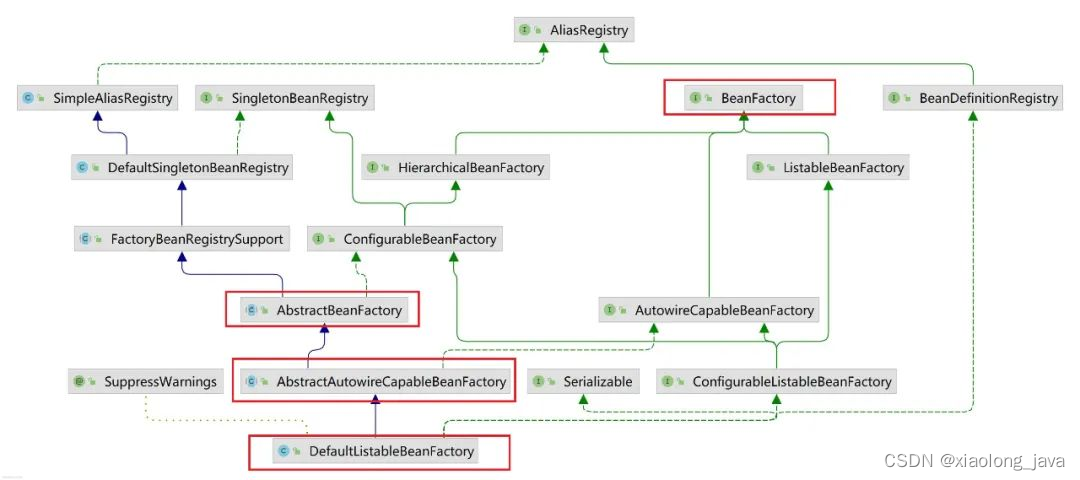

目前Spring 启动流程大致分析如图

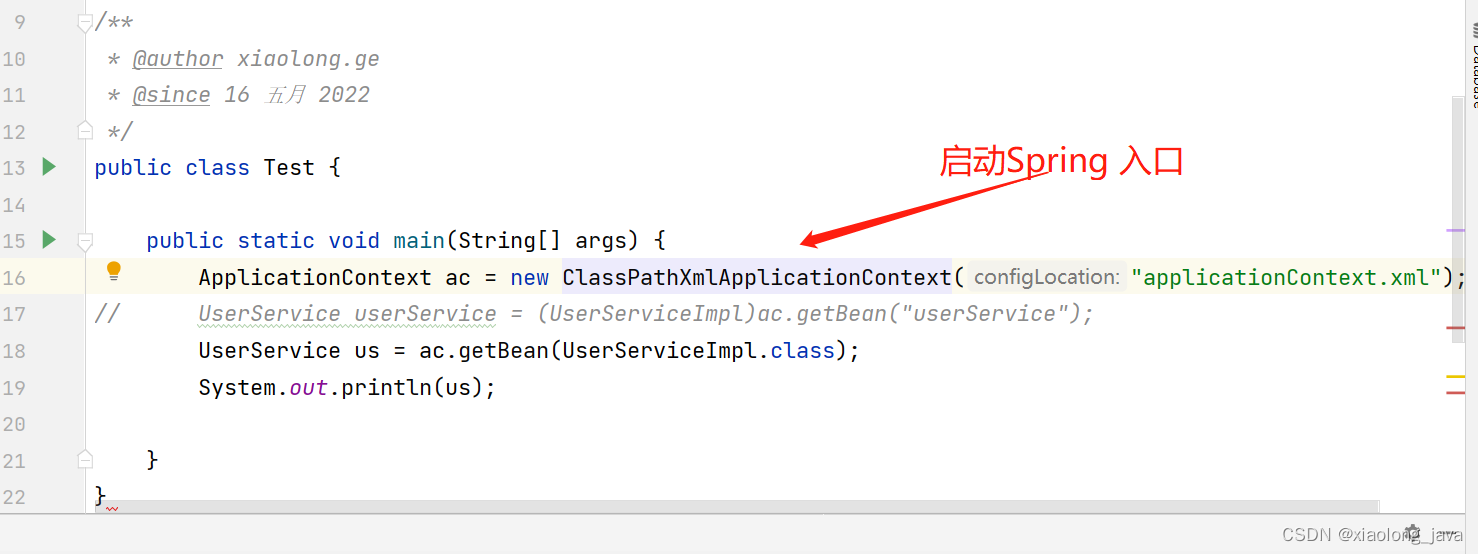

在测试类中 ApplicationContext ac = new ClassPathXmlApplicationContext(“applicationContext.xml”);

找到启动的入口：

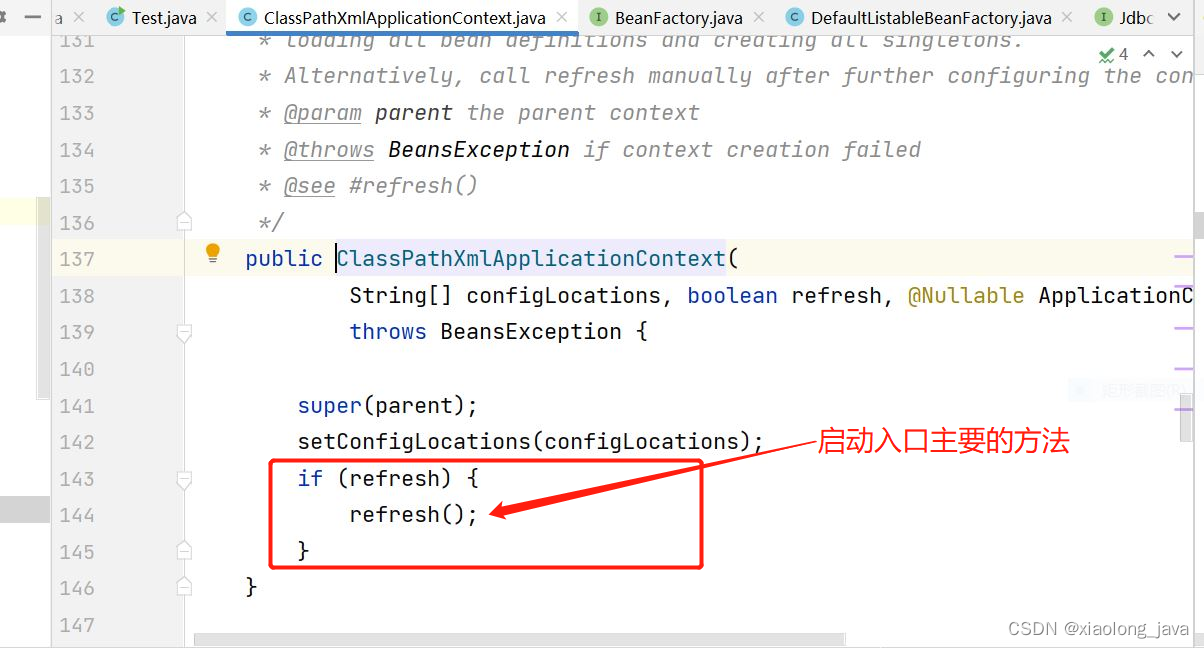

在 ClassPathXmlApplicationContext 的实例化方法中，找到refresh() 方法

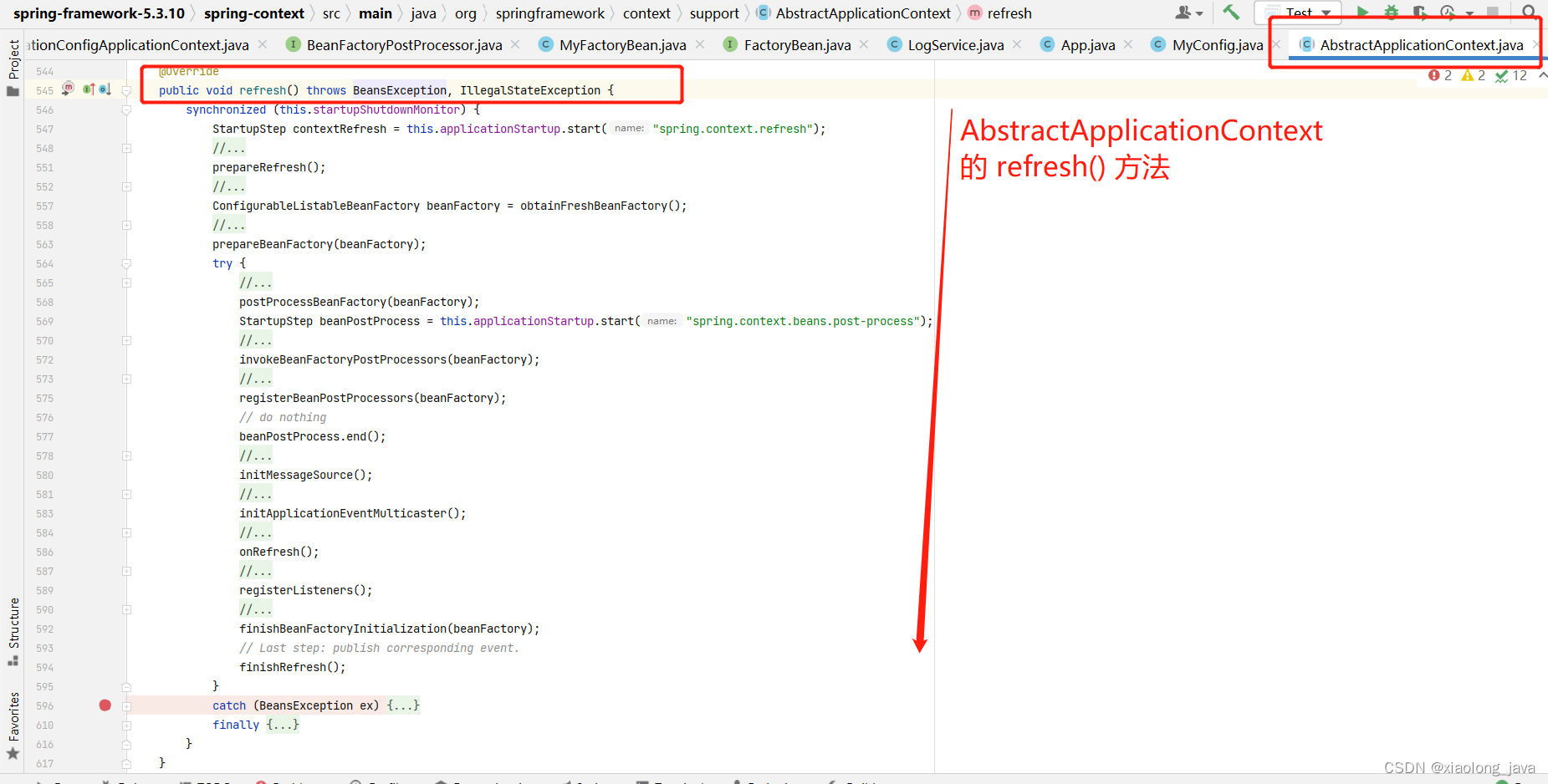

此处调用的是 AbstractApplicitionContext 中的refresh() 方法进入启动，代码如下：

public void refresh() throws BeansException, IllegalStateException {

    synchronized (this.startupShutdownMonitor) {
    StartupStep contextRefresh = this.applicationStartup.start("spring.context.refresh");
      // Prepare this context for refreshing.
      // 准备 刷新容器的上下文context信息 注：此 applicationContext是BeanFactory接口的实现类
      //设置容器的启动和激活状态,初始化环境和资源信息
      prepareRefresh();

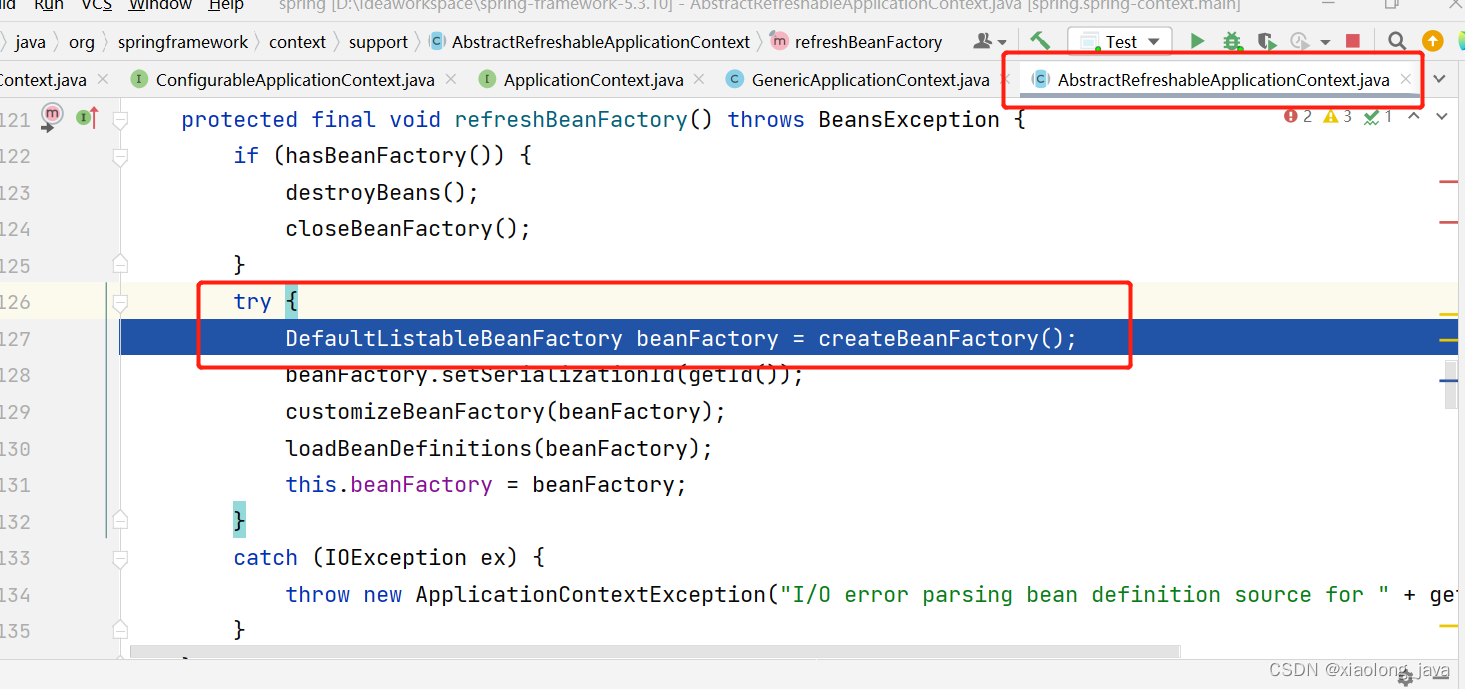

      // Tell the subclass to refresh the internal bean factory.
      // 创建 beanFactory 容器对象，及初始的一些容器对象
      // 注：beanFactory属性 为 此 applicationContext 对象中的一个属性
      // 加载beanDefinition 信息到 beanFactory(默认是DefaultListableBeanFactory)的 beanDefinitionMap 容器中去
      ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
      // 为 beanFactory 准备一些信息 类加载器classLoader
      // BeanExpressionResolver 表达式解析器
      // BeanPostProcessor bean的后置处理器
      // 需要忽略的 Aware接口 等
      // Prepare the bean factory for use in this context.
      prepareBeanFactory(beanFactory);
      try {
       // Allows post-processing of the bean factory in context subclasses.
      // debug进来看是个空方法，什么也没有, do nothing
      // 看了方法的注释意思是 在标准初始化之后 修改 applicationContext的
      // 内部的beanFactory
      postProcessBeanFactory(beanFactory);

      StartupStep beanPostProcess = this.applicationStartup.start("spring.context.beans.post-process");
      // Invoke factory processors registered as beans in the context.
      // 调用 BeanFactoryPostProcessor的 postProcessBeanFactory()方法对 beanDefinition 的信息做处理
      invokeBeanFactoryPostProcessors(beanFactory);
      // Register bean processors that intercept bean creation.
      // 注册 beanPostProcessor 到 beanFactory 中去
       registerBeanPostProcessors(beanFactory);
      // do nothing
       beanPostProcess.end();
       // Initialize message source for this context.
      // 初始化 MessageSource 用于处理国际化资源
      initMessageSource();
        // Initialize event multicaster for this context.
      // 初始化 应用事件的 多播器-广播器 用于分发应用事件给监听者
       initApplicationEventMulticaster();
       // Initialize other special beans in specific context subclasses.
      // 初始化其他bean和进行其他上下文初始化 主要用于扩展  do nothing
        onRefresh();
        // Check for listener beans and register them.
      // 注册事件监听器 到 applicationContext/beanFactory 中
       registerListeners();
        // Instantiate all remaining (non-lazy-init) singletons.
      // 完成 beanFactory中普通单例Bean 的创建和初始化, 进入创建bean的流程
       finishBeanFactoryInitialization(beanFactory);
        // Last step: publish corresponding event.
      // 启动完成，资源回收，分发"刷新完成"事件
        finishRefresh();

      }catch (BeansException ex) {
        if (logger.isWarnEnabled()) {
          logger.warn("Exception encountered during context initialization - " +
             "cancelling refresh attempt: " + ex);
        }
        // Destroy already created singletons to avoid dangling resources.
        destroyBeans();
        // Reset 'active' flag.
        cancelRefresh(ex);
        // Propagate exception to caller.
        throw ex;
      }
      finally {
        // Reset common introspection caches in Spring's core, since we
        // might not ever need metadata for singleton beans anymore...
        resetCommonCaches();
        contextRefresh.end();
      }
    }
  }

Spring IOC容器启动步骤 主要就是调用的refresh() 方法中的这13个方法

1. prepareRefresh();

2. ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

3. prepareBeanFactory(beanFactory);

4. postProcessBeanFactory(beanFactory);

5. invokeBeanFactoryPostProcessors(beanFactory);

6. registerBeanPostProcessors(beanFactory);

7. beanPostProcess.end();

8. initMessageSource();

9. initApplicationEventMulticaster();

10. onRefresh();

11. registerListeners();

12. finishBeanFactoryInitialization(beanFactory);

13. finishRefresh();

上面方法全部执行完成之后创建出 ApplicationContext 的实例对象 ac

ac 中含有 beanFactory 的实例对象DefaultListableBeanFactory


其中 我们主要分析Spring IOC 中 普通的Bean对象的创建过程

也就是 第12个方法的

主要执行流程为
AbstractApplicationContext.finishBeanFactoryInitialization(beanFactory)---->

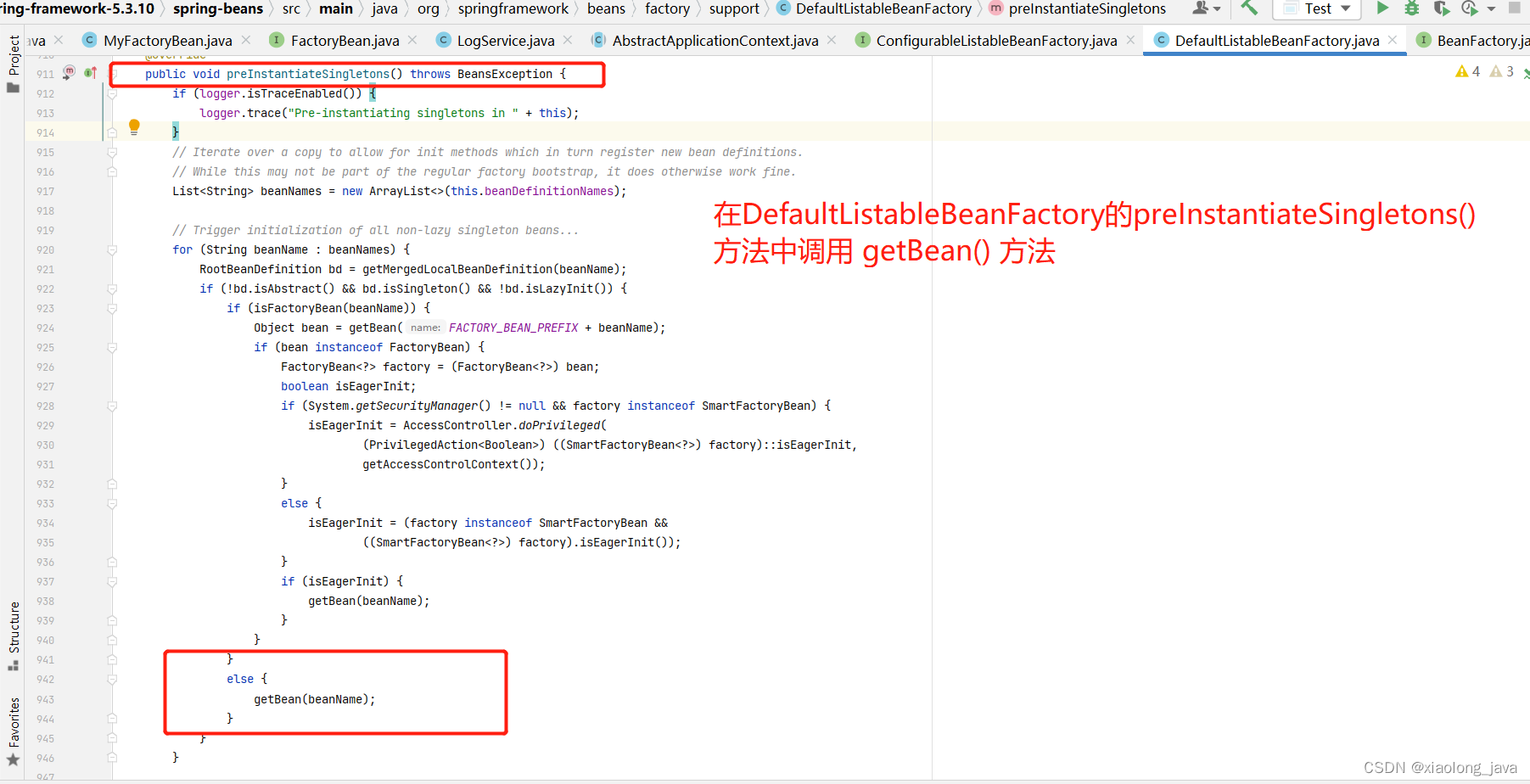

DefaultListableBeanFactory.preInstantiateSingletons()—>

AbstractBeanFactory.getBean(String name) —>

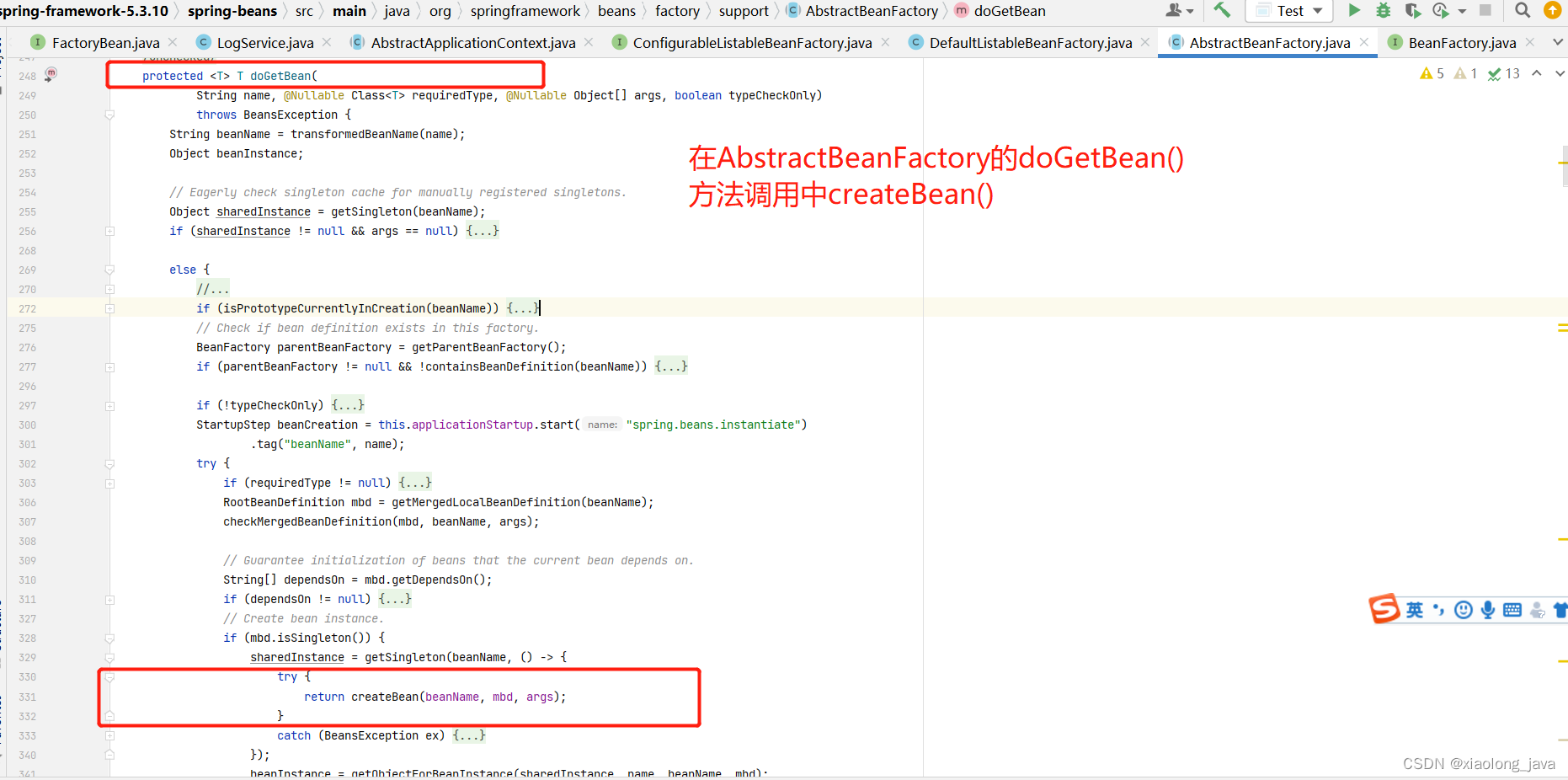

AbstractBeanFactory.doGetBean() ----->

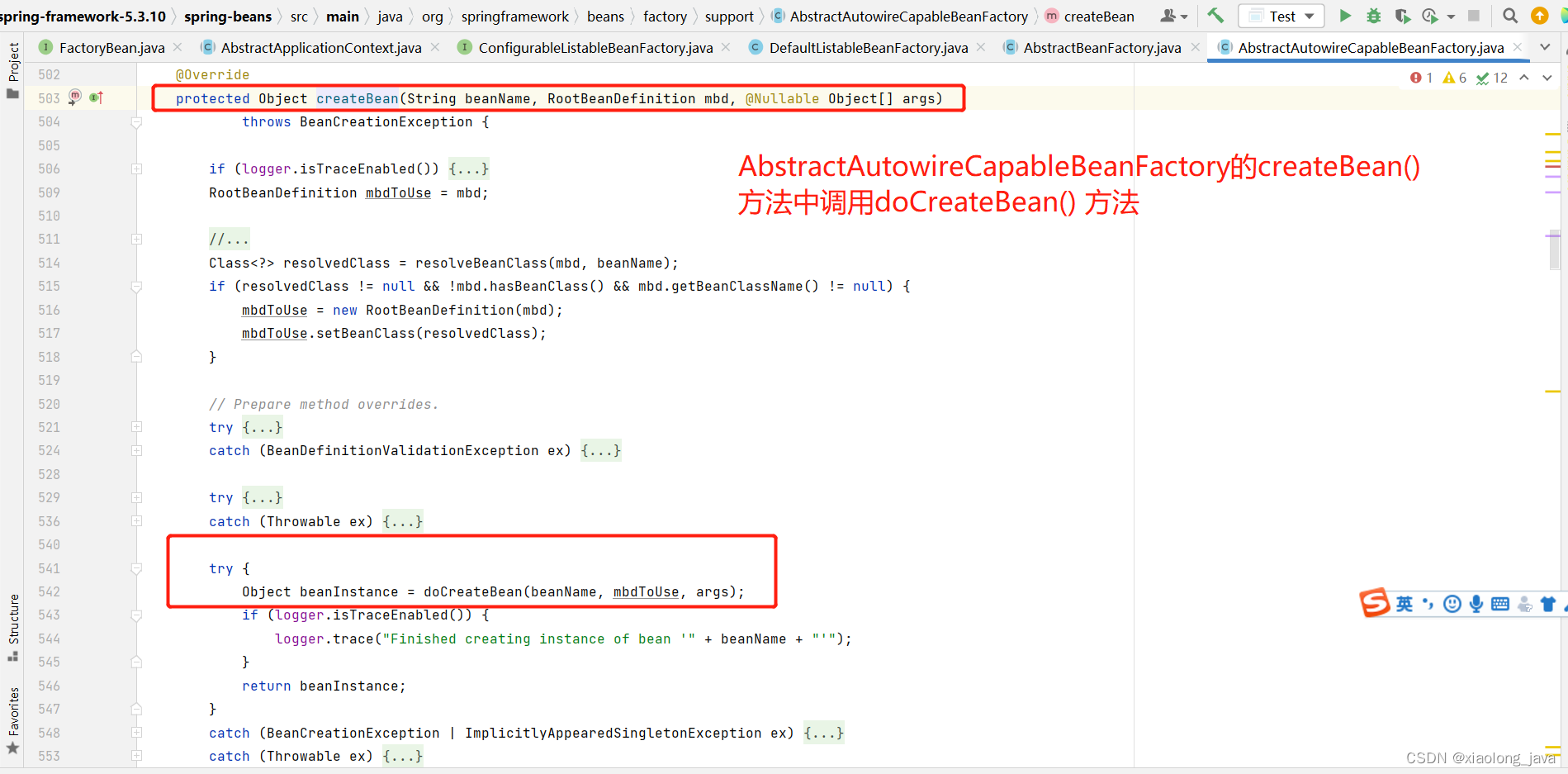

AbstractAutowireCapableBeanFactory.createBean()—>

AbstractAutowireCapableBeanFactory.doCreateBean()—>

再到 doCreateBean() 方法中的

// doCreateBean()
protected Object doCreateBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
      throws BeanCreationException {

    // Instantiate the bean.
    BeanWrapper instanceWrapper = null;
    if (mbd.isSingleton()) {
      instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
    }
    if (instanceWrapper == null) {
      // 创建bean 的实例
      instanceWrapper = createBeanInstance(beanName, mbd, args);
    }
    Object bean = instanceWrapper.getWrappedInstance();
    Class<?> beanType = instanceWrapper.getWrappedClass();
    if (beanType != NullBean.class) {
      mbd.resolvedTargetType = beanType;
    }
    // Allow post-processors to modify the merged bean definition.
    synchronized (mbd.postProcessingLock) {
      if (!mbd.postProcessed) {
        try {
          applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
        }
        catch (Throwable ex) {
          throw new BeanCreationException(mbd.getResourceDescription(), beanName,
              "Post-processing of merged bean definition failed", ex);
        }
        mbd.postProcessed = true;
      }
    }

    // Eagerly cache singletons to be able to resolve circular references
    // even when triggered by lifecycle interfaces like BeanFactoryAware.
    boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
        isSingletonCurrentlyInCreation(beanName));
    if (earlySingletonExposure) {
      if (logger.isTraceEnabled()) {
        logger.trace("Eagerly caching bean '" + beanName +
            "' to allow for resolving potential circular references");
      }
      addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
    }

    // Initialize the bean instance.
    Object exposedObject = bean;
    try {
    // 装配 bean 实例的属性信息
      populateBean(beanName, mbd, instanceWrapper);
      // 实例化 bean 信息
      exposedObject = initializeBean(beanName, exposedObject, mbd);
    }
    catch (Throwable ex) {
      if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
        throw (BeanCreationException) ex;
      }
      else {
        throw new BeanCreationException(
            mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
      }
    }
    if (earlySingletonExposure) {
      Object earlySingletonReference = getSingleton(beanName, false);
      if (earlySingletonReference != null) {
        if (exposedObject == bean) {
          exposedObject = earlySingletonReference;
        }
        else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {
          String[] dependentBeans = getDependentBeans(beanName);
          Set<String> actualDependentBeans = new LinkedHashSet<>(dependentBeans.length);
          for (String dependentBean : dependentBeans) {
            if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
              actualDependentBeans.add(dependentBean);
            }
          }
          if (!actualDependentBeans.isEmpty()) {
            throw new BeanCurrentlyInCreationException(beanName,
                "Bean with name '" + beanName + "' has been injected into other beans [" +
                StringUtils.collectionToCommaDelimitedString(actualDependentBeans) +
                "] in its raw version as part of a circular reference, but has eventually been " +
                "wrapped. This means that said other beans do not use the final version of the " +
                "bean. This is often the result of over-eager type matching - consider using " +
                "'getBeanNamesForType' with the 'allowEagerInit' flag turned off, for example.");
          }
        }
      }
    }
    // Register bean as disposable.
    try {
      registerDisposableBeanIfNecessary(beanName, bean, mbd);
    }
    catch (BeanDefinitionValidationException ex) {
      throw new BeanCreationException(
          mbd.getResourceDescription(), beanName, "Invalid destruction signature", ex);
    }
    return exposedObject;
  }

// 使用反射 创建 bean的实例
instanceWrapper = createBeanInstance(beanName, mbd, args);

/**
   * Create a new instance for the specified bean, using an appropriate instantiation strategy:
   * factory method, constructor autowiring, or simple instantiation.
   * @param beanName the name of the bean
   * @param mbd the bean definition for the bean
   * @param args explicit arguments to use for constructor or factory method invocation
   * @return a BeanWrapper for the new instance
   */
  protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) {
    // Make sure bean class is actually resolved at this point.
    Class<?> beanClass = resolveBeanClass(mbd, beanName);

    if (beanClass != null && !Modifier.isPublic(beanClass.getModifiers()) && !mbd.isNonPublicAccessAllowed()) {
      throw new BeanCreationException(mbd.getResourceDescription(), beanName,
          "Bean class isn't public, and non-public access not allowed: " + beanClass.getName());
    }

    Supplier<?> instanceSupplier = mbd.getInstanceSupplier();
    if (instanceSupplier != null) {
      return obtainFromSupplier(instanceSupplier, beanName);
    }

    if (mbd.getFactoryMethodName() != null) {
      return instantiateUsingFactoryMethod(beanName, mbd, args);
    }

    // Shortcut when re-creating the same bean...
    boolean resolved = false;
    boolean autowireNecessary = false;
    if (args == null) {
      synchronized (mbd.constructorArgumentLock) {
        if (mbd.resolvedConstructorOrFactoryMethod != null) {
          resolved = true;
          autowireNecessary = mbd.constructorArgumentsResolved;
        }
      }
    }
    if (resolved) {
      if (autowireNecessary) {
        return autowireConstructor(beanName, mbd, null, null);
      }
      else {
        return instantiateBean(beanName, mbd);
      }
    }
    // Candidate constructors for autowiring?
    // 决定 使用哪些构造函数来 实例化 bean对象
    Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);
    if (ctors != null || mbd.getResolvedAutowireMode() == AUTOWIRE_CONSTRUCTOR ||
        mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args)) {
      return autowireConstructor(beanName, mbd, ctors, args);
    }
    // Preferred constructors for default construction?
    // 在 beanDefinition 信息中指定优先使用的 构造器
    ctors = mbd.getPreferredConstructors();
    if (ctors != null) {
      return autowireConstructor(beanName, mbd, ctors, null);
    }
    // No special handling: simply use no-arg constructor.
    // 若无特别的指定， 则默认会使用无参的构造函数
    return instantiateBean(beanName, mbd);
  }

  /**
   * 使用 默认的构造函数 创建 bean实例对象
   * Instantiate the given bean using its default constructor.
   * @param beanName the name of the bean
   * @param mbd the bean definition for the bean
   * @return a BeanWrapper for the new instance
   */
  protected BeanWrapper instantiateBean(String beanName, RootBeanDefinition mbd) {
    try {
      Object beanInstance;
      if (System.getSecurityManager() != null) {
        beanInstance = AccessController.doPrivileged(
            (PrivilegedAction<Object>) () -> getInstantiationStrategy().instantiate(mbd, beanName, this),
            getAccessControlContext());
      }
      else {
        beanInstance = getInstantiationStrategy().instantiate(mbd, beanName, this);
      }
      BeanWrapper bw = new BeanWrapperImpl(beanInstance);
      initBeanWrapper(bw);
      return bw;
    }
    catch (Throwable ex) {
      throw new BeanCreationException(
          mbd.getResourceDescription(), beanName, "Instantiation of bean failed", ex);
    }
  }

// 装配 bean中的属性 比如: 若在UserServiceImpl 中如果有userDao 这个属性，则在这一步给 userDao 这个属性装配到UserServiceImpl 这个bean的实例对象中去
populateBean(beanName, mbd, instanceWrapper);

// 初始化 bean
exposedObject = initializeBean(beanName, exposedObject, mbd);

初始化initializeBean()方法代码如下：
AbstractAutowireCapableBeanFactory.initializeBean()

/**
    * @see BeanNameAware
     * @see BeanClassLoaderAware
     * @see BeanFactoryAware
     * @see #applyBeanPostProcessorsBeforeInitialization
     * @see #invokeInitMethods
     * @see #applyBeanPostProcessorsAfterInitialization
     */
  protected Object initializeBean(String beanName, Object bean, @Nullable RootBeanDefinition mbd) {
    if (System.getSecurityManager() != null) {
      AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
        invokeAwareMethods(beanName, bean);
        return null;
      }, getAccessControlContext());
    }
    else {
    // 调用 Aware 方法 设置容器属性到 bean实例中
       invokeAwareMethods(beanName, bean);
    }

    Object wrappedBean = bean;
    if (mbd == null || !mbd.isSynthetic()) {
      // 应用 beanPostProcessor 的 初始化前方法增强
      wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
    }

    try {
    //调用 bean的初始化方法  afterPropertiesSet() -- invokeCustomInitMethod
      invokeInitMethods(beanName, wrappedBean, mbd);
    }
    catch (Throwable ex) {
      throw new BeanCreationException(
          (mbd != null ? mbd.getResourceDescription() : null),
          beanName, "Invocation of init method failed", ex);
    }
    if (mbd == null || !mbd.isSynthetic()) {
    // 应用 beanPostProcessor 的 初始化后方法的增强
      wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
    }

    return wrappedBean;
  }

至此，bean对应的实例对象创建并初始化完成

第12个方法执行完成 则 所有的bean实例化对象 都被创建并初始化，被放在了DefaultListableBeanFactory 的 Map<String, Object> singletonObjects容器中 ----> 此Map 容器则是常说的Spring Ioc的容器

普通Bean创建流程都是由BeanFactory统一创建，整体流程如下图：

平时我们自己使用类时创建的对象都是自己手动调用 类的构造方法来创建的，但是在Spring中 相当于是把控制bean对象创建的权限交给了Spring通过反射Constructor 来创建，故而叫做 Inversion of Control 控制反转 是为Spring Ioc

关于BeanPostProcessor 和BeanFactoryPostProcessor

BeanPostProcessor 和 BeanFactoryPostProcess 都是Spring 初始化bean时对外暴露的扩展点。

由上图可看出 BeanFactoryPostProcessor 是针对于BeanDefinition类来进行增强的，允许在容器实例化bean之前读取bean的定义信息(配置元数据)，并可以修改，定义一个BeanFactoryPostProcessor 需要实现该接口，并重写
接口方法
void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory)

而 BeanPostProcessor 是针对于 Bean初始化前后的增强操作，依赖于
postProcessBeforeInitialization(Object bean, String beanName)
和
postProcessAfterInitialization(Object bean, String beanName)
这两个方法
分别在 bean对象初始化的前和后 增强扩展

而Spring Aop 的增强功能 就是通过 此处的 postProcessAfterInitialization() 初始化后的后置处理来创建 bean的代理对象来实现 切面编程 做增强扩展的

至此，Spring Ioc 的流程分析完成，至于里面还有好多细节的点，还是需要手动去debug层层跟进，调试，记录
总体上Spring Ioc的启动流程大致过程就是这样的，OK，下次我们在来分析Spring AOP 相关的内容吧
