OpenCL实现SobelFilter（行列分解）

原创已于 2023-08-21 11:10:31 修改 · 387 阅读

0 ·

CC 4.0 BY-SA版权

文章标签：

#sobel #opencl #行列分解 #local memory

于 2023-08-21 09:52:18 首次发布

文章介绍了使用CUDA进行Sobel滤波器的两种实现方法，分别是利用非局部内存和局部内存。非局部内存版本展示了如何在全局内存与本地线程块之间共享数据，而局部内存版本则涉及了使用LDS(LocalDataShare)进行优化。

部署运行你感兴趣的模型镜像

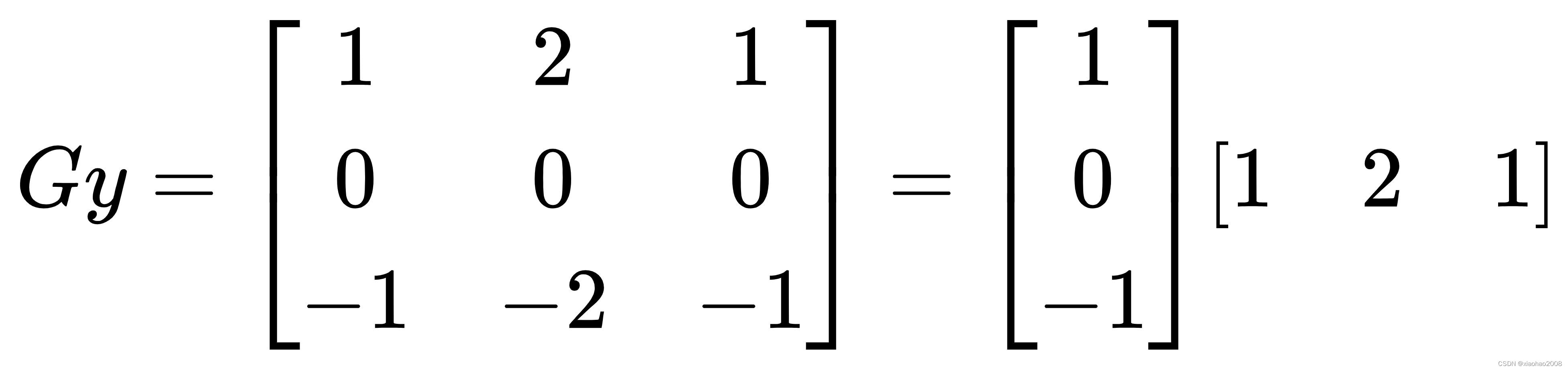

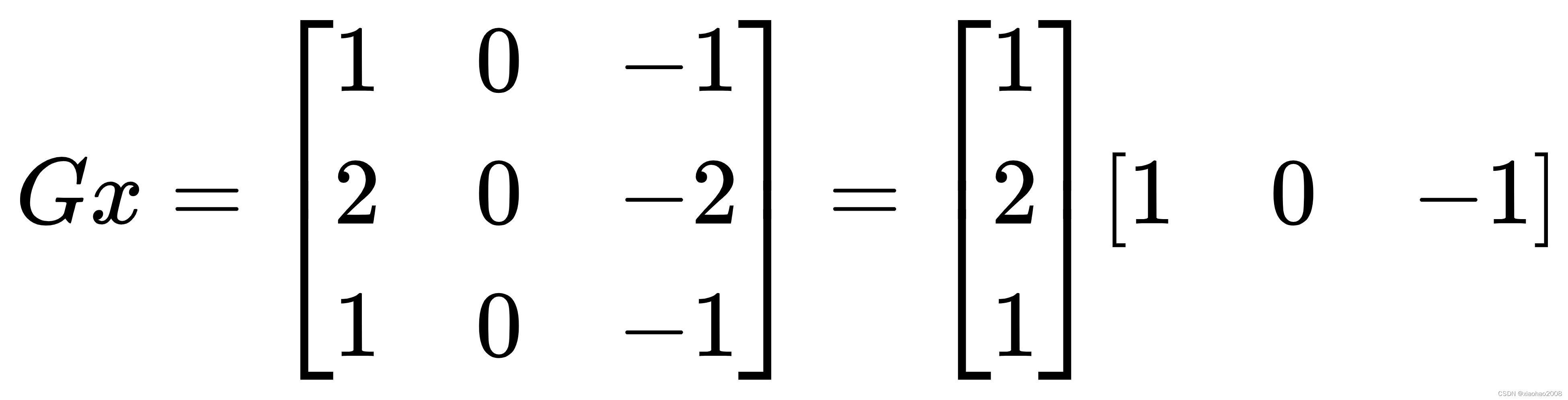

1.行列分解数学原理

row_filter=[1 0 -1], col_filter=[1 2 1]

row_filter=[1 2 1], col_filter=[1 0 -1]

2.非局部内存实现

__kernel void sobel_filter_separable(__global uchar* padSrc, __global uchar* dst, int height, int width, int pad_width)
{
	__local short local_output_x[LOCAL_XRES * (LOCAL_YRES + FILTERSIZE - 1)];
	__local short local_output_y[LOCAL_XRES * (LOCAL_YRES + FILTERSIZE - 1)];

	uint col = get_global_id(0);
    uint row = get_global_id(1);

	if (col >= width || row >= height) return;

	int lid_x = get_local_id(0);
    int lid_y = get_local_id(1);

    int start_col = col;

	/* row-wise */
	// row_filterx = [1 0 -1]
	local_output_x[lid_y * LOCAL_XRES + lid_x] = padSrc[row * pad_width + col] - padSrc[row * pad_width + col + 2];
	// row_filtery = [1 2 1]
	local_output_y[lid_y * LOCAL_XRES + lid_x] = padSrc[row * pad_width + col] + padSrc[row * pad_width + col + 1] * 2 + padSrc[row * pad_width + col + 2];

	if (lid_y < FILTERSIZE - 1) {
		local_output_x[(lid_y + LOCAL_YRES) * LOCAL_XRES + lid_x] = padSrc[(row + LOCAL_YRES) * pad_width + col] - padSrc[(row + LOCAL_YRES) * pad_width + col + 2];
		local_output_y[(lid_y + LOCAL_YRES) * LOCAL_XRES + lid_x] = padSrc[(row + LOCAL_YRES) * pad_width + col] + padSrc[(row + LOCAL_YRES) * pad_width + col + 1] * 2 + padSrc[(row + LOCAL_YRES) * pad_width + col + 2];
	}

	barrier(CLK_LOCAL_MEM_FENCE);

	/* col-wise */
	// col_filterx = [1 2 1]
	ushort sumx = abs(local_output_x[lid_y * LOCAL_XRES + lid_x] + local_output_x[(lid_y + 1) * LOCAL_XRES + lid_x] * 2 + local_output_x[(lid_y + 2) * LOCAL_XRES + lid_x]);
	// col_filtery = [1 0 -1]
	ushort sumy = abs(local_output_y[lid_y * LOCAL_XRES + lid_x] - local_output_y[(lid_y + 2) * LOCAL_XRES + lid_x]);

	dst[row * width + col] = clamp((convert_uchar)(sumx + sumy), (uchar)0, (uchar)255);
}

3.局部内存实现

__kernel void sobel_filter_separable_lds(__global uchar* padSrc, __global uchar* dst, int height, int width, int pad_width)
{
	__local short local_output_x[LOCAL_XRES * (LOCAL_YRES + FILTERSIZE - 1)];
	__local short local_output_y[LOCAL_XRES * (LOCAL_YRES + FILTERSIZE - 1)];
	__local uchar local_input[(LOCAL_XRES + FILTERSIZE - 1) * (LOCAL_YRES + FILTERSIZE - 1)];

	uint col = get_global_id(0);
    uint row = get_global_id(1);

	if (col >= width || row >= height) return;

	int lid_x = get_local_id(0);
    int lid_y = get_local_id(1);

	int tile_xres = (LOCAL_XRES + FILTERSIZE - 1);
    int tile_yres = (LOCAL_YRES + FILTERSIZE - 1);

    int start_col = get_group_id(0) * LOCAL_XRES;
    int start_row = get_group_id(1) * LOCAL_YRES;

    int lid = lid_y * LOCAL_XRES + lid_x;
    int gx, gy;

	do {
        gy = lid / tile_xres;
        gx = lid - gy * tile_xres;

        local_input[lid] = padSrc[(start_row + gy) * pad_width + (start_col + gx)];
        lid += (LOCAL_XRES * LOCAL_YRES);
    } while (lid < (tile_xres * tile_yres));

    barrier(CLK_LOCAL_MEM_FENCE);

	/* row-wise */
	// row_filterx = [1 0 -1]
	local_output_x[lid_y * LOCAL_XRES + lid_x] = local_input[lid_y * tile_xres + lid_x] - local_input[lid_y * tile_xres + lid_x + 2];
	// row_filtery = [1 2 1]
	local_output_y[lid_y * LOCAL_XRES + lid_x] = local_input[lid_y * tile_xres + lid_x] + local_input[lid_y * tile_xres + lid_x + 1] * 2 + local_input[lid_y * tile_xres + lid_x + 2];

	if (lid_y < FILTERSIZE - 1) {
		local_output_x[(lid_y + LOCAL_YRES) * LOCAL_XRES + lid_x] = local_input[(lid_y + LOCAL_YRES) * tile_xres + lid_x] - local_input[(lid_y + LOCAL_YRES) * tile_xres + lid_x + 2];
		local_output_y[(lid_y + LOCAL_YRES) * LOCAL_XRES + lid_x] = local_input[(lid_y + LOCAL_YRES) * tile_xres + lid_x] + local_input[(lid_y + LOCAL_YRES) * tile_xres + lid_x + 1] * 2 + local_input[(lid_y + LOCAL_YRES) * tile_xres + lid_x + 2];
	}

	barrier(CLK_LOCAL_MEM_FENCE);

	/* col-wise */
	// col_filterx = [1 2 1]
	ushort sumx = abs(local_output_x[lid_y * LOCAL_XRES + lid_x] + local_output_x[(lid_y + 1) * LOCAL_XRES + lid_x] * 2 + local_output_x[(lid_y + 2) * LOCAL_XRES + lid_x]);
	// col_filtery = [1 0 -1]
	ushort sumy = abs(local_output_y[lid_y * LOCAL_XRES + lid_x] - local_output_y[(lid_y + 2) * LOCAL_XRES + lid_x]);

	dst[row * width + col] = clamp((convert_uchar)(sumx + sumy), (uchar)0, (uchar)255);
}

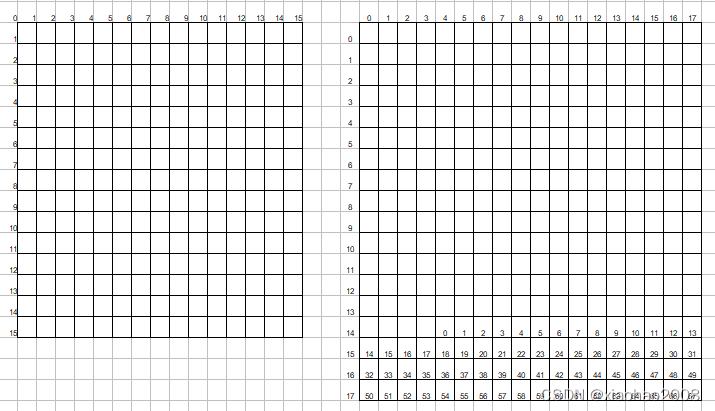

输入数据局部内存初始化原理参考下图
