本文详细介绍了Hyperledger Fabric2.3.2版本的离线部署过程，包括生成证书、创建创世块及通道文件、编写Docker配置文件、启动网络、创建和使用通道、安装和调用智能合约等步骤。

三台服务器如下，环境搭建省略

IP	节点名称
192.168.31.88	orderer.example.com
192.168.31.203	peer0.org1.example.com
192.168.31.48	peer0.org2.example.com

一、生成Fabric证书

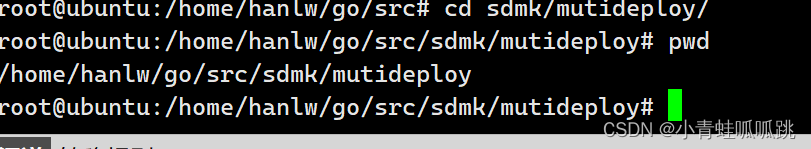

1.创建文件夹mutideploy

2.创建crypto-config.yaml文件

cryptogen showtemplate > crypto-config.yaml
vim crypto-config.yaml
EnableNodeOUs: true		# 修改为true

#生成证书文件
cryptogen generate --config=crypto-config.yaml
org1.example.com
org2.example.com

二、生成创世块通道文件

1.编写创世块文件

Organizations:

    - &OrdererOrg

        Name: OrdererOrg
        ID: OrdererMSP
        MSPDir: ./crypto-config/ordererOrganizations/example.com/msp
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('OrdererMSP.member')"
            Writers:
                Type: Signature
                Rule: "OR('OrdererMSP.member')"
            Admins:
                Type: Signature
                Rule: "OR('OrdererMSP.admin')"
        OrdererEndpoints:
            - orderer.example.com:7050

    - &Org1

        Name: Org1MSP
        ID: Org1MSP
        MSPDir: ./crypto-config/peerOrganizations/org1.example.com/msp
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('Org1MSP.admin', 'Org1MSP.peer', 'Org1MSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('Org1MSP.admin', 'Org1MSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('Org1MSP.admin')"
            Endorsement:
                Type: Signature
                Rule: "OR('Org1MSP.peer')"
        AnchorPeers:
            - Host: peer0.org1.example.com
              Port: 7051

    - &Org2

        Name: Org2MSP
        ID: Org2MSP
        MSPDir: ./crypto-config/peerOrganizations/org2.example.com/msp
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('Org2MSP.admin', 'Org2MSP.peer', 'Org2MSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('Org2MSP.admin', 'Org2MSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('Org2MSP.admin')"
            Endorsement:
                Type: Signature
                Rule: "OR('Org2MSP.peer')"

        AnchorPeers:
            - Host: peer0.org2.example.com
              Port: 9051


Capabilities:

    Channel: &ChannelCapabilities

        V2_0: true

    Orderer: &OrdererCapabilities

        V2_0: true

    Application: &ApplicationCapabilities

        V2_0: true

Application: &ApplicationDefaults

    Organizations:

    Policies:
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"
        LifecycleEndorsement:
            Type: ImplicitMeta
            Rule: "MAJORITY Endorsement"
        Endorsement:
            Type: ImplicitMeta
            Rule: "MAJORITY Endorsement"

    Capabilities:
        <<: *ApplicationCapabilities

Orderer: &OrdererDefaults

    OrdererType: solo

    Addresses:		# orderer 集群节点
        - orderer.example.com:7050

    EtcdRaft:
        Consenters:
        - Host: orderer.example.com
          Port: 7050
          ClientTLSCert: ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt
          ServerTLSCert: ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt

    BatchTimeout: 2s
    BatchSize:
        MaxMessageCount: 10
        AbsoluteMaxBytes: 99 MB
        PreferredMaxBytes: 512 KB

    Organizations:

    Policies:
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"

        BlockValidation:
            Type: ImplicitMeta
            Rule: "ANY Writers"


Channel: &ChannelDefaults

    Policies:

        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"


    Capabilities:
        <<: *ChannelCapabilities

Profiles:

    TwoOrgsOrdererGenesis:
        <<: *ChannelDefaults
        Orderer:
            <<: *OrdererDefaults
            Organizations:
                - *OrdererOrg
            Capabilities:
                <<: *OrdererCapabilities
        Consortiums:
            SampleConsortium:
                Organizations:
                    - *Org1
                    - *Org2
    TwoOrgsChannel:
        Consortium: SampleConsortium
        <<: *ChannelDefaults
        Application:
            <<: *ApplicationDefaults
            Organizations:
                - *Org1
                - *Org2
            Capabilities:
                <<: *ApplicationCapabilities

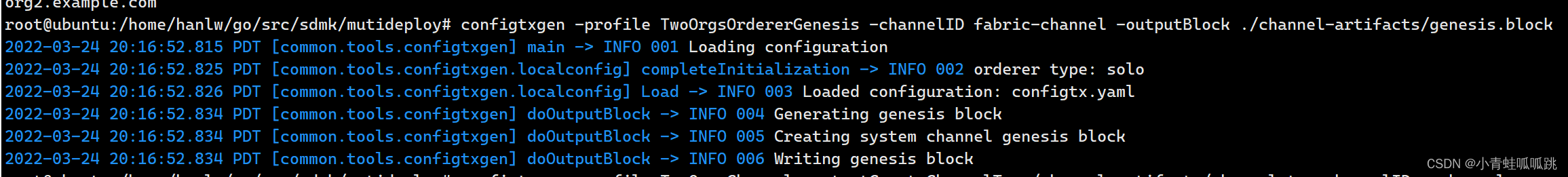

2.生成创世区块

configtxgen -profile TwoOrgsOrdererGenesis -channelID fabric-channel -outputBlock ./channel-artifacts/genesis.block

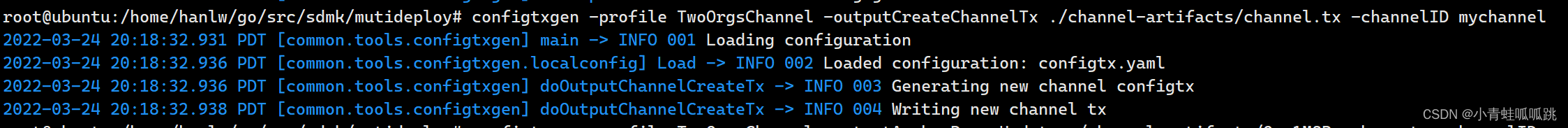

3.生成通道文件

configtxgen -profile TwoOrgsChannel -outputCreateChannelTx ./channel-artifacts/channel.tx -channelID mychannel

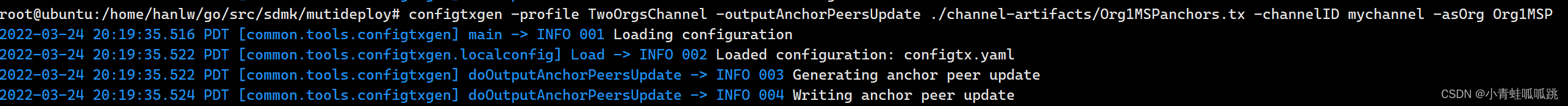

4.为 Org1 定义锚节点

configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org1MSPanchors.tx -channelID mychannel -asOrg Org1MSP

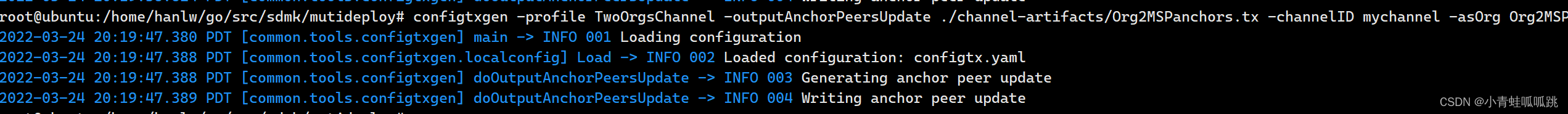

5.为 Org2 定义锚节点

configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org2MSPanchors.tx -channelID mychannel -asOrg Org2MSP

6.将生成的文件拷贝到另两台主机

复制证书文件channel-artifacts、crypto-config到

peer0.org1.example.com、peer0.org2.example.com节点

三、编写docker-compose文件

1.orderer节点


version: '2'

services:
  orderer.example.com:
    container_name: orderer.example.com
    image: hyperledger/fabric-orderer:latest
    environment:
      - FABRIC_LOGGING_SPEC=INFO
      - ORDERER_GENERAL_LISTENADDRESS=0.0.0.0
      - ORDERER_GENERAL_LISTENPORT=7050
      - ORDERER_GENERAL_GENESISMETHOD=file
      - ORDERER_GENERAL_GENESISFILE=/var/hyperledger/orderer/orderer.genesis.block
      - ORDERER_GENERAL_LOCALMSPID=OrdererMSP
      - ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp
      - ORDERER_GENERAL_TLS_ENABLED=true
      - ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
      - ORDERER_KAFKA_TOPIC_REPLICATIONFACTOR=1
      - ORDERER_KAFKA_VERBOSE=true
      - ORDERER_GENERAL_CLUSTER_CLIENTCERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_CLUSTER_CLIENTPRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_CLUSTER_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric
    command: orderer
    volumes:
      - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/msp:/var/hyperledger/orderer/msp
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/:/var/hyperledger/orderer/tls
    ports:
      - 7050:7050
    extra_hosts:
      - "orderer.example.com:192.168.31.88"
      - "peer0.org1.example.com:192.168.31.203"
      - "peer0.org2.example.com:192.168.31.48"

2.org1节点


version: '2'

services:
  couchdb0.org1.example.com:
    container_name: couchdb0.org1.example.com
    image: couchdb:3.1.1
    environment:
      - COUCHDB_USER=admin
      - COUCHDB_PASSWORD=adminpw
    ports:
      - 5984:5984

  peer0.org1.example.com:
    container_name: peer0.org1.example.com
    image: hyperledger/fabric-peer:latest
    environment:
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_PEER_ID=peer0.org1.example.com
      - CORE_PEER_ADDRESS=peer0.org1.example.com:7051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:7051
      - CORE_PEER_CHAINCODEADDRESS=peer0.org1.example.com:7052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:7052
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer0.org1.example.com:7051
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org1.example.com:7051
      - CORE_PEER_LOCALMSPID=Org1MSP
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_GOSSIP_USELEADERELECTION=true
      - CORE_PEER_GOSSIP_ORGLEADER=false
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      - CORE_CHAINCODE_EXECUTETIMEOUT=300s
      - CORE_LEDGER_STATE_STATEDATABASE=CouchDB
      - CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb0.org1.example.com:5984
      - CORE_LEDGER_STATE_COUCHDBCONFIG_USERNAME=admin
      - CORE_LEDGER_STATE_COUCHDBCONFIG_PASSWORD=adminpw
    depends_on:
      - couchdb0.org1.example.com

    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
      - /var/run/:/host/var/run/
      - ./crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/msp:/etc/hyperledger/fabric/msp
      - ./crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls:/etc/hyperledger/fabric/tls
    ports:
      - 7051:7051
      - 7052:7052
      - 7053:7053
    extra_hosts:
      - "orderer.example.com:192.168.31.88"
      - "peer0.org1.example.com:192.168.31.203"
      - "peer0.org2.example.com:192.168.31.48"
  cli:
    container_name: cli
    image: hyperledger/fabric-tools:latest
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli
      - CORE_PEER_ADDRESS=peer0.org1.example.com:7051
      - CORE_PEER_LOCALMSPID=Org1MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
      - /var/run/:/host/var/run/
      - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/fabric-cluster/chaincode/go
      - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
      - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    extra_hosts:
      - "orderer.example.com:192.168.31.88"
      - "peer0.org1.example.com:192.168.31.203"
      - "peer0.org2.example.com:192.168.31.48"

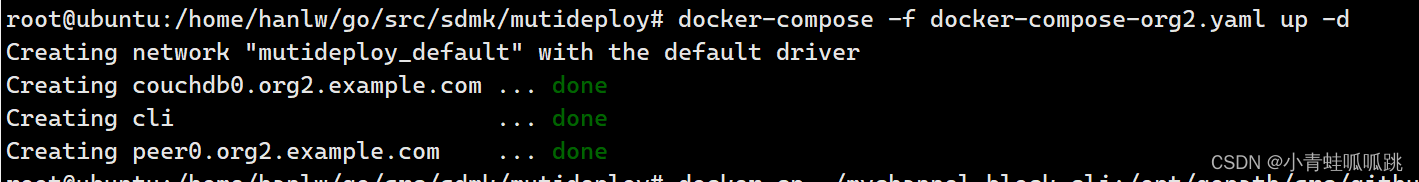

3.org2节点


version: '2'

services:
  couchdb0.org2.example.com:
    container_name: couchdb0.org2.example.com
    image: couchdb:3.1.1
    environment:
      - COUCHDB_USER=admin
      - COUCHDB_PASSWORD=adminpw
    ports:
      - 5984:5984

  peer0.org2.example.com:
    container_name: peer0.org2.example.com
    image: hyperledger/fabric-peer:latest
    environment:
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_PEER_ID=peer0.org2.example.com
      - CORE_PEER_ADDRESS=peer0.org2.example.com:7051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:7051
      - CORE_PEER_CHAINCODEADDRESS=peer0.org2.example.com:7052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:7052
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer0.org2.example.com:7051
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org2.example.com:7051
      - CORE_PEER_LOCALMSPID=Org2MSP
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_GOSSIP_USELEADERELECTION=true
      - CORE_PEER_GOSSIP_ORGLEADER=false
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      - CORE_CHAINCODE_EXECUTETIMEOUT=300s
      - CORE_LEDGER_STATE_STATEDATABASE=CouchDB
      - CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb0.org2.example.com:5984
      - CORE_LEDGER_STATE_COUCHDBCONFIG_USERNAME=admin
      - CORE_LEDGER_STATE_COUCHDBCONFIG_PASSWORD=adminpw
    depends_on:
      - couchdb0.org2.example.com

    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
      - /var/run/:/host/var/run/
      - ./crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/msp:/etc/hyperledger/fabric/msp
      - ./crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls:/etc/hyperledger/fabric/tls
    ports:
      - 7051:7051
      - 7052:7052
      - 7053:7053
    extra_hosts:
      - "orderer.example.com:192.168.31.88"
      - "peer0.org1.example.com:192.168.31.203"
      - "peer0.org2.example.com:192.168.31.48"
  cli:
    container_name: cli
    image: hyperledger/fabric-tools:latest
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli
      - CORE_PEER_ADDRESS=peer0.org2.example.com:7051
      - CORE_PEER_LOCALMSPID=Org2MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
      - /var/run/:/host/var/run/
      - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/fabric-cluster/chaincode/go
      - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
      - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    extra_hosts:
      - "orderer.example.com:192.168.31.88"
      - "peer0.org1.example.com:192.168.31.203"
      - "peer0.org2.example.com:192.168.31.48"

4.启动

#orderer节点
docker-compose -f docker-compose-orderer.yaml up -d

#org1
docker-compose -f docker-compose-org1.yaml up -d

#org2
docker-compose -f docker-compose-org2.yaml up -d

四、通道操作

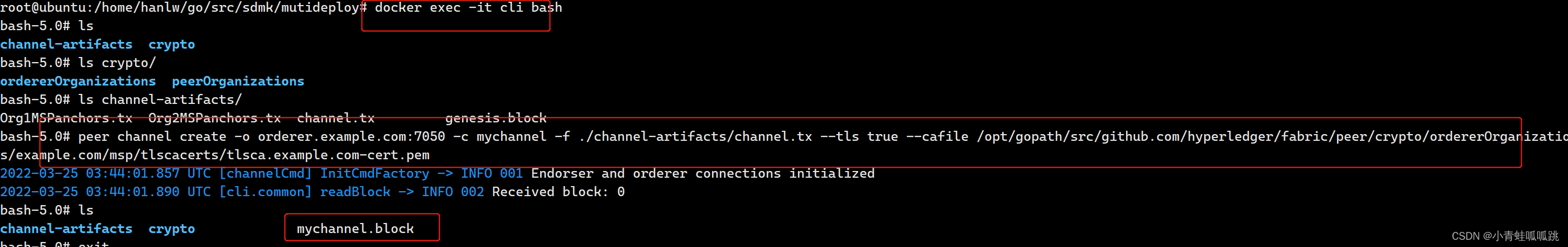

1.创建通道

# org1
docker exec -it cli bash

peer channel create -o orderer.example.com:7050 -c mychannel -f ./channel-artifacts/channel.tx --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/msp/tlscacerts/tlsca.example.com-cert.pem

将通道文件 mychannel.block 拷贝到宿主机及其他节点的容器。自己看着操作

docker cp cli:/opt/gopath/src/github.com/hyperledger/fabric/peer/mychannel.block ./
docker cp ./mychannel.block cli:/opt/gopath/src/github.com/hyperledger/fabric/peer/

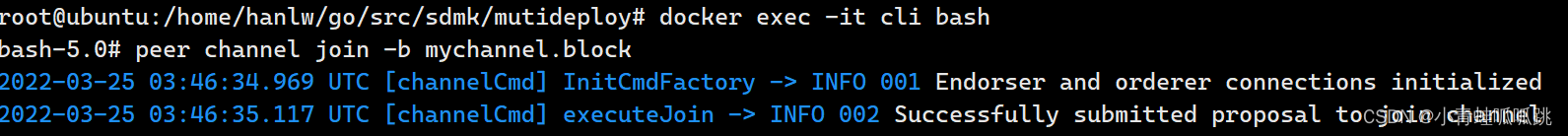

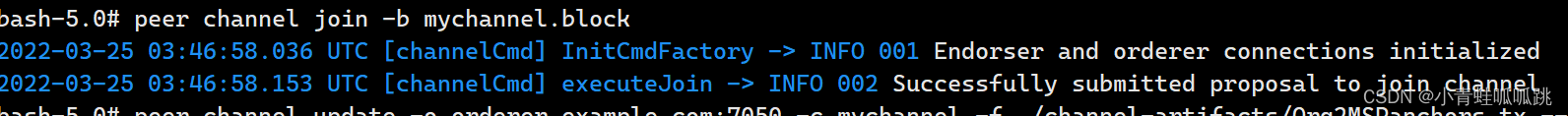

2.加入通道

# org1
docker exec -it cli bash
bash-5.0# peer channel join -b mychannel.block

# org2
docker exec -it cli bash
bash-5.0# peer channel join -b mychannel.block

org1

org2

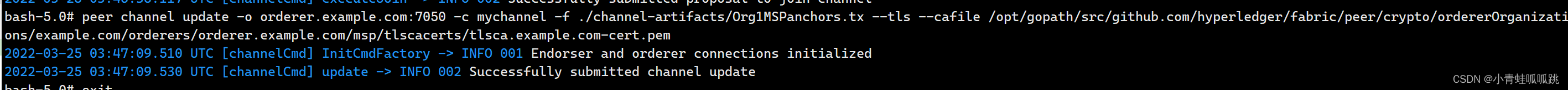

3.更新锚节点

# org1
bash-5.0# peer channel update -o orderer.example.com:7050 -c mychannel -f ./channel-artifacts/Org1MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

# org2
bash-5.0# peer channel update -o orderer.example.com:7050 -c mychannel -f ./channel-artifacts/Org2MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

五、安装调用智能合约

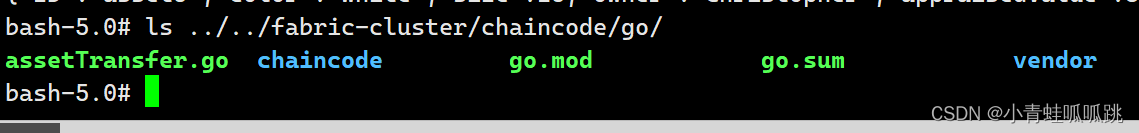

1.官方示例智能合约配置

mkdir chaincode/go -p

#用官方提供的链码
cp -r ../asset-transfer-basic/chaincode-go/* chaincode/go/

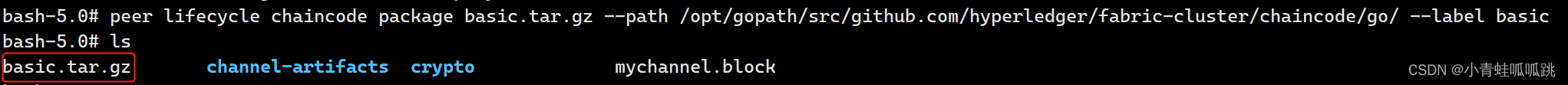

2.打包链码

docker exec -it cli bash
bash-5.0# cd /opt/gopath/src/github.com/hyperledger/fabric/peer
peer lifecycle chaincode package basic.tar.gz --path /opt/gopath/src/github.com/hyperledger/fabric-cluster/chaincode/go/ --label basic

3.安装链码

把链码拷贝到org2容器内，自己copy就行。

# org1
docker cp cli:/opt/gopath/src/github.com/hyperledger/fabric/peer/basic.tar.gz ./
docker cp ./basic.tar.gz  cli:/opt/gopath/src/github.com/hyperledger/fabric/peer/

安装

#org1
bash-5.0# peer lifecycle chaincode install basic.tar.gz
2022-03-25 03:55:08.042 UTC [cli.lifecycle.chaincode] submitInstallProposal -> INFO 001 Installed remotely: response:<status:200 payload:"\nFbasic:f211559585a9a29328f9d408840223f1c213ffa2c6ed27d448a46374bff074d2\022\005basic" >
2022-03-25 03:55:08.042 UTC [cli.lifecycle.chaincode] submitInstallProposal -> INFO 002 Chaincode code package identifier: basic:f211559585a9a29328f9d408840223f1c213ffa2c6ed27d448a46374bff074d2

#org2
bash-5.0# peer lifecycle chaincode install basic.tar.gz
2022-03-25 03:55:23.896 UTC [cli.lifecycle.chaincode] submitInstallProposal -> INFO 001 Installed remotely: response:<status:200 payload:"\nFbasic:f211559585a9a29328f9d408840223f1c213ffa2c6ed27d448a46374bff074d2\022\005basic" >
2022-03-25 03:55:23.896 UTC [cli.lifecycle.chaincode] submitInstallProposal -> INFO 002 Chaincode code package identifier: basic:f211559585a9a29328f9d408840223f1c213ffa2c6ed27d448a46374bff074d2

4.批准链码

#org1
bash-5.0# peer lifecycle chaincode queryinstalled
Installed chaincodes on peer:
Package ID: basic:f211559585a9a29328f9d408840223f1c213ffa2c6ed27d448a46374bff074d2, Label: basic

#org1
peer lifecycle chaincode approveformyorg --channelID mychannel --name basic --version 1.0 --init-required --package-id basic:f211559585a9a29328f9d408840223f1c213ffa2c6ed27d448a46374bff074d2 --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

#org2
peer lifecycle chaincode approveformyorg --channelID mychannel --name basic --version 1.0 --init-required --package-id basic:f211559585a9a29328f9d408840223f1c213ffa2c6ed27d448a46374bff074d2 --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem


#org1
bash-5.0# peer lifecycle chaincode querycommitted --channelID mychannel --name basic
Committed chaincode definition for chaincode 'basic' on channel 'mychannel':
Version: 1.0, Sequence: 1, Endorsement Plugin: escc, Validation Plugin: vscc, Approvals: [Org1MSP: true, Org2MSP: true]

5.查看链码是否就绪

# org1

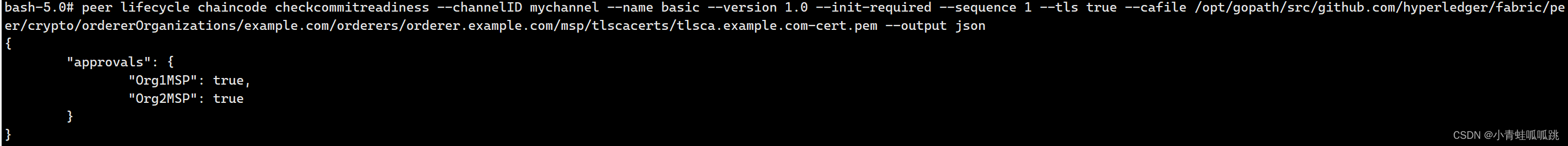

bash-5.1# peer lifecycle chaincode checkcommitreadiness --channelID mychannel --name basic --version 1.0 --init-required --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem --output json

# org2
bash-5.1# peer lifecycle chaincode checkcommitreadiness --channelID mychannel --name basic --version 1.0 --init-required --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem --output json

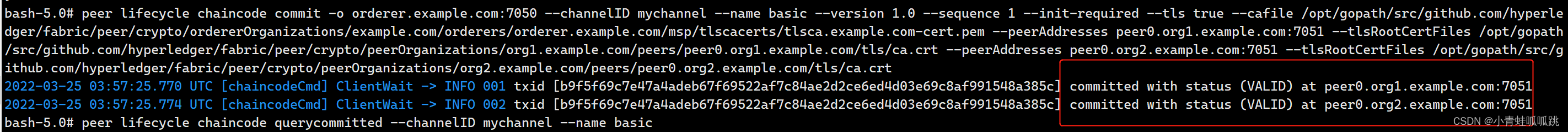

6.提交链码

# org1提交即可
bash-5.0# peer lifecycle chaincode commit -o orderer.example.com:7050 --channelID mychannel --name basic --version 1.0 --sequence 1 --init-required --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
#查看节点已提交合约
bash-5.0# peer lifecycle chaincode querycommitted --channelID mychannel --name basic
Committed chaincode definition for chaincode 'basic' on channel 'mychannel':
Version: 1.0, Sequence: 1, Endorsement Plugin: escc, Validation Plugin: vscc, Approvals: [Org1MSP: true, Org2MSP: true]

7.链码操作数据

#1、链码初始化
peer chaincode invoke -o orderer.example.com:7050 --ordererTLSHostnameOverride orderer.example.com --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n basic --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt --isInit -c '{"function":"InitLedger","Args":[]}'

#2、查询
peer chaincode query -C mychannel -n basic -c '{"Args":["GetAllAssets"]}'

#3、修改资产6，asset6
peer chaincode invoke -o orderer.example.com:7050 --ordererTLSHostnameOverride orderer.example.com --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n basic --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt  -c '{"function":"TransferAsset","Args":["asset6","Christopher"]}'

#4、查询asset6
peer chaincode query -C mychannel -n basic -c '{"Args":["ReadAsset","asset6"]}'

六、清除网络

每个节点都执行

docker-compose down

附：

bash-5.0# peer channel create -o orderer.example.com:7050 -c mychannel -f ./channel-artifacts/channel.tx --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/msp/tlscacerts/tlsca.example.com-cert.pem
2022-03-25 03:44:01.857 UTC [channelCmd] InitCmdFactory -> INFO 001 Endorser and orderer connections initialized
2022-03-25 03:44:01.890 UTC [cli.common] readBlock -> INFO 002 Received block: 0
bash-5.0# ls
channel-artifacts  crypto             mychannel.block
bash-5.0# exit
exit
root@ubuntu:/home/hanlw/go/src/sdmk/mutideploy# docker cp cli:/opt/gopath/src/github.com/hyperledger/fabric/peer/mychannel.block ./
root@ubuntu:/home/hanlw/go/src/sdmk/mutideploy# ls
chaincode  channel-artifacts  crypto-config  docker-compose-org1.yaml  mychannel.block
root@ubuntu:/home/hanlw/go/src/sdmk/mutideploy# docker exec -it cli bash
bash-5.0# peer channel join -b mychannel.block
2022-03-25 03:46:34.969 UTC [channelCmd] InitCmdFactory -> INFO 001 Endorser and orderer connections initialized
2022-03-25 03:46:35.117 UTC [channelCmd] executeJoin -> INFO 002 Successfully submitted proposal to join channel
bash-5.0# peer channel update -o orderer.example.com:7050 -c mychannel -f ./channel-artifacts/Org1MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem
2022-03-25 03:47:09.510 UTC [channelCmd] InitCmdFactory -> INFO 001 Endorser and orderer connections initialized
2022-03-25 03:47:09.530 UTC [channelCmd] update -> INFO 002 Successfully submitted channel update

root@ubuntu:/home/hanlw/go/src/sdmk/mutideploy# docker exec -it cli bash
bash-5.0# peer lifecycle chaincode install basic.tar.gz
2022-03-25 03:55:08.042 UTC [cli.lifecycle.chaincode] submitInstallProposal -> INFO 001 Installed remotely: response:<status:200 payload:"\nFbasic:f211559585a9a29328f9d408840223f1c213ffa2c6ed27d448a46374bff074d2\022\005basic" >
2022-03-25 03:55:08.042 UTC [cli.lifecycle.chaincode] submitInstallProposal -> INFO 002 Chaincode code package identifier: basic:f211559585a9a29328f9d408840223f1c213ffa2c6ed27d448a46374bff074d2
bash-5.0# peer lifecycle chaincode approveformyorg --channelID mychannel --name basic --version 1.0 --init-required --package-id basic:f211559585a9a29328f9d408840223f1c213ffa2c6ed27d448a46374bff074d2 --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem
2022-03-25 03:56:03.231 UTC [cli.lifecycle.chaincode] setOrdererClient -> INFO 001 Retrieved channel (mychannel) orderer endpoint: orderer.example.com:7050
2022-03-25 03:56:05.369 UTC [chaincodeCmd] ClientWait -> INFO 002 txid [b9ada77ccdf1226b6ad888a3d92b8d5d3048f35bc0d8eb5c236b80b7b63a96f1] committed with status (VALID) at peer0.org1.example.com:7051
bash-5.0# peer lifecycle chaincode checkcommitreadiness --channelID mychannel --name basic --version 1.0 --init-required --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem --output json
{
	"approvals": {
		"Org1MSP": true,
		"Org2MSP": true
	}
}
bash-5.0# peer lifecycle chaincode commit -o orderer.example.com:7050 --channelID mychannel --name basic --version 1.0 --sequence 1 --init-required --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
2022-03-25 03:57:25.770 UTC [chaincodeCmd] ClientWait -> INFO 001 txid [b9f5f69c7e47a4adeb67f69522af7c84ae2d2ce6ed4d03e69c8af991548a385c] committed with status (VALID) at peer0.org1.example.com:7051
2022-03-25 03:57:25.774 UTC [chaincodeCmd] ClientWait -> INFO 002 txid [b9f5f69c7e47a4adeb67f69522af7c84ae2d2ce6ed4d03e69c8af991548a385c] committed with status (VALID) at peer0.org2.example.com:7051
bash-5.0# peer lifecycle chaincode querycommitted --channelID mychannel --name basic
Committed chaincode definition for chaincode 'basic' on channel 'mychannel':
Version: 1.0, Sequence: 1, Endorsement Plugin: escc, Validation Plugin: vscc, Approvals: [Org1MSP: true, Org2MSP: true]
bash-5.0# peer chaincode invoke -o orderer.example.com:7050 --ordererTLSHostnameOverride orderer.example.com --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n basic --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt --isInit -c '{"function":"InitLedger","Args":[]}'
2022-03-25 03:57:54.340 UTC [chaincodeCmd] chaincodeInvokeOrQuery -> INFO 001 Chaincode invoke successful. result: status:200
bash-5.0# peer chaincode query -C mychannel -n basic -c '{"Args":["GetAllAssets"]}'
[{"ID":"asset1","color":"blue","size":5,"owner":"Tomoko","appraisedValue":300},{"ID":"asset2","color":"red","size":5,"owner":"Brad","appraisedValue":400},{"ID":"asset3","color":"green","size":10,"owner":"Jin Soo","appraisedValue":500},{"ID":"asset4","color":"yellow","size":10,"owner":"Max","appraisedValue":600},{"ID":"asset5","color":"black","size":15,"owner":"Adriana","appraisedValue":700},{"ID":"asset6","color":"white","size":15,"owner":"Michel","appraisedValue":800}]
bash-5.0# peer chaincode query -C mychannel -n basic -c '{"Args":["ReadAsset","asset6"]}'
{"ID":"asset6","color":"white","size":15,"owner":"Christopher","appraisedValue":800}

参考

Fabric2.3.2分布式离线部署_学习太难啦的博客-优快云博客
