【Stimulsoft Reports.WinForms教程】使用报表页面画布获取版权

【下载Stimulsoft Reports.Ultimate最新版本】

此示例显示如何在报表页面上放置水印，页面上的水印可以是文本，表达的结果或图像。水印也可以放在页面的任何位置。在此示例中，我们将添加文本水印。为此，我们使用报表的绘图页面事件：

static void Main()
{
    StiPage.PagePainting += new StiPagePaintEventHandler(OnPagePainting);
    StiPage.PagePainted += new StiPagePaintEventHandler(OnPagePainted);

    Application.EnableVisualStyles();
    Application.Run(new Form1());
}

private static void OnPagePainting(StiPage sender, StiPagePaintEventArgs e)
{
    if (copyrightPosition == Position.Behind)
    {
        StiPage page = sender as StiPage;
        DrawCopyright(page, e);
    }
}

private static void OnPagePainted(StiPage sender, StiPagePaintEventArgs e)
{
    if (copyrightPosition == Position.Front)
    {
        StiPage page = sender as StiPage;
        DrawCopyright(page, e);
    }
}

渲染水印的方法如下：

private static void DrawCopyright(StiPage page, StiPagePaintEventArgs e)
{
    if (e.IsPrinting && (!printer))return;
    if (e.IsDesigning && (!designer))return;
    if ((!e.IsDesigning) && (!e.IsPrinting) && (!preview))return;

    Rectangle rect = e.FullRectangle;
    if (rectClient)rect = e.ClientRectangle;

    using (Font font = new Font("Arial", 20 * (float)page.Zoom))
    using (StringFormat sf = new StringFormat())
    {
        switch (copyrightPlace)
        {
            case Place.TopLeft:
                sf.Alignment = StringAlignment.Near;
                sf.LineAlignment = StringAlignment.Near;
                break;

            case Place.TopRight:
                sf.Alignment = StringAlignment.Far;
                sf.LineAlignment = StringAlignment.Near;
                break;

            case Place.Center:
                sf.Alignment = StringAlignment.Center;
                sf.LineAlignment = StringAlignment.Center;
                break;

            case Place.BottomLeft:
                sf.Alignment = StringAlignment.Near;
                sf.LineAlignment = StringAlignment.Far;
                break;

            case Place.BottomRight:
                sf.Alignment = StringAlignment.Far;
                sf.LineAlignment = StringAlignment.Far;
                break;
        }

        e.Graphics.DrawString(copyrightString, font, Brushes.Red, rect, sf);
    }
}

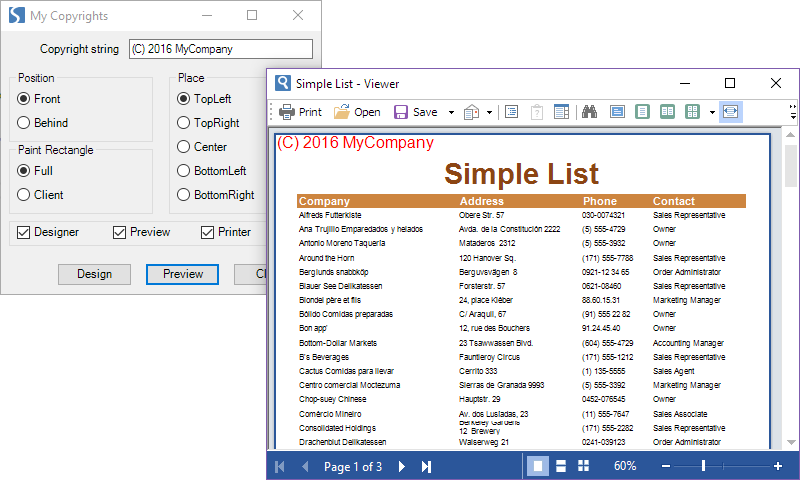

示例代码的结果如下图所示：

查看原文，下载示例
