C#实现插件式开发的一个Demo分享

做winform程序，很多时候都需要用到插件式的，所以本人做了一个Demo，思路跟网上思路基本一致，现在共享出来如有需要的朋友可以下载。

原理很简单：

一：定义插件接口

二：实现插件接口并建立不同工项目，使其在生成时生成不同的DLL

三：主程序运行时根据接口名利用反射对插件目录的DLL进行加载，加载完成后便可以使用插件接口定义的方法或属性了。

下面上几张图，有兴趣的朋友可以先看看，觉得值得一看的朋友可以下载。

项目结构：

DefaultPlugin,PosPlugin两个项目均为插件，均实现了Iplugin接可

Iplugin接口

using  System;
using  System.Collections.Generic;
using  System.Linq;
using  System.Text;
using  System.Drawing;
using  System.Windows.Forms;

namespace  WinDemo.Core
{
     public   interface  Iplugin
    {

        PluginInfoAttribute PluginInfo
        {  get ;  set ; }
         bool  IsLoad
        {
             get ;
             set ;
        }

        Image ModulePicture
        {
             get ;
        }

        Image ModulePictureEnter
        {
             get ;
        }

        Image ModulePictureClick
        {
             get ;
        }

         string  ModuleName
        {
             get ;
        }


        Dictionary < string , EventHandler >  ChildNodes
        {
             get ;
        }

        ILoadForm FormLoader
        {
             get ;
             set ;
        }


    }
}



用于加载插件的类 PluginLoader

using  System;
using  System.Collections.Generic;
using  System.Linq;
using  System.Text;
using  System.Reflection;
using  System.IO;
using  System.Windows.Forms;
using  System.Collections;

namespace  WinDemo.Core
{
     public   static   class  PluginLoader
    {

         public   static  List < Iplugin >  plugins  =   new  List < Iplugin > ();
         private   static  ArrayList piProperties  =   new  ArrayList();

         private   static   bool  IsValidPlugin(Type t)
        {
             bool  ret  =   false ;
            Type[] interfaces  =  t.GetInterfaces();
             foreach ( Type theInterface  in  interfaces ) {
                 if  (theInterface.FullName  ==   " WinDemo.Core.Iplugin " )
                {
                    ret  =   true ;
                     break ;
                }
            }
             return  ret;
        }




         public   static   void  LoadAllPlugins()
        {
             string [] files  =  Directory.GetFiles(Application.StartupPath  +   " //plugin// " );
             int  i  =   0 ;
            PluginInfoAttribute typeAttribute  =   new  PluginInfoAttribute();
             foreach  ( string  file  in  files)
            {
                 string  ext  =  file.Substring(file.LastIndexOf( " . " ));
                 if  (ext  !=   " .dll " )  continue ;
                 try
                {
                    Assembly tmp  =  Assembly.LoadFile(file);
                    Type[] types  =  tmp.GetTypes();
                     bool  ok  =   false ;
                     foreach  (Type t  in  types)
                         if  (IsValidPlugin(t))
                        {
                            Iplugin plugin  =  (Iplugin)tmp.CreateInstance(t.FullName);
                            plugins.Add(plugin);
                             object [] attbs  =  t.GetCustomAttributes(typeAttribute.GetType(),  false );
                            PluginInfoAttribute attribute  =   null ;
                             foreach  ( object  attb  in  attbs)
                            {
                                 if  (attb  is  PluginInfoAttribute)
                                {
                                    attribute  =  (PluginInfoAttribute)attb;
                                    attribute.Index  =  i;
                                    i ++ ;
                                    ok  =   true ;
                                     break ;
                                }
                            }

                             if  (attribute  !=   null )
                            {
                                piProperties.Add(attribute);
                                plugin.PluginInfo  =  attribute;
                            }
                             else   throw   new  Exception( " 为定义插件属性 " );
                             if  (ok)  break ;
                        }
                }
                 catch  (Exception err)
                {
                     throw  err;
                }
            }
            plugins.Sort((p1, p2)  =>  {
                 return  p2.PluginInfo.Index  -  p1.PluginInfo.Index;
            });
        }
    }
}



Iplugin的实现类PosPlugin类

using  System;
using  System.Collections.Generic;
using  System.Linq;
using  System.Text;
using  System.Drawing;
using  WinDemo.Core;
using  System.Windows.Forms;


namespace  DefaultPlugin
{
    [PluginInfo( " Default " , " 1.0 " , " XH " , " www.cnporter.com " , true , 2 )]
     public   class  Default : WinDemo.Core.Iplugin
    {
         private  Dictionary < string , EventHandler >  _ChildNodes  =   new  Dictionary < string , EventHandler > ();
         private  LeftNav frmLeftNav  =   new  LeftNav();
         public   static  ILoadForm Formloader ;
         public  Default()
        {

            _ChildNodes.Add( " 菜单五 " , (sender,e)  =>
            {
                MessageBox.Show(sender.ToString());
            });
            _ChildNodes.Add( " 菜单四 " , (sender, e)  =>
            {
                MessageBox.Show(sender.ToString());
            });
            _ChildNodes.Add( " 菜单三 " , (sender, e)  =>
            {
                MessageBox.Show(sender.ToString());
            });
            _ChildNodes.Add( " 菜单二 " , (sender, e)  =>
            {
                MessageBox.Show(sender.ToString());
            });
            _ChildNodes.Add( " 菜单一 " , (sender, e)  =>
            {
                FormLoader.LoadNavFrm(frmLeftNav);
            });
        }



         public  Image ModulePicture
        {
             get
            {
                 return  ((System.Drawing.Image)(ImageResource.Index));
            }
        }

         public  Image ModulePictureEnter
        {
             get
            {
                 return  ((System.Drawing.Image)(ImageResource.IndexEnter));
            }
        }

         public  Image ModulePictureClick
        {
             get
            {
                 return  ((System.Drawing.Image)(ImageResource.IndexClick));
            }
        }

         public   string  ModuleName
        {
             get
            {
                 return   " 首页 " ;
            }
        }

         public  Dictionary < string , EventHandler >  ChildNodes
        {
             get
            {
                 return  _ChildNodes;
            }
        }




         public   bool  IsLoad
        {
             get ;
             set ;
        }

         public  ILoadForm FormLoader
        {
             get
            {
                 return  Formloader;
            }
             set
            {
                Formloader  =  value;
            }
        }



         public  PluginInfoAttribute PluginInfo
        {
             get ;
             set ;
        }
    }


}


此图现在有两个插件

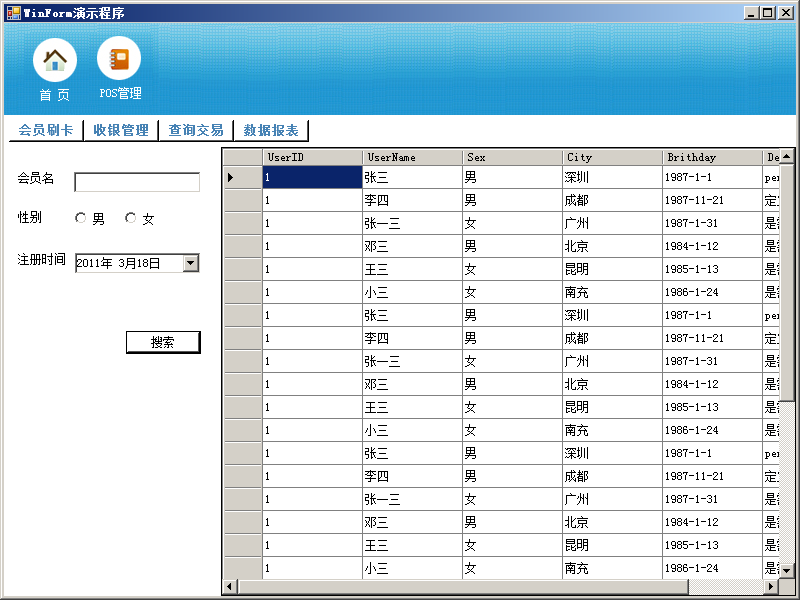

运行效果如下



源码下载
