PN29_T NFC electronic license plate

Notable features

1.NFC card is a passive ultra-thin card that requires no power supply and can update more than 1 million times, providing a long service life

2.Original fast scanning technology, intelligent NFC sensing label, quickly update in seconds.

3.Supported content format: text/bar code/qr code/picture.

4.Pop-up editing interface, template design can be DIY, more templates to switch at will.

5.Ultra-thin shell, size: 85.8*41*2.9mm.

6.Support data interconnection and use a dedicated card reader.

7.IP66 waterproof and dust-proof structure design, safer.

8.Built-in status prompt LED to ensure the use of certainty.

9.Customers can develop apps by themselves, and we provide protocol.

2.9 inch electronic tag

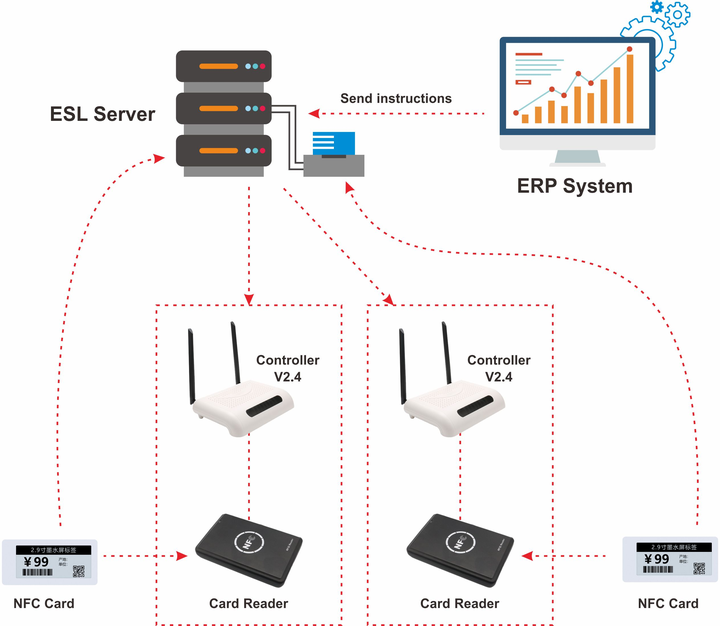

NFC ESL Direction

1. We provide agreements to develop our own mobile APP;

2. We provide the data protocol of card reader and card reader, which can send data through the serial port of the upper machine;

3. We provide the controller + card reader, operate and modify the content on the computer web page, to ensure the flexible use of the case,do not do any development can also operate on the web page,brush the card content;

4. The device sends instructions to operate through the network interface protocols to realize system docking and automatic card swiping (the data comes from your server).

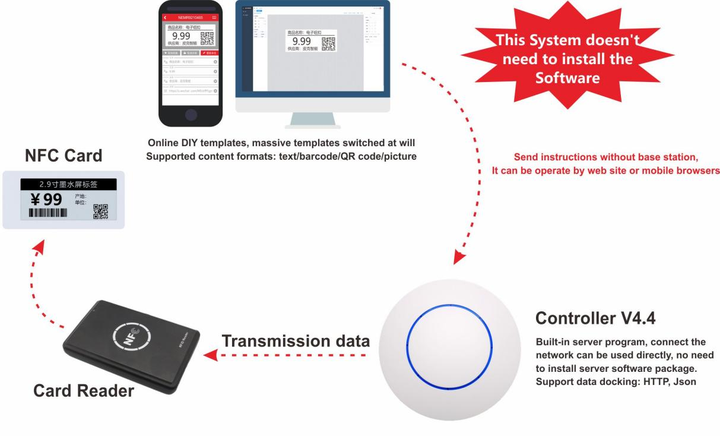

Usage Method 1

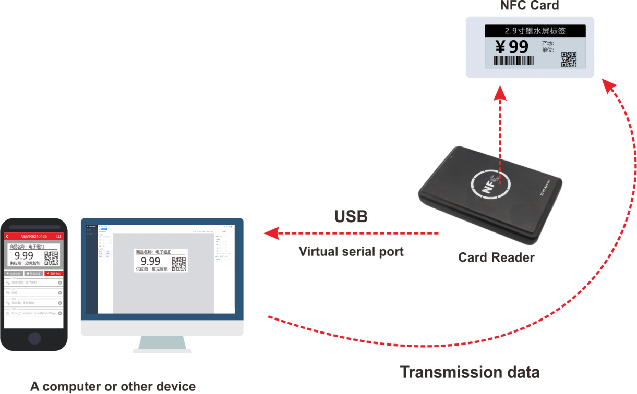

Usage Method 2

Installation method

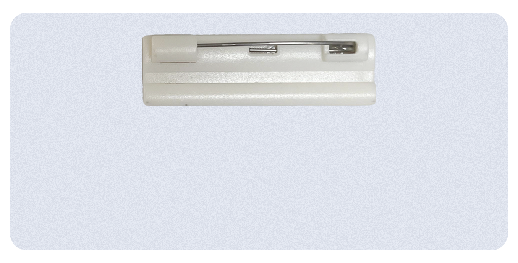

Reverse side

Name badge pin

Length * width * height 40*12*0.5mm

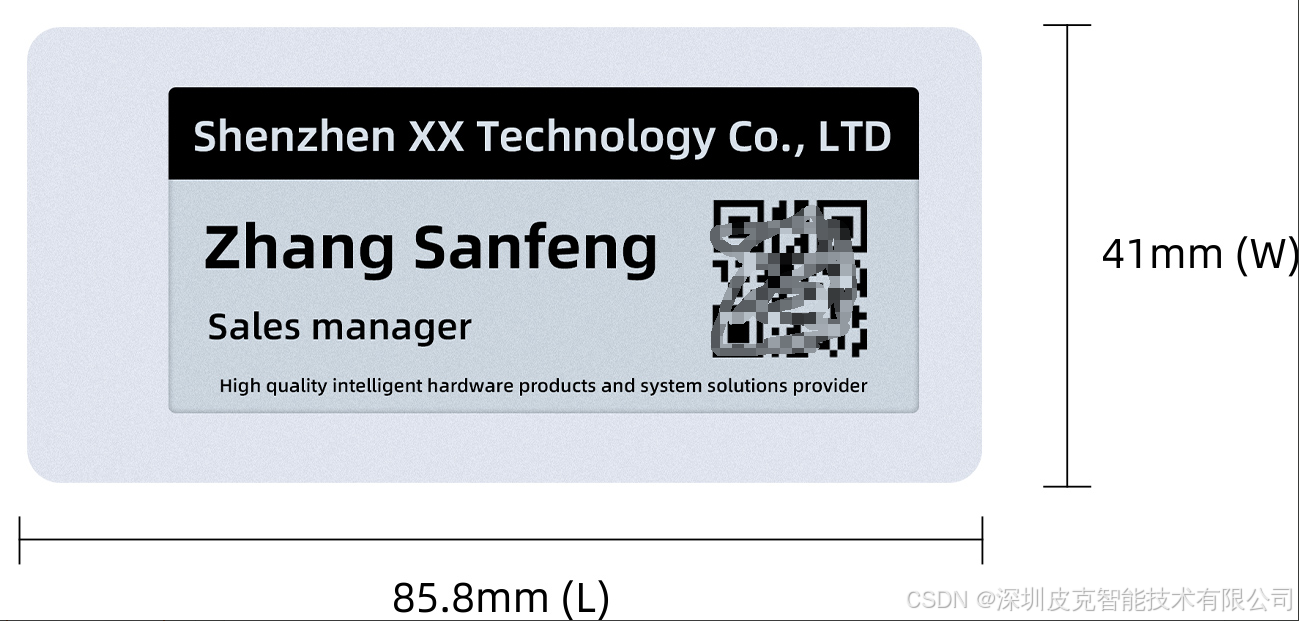

NFC Plate size

Effect drawing
