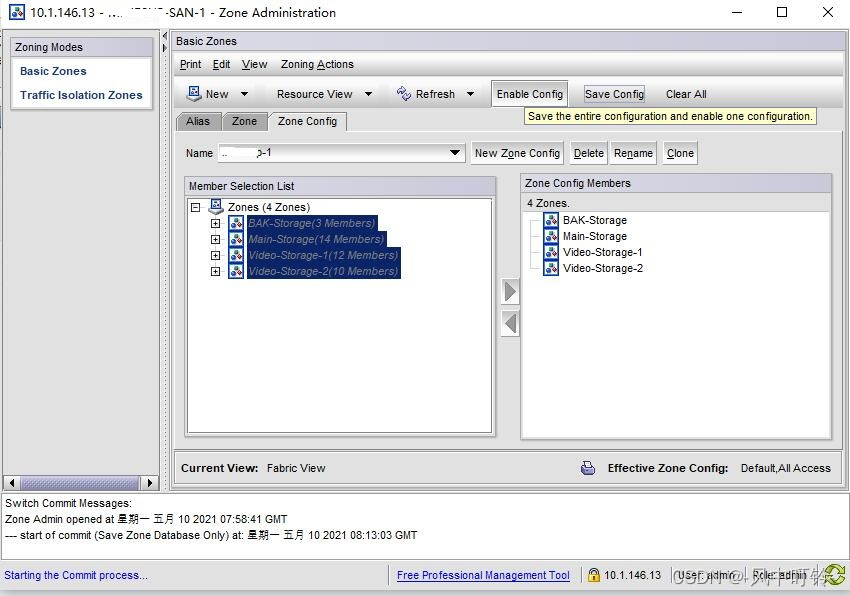

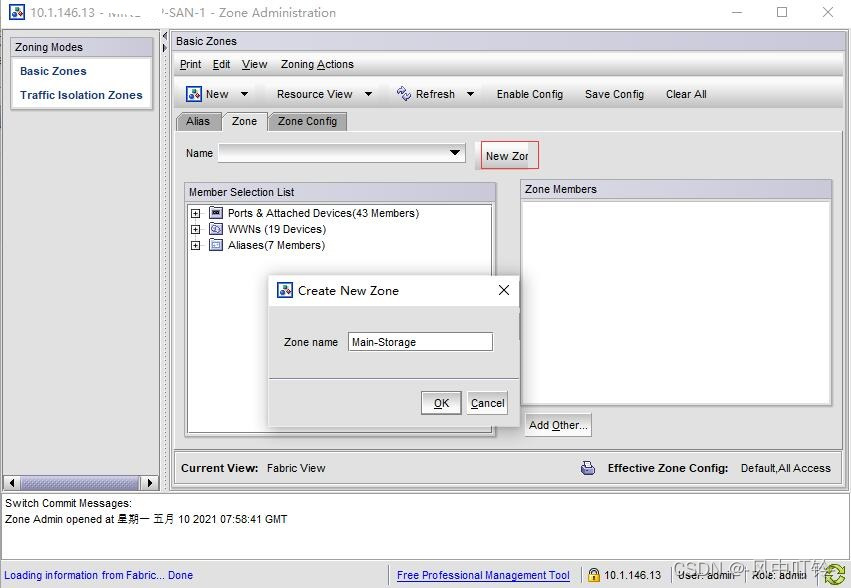

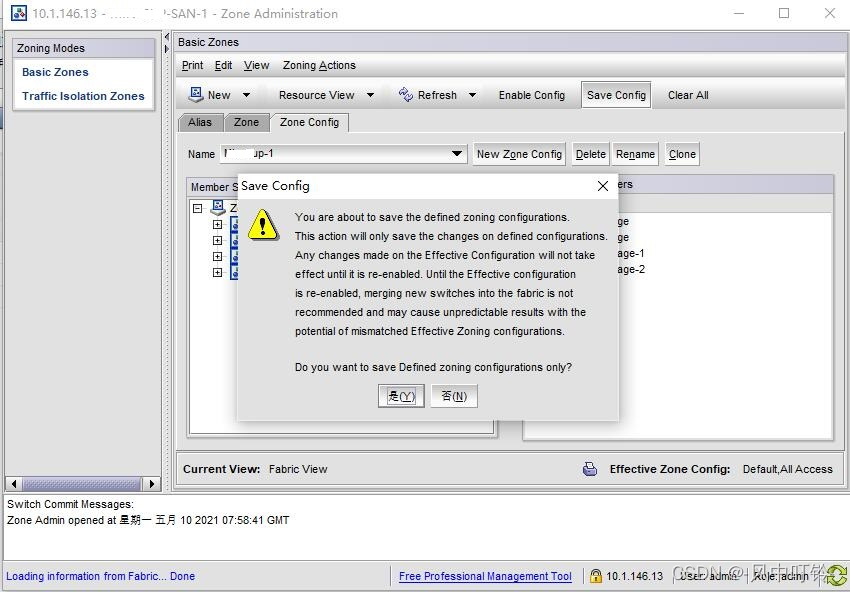

博科SAN交换机初始化和Zone创建

1 初始化

博科的SAN交换机默认配置:
地址:10.77.77.77
账户:admin
密码:password

设备硬件查看

***-SAN-1:admin> chassisshow

FAN  Unit: 1
Fan Direction:		Reverse (Non-portside Intake)
Time Awake:            	0 days

POWER SUPPLY  Unit: 1
Power Source:		AC
Time Awake:            	0 days

CHASSIS/WWN  Unit: 1
Header Version:       	2
Power Usage:          	-48W
Factory Part Num:      	40-1000737-04
Factory Serial Num:    	CC******015
Manufacture:           	Day:  7  Month:  5  Year: 2018
Update:                	Day: 18  Month:  7  Year: 2018
Time Alive:            	0 days
Time Awake:            	0 days
ID:           		LNV0000CA
Part Num:     		003******0HC2
Serial Num:   		MM*****

软件版本查看

***-SAN-1:admin> version
Kernel:     2.6.14.2
Fabric OS:  v8.1.0b
Made on:    Mon May 1 17:52:26 2017
Flash:	    Wed Jul 18 17:47:13 2018
BootProm:   1.0.11

1.1 修改管理信息

[BEGIN] 2021/5/3 15:28:12
Enter new password:
Re-type new password:
passwd: all authentication tokens updated successfully
Please change passwords for switch default accounts now.
for user - user
Changing password for user
Enter new password:
Re-type new password:
passwd: all authentication tokens updated successfully
Saving passwords to stable storage.
Passwords saved to stable storage successfully

B6505:admin> switchname ***-SAN-1
Committing configuration...
Done.
Switch name has been changed.Please re-login into the switch for the change to be applied.

***-SAN-1:admin> ipaddrset
DHCP [Off]:
Ethernet IP Address [10.77.77.77]:10.1.146.13
Ethernet Subnetmask [255.255.255.0]:
Gateway IP Address [none
