SpringCloud-Finchley系列07-服务聚合监控turbine搭建

• 创建项目
• 配置文件
• 启动类
• pom文件
• 验证

一.创建项目
选取turbine作为服务聚合监控组件

创建maven项目flow-turbine(8791)作为子模块

二.配置文件
application-turbine-dev.yml, 内容如下:

# dev_config
spring:
  application:
    name: turbine

server:
  port: 8791

eureka:
  instance:
    lease-renewal-interval-in-seconds: 5
    lease-expiration-duration-in-seconds: 10
  client:
    service-url:
      # 单个配置
#      defaultZone: http://localhost:8761/eureka/
      # 集群配置
      defaultZone: http://127.0.0.1:8761/eureka/, http://127.0.0.1:8762/eureka/

# turbine_config
turbine:
  app-config: eureka-consumer-ribbon, eureka-consumer-feign
  aggregator:
    cluster-config: default
  cluster-name-expression: new String("default")
  combine-host-port: true

management:
  endpoints:
    web:
      exposure:
        include: "*"
      cors:
        allowed-origins: "*"
        allowed-methods: "*"

info:
  company.name: org.flowframework
  app.name: turbine
  app.desc: springcloud-turbine
  author: robin

三.启动类
Application.java

@EnableEurekaClient
@EnableHystrixDashboard
@EnableTurbine
@SpringBootApplication
public class Application extends SpringBootServletInitializer {

    @Override
    protected SpringApplicationBuilder configure(SpringApplicationBuilder builder) {
        return builder.sources(Application.class);
    }

    public static void main(String[] args) {
        SpringApplication.run(Application.class, args);
    }
}

四.pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
               xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
                                   http://maven.apache.org/xsd/maven-4.0.0.xsd">

    <modelVersion>4.0.0</modelVersion>

    <groupId>org.flowframework</groupId>
    <artifactId>flow-turbine</artifactId>
    <version>1.0.0-SNAPSHOT</version>
    <packaging>jar</packaging>

    <parent>
        <groupId>org.flowframework</groupId>
        <artifactId>springcloud</artifactId>
        <version>1.0.0-SNAPSHOT</version>
    </parent>

    <dependencies>
        <!-- eureka-client -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <!-- hystrix -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-hystrix-dashboard</artifactId>
        </dependency>

        <!-- turbine -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-turbine</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <optional>true</optional>
            <scope>true</scope>
        </dependency>
    </dependencies>

    <build>
        <finalName>flow-turbine</finalName>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <configuration>
                    <skip>true</skip>
                </configuration>
            </plugin>

            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <fork>true</fork>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

五.验证

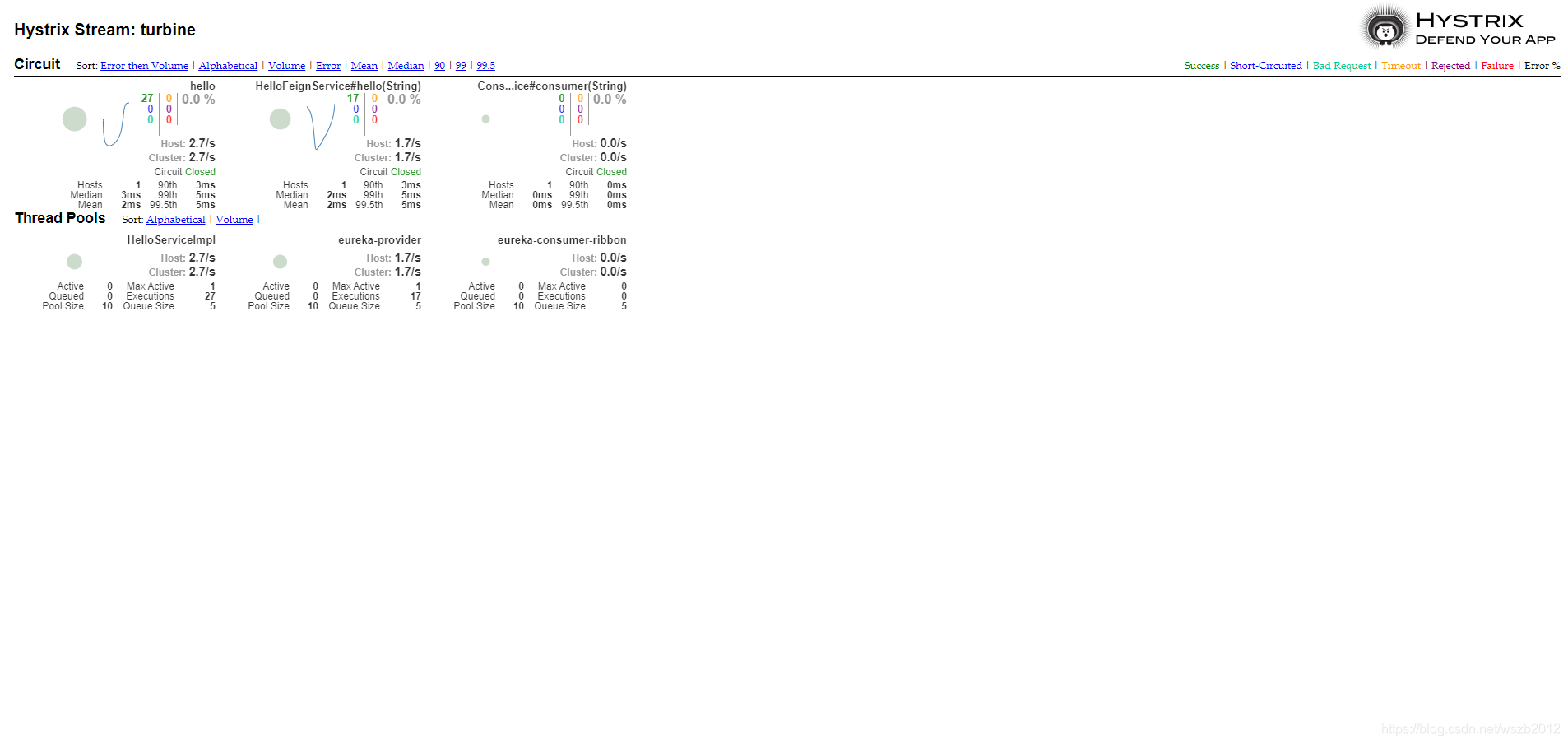

http://localhost:8791/hystrix

地址–http://localhost:8791/turbine.stream
Delay–2000ms
Title–turbine
Monitor Stream

http://localhost:8781/hello/robin
http://localhost:8782/hello/feign/robin

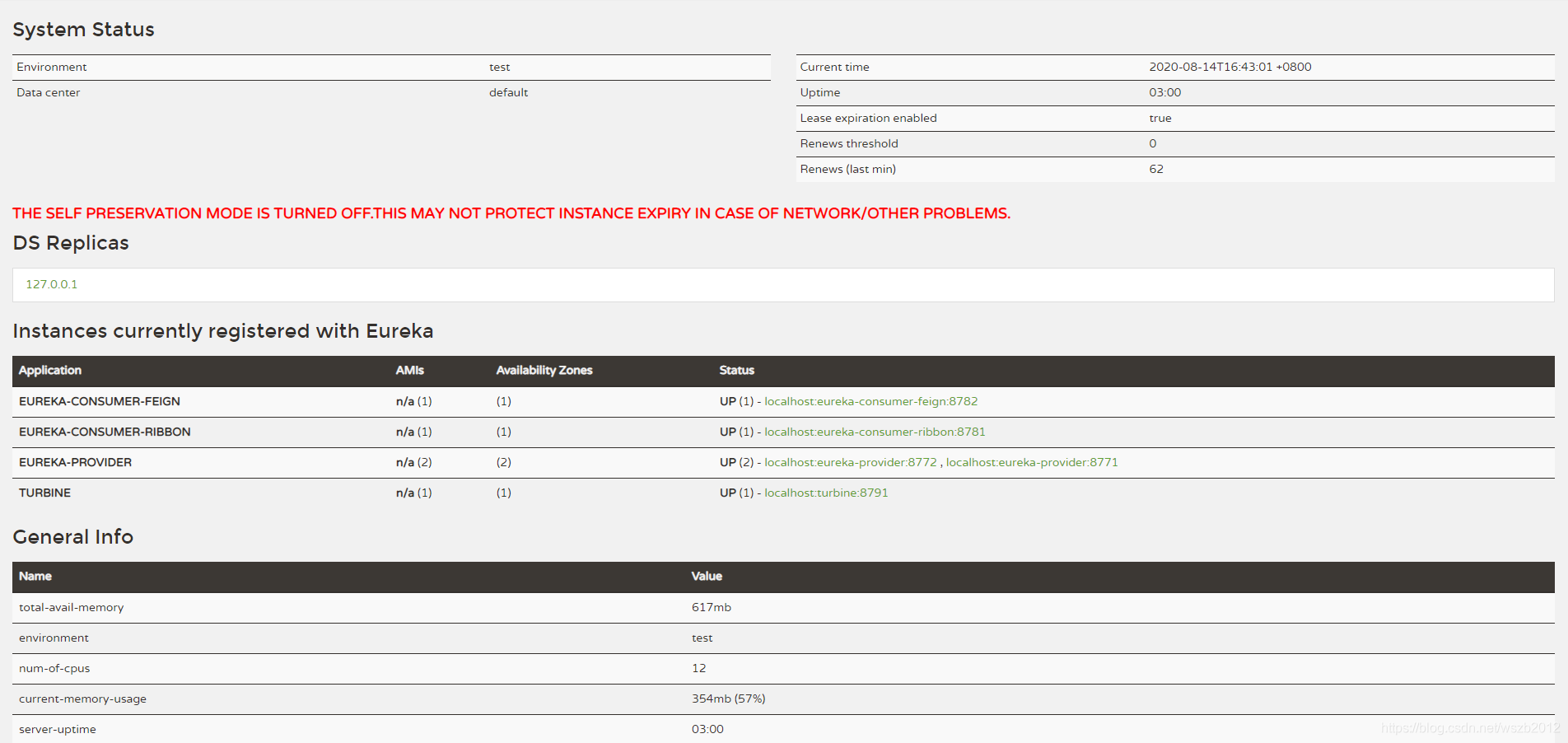

http://localhost:8761/
