Tomcat系列一.IDEA运行Tomcat源码

环境

IDEA2019.02
Tomcat-8.5.54

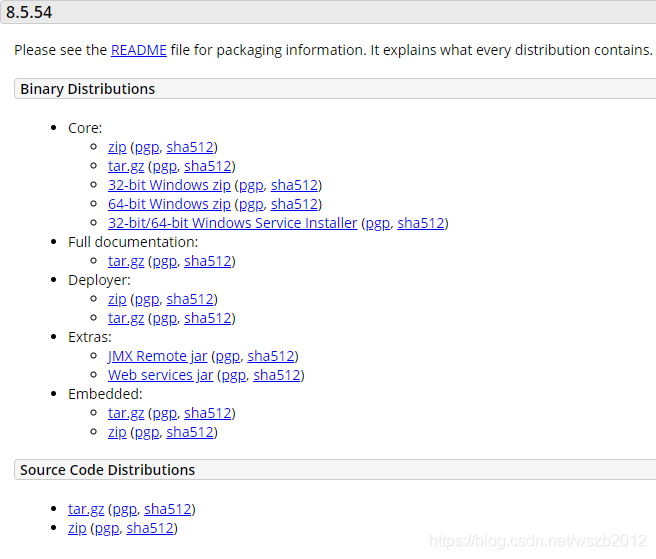

1.下载源码

https://tomcat.apache.org/download-80.cgi

2.修改配置

a.解压apache-tomcat-8.5.54-src.zip

b.在项目根目录下添加pom.xml文件, 内容如下:

<?xml version="1.0" encoding="utf-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
               xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
                                   http://maven.apache.org/xsd/maven-4.0.0.xsd">

    <modelVersion>4.0.0</modelVersion>

    <groupId>org.apache.tomcat</groupId>
    <artifactId>Tomcat8.5</artifactId>
    <name>Tomcat8.5</name>
    <version>8.5</version>

    <!-- 添加tomcat8所需jar包依赖 -->
    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.easymock</groupId>
            <artifactId>easymock</artifactId>
            <version>3.4</version>
        </dependency>

        <dependency>
            <groupId>ant</groupId>
            <artifactId>ant</artifactId>
            <version>1.7.0</version>
        </dependency>

        <dependency>
            <groupId>wsdl4j</groupId>
            <artifactId>wsdl4j</artifactId>
            <version>1.6.2</version>
        </dependency>

        <dependency>
            <groupId>javax.xml</groupId>
            <artifactId>jaxrpc</artifactId>
            <version>1.1</version>
        </dependency>

        <dependency>
            <groupId>org.eclipse.jdt.core.compiler</groupId>
            <artifactId>ecj</artifactId>
            <version>4.5.1</version>
        </dependency>
    </dependencies>

    <build>
        <finalName>Tomcat8.0</finalName>
        <sourceDirectory>java</sourceDirectory>
        <testSourceDirectory>test</testSourceDirectory>
        <resources>
            <resource>
                <directory>java</directory>
            </resource>
        </resources>

        <testResources>
            <testResource>
                <directory>test</directory>
            </testResource>
        </testResources>

        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>2.5.1</version>
                <configuration>
                    <encoding>UTF-8</encoding>
                    <source>1.8</source>
                    <target>1.8</target>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

c.创建catalina-home目录, 将源码中conf、webapps目录移动到catalina-home中

d.IEAD导入源码项目

3.启动

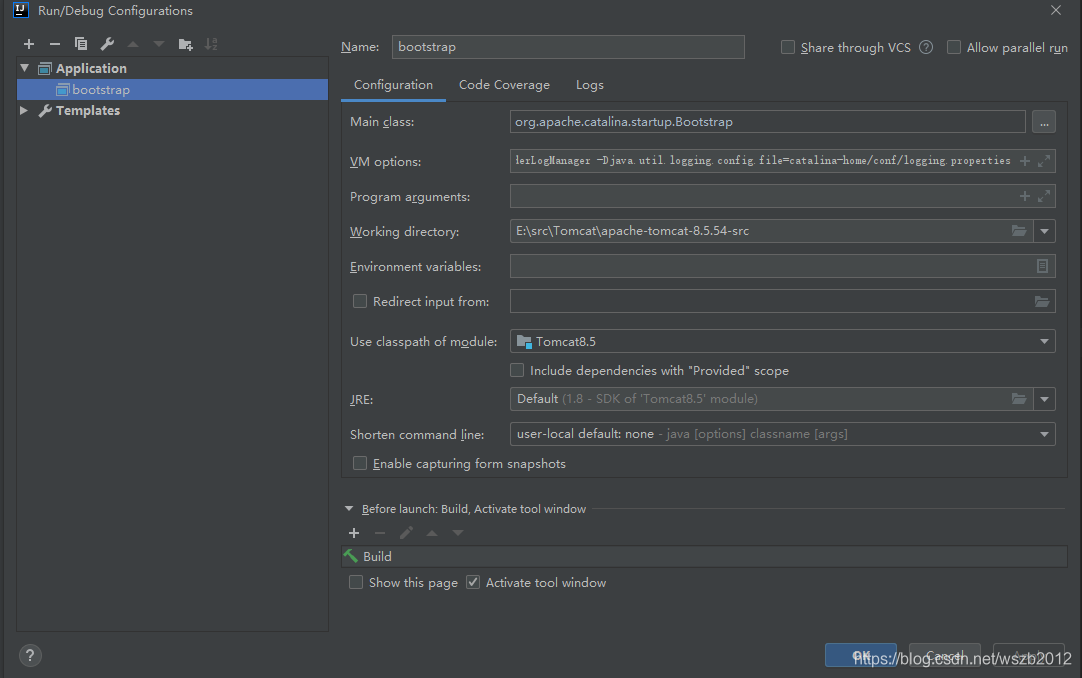

a.添加设置, Edit Configurations-Run/Denug Configurations-添加Application

b.设置VM option, 内容如下:
-Dcatalina.home=catalina-home
-Dcatalina.base=catalina-home
-Djava.endorsed.dirs=catalina-home/endorsed
-Djava.io.tmpdir=catalina-home/temp
-Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager
-Djava.util.logging.config.file=catalina-home/conf/logging.properties

c.运行, 访问http://localhost:8080

4.异常处理

a.编译时, test/util/TestCookieFilter.java报下面错误:

解决方法:
注释掉整个类即可

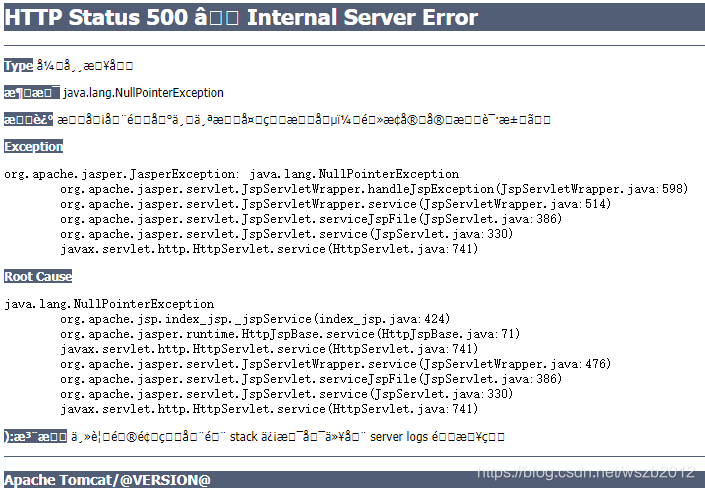

b.访问http://localhost:8080时, 报下面错误:

解决方法:

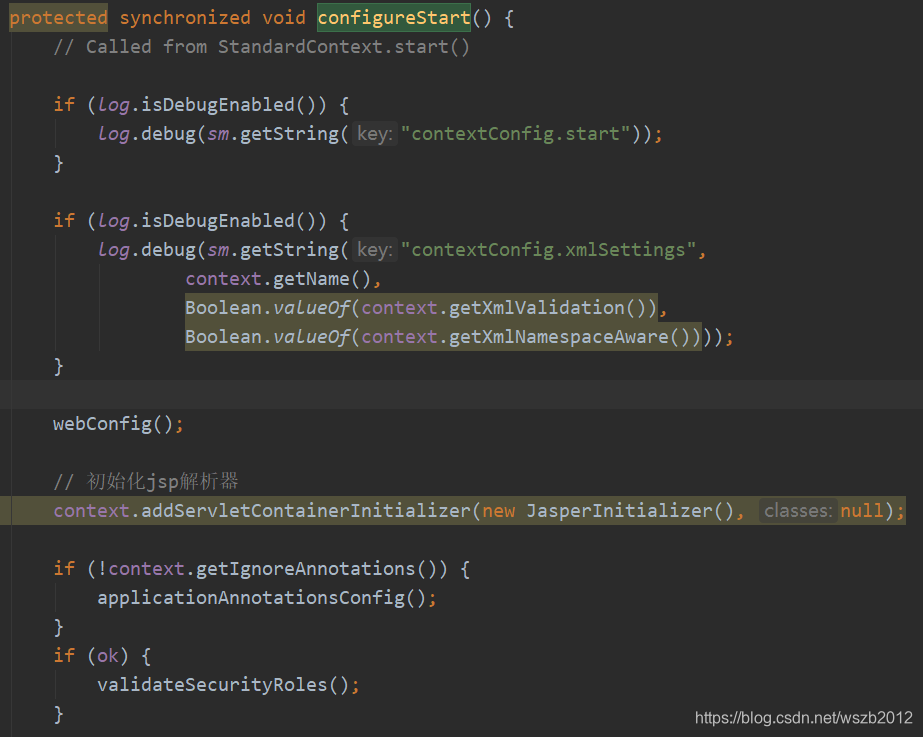

在org.apache.catalina.startup.ContextConfig中手动初始化JSP解析器
