OpenCV—Python 09色彩空间与色彩空间转换

OpenCV—Python 09色彩空间与色彩空间转换

运行环境：
opencv版本4.6.0.66
python版本3.7.4

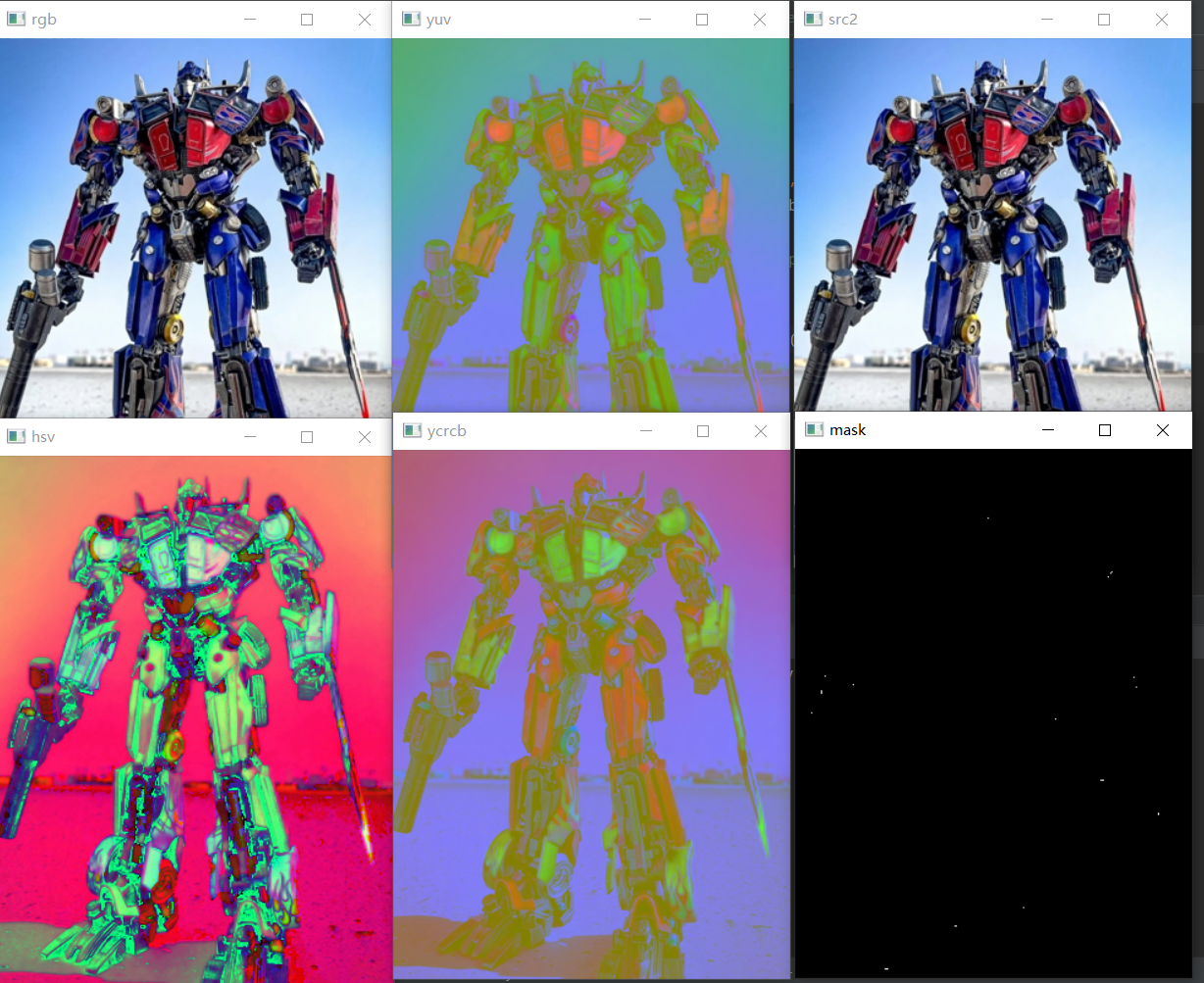

一、代码及运行效果

import cv2 as cv

src = cv.imread("test.jpg")
cv.namedWindow("rgb", cv.WINDOW_AUTOSIZE)
cv.imshow("rgb", src)

# RGB to HSV
hsv = cv.cvtColor(src, cv.COLOR_BGR2HSV)
cv.imshow("hsv", hsv)

# RGB to YUV
yuv = cv.cvtColor(src, cv.COLOR_BGR2YUV)
cv.imshow("yuv", yuv)

# RGB to YUV
ycrcb = cv.cvtColor(src, cv.COLOR_BGR2YCrCb)
cv.imshow("ycrcb", ycrcb)

src2 = cv.imread("test.png");
cv.imshow("src2", src2)
hsv = cv.cvtColor(src2, cv.COLOR_BGR2HSV)
mask = cv.inRange(hsv, (35, 43, 46), (99, 255, 255))
cv.imshow("mask", mask)

cv.waitKey(0)
cv.destroyAllWindows()

二、函数详解
