项目属性集合
order、flex-grow、flex-shrink、flex-basis、flex、align-self
设置容器内项目相关样式,用于设置项目的尺寸、位置,以及对项目的对齐方式做特殊设置。
项目属性:
①沿主轴方向上的排列顺序order: 0(默认值) | <integer整数>
②项目的收缩因子flex-shrink: 1(默认值) |
③项目的扩张因子flex-grow: 0(默认值) |
④项目width属性替代品flex-basis: auto(默认值) | px
⑤flex-grow、flex-shrink、flex-basis的简写方式:flex 属性
⑥项目在行中交叉轴方向上的对齐方式align-self: auto(默认值) | flex-start | center | flex-end | baseline |stretch

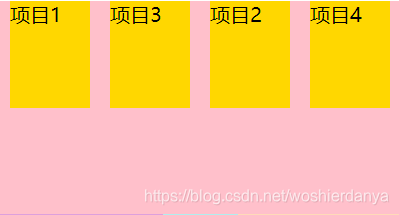

order属性
作用:
设置项目沿主轴方向上的排列顺序,数值越小,排列越靠前,属性值为整数。
<view class="order">
<view>项目1</view>
<view>项目2</view>
<view>项目3</view>
<view>项目4</view>
</view>
.order{
width: 100%;
height: 400rpx;
background: pink;
display: flex;
justify-content: space-around;
}
.order view{
width: 20%;
height: 200rpx;
background: gold;
}
.order view:nth-of-type(1){
order: -6
}
.order view:nth-of-type(2){
order: 2
}
.order view:nth-of-type(3){
order: -1
}
.order view:nth-of-type(4){
order: 6
}

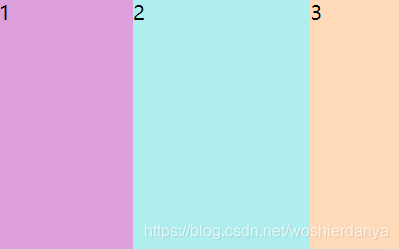

flex-shrink属性
作用:
当项目在主轴方向上溢出时,通过设置项目收缩因子来压缩项目适应容器。属性值为项目的收缩因子,属性值取非负数
未设置flex-shrink时,默认flex-shrink值为1。
<view class="shrink">
<view>1</view>
<view>2</view>
<view>3</view>
</view>
.shrink{
width: 400px;
height: 200px;
background: rgba(0, 0,0,.3);
display: flex;
flex-direction: row;
}
.shrink view:nth-of-type(1){
width: 120px;
background: plum;
flex-shrink: 2;
}
.shrink view:nth-of-type(2){
width: 150px;
background:paleturquoise;
flex-grow: 0;
}
.shrink view:nth-of-type(3){
width: 180px;
background:peachpuff;
flex-shrink: 3;
}
当项目压缩因子相加小于1时,参与计算的溢出空间不等于完整溢出空间
flex-shrink属性案例:
一个宽度为400px的容器,里面的三个项目width分别为120px,150px,180px。分别对这项目1和项目2设置flex-shrink值为2和3。
在这个例子中,项目溢出 400 - (120 + 150 + 180) = -50px。计算压缩量时总权重为各个项目的宽度乘以flex-shrink的总和,这个例子压缩总权重为120 * 2 + 150 * 3+ 180 * 1 = 870。各个项目压缩空间大小为总溢出空间乘以项目宽度乘以flex-shrink除以总权重:
lex-shrink属性案例:
①item1的最终宽度为:120 - 50 * 120 * 2 / 870 ≈ 106px
②item2的最终宽度为:150 - 50 * 150 * 3 / 870 ≈ 124px
③item3的最终宽度为:180 - 50 * 180 * 1 / 870 ≈ 169px

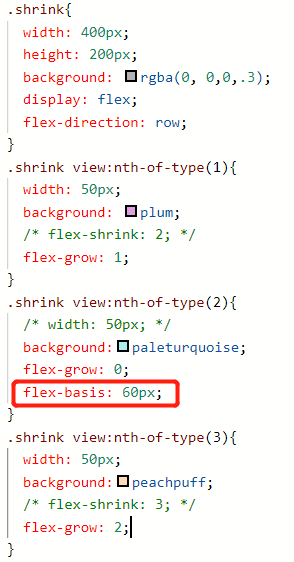

flex-basis属性
当容器设置flex-direction为row或row-reverse,flex-basis和width同时存在,flex-basis优先级高于width,也就是此时flex-basis代替width属性。
当容器设置flex-direction为column或column-reverse,flex-basis和height同时存在,flex-basis优先级高于height,就是此时flex-basis代替height属性。
需要注意的是,当flex-basis和width(或height),其中一个属性值为auto时,非auto的优先级更高。
flex 属性
本质:
flex-grow,flex-shrink,flex-basis的简写方式。
值设置为none,等价于00 auto。值设置为auto,等价于1 1 auto。

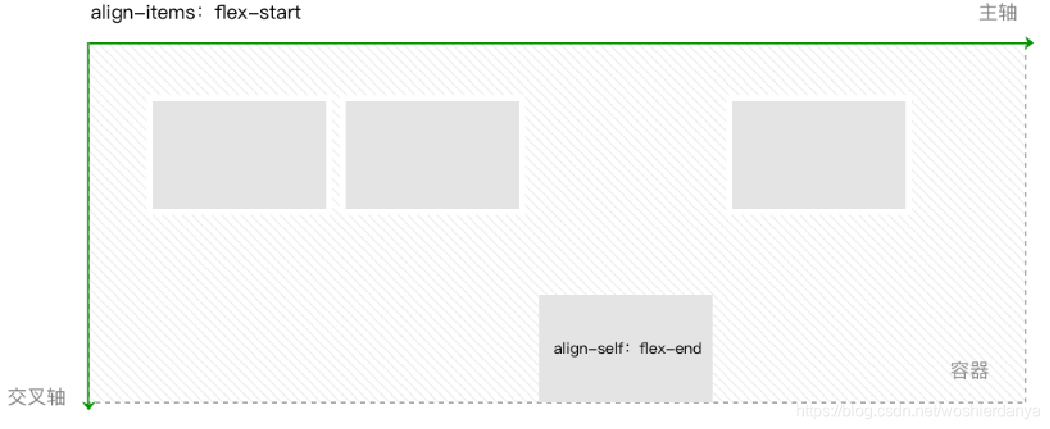

align-self属性
设置项目在行中交叉轴方向上的对齐方式,用于覆盖容器的align-items,可以对项目的对齐方式做特殊处理。
默认属性值为auto,继承容器的align-items值,当容器没有设置align-items时,属性值为stretch。
align-self: auto(默认值) | flex-start | center | flex-end | baseline |stretch
<view class="box6">
<view class="box4Child5"></view>
<view class="box4Child6"></view>
<view class="box4Child7"></view>
</view>
.box6{
width: 260rpx;
height: 260rpx;
background: #000;
display: flex;
}
.box4Child5,.box4Child6,.box4Child7{
width: 80rpx;
height: 80rpx;
background: #fff;
border-radius: 50%;
}
.box4Child6{
display: flex;
align-self:center;
}
.box4Child7{
display: flex;
align-self:flex-end;
}
