Element框架之Basic基础布局

1.Layout
基础布局（使用单一分栏创建基础的栅格布局）

<el-row>
  <el-col :span="24"><div class="grid-content bg-purple-dark"></div></el-col>
</el-row>
<el-row>
  <el-col :span="12"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="12"><div class="grid-content bg-purple-light"></div></el-col>
</el-row>
<el-row>
  <el-col :span="8"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="8"><div class="grid-content bg-purple-light"></div></el-col>
  <el-col :span="8"><div class="grid-content bg-purple"></div></el-col>
</el-row>
<el-row>
  <el-col :span="6"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="6"><div class="grid-content bg-purple-light"></div></el-col>
  <el-col :span="6"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="6"><div class="grid-content bg-purple-light"></div></el-col>
</el-row>
<el-row>
  <el-col :span="4"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="4"><div class="grid-content bg-purple-light"></div></el-col>
  <el-col :span="4"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="4"><div class="grid-content bg-purple-light"></div></el-col>
  <el-col :span="4"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="4"><div class="grid-content bg-purple-light"></div></el-col>
</el-row>

<style>
  .el-row {
    margin-bottom: 20px;
    &:last-child {
      margin-bottom: 0;
    }
  }
  .el-col {
    border-radius: 4px;
  }
  .bg-purple-dark {
    background: #99a9bf;
  }
  .bg-purple {
    background: #d3dce6;
  }
  .bg-purple-light {
    background: #e5e9f2;
  }
  .grid-content {
    border-radius: 4px;
    min-height: 36px;
  }
  .row-bg {
    padding: 10px 0;
    background-color: #f9fafc;
  }
</style>

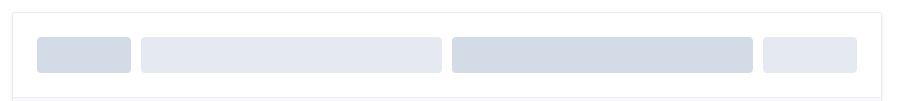

分栏间隔
Row组件提供gutter属性来指定每一栏之间的间隔，默认间隔为0.

<el-row :gutter="20">
  <el-col :span="6"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="6"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="6"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="6"><div class="grid-content bg-purple"></div></el-col>
</el-row>

<style>
  .el-row {
    margin-bottom: 20px;
    &:last-child {
      margin-bottom: 0;
    }
  }
  .el-col {
    border-radius: 4px;
  }
  .bg-purple-dark {
    background: #99a9bf;
  }
  .bg-purple {
    background: #d3dce6;
  }
  .bg-purple-light {
    background: #e5e9f2;
  }
  .grid-content {
    border-radius: 4px;
    min-height: 36px;
  }
  .row-bg {
    padding: 10px 0;
    background-color: #f9fafc;
  }
</style>

混合布局
通过基础的1/24分栏任意扩展组合形成较为复杂的混合布局。

<el-row :gutter="20">
  <el-col :span="16"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="8"><div class="grid-content bg-purple"></div></el-col>
</el-row>
<el-row :gutter="20">
  <el-col :span="8"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="8"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="4"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="4"><div class="grid-content bg-purple"></div></el-col>
</el-row>
<el-row :gutter="20">
  <el-col :span="4"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="16"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="4"><div class="grid-content bg-purple"></div></el-col>
</el-row>

<style>
  .el-row {
    margin-bottom: 20px;
    &:last-child {
      margin-bottom: 0;
    }
  }
  .el-col {
    border-radius: 4px;
  }
  .bg-purple-dark {
    background: #99a9bf;
  }
  .bg-purple {
    background: #d3dce6;
  }
  .bg-purple-light {
    background: #e5e9f2;
  }
  .grid-content {
    border-radius: 4px;
    min-height: 36px;
  }
  .row-bg {
    padding: 10px 0;
    background-color: #f9fafc;
  }
</style>

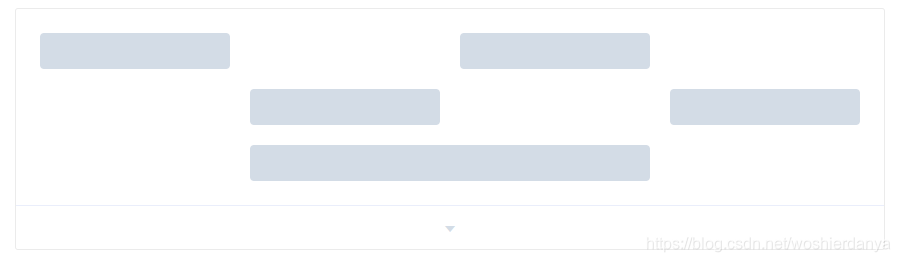

分栏偏移（支持偏移指定的栏数）
通过制定col组件的offset属性可以指定分栏偏移的栏数。

<el-row :gutter="20">
  <el-col :span="6"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="6" :offset="6"><div class="grid-content bg-purple"></div></el-col>
</el-row>
<el-row :gutter="20">
  <el-col :span="6" :offset="6"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="6" :offset="6"><div class="grid-content bg-purple"></div></el-col>
</el-row>
<el-row :gutter="20">
  <el-col :span="12" :offset="6"><div class="grid-content bg-purple"></div></el-col>
</el-row>

<style>
  .el-row {
    margin-bottom: 20px;
    &:last-child {
      margin-bottom: 0;
    }
  }
  .el-col {
    border-radius: 4px;
  }
  .bg-purple-dark {
    background: #99a9bf;
  }
  .bg-purple {
    background: #d3dce6;
  }
  .bg-purple-light {
    background: #e5e9f2;
  }
  .grid-content {
    border-radius: 4px;
    min-height: 36px;
  }
  .row-bg {
    padding: 10px 0;
    background-color: #f9fafc;
  }
</style>

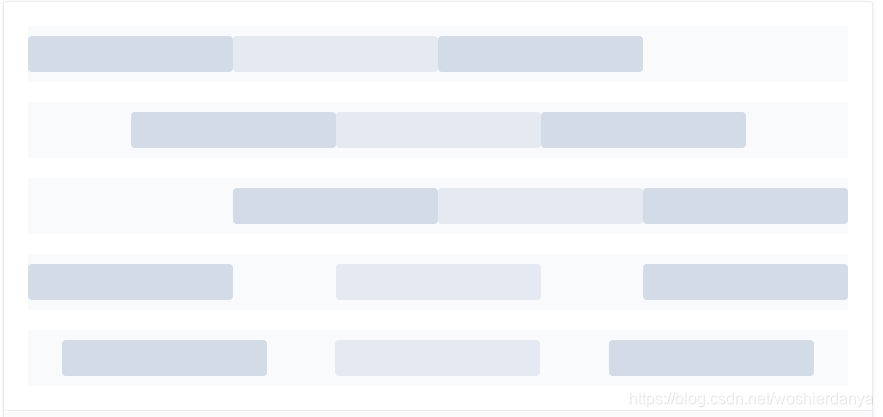

对齐方式
通过flex布局对分栏进行灵活的对齐
将 type 属性赋值为 ‘flex’，可以启用 flex 布局，并可通过 justify 属性来指定 start, center, end, space-between, space-around 其中的值来定义子元素的排版方式。

<el-row type="flex" class="row-bg">
  <el-col :span="6"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="6"><div class="grid-content bg-purple-light"></div></el-col>
  <el-col :span="6"><div class="grid-content bg-purple"></div></el-col>
</el-row>
<el-row type="flex" class="row-bg" justify="center">
  <el-col :span="6"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="6"><div class="grid-content bg-purple-light"></div></el-col>
  <el-col :span="6"><div class="grid-content bg-purple"></div></el-col>
</el-row>
<el-row type="flex" class="row-bg" justify="end">
  <el-col :span="6"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="6"><div class="grid-content bg-purple-light"></div></el-col>
  <el-col :span="6"><div class="grid-content bg-purple"></div></el-col>
</el-row>
<el-row type="flex" class="row-bg" justify="space-between">
  <el-col :span="6"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="6"><div class="grid-content bg-purple-light"></div></el-col>
  <el-col :span="6"><div class="grid-content bg-purple"></div></el-col>
</el-row>
<el-row type="flex" class="row-bg" justify="space-around">
  <el-col :span="6"><div class="grid-content bg-purple"></div></el-col>
  <el-col :span="6"><div class="grid-content bg-purple-light"></div></el-col>
  <el-col :span="6"><div class="grid-content bg-purple"></div></el-col>
</el-row>

<style>
  .el-row {
    margin-bottom: 20px;
    &:last-child {
      margin-bottom: 0;
    }
  }
  .el-col {
    border-radius: 4px;
  }
  .bg-purple-dark {
    background: #99a9bf;
  }
  .bg-purple {
    background: #d3dce6;
  }
  .bg-purple-light {
    background: #e5e9f2;
  }
  .grid-content {
    border-radius: 4px;
    min-height: 36px;
  }
  .row-bg {
    padding: 10px 0;
    background-color: #f9fafc;
  }
</style>

响应式布局
参照了 Bootstrap 的 响应式设计，预设了五个响应尺寸：xs、sm、md、lg 和 xl。

<el-row :gutter="10">
  <el-col :xs="8" :sm="6" :md="4" :lg="3" :xl="1"><div class="grid-content bg-purple"></div></el-col>
  <el-col :xs="4" :sm="6" :md="8" :lg="9" :xl="11"><div class="grid-content bg-purple-light"></div></el-col>
  <el-col :xs="4" :sm="6" :md="8" :lg="9" :xl="11"><div class="grid-content bg-purple"></div></el-col>
  <el-col :xs="8" :sm="6" :md="4" :lg="3" :xl="1"><div class="grid-content bg-purple-light"></div></el-col>
</el-row>

<style>
  .el-col {
    border-radius: 4px;
  }
  .bg-purple-dark {
    background: #99a9bf;
  }
  .bg-purple {
    background: #d3dce6;
  }
  .bg-purple-light {
    background: #e5e9f2;
  }
  .grid-content {
    border-radius: 4px;
    min-height: 36px;
  }
</style>

2.container布局容器
用于布局的容器组件，方便快速搭建页面的基本结构：
：外层容器。当子元素中包含 或 时，全部子元素会垂直上下排列，否则会水平左右排列。
：顶栏容器。
：侧边栏容器。
：主要区域容器。
：底栏容器。
以上组件采用了 flex 布局，使用前请确定目标浏览器是否兼容。此外， 的子元素只能是后四者，后四者的父元素也只能是 。

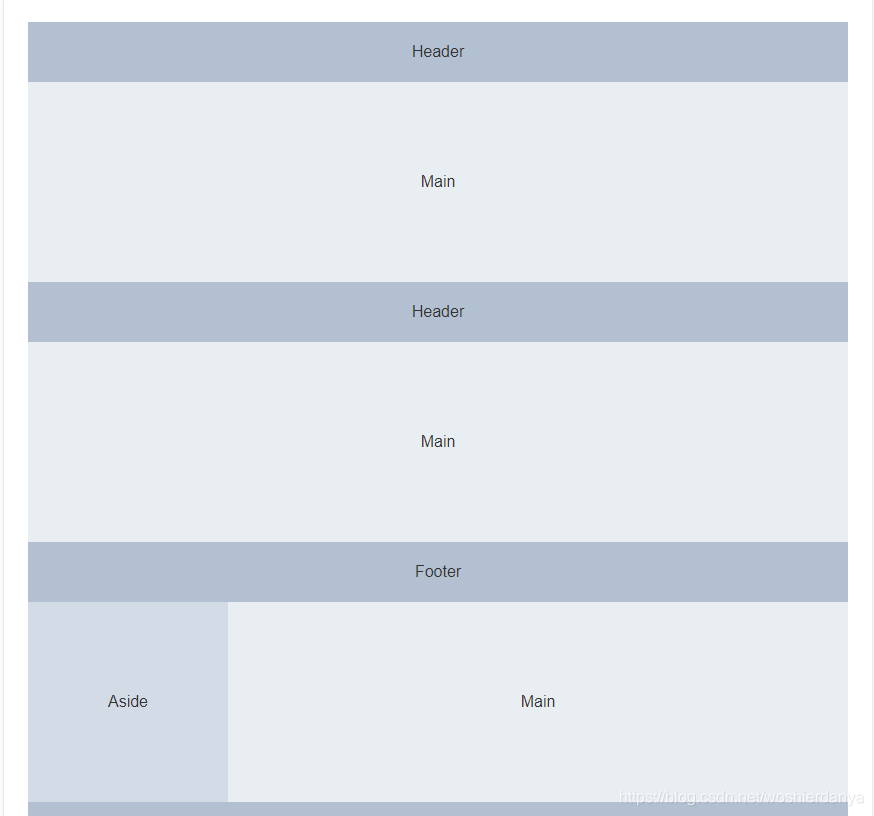

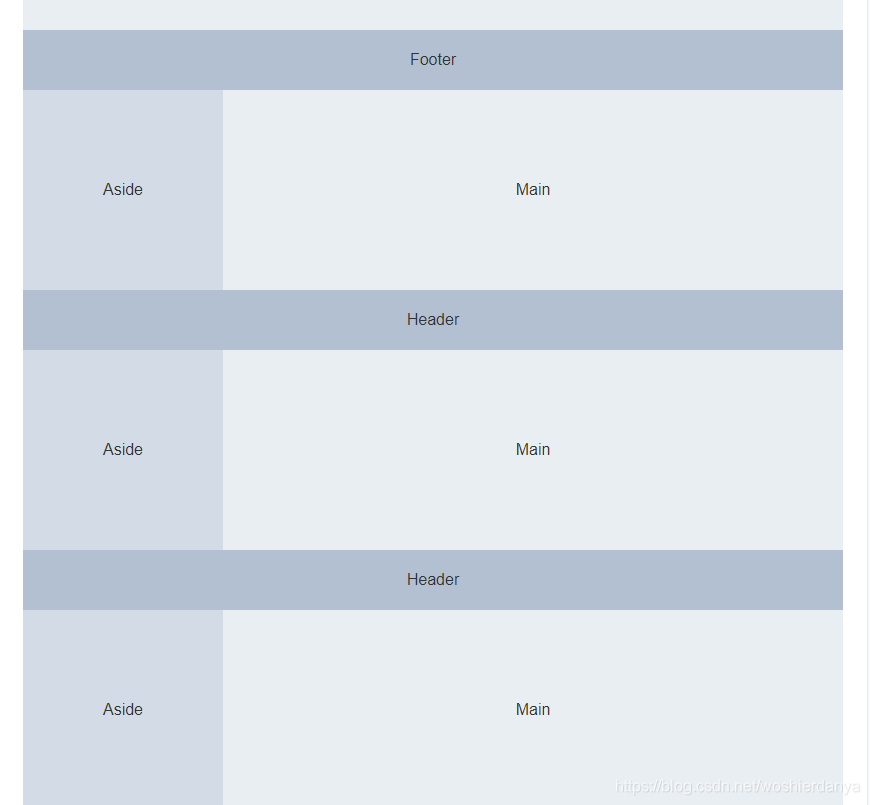

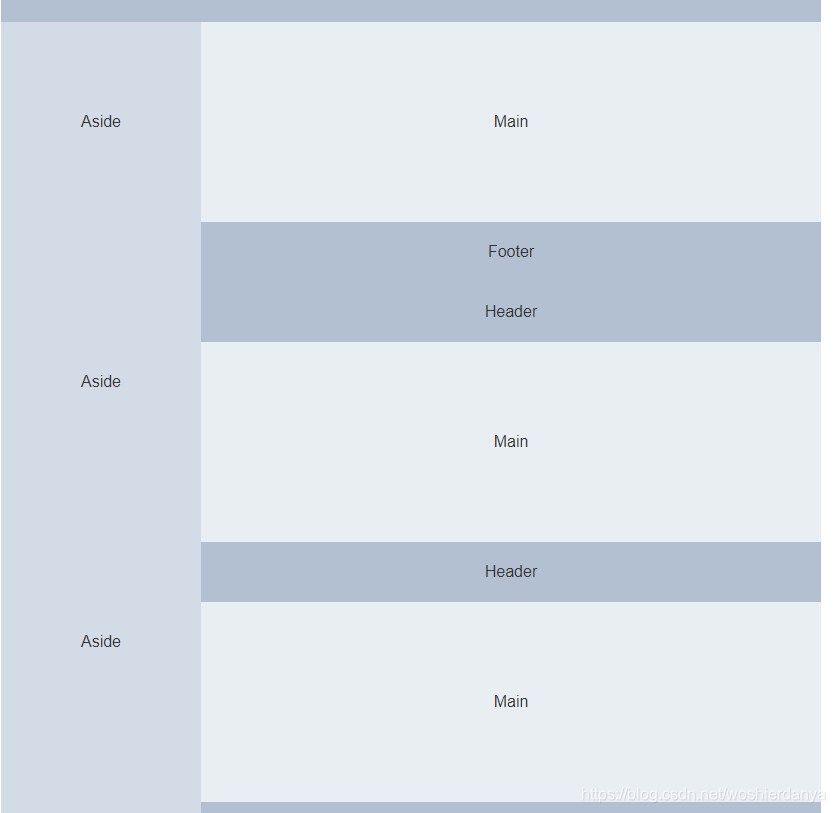

常见页面布局

<el-container>
  <el-header>Header</el-header>
  <el-main>Main</el-main>
</el-container>

<el-container>
  <el-header>Header</el-header>
  <el-main>Main</el-main>
  <el-footer>Footer</el-footer>
</el-container>

<el-container>
  <el-aside width="200px">Aside</el-aside>
  <el-main>Main</el-main>
</el-container>

<el-container>
  <el-header>Header</el-header>
  <el-container>
    <el-aside width="200px">Aside</el-aside>
    <el-main>Main</el-main>
  </el-container>
</el-container>

<el-container>
  <el-header>Header</el-header>
  <el-container>
    <el-aside width="200px">Aside</el-aside>
    <el-container>
      <el-main>Main</el-main>
      <el-footer>Footer</el-footer>
    </el-container>
  </el-container>
</el-container>

<el-container>
  <el-aside width="200px">Aside</el-aside>
  <el-container>
    <el-header>Header</el-header>
    <el-main>Main</el-main>
  </el-container>
</el-container>

<el-container>
  <el-aside width="200px">Aside</el-aside>
  <el-container>
    <el-header>Header</el-header>
    <el-main>Main</el-main>
    <el-footer>Footer</el-footer>
  </el-container>
</el-container>

<style>
  .el-header, .el-footer {
    background-color: #B3C0D1;
    color: #333;
    text-align: center;
    line-height: 60px;
  }

  .el-aside {
    background-color: #D3DCE6;
    color: #333;
    text-align: center;
    line-height: 200px;
  }

  .el-main {
    background-color: #E9EEF3;
    color: #333;
    text-align: center;
    line-height: 160px;
  }

  body > .el-container {
    margin-bottom: 40px;
  }

  .el-container:nth-child(5) .el-aside,
  .el-container:nth-child(6) .el-aside {
    line-height: 260px;
  }

  .el-container:nth-child(7) .el-aside {
    line-height: 320px;
  }
</style>

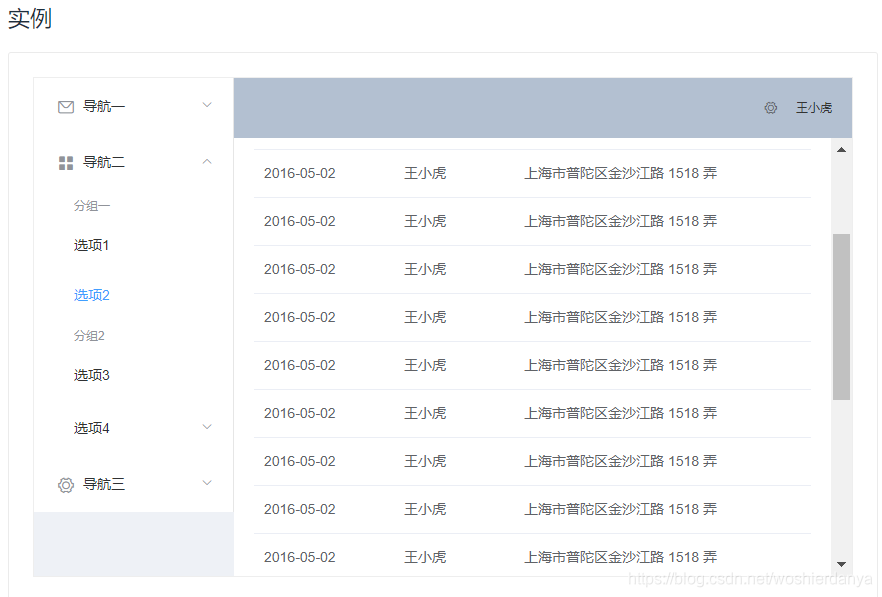

实例

<el-container style="height: 500px; border: 1px solid #eee">
  <el-aside width="200px" style="background-color: rgb(238, 241, 246)">
    <el-menu :default-openeds="['1', '3']">
      <el-submenu index="1">
        <template slot="title"><i class="el-icon-message"></i>导航一</template>
        <el-menu-item-group>
          <template slot="title">分组一</template>
          <el-menu-item index="1-1">选项1</el-menu-item>
          <el-menu-item index="1-2">选项2</el-menu-item>
        </el-menu-item-group>
        <el-menu-item-group title="分组2">
          <el-menu-item index="1-3">选项3</el-menu-item>
        </el-menu-item-group>
        <el-submenu index="1-4">
          <template slot="title">选项4</template>
          <el-menu-item index="1-4-1">选项4-1</el-menu-item>
        </el-submenu>
      </el-submenu>
      <el-submenu index="2">
        <template slot="title"><i class="el-icon-menu"></i>导航二</template>
        <el-menu-item-group>
          <template slot="title">分组一</template>
          <el-menu-item index="2-1">选项1</el-menu-item>
          <el-menu-item index="2-2">选项2</el-menu-item>
        </el-menu-item-group>
        <el-menu-item-group title="分组2">
          <el-menu-item index="2-3">选项3</el-menu-item>
        </el-menu-item-group>
        <el-submenu index="2-4">
          <template slot="title">选项4</template>
          <el-menu-item index="2-4-1">选项4-1</el-menu-item>
        </el-submenu>
      </el-submenu>
      <el-submenu index="3">
        <template slot="title"><i class="el-icon-setting"></i>导航三</template>
        <el-menu-item-group>
          <template slot="title">分组一</template>
          <el-menu-item index="3-1">选项1</el-menu-item>
          <el-menu-item index="3-2">选项2</el-menu-item>
        </el-menu-item-group>
        <el-menu-item-group title="分组2">
          <el-menu-item index="3-3">选项3</el-menu-item>
        </el-menu-item-group>
        <el-submenu index="3-4">
          <template slot="title">选项4</template>
          <el-menu-item index="3-4-1">选项4-1</el-menu-item>
        </el-submenu>
      </el-submenu>
    </el-menu>
  </el-aside>

  <el-container>
    <el-header style="text-align: right; font-size: 12px">
      <el-dropdown>
        <i class="el-icon-setting" style="margin-right: 15px"></i>
        <el-dropdown-menu slot="dropdown">
          <el-dropdown-item>查看</el-dropdown-item>
          <el-dropdown-item>新增</el-dropdown-item>
          <el-dropdown-item>删除</el-dropdown-item>
        </el-dropdown-menu>
      </el-dropdown>
      <span>王小虎</span>
    </el-header>

    <el-main>
      <el-table :data="tableData">
        <el-table-column prop="date" label="日期" width="140">
        </el-table-column>
        <el-table-column prop="name" label="姓名" width="120">
        </el-table-column>
        <el-table-column prop="address" label="地址">
        </el-table-column>
      </el-table>
    </el-main>
  </el-container>
</el-container>

<style>
  .el-header {
    background-color: #B3C0D1;
    color: #333;
    line-height: 60px;
  }

  .el-aside {
    color: #333;
  }
</style>

<script>
  export default {
    data() {
      const item = {
        date: '2016-05-02',
        name: '王小虎',
        address: '上海市普陀区金沙江路 1518 弄'
      };
      return {
        tableData: Array(20).fill(item)
      }
    }

3.color色彩

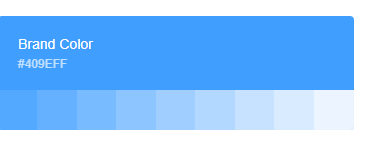

主色
Element 主要品牌颜色是鲜艳、友好的蓝色。

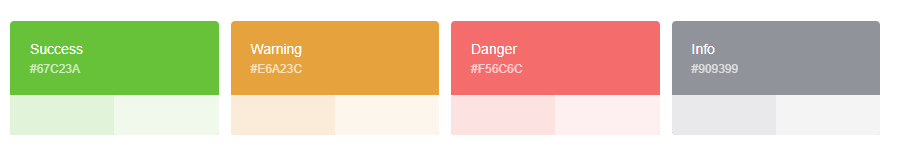

辅助色
除了主色外的场景色，需要在不同的场景中使用（例如危险色表示危险的操作）。

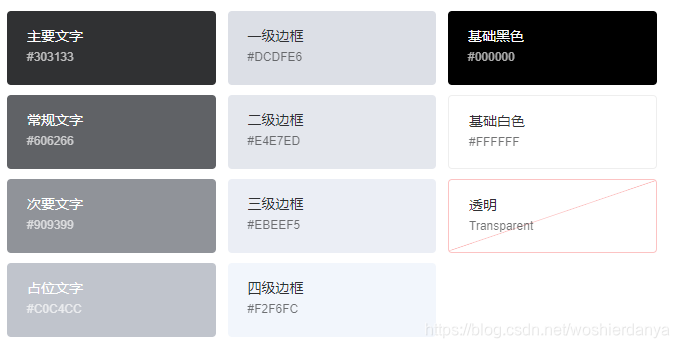

中性色
中性色用于文本、背景和边框颜色。通过运用不同的中性色，来表现层次结构。

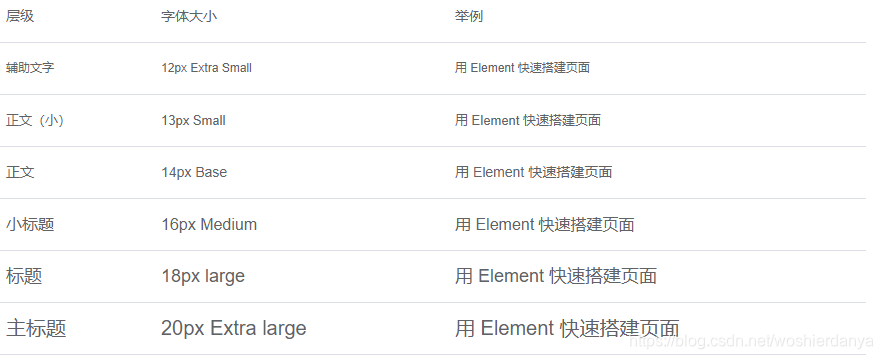

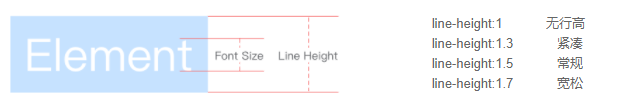

4.Typography 字体
我们对字体进行统一规范，力求在各个操作系统下都有最佳展示效果。

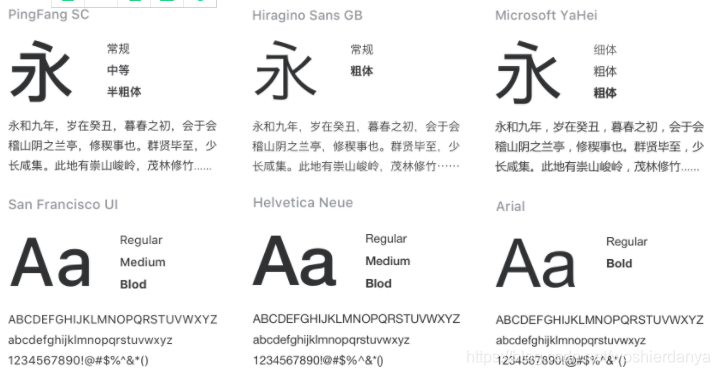

字体

字号

行高

Font-family 代码

5.Border 边框

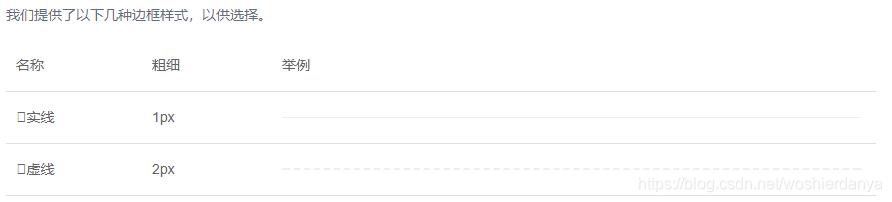

边框

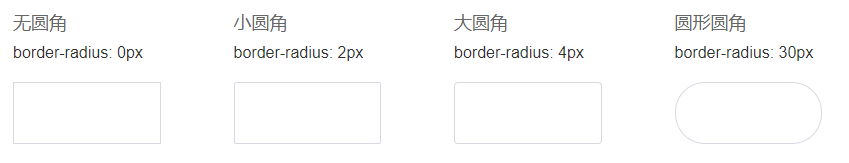

圆角

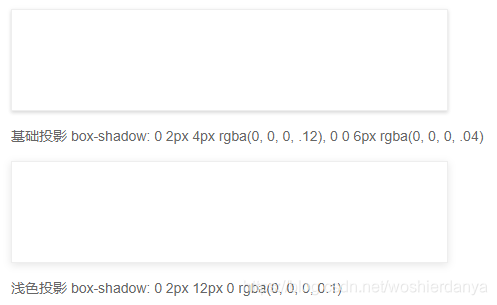

投影

6.Icon图标
使用方法
直接通过设置类名为 el-icon-iconName 来使用即可。例如：

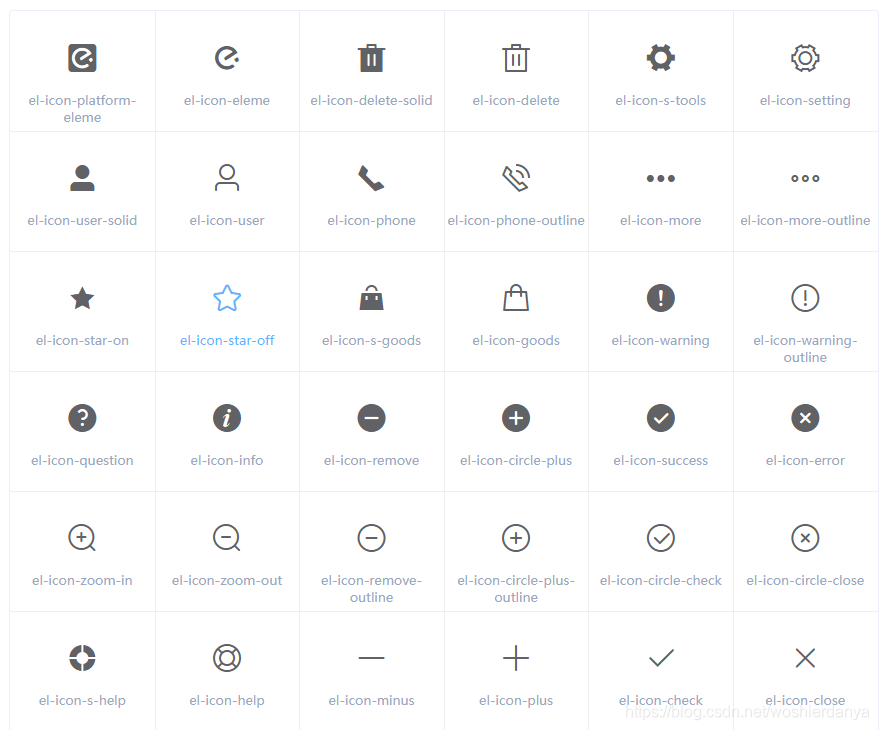

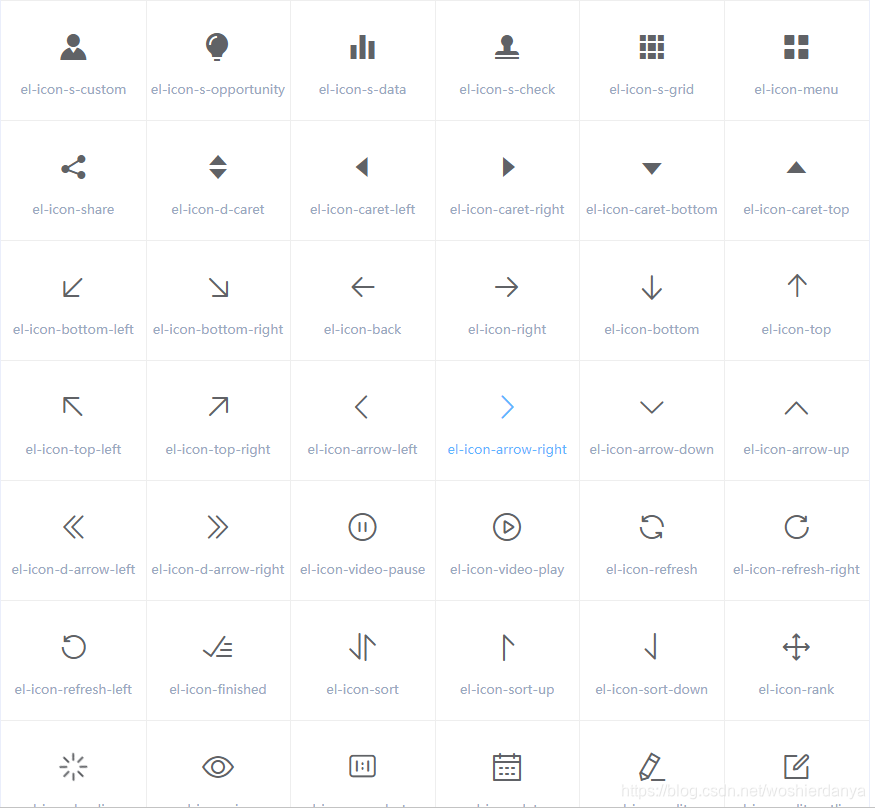

图标集合


7.Button 按钮

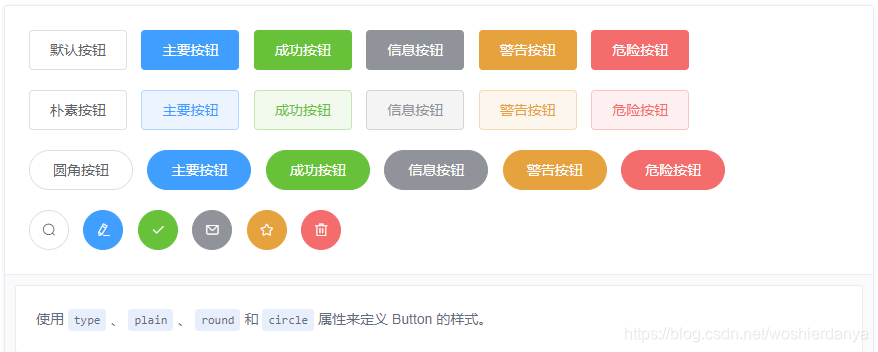

基础用法
基础的按钮用法。

<el-row>
  <el-button>默认按钮</el-button>
  <el-button type="primary">主要按钮</el-button>
  <el-button type="success">成功按钮</el-button>
  <el-button type="info">信息按钮</el-button>
  <el-button type="warning">警告按钮</el-button>
  <el-button type="danger">危险按钮</el-button>
</el-row>

<el-row>
  <el-button plain>朴素按钮</el-button>
  <el-button type="primary" plain>主要按钮</el-button>
  <el-button type="success" plain>成功按钮</el-button>
  <el-button type="info" plain>信息按钮</el-button>
  <el-button type="warning" plain>警告按钮</el-button>
  <el-button type="danger" plain>危险按钮</el-button>
</el-row>

<el-row>
  <el-button round>圆角按钮</el-button>
  <el-button type="primary" round>主要按钮</el-button>
  <el-button type="success" round>成功按钮</el-button>
  <el-button type="info" round>信息按钮</el-button>
  <el-button type="warning" round>警告按钮</el-button>
  <el-button type="danger" round>危险按钮</el-button>
</el-row>

<el-row>
  <el-button icon="el-icon-search" circle></el-button>
  <el-button type="primary" icon="el-icon-edit" circle></el-button>
  <el-button type="success" icon="el-icon-check" circle></el-button>
  <el-button type="info" icon="el-icon-message" circle></el-button>
  <el-button type="warning" icon="el-icon-star-off" circle></el-button>
  <el-button type="danger" icon="el-icon-delete" circle></el-button>
</el-row>

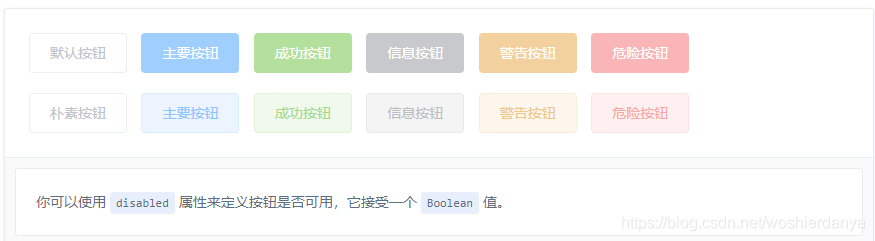

禁用状态
按钮不可用状态。

<el-row>
  <el-button disabled>默认按钮</el-button>
  <el-button type="primary" disabled>主要按钮</el-button>
  <el-button type="success" disabled>成功按钮</el-button>
  <el-button type="info" disabled>信息按钮</el-button>
  <el-button type="warning" disabled>警告按钮</el-button>
  <el-button type="danger" disabled>危险按钮</el-button>
</el-row>

<el-row>
  <el-button plain disabled>朴素按钮</el-button>
  <el-button type="primary" plain disabled>主要按钮</el-button>
  <el-button type="success" plain disabled>成功按钮</el-button>
  <el-button type="info" plain disabled>信息按钮</el-button>
  <el-button type="warning" plain disabled>警告按钮</el-button>
  <el-button type="danger" plain disabled>危险按钮</el-button>
</el-row>

文字按钮
没有边框和背景色的按钮。

<el-button type="text">文字按钮</el-button>
<el-button type="text" disabled>文字按钮</el-button>

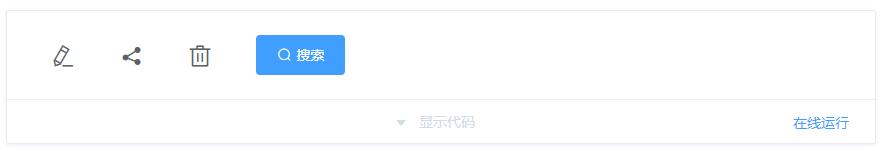

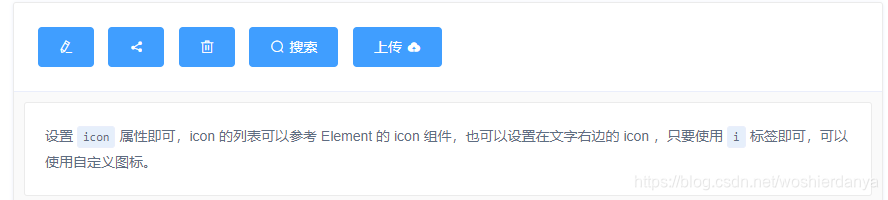

图标按钮
带图标的按钮可增强辨识度（有文字）或节省空间（无文字）。

<el-button type="primary" icon="el-icon-edit"></el-button>
<el-button type="primary" icon="el-icon-share"></el-button>
<el-button type="primary" icon="el-icon-delete"></el-button>
<el-button type="primary" icon="el-icon-search">搜索</el-button>
<el-button type="primary">上传<i class="el-icon-upload el-icon--right"></i></el-button>

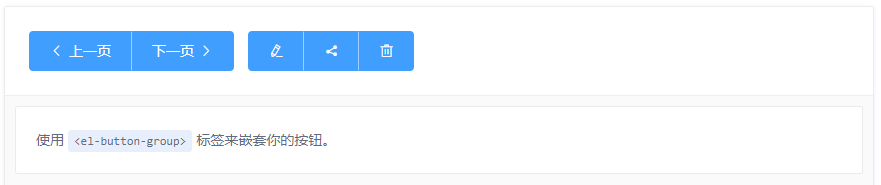

按钮组
以按钮组的方式出现，常用于多项类似操作。

<el-button-group>
  <el-button type="primary" icon="el-icon-arrow-left">上一页</el-button>
  <el-button type="primary">下一页<i class="el-icon-arrow-right el-icon--right"></i></el-button>
</el-button-group>
<el-button-group>
  <el-button type="primary" icon="el-icon-edit"></el-button>
  <el-button type="primary" icon="el-icon-share"></el-button>
  <el-button type="primary" icon="el-icon-delete"></el-button>
</el-button-group>

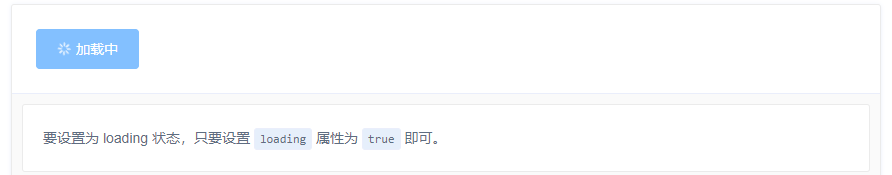

加载中
点击按钮后进行数据加载操作，在按钮上显示加载状态。

<el-button type="primary" :loading="true">加载中</el-button>

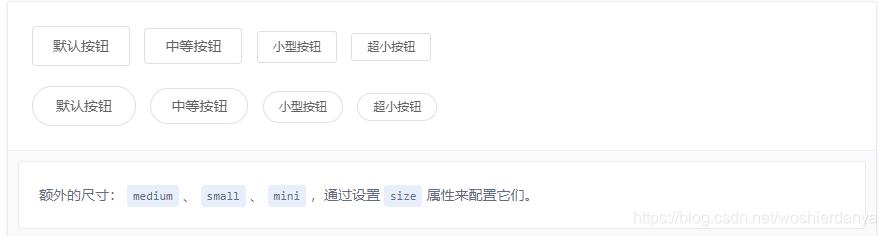

不同尺寸
Button 组件提供除了默认值以外的三种尺寸，可以在不同场景下选择合适的按钮尺寸。

<el-row>
  <el-button>默认按钮</el-button>
  <el-button size="medium">中等按钮</el-button>
  <el-button size="small">小型按钮</el-button>
  <el-button size="mini">超小按钮</el-button>
</el-row>
<el-row>
  <el-button round>默认按钮</el-button>
  <el-button size="medium" round>中等按钮</el-button>
  <el-button size="small" round>小型按钮</el-button>
  <el-button size="mini" round>超小按钮</el-button>
</el-row>

8.Link 文字链接（文字超链接）
基础用法
基础的文字链接用法。

<div>
  <el-link href="https://element.eleme.io" target="_blank">默认链接</el-link>
  <el-link type="primary">主要链接</el-link>
  <el-link type="success">成功链接</el-link>
  <el-link type="warning">警告链接</el-link>
  <el-link type="danger">危险链接</el-link>
  <el-link type="info">信息链接</el-link>
</div>

禁用状态
文字链接不可用状态。

<div>
  <el-link disabled>默认链接</el-link>
  <el-link type="primary" disabled>主要链接</el-link>
  <el-link type="success" disabled>成功链接</el-link>
  <el-link type="warning" disabled>警告链接</el-link>
  <el-link type="danger" disabled>危险链接</el-link>
  <el-link type="info" disabled>信息链接</el-link>
</div>

下划线
文字链接下划线。

<div>
  <el-link :underline="false">无下划线</el-link>
  <el-link>有下划线</el-link>
</div>

图标
带图标的文字链接可增强辨识度。

<div>
  <el-link icon="el-icon-edit">编辑</el-link>
  <el-link>查看<i class="el-icon-view el-icon--right"></i> </el-link>
</div>
