ansible-galaxy实现对apache的haproxy+keepalived

• 编写apcahe发布文件

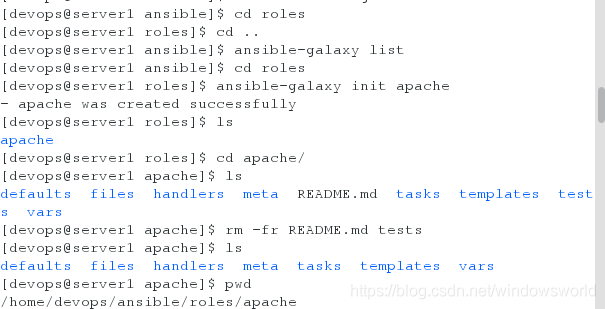

[devops@server1 ansible]$ mkdir roles
[devops@server1 ansible]$ cd roles
[devops@server1 roles]$ ansible-galaxy init apache
- apache was created successfully

[devops@server1 apache]$ cd tasks/
[devops@server1 tasks]$ ls
main.yml
[devops@server1 tasks]$ \vi main.yml##使用\vi命令对文件进行编辑

[devops@server1 apache]$ cat tasks/main.yml
---
- name: install httpd
  yum:
    name: httpd
    state: present

- name: copy index.html
  copy:
    content: "{{ ansible_facts['hostname'] }}"
    dest: /var/www/html/index.html

- name: configure httpd
  template:
    src: templates/httpd.conf.j2
    dest: /etc/httpd/conf/httpd.conf
    owner: root
    group: root
    mode: 644
  notify: restart httpd

- name: start httpd and firewalld
  service:
    name: "{{ item }}"
    state: started
  loop:
    - httpd
    - firewalld

- name: configure firewalld
  firewalld:
    service: http
    permanent: yes
    immediate: yes
    state: enabled

[devops@server1 apache]$ cd handlers/
[devops@server1 handlers]$ \vi main.yml

[devops@server1 apache]$ cat handlers/main.yml
---
- name: restart httpd
  service:
    name: httpd
    state: restarted

复制httpd配置文件到模板
[devops@server1 apache]$ cd templates/
[devops@server1 templates]$ cp …/…/…/templates/httpd.conf.j2 .##我是复制已经存在的，若没有可以先下载然后复制到该目录，不需要作修改
[devops@server1 templates]$ ls
httpd.conf.j2

[devops@server1 templates]$ cd …/vars/
[devops@server1 vars]$ ls
main.yml
[devops@server1 vars]$ \vi main.yml

[devops@server1 apache]$ cat vars/main.yml ##这里我加入了一个变量，若没有加改变量，可以不用引入
---
http_port: 80

• 编写haproxy发布文件
  [devops@server1 roles]$ ansible-galaxy init haproxy
  haproxy was created successfully
  [devops@server1 roles]$ ls
  apache haproxy
  [devops@server1 roles]$ cd haproxy/
  [devops@server1 haproxy]$ ls
  defaults handlers README.md templates vars
  files meta tasks tests
  [devops@server1 haproxy]$ \vi tasks/main.yml

[devops@server1 haproxy]$ cat tasks/main.yml
---
- name: install haproxy
  yum:
    name: haproxy
    state: present
- name: start haproxy
  service:
    name: haproxy
    state: started
- name: configure haproxy
  template:
    src: haproxy.cfg.j2
    dest: /etc/haproxy/haproxy.cfg
  notify: restart haproxy

[devops@server1 haproxy]$ \vi handlers/main.yml

[devops@server1 haproxy]$ cat handlers/main.yml
---
- name: restart haproxy
  service:
    name: haproxy
    state: restarted

[devops@server1 haproxy]$ cp …/…/templates/haproxy.cfg.j2 templates/##移动haproxy配置文件至模板

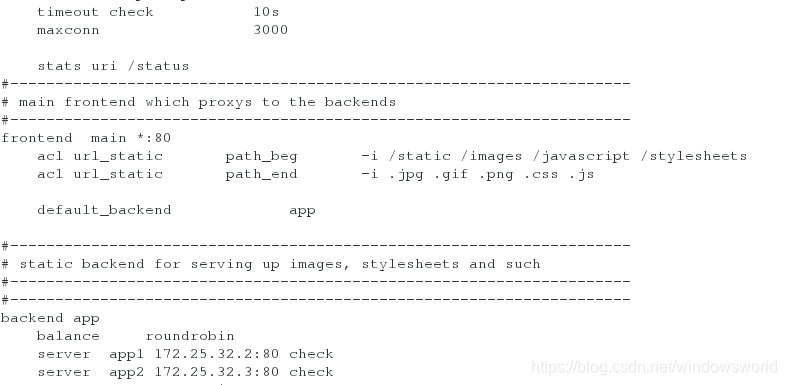

配置文件修改如下

• 编写keepalived发布文件（编写时可以从haproxy的发布文件拷贝后进行修改）

    [devops@server1 roles]$ ansible-galaxy init keepalived
     - keepalived was created successfully
     [devops@server1 roles]$ ls
    apache  haproxy  keepalived
    [devops@server1 roles]$ cd keepalived/
    [devops@server1 keepalived]$ \vi tasks/main.yml

[devops@server1 keepalived]$ cat tasks/main.yml
---
- name: install keepalived
  yum:
    name: keepalived
    state: present
- name: start keepalived
  service:
    name: keepalived
    state: started
- name: configure keepalived
  template:
    src: keepalived.conf.j2
    dest: /etc/keepalived/keepalived.conf
  notify: restart keepalived

[devops@server1 keepalived]$ \vi handlers/main.yml

[devops@server1 keepalived]$ cat handlers/main.yml
---
- name: restart keepalived
  service:
    name: keepalived
    state: restarted

修改配置文件

    [devops@server1 keepalived]$ sudo yum install -y keepalived
    [devops@server1 ansible]$ cd roles/keepalived/templates/
    [devops@server1 templates]$ ls
    [devops@server1 templates]$ sudo mv /etc/keepalived/keepalived.conf .
    [devops@server1 templates]$ ls
    keepalived.conf
    [devops@server1 templates]$ pwd
    /home/devops/ansible/roles/keepalived/templates
    [devops@server1 templates]$ mv keepalived.conf keepalived.conf.j2
    [devops@server1 templates]$ ls
    keepalived.conf.j2
    [devops@server1 templates]$ vim keepalived.conf.j2

配置文件：

[devops@server1 keepalived]$ cat templates/keepalived.conf.j2
! Configuration File for keepalived

global_defs {
   notification_email {
  	root@localhost
   }
   notification_email_from keepalived@localhost
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id LVS_DEVEL
}

vrrp_instance VI_1 {
    state {{ STATE }}
    interface eth0
    virtual_router_id {{ VRID }}
    priority {{ PRIORITY }}
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.32.100
    }
}

• 修改组成员并添加变量

[devops@server1 ansible]$ vim inventory
[devops@server1 ansible]$ cat inventory
[webserver]
server2
server3
[lb]
server1 STATE=MASTER VRID=32 PRIORITY=100
server4 STATE=BACKUP VRID=32 PRIORITY=99

• 编写发布文件

[devops@server1 ansible]$ vi apa+hap.yml

[devops@server1 ansible]$ cat apa+hap.yml
---
- hosts: all
  tasks:
  - import_role:
      name: apache
    when: ansible_hostname in groups['webserver']
  - import_role:
      name: haproxy
    when: ansible_hostname in groups['lb']
  - import_role:
      name: keepalived
    when: ansible_hostname in groups['lb']

• 测试

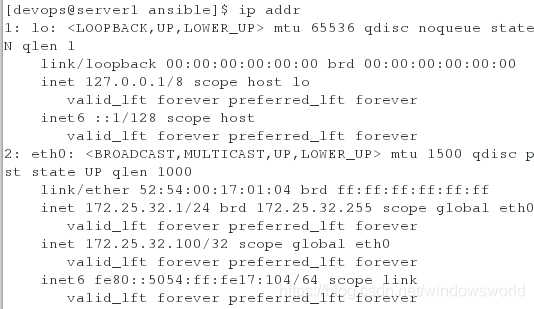

  查看vip位置

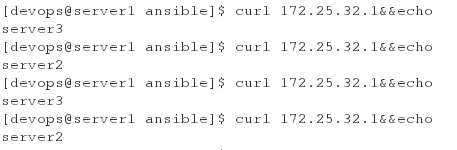

  访问测试：

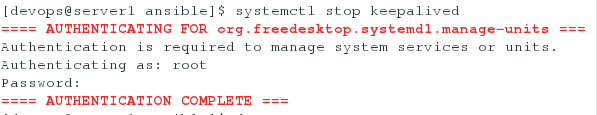

down掉server1的keepalived服务查看vip

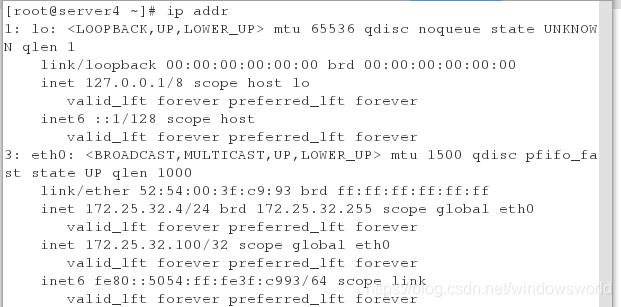

此時vip迁移到server4

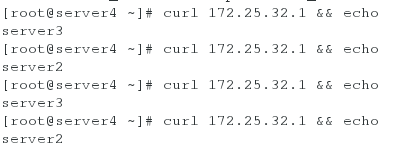

测试访问
