968. Binary Tree Cameras

方法1: greedy + dynamic programming
- Complexity

Given a binary tree, we install cameras on the nodes of the tree.

Each camera at a node can monitor its parent, itself, and its immediate children.

Calculate the minimum number of cameras needed to monitor all nodes of the tree.

Example 1:
在这里插入图片描述
Input: [0,0,null,0,0]
Output: 1

Explanation: One camera is enough to monitor all nodes if placed as shown.

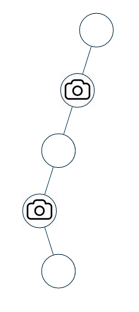

Example 2:
在这里插入图片描述

Input: [0,0,null,0,null,0,null,null,0]
Output: 2

Explanation: At least two cameras are needed to monitor all nodes of the tree. The above image shows one of the valid configurations of camera placement.

Note:

The number of nodes in the given tree will be in the range [1, 1000].
Every node has value 0.

方法1: greedy + dynamic programming

discussion: https://leetcode.com/problems/binary-tree-cameras/discuss/211246/C%2B%2B-Greedy%2BDFS-O(n)-Time-4ms-with-Explanation

思路：

用greedy的做法，能把责任往上推就往上推，因为parent可以照顾到更多的节点。We put camera at as higher level (closer to root) as possible. We use post-order DFS here. The return value of DFS() has following meanings. 0: there is no camera at this node, and it’s not monitored by camera at either of its children, which means neither of child nodes has camera. 1: there is no camera at this node; however, this node is monitored by at least 1 of its children, which means at least 1 of its children has camera. 2: there is a camera at this node.

Complexity

Time complexity: O(n)
Space complexity: O(h)

/**
 * Definition for a binary tree node.
 * struct TreeNode {
 *     int val;
 *     TreeNode *left;
 *     TreeNode *right;
 *     TreeNode(int x) : val(x), left(NULL), right(NULL) {}
 * };
 */
class Solution {
public:
    int minCameraCover(TreeNode* root) {
        int sum = 0;
        if (camHelper(root, sum) == 0) sum++; // if root is not monitored, we place an additional camera here
        return sum;
    }

    int camHelper(TreeNode* root, int & sum) {
        if (!root) return 1;
        int left = camHelper(root -> left, sum);
        int right = camHelper(root -> right, sum);
        if (left == 0 || right == 0) { // if at least 1 child is not monitored, we need to place a camera at current node
            sum++;
            return 2;
        }
        else if (left == 1 && right == 1) { // if both children are monitored but have no camera, we don't need to place a camera here. We place the camera at its parent node at the higher level.
            return 0;
        }
        return 1; // if at least 1 child has camera, the current node is monitored. Thus, we don't need to place a camera here
    }
};
