第一个Springboot应用：Mysql + Druid +Mybatis + Restful +Slf4j + logback

第一个Springboot应用，数据库采用Mysql，连接池采用Druid DataSource，持久层框架采用Mybatis，Restful接口返回，并且增加了日志处理，日志采用Slf4j + logback，整个项目是通过maven来构建的，在下面的阅读过程中，有注解不了解的可以自己去百度学习一下，也可以通过idea直接查看源码的注解，先来看一下整个工程的目录结构。

修改pom.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.5.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.wyq</groupId>
    <artifactId>first-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>first-demo</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.0.1</version>
        </dependency>


        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.17</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
            <optional>true</optional>
        </dependency>

        <dependency>
            <groupId>org.codehaus.jackson</groupId>
            <artifactId>jackson-mapper-asl</artifactId>
            <version>1.9.12</version>
        </dependency>

        <!-- 工具类 -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>3.5</version>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

数据库配置

创建user表

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `name` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `age` int(11) NULL DEFAULT NULL,
  `birth_day` datetime(0) NULL DEFAULT NULL,
  `is_married` bit(1) NULL DEFAULT NULL,
  `salary` decimal(10, 2) NULL DEFAULT NULL,
  `insert_time` timestamp(0) NULL DEFAULT NULL,
  `update_time` timestamp(0) NULL DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP(0),
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 20 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

修改application.properties文件

#mybatis
#为实体对象所在的包，跟数据库表一一对应
mybatis.typeAliasesPackage=com.wyq.firstdemo.entity
#mapper文件的位置
mybatis.mapperLocations=classpath:mappers/*.xml

#数据库
spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
spring.datasource.url=jdbc:mysql://localhost:3306/wyq_db?useUnicode=true&characterEncoding=utf8&serverTimezone=GMT%2B8&useSSL=false
spring.datasource.username=root
spring.datasource.password=root
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
# 下面为连接池的补充设置，应用到上面所有数据源中
# 初始化大小，最小，最大
spring.datasource.initialSize=5
spring.datasource.minIdle=5
spring.datasource.maxActive=20
# 配置获取连接等待超时的时间
spring.datasource.maxWait=60000
# 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒
spring.datasource.timeBetweenEvictionRunsMillis=60000
# 配置一个连接在池中最小生存的时间，单位是毫秒
spring.datasource.minEvictableIdleTimeMillis=300000
# 校验SQL，Oracle配置 spring.datasource.validationQuery=SELECT 1 FROM DUAL，如果不配validationQuery项，则下面三项配置无用
spring.datasource.validationQuery=select '1' from dual
spring.datasource.testWhileIdle=true
spring.datasource.testOnBorrow=false
spring.datasource.testOnReturn=false
# 打开PSCache，并且指定每个连接上PSCache的大小
spring.datasource.poolPreparedStatements=true
spring.datasource.maxPoolPreparedStatementPerConnectionSize=20
# 配置监控统计拦截的filters，去掉后监控界面sql无法统计，'wall'用于防火墙
#spring.datasource.filters=stat,wall,log4j
spring.datasource.filters=stat,wall,slf4j
# 通过connectProperties属性来打开mergeSql功能；慢SQL记录
spring.datasource.connectionProperties=druid.stat.mergeSql=true;druid.stat.slowSqlMillis=5000
# 合并多个DruidDataSource的监控数据
spring.datasource.useGlobalDataSourceStat=true
#druid
spring.datasource.druid.username=wyq
spring.datasource.druid.password=Admin@1234
spring.datasource.druid.logSlowSql=true

编写Druid配置类

如果使用@slf4j注解之后，无法直接使用log日志对象，请在idea上安装lombok插件，lombok可以大大提高你的编码效率，使你的编码更加优雅（使用Lombok来优雅的编码）

package com.wyq.firstdemo.config;

import com.alibaba.druid.pool.DruidDataSource;
import com.alibaba.druid.support.http.StatViewServlet;
import lombok.Data;
import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.sql.DataSource;

/**
 * @ClassName DruidConfig
 * @Description druid参数配置
 * @Author weiyanqiang
 * @Date 2019/6/22 16:49
 * @Version 1.0
 */
@Slf4j
@Data
@Configuration
@ConfigurationProperties(prefix = "spring.datasource.druid")
public class DruidConfig {
    private String username;

    private String password;

    private String logSlowSql;

    @Bean
    public ServletRegistrationBean druidServlet() {
        ServletRegistrationBean reg = new ServletRegistrationBean();
        reg.setServlet(new StatViewServlet());
        reg.addUrlMappings("/druid/*");
        reg.addInitParameter("loginUsername", username);
        reg.addInitParameter("loginPassword", password);
        reg.addInitParameter("logSlowSql", logSlowSql);

        return reg;
    }

    @Bean
    @ConfigurationProperties(prefix = "spring.datasource")
    public DataSource druid() {
        DruidDataSource dataSource = new DruidDataSource();
        return dataSource;
    }
}

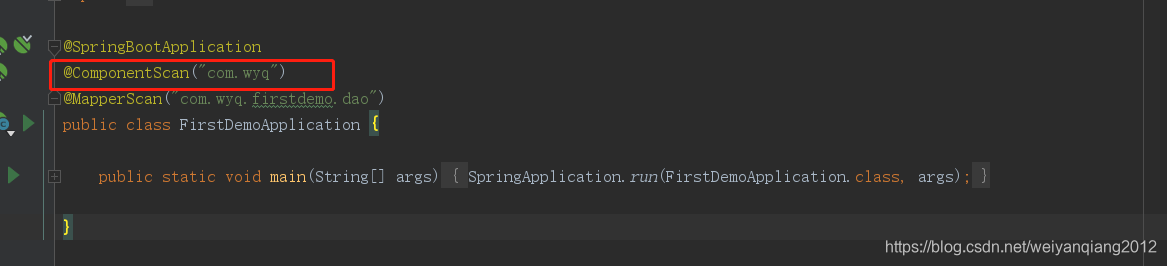

到这边数据库的配置基本完成，在FirstDemoApplication类上增加一个@ComponentScan("com.wyq")，然后启动服务，访问http://localhost:8083/druid/login.html网址就可以访问druid后台信息，这边的8083是我的服务端口，如果大家不改动的话应该是8080，大家根据自己的实际情况填写，用户名和密码就是配置文件里面配置的spring.datasource.druid.username和spring.datasource.druid.password。

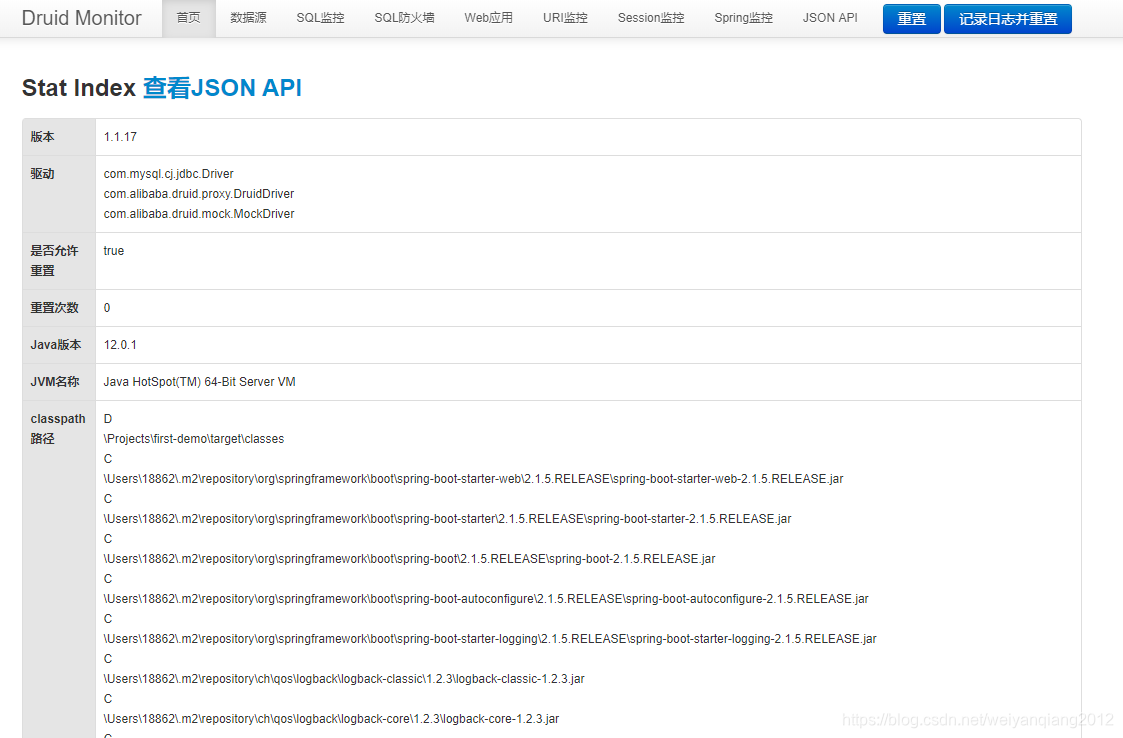

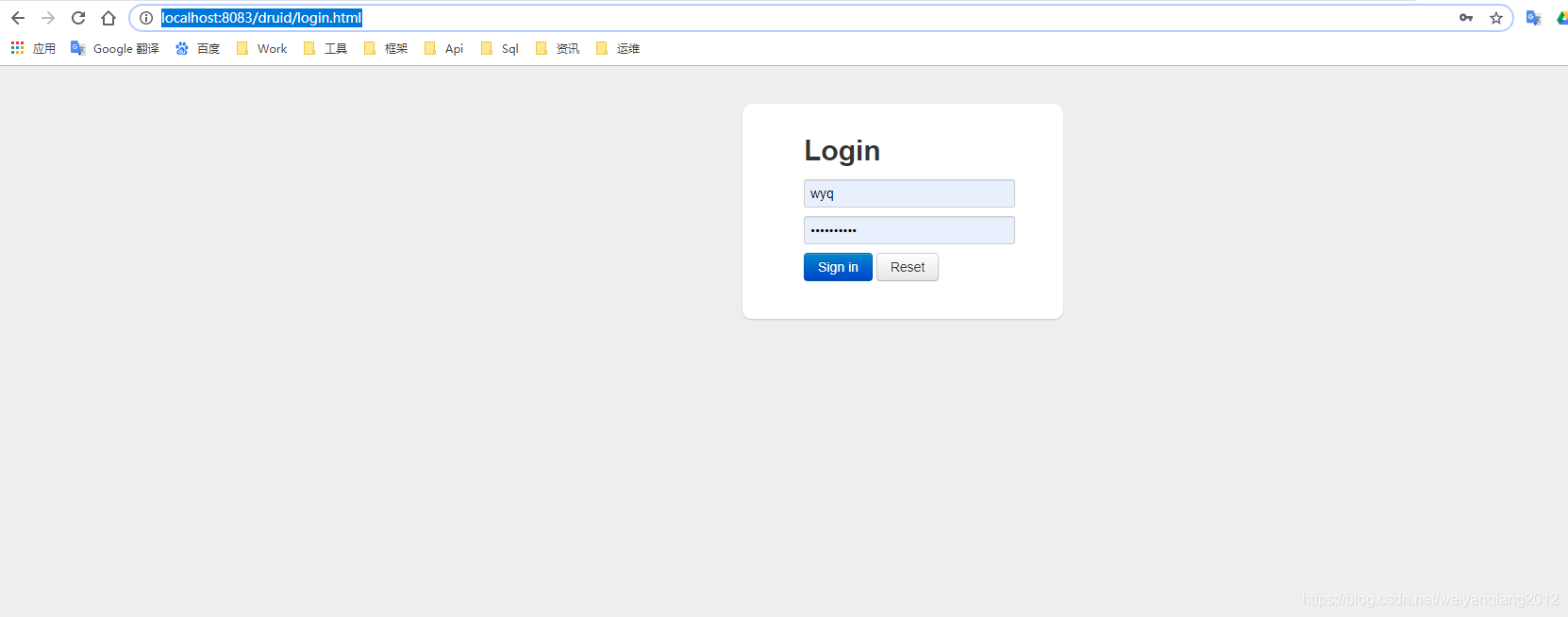

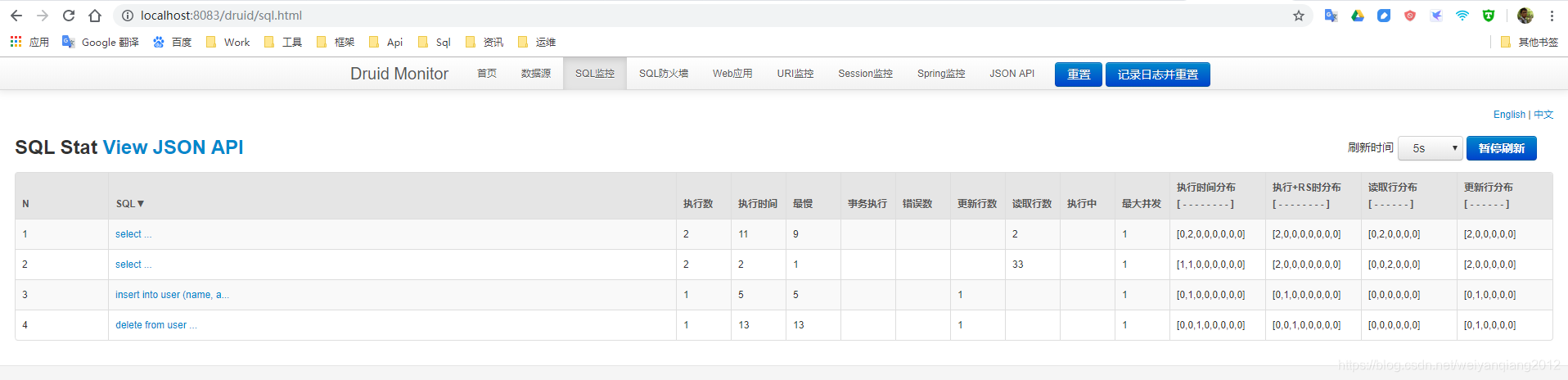

如果有sql运行，我们可以通过sql监控来进行查看

编写实体类、Dao层接口和Mapper配置文件，并编写测试类进行测试

新建UserEntity实体类

package com.wyq.firstdemo.entity;

import com.fasterxml.jackson.annotation.JsonFormat;
import lombok.Getter;
import lombok.Setter;
import lombok.ToString;

import java.util.Date;

/**
 * @ClassName UserEntity
 * @Description 用户实体类
 * @Author weiyanqiang
 * @Date 2019/6/23 22:28
 * @Version 1.0
 */
@Getter
@Setter
@ToString
public class UserEntity {

    private int id;

    private String name;

    private int age;

    /**
     * 解决json时间格式化的问题
     */
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
    private Date birthDay;

    private boolean isMarried;

    private float salary;

}

新建UserMapper接口

package com.wyq.firstdemo.dao;

import com.wyq.firstdemo.entity.UserEntity;
import org.apache.ibatis.annotations.Param;
import org.springframework.stereotype.Repository;

import java.util.List;

// @Repository这个注解写不写无所谓，不写的话在idea的service中自动注入编译器会报错，但是不影响运行
@Repository
public interface UserMapper {

    int insert(UserEntity userEntity);

    int insertList(@Param("userEntityList") List<UserEntity> userEntityList);

    int deleteById(int id);

    int update(UserEntity userEntity);

    UserEntity queryById(int id);

    List<UserEntity> queryAll();

}

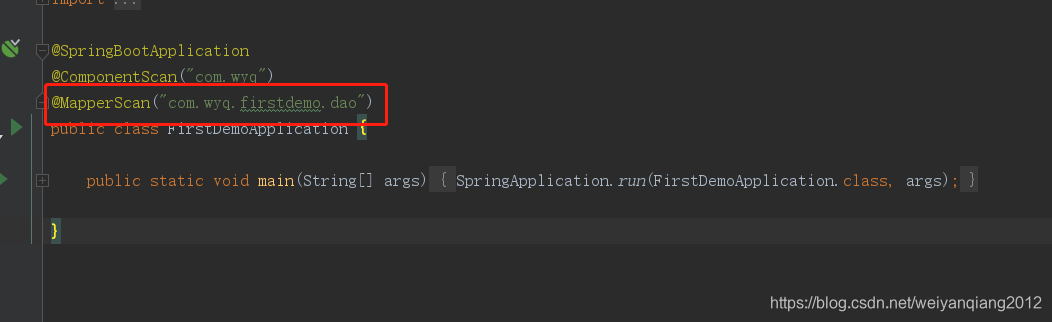

增加完mapper接口之后，我们需要在启动类上增加一个@MapperScan注解，把mapper扫描进去。

新建UserMapper.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.wyq.firstdemo.dao.UserMapper">
    <resultMap id="BaseResultMap" type="com.wyq.firstdemo.entity.UserEntity">
        <id column="id" jdbcType="INTEGER" property="id" />
        <result column="name" jdbcType="VARCHAR" property="name" />
        <result column="age" jdbcType="INTEGER" property="age" />
        <result column="birth_day" jdbcType="DATE" property="birthDay" />
        <result column="is_married" jdbcType="BIT" property="isMarried" />
        <result column="salary" jdbcType="DECIMAL" property="salary" />
    </resultMap>
    <sql id="Base_Column_List">
        id, name, age, birth_day, is_married, salary
    </sql>

    <insert id="insert" parameterType="com.wyq.firstdemo.entity.UserEntity">
        insert into user (name, age, birth_day, is_married, salary, insert_time, update_time)
        values
        (#{name}, #{age}, #{birthDay}, #{isMarried}, #{salary}, now(), now())
    </insert>

    <insert id="insertList">
        insert into user (name, age, birth_day, is_married, salary, insert_time, update_time)
        values
        <foreach collection="userEntityList" item="userEntity" separator=",">
            (#{userEntity.name}, #{userEntity.age}, #{userEntity.birthDay}, #{userEntity.isMarried}, #{userEntity.salary}, now(), now())
        </foreach>
    </insert>

    <delete id="deleteById" parameterType="int">
        delete from user
        where
        id = #{id}
    </delete>

    <update id="update" parameterType="com.wyq.firstdemo.entity.UserEntity">
        update user
        set name = #{name}, age = #{age}, birth_day = #{birthDay}, is_married = #{isMarried}, salary = #{salary}
        where id = #{id}
    </update>

    <select id="queryById" parameterType="int" resultMap="BaseResultMap">
        select
        <include refid="Base_Column_List" />
        from user
        where
        id = #{id}
    </select>

    <select id="queryAll" resultMap="BaseResultMap">
        select
        <include refid="Base_Column_List" />
        from user
    </select>
</mapper>

到这边数据访问层就写好了，接下来我们编写测试类来测试一下每个方法的正确性

新建UserMapperTest测试类

package com.wyq.firstdemo.dao;

import com.wyq.firstdemo.entity.UserEntity;
import com.wyq.firstdemo.util.DateUtil;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

import java.util.ArrayList;
import java.util.List;

/**
 * @ClassName UserMapperTest
 * @Description TODO
 * @Author weiyanqiang
 * @Date 2019/6/24 22:41
 * @Version 1.0
 */
@RunWith(SpringRunner.class)
@SpringBootTest
public class UserMapperTest {

    @Autowired
    private UserMapper userMapper;

    @Test
    public void testInsert() {
        UserEntity userEntity = new UserEntity();
        userEntity.setName("wyq");
        userEntity.setAge(28);
        userEntity.setBirthDay(DateUtil.strToDateTime("1992-12-28 14:00:00"));
        userEntity.setMarried(true);
        userEntity.setSalary(200000);

        userMapper.insert(userEntity);
    }

    @Test
    public void testInsertList() {
        List<UserEntity> userEntityList = new ArrayList<>();
        for (int i = 0; i < 10; i++) {
            UserEntity userEntity = new UserEntity();
            userEntity.setName("test" + i);
            userEntity.setAge(28 + i);
            userEntity.setBirthDay(DateUtil.strToDateTime("1992-12-28 14:00:00"));
            userEntity.setMarried(true);
            userEntity.setSalary(180000);
            userEntityList.add(userEntity);
        }

        userMapper.insertList(userEntityList);
    }

    @Test
    public void testDeleteById() {
        userMapper.deleteById(1);
    }

    @Test
    public void testUpdate() {
        UserEntity userEntity = new UserEntity();
        userEntity.setId(2);
        userEntity.setName("fy");
        userEntity.setAge(28);
        userEntity.setBirthDay(DateUtil.strToDateTime("1992-02-03 14:00:00"));
        userEntity.setMarried(true);
        userEntity.setSalary(180000);

        userMapper.update(userEntity);
    }

    @Test
    public void testQueryById() {
        UserEntity userEntity = userMapper.queryById(2);

        System.out.println(userEntity);
    }

    @Test
    public void testQueryAll() {
        List<UserEntity> userEntityList = userMapper.queryAll();

        System.out.println(userEntityList);
    }

}

点击每个测试方法左侧边栏的三角符号，选择运行，就可以运行这个测试方法了

编写service层和controller层代码

编写service层

新建UserService接口

package com.wyq.firstdemo.service;

import com.wyq.firstdemo.entity.UserEntity;

import java.util.List;

/**
 * 用户服务类
 */
public interface UserService {

    int insert(UserEntity userEntity);

    int insertList(List<UserEntity> userEntityList);

    int deleteById(int id);

    int update(UserEntity userEntity);

    UserEntity queryById(int id);

    List<UserEntity> queryAll();

}

新建UserService接口实现类，UserServiceImpl类

package com.wyq.firstdemo.service.impl;

import com.wyq.firstdemo.common.ServerResponse;
import com.wyq.firstdemo.dao.UserMapper;
import com.wyq.firstdemo.entity.UserEntity;
import com.wyq.firstdemo.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

/**
 * @ClassName UserServiceImpl
 * @Description TODO
 * @Author weiyanqiang
 * @Date 2019/6/24 10:14
 * @Version 1.0
 */
@Service
public class UserServiceImpl implements UserService {

    @Autowired
    private UserMapper userMapper;

    @Override
    public int insert(UserEntity userEntity) {
        return userMapper.insert(userEntity);
    }

    @Override
    public int insertList(List<UserEntity> userEntityList) {
        return userMapper.insertList(userEntityList);
    }

    @Override
    public int deleteById(int id) {
        return userMapper.deleteById(id);
    }

    @Override
    public int update(UserEntity userEntity) {
        return userMapper.update(userEntity);
    }

    @Override
    public UserEntity queryById(int id) {
        return userMapper.queryById(id);
    }

    @Override
    public List<UserEntity> queryAll() {
        return userMapper.queryAll();
    }
}

编写controller层

在编写controller层之前，我们需要定义服务器接口返回统一格式-ServerResponse

新建ResponseCode枚举类

这个枚举类用来定义返回的状态码和信息

package com.wyq.firstdemo.enums;

/**
 * @ClassName ResponseCode
 * @Description 返回状态
 * @Author weiyanqiang
 * @Date 2019/6/26 11:24
 * @Version 1.0
 */
public enum ResponseCode {

    SUCCESS(0, "SUCCESS"),
    ERROR(1, "ERROR"),
    ILLEGAL_ARGUMENT(2, "ILLEGAL_ARGUMENT"),
    EXCEPTION(-1, "EXCEPTION");

    private final int code;

    private final String desc;

    ResponseCode(int code, String desc) {
        this.code = code;
        this.desc = desc;
    }

    public int getCode() {
        return code;
    }

    public String getDesc() {
        return desc;
    }
}

新建ServerResponse接口返回格式类

package com.wyq.firstdemo.common;

import com.wyq.firstdemo.enums.ResponseCode;
import org.codehaus.jackson.annotate.JsonIgnore;
import org.codehaus.jackson.map.annotate.JsonSerialize;

import java.io.Serializable;

/**
 * @ClassName ServerResponse
 * @Description 返回前段数据封装
 * @Author weiyanqiang
 * @Date 2019/6/26 13:04
 * @Version 1.0
 */
//当序列化Json对象时，如果是null的对象，key也会消失
@JsonSerialize(include = JsonSerialize.Inclusion.NON_NULL)
public class ServerResponse<T> implements Serializable {
    private int status;
    private String msg;
    private T data;

    private ServerResponse(int status){
        this.status = status;
    }

    private ServerResponse(int status,T data){
        this.status = status;
        this.data = data;
    }

    private ServerResponse(int status,String msg, T data){
        this.status = status;
        this.msg = msg;
        this.data = data;
    }

    private ServerResponse(int status,String msg){
        this.status = status;
        this.msg = msg;
    }

    @JsonIgnore
    public boolean isSuccess(){
        return  this.status == ResponseCode.SUCCESS.getCode();
    }

    public int getStatus() {
        return status;
    }

    public String getMsg() {
        return msg;
    }

    public T getData() {
        return data;
    }

    public static <T> ServerResponse<T> createBySuccess(){
        return new ServerResponse<T>(ResponseCode.SUCCESS.getCode());
    }

    public static <T> ServerResponse<T> createBySuccessMessage(String msg){
        return new ServerResponse<T>(ResponseCode.SUCCESS.getCode(),msg);
    }

    public static <T> ServerResponse<T> createBySuccess(T data){
        return new ServerResponse<T>(ResponseCode.SUCCESS.getCode(),data);
    }

    public static <T> ServerResponse<T> createBySuccess(String msg,T data){
        return new ServerResponse<T>(ResponseCode.SUCCESS.getCode(),msg,data);
    }


    public static <T> ServerResponse<T> createByError(){
        return new ServerResponse<T>(ResponseCode.ERROR.getCode(),ResponseCode.ERROR.getDesc());
    }


    public static <T> ServerResponse<T> createByErrorMessage(String errorMessage){
        return new ServerResponse<T>(ResponseCode.ERROR.getCode(),errorMessage);
    }

    public static <T> ServerResponse<T> createByIllegalArgument(String errorMessage){
        return new ServerResponse<T>(ResponseCode.ILLEGAL_ARGUMENT.getCode(),errorMessage);
    }

    public static <T> ServerResponse<T> createByException(String errorMessage){
        return new ServerResponse<T>(ResponseCode.EXCEPTION.getCode(),errorMessage);
    }
}

到这边，Restful接口返回的类我们就定义好了

新增UserController类

package com.wyq.firstdemo.controller;

import com.wyq.firstdemo.common.ServerResponse;
import com.wyq.firstdemo.entity.UserEntity;
import com.wyq.firstdemo.service.UserService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.List;

/**
 * @ClassName UserController
 * @Description 用户控制类
 * @Author weiyanqiang
 * @Date 2019/6/25 21:41
 * @Version 1.0
 */
@Slf4j
@RestController
@RequestMapping("/user")
public class UserController {

    @Autowired
    private UserService userService;

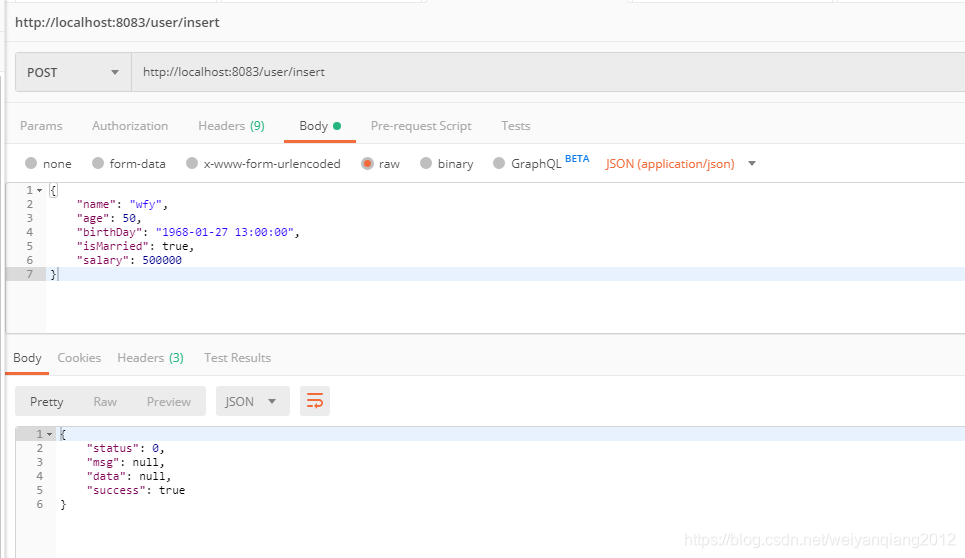

    @PostMapping("/insert")
    public ServerResponse<String> insert(@RequestBody UserEntity userEntity) {
        try {
            userService.insert(userEntity);
        } catch (Exception e) {
            log.error("insert user fail!", e);
            return ServerResponse.createByErrorMessage("insert user fail!");
        }
        return ServerResponse.createBySuccess();
    }

    @PostMapping("/insert/all")
    public ServerResponse<String> insertList(@RequestBody List<UserEntity> userEntityList) {
        try {
            userService.insertList(userEntityList);
        } catch (Exception e) {
            log.error("insert user fail!", e);
            return ServerResponse.createByErrorMessage("insert user fail!");
        }
        return ServerResponse.createBySuccess();
    }

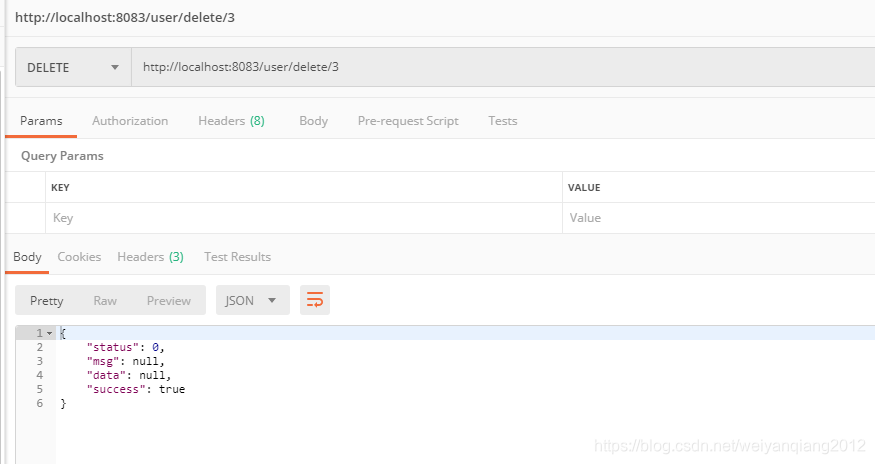

    @DeleteMapping("/delete/{id}")
    public ServerResponse<String> delete(@PathVariable("id") String strId) {
        try {
            int id = Integer.parseInt(strId);
            userService.deleteById(id);
        } catch (NumberFormatException e) {
            log.error("illegal argument!", e);
            return ServerResponse.createByIllegalArgument("illegal argument!");
        } catch (Exception e) {
            log.error("delete user by id fail!", e);
            return ServerResponse.createByErrorMessage("insert user fail!");
        }
        return ServerResponse.createBySuccess();
    }

    @PostMapping("/update")
    public ServerResponse<String> update(@RequestBody UserEntity userEntity) {
        try {
            userService.update(userEntity);
        } catch (Exception e) {
            log.error("update user fail!", e);
            return ServerResponse.createByErrorMessage("update user fail!");
        }
        return ServerResponse.createBySuccess();
    }

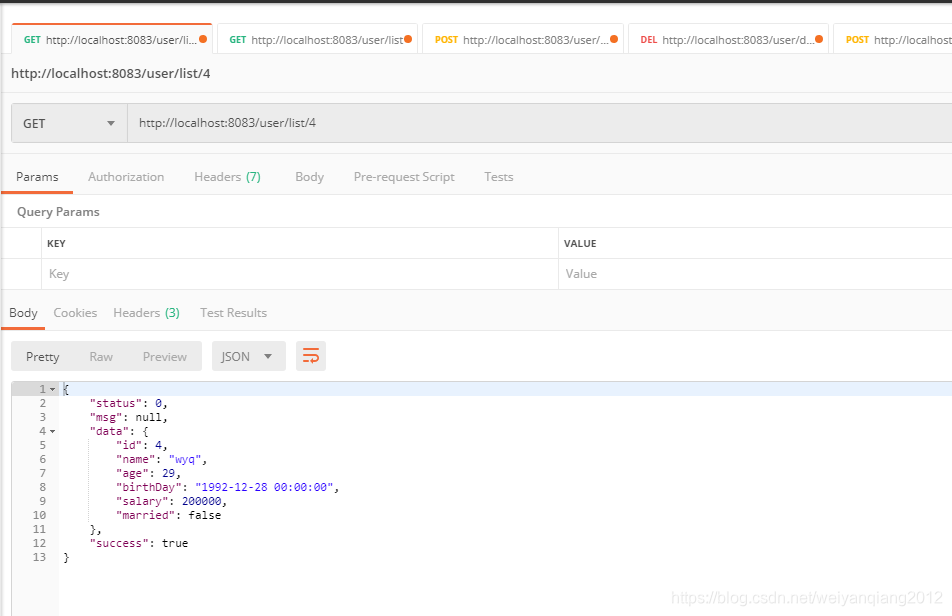

    @GetMapping("/list/{id}")
    public ServerResponse<UserEntity> query(@PathVariable("id") String strId) {
        UserEntity userEntity = null;
        try {
            int id = Integer.parseInt(strId);
            userEntity = userService.queryById(id);
        } catch (NumberFormatException e) {
            log.error("illegal argument!",e);
            return ServerResponse.createByIllegalArgument("illegal argument!");
        } catch (Exception e) {
            log.error("query user by id fail!", e);
            return ServerResponse.createByErrorMessage("query user by id fail!");
        }
        return ServerResponse.createBySuccess(userEntity);
    }

    @GetMapping("/list")
    public ServerResponse<List<UserEntity>> queryAll() {
        List<UserEntity> list = null;
        try {
            list = userService.queryAll();
        } catch (Exception e) {
            log.error("query all user fail!", e);
            return ServerResponse.createByErrorMessage("query all user fail!");
        }
        return ServerResponse.createBySuccess(list);
    }

}

到这边，所有的代码就表写完成了，接下里我们来配置日志管理

配置日志管理

新建logback-spring.xml文件

大家可以根据项目修改LOG_HOME的value值，还有开发环境建议把下面这个注释掉，使用控制台输出日志，方便定位，真实环境，把控制台注释挂掉，改为日志文件输出

<?xml version="1.0" encoding="UTF-8"?>
<!--dev env-->
<configuration>
    <!--
           fileError对应error级别，文件名以log-error-xxx.log形式命名
           fileWarn对应warn级别，文件名以log-warn-xxx.log形式命名
           fileInfo对应info级别，文件名以log-info-xxx.log形式命名
           fileDebug对应debug级别，文件名以log-debug-xxx.log形式命名
           stdout将日志信息输出到控制上，为方便开发测试使用
    -->
    <contextName>data_server</contextName>
    <property name="LOG_HOME" value="wyq_log" />
    <property name="log.maxHistory" value="1" />
    <property name="log.lever" value="info" />

    <appender name="fileError" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <!-- 正在记录的日志文件的路径及文件名 -->
        <file>${LOG_HOME}/log_error.log</file>
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <fileNamePattern>${LOG_HOME}/error/log-error-%d{yyyy-MM-dd}.%i.log</fileNamePattern>
            <MaxHistory>${log.maxHistory}</MaxHistory>
            <!-- 配置日志文件不能超过100M，若超过100M，日志文件会以索引0开始-->
            <timeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
                <maxFileSize>100MB</maxFileSize>
            </timeBasedFileNamingAndTriggeringPolicy>
        </rollingPolicy>
        <!-- 追加方式记录日志 -->
        <append>true</append>
        <!-- 日志文件的格式 -->
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
            <pattern>%d{yyyy-MM-dd HH:mm:ss} [%thread] %-5level %logger{50} - %msg%n</pattern>
            <!--<pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} %-5level %logger Line:%-3L - %msg%n</pattern>-->
            <charset>utf-8</charset>
        </encoder>
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>error</level>
            <onMatch>ACCEPT</onMatch>
            <onMismatch>DENY</onMismatch>
        </filter>
    </appender>

    <appender name="fileWarn" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <file>${LOG_HOME}/log_warn.log</file>
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <fileNamePattern>${LOG_HOME}/warn/log-warn-%d{yyyy-MM-dd}.%i.log</fileNamePattern>
            <MaxHistory>${log.maxHistory}</MaxHistory>
            <!-- 配置日志文件不能超过100M，若超过100M，日志文件会以索引0开始-->
            <timeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
                <maxFileSize>100MB</maxFileSize>
            </timeBasedFileNamingAndTriggeringPolicy>
        </rollingPolicy>
        <!-- 追加方式记录日志 -->
        <append>true</append>
        <!-- 日志文件的格式 -->
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
            <pattern>%d{yyyy-MM-dd HH:mm:ss} [%thread] %-5level %logger{50} - %msg%n</pattern>
            <!--<pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} %-5level %logger Line:%-3L - %msg%n</pattern>-->
            <charset>utf-8</charset>
        </encoder>
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>warn</level>
            <onMatch>ACCEPT</onMatch>
            <onMismatch>DENY</onMismatch>
        </filter>
    </appender>

    <appender name="fileInfo" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <file>${LOG_HOME}/log_info.log</file>
        <!-- 日志记录器的滚动策略，按日期，按大小记录 -->
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <fileNamePattern>${LOG_HOME}/info/log-info-%d{yyyy-MM-dd}.%i.log</fileNamePattern>
            <MaxHistory>${log.maxHistory}</MaxHistory>
            <!-- 配置日志文件不能超过100M，若超过100M，日志文件会以索引0开始-->
            <timeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
                <maxFileSize>100MB</maxFileSize>
            </timeBasedFileNamingAndTriggeringPolicy>
        </rollingPolicy>
        <!-- 追加方式记录日志 -->
        <append>true</append>
        <!-- 日志文件的格式 -->
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
            <pattern>%d{yyyy-MM-dd HH:mm:ss} [%thread] %-5level %logger{50} - %msg%n</pattern>
            <!--<pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} %-5level %logger Line:%-3L - %msg%n</pattern>-->
            <charset>utf-8</charset>
        </encoder>
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>info</level>
            <onMatch>ACCEPT</onMatch>
            <onMismatch>DENY</onMismatch>
        </filter>
    </appender>
    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <!--encoder 默认配置为PatternLayoutEncoder-->
        <encoder>
            <!--<pattern>%d{yyyy-MM-dd HH:mm:ss} [%thread] %-5level %logger{50} - %msg%n</pattern>-->
            <pattern>%date{yyyy-MM-dd HH:mm:ss} | %highlight(%p) | %boldYellow(%c) | %M:%boldGreen(%L) | %m%n</pattern>
            <!--<pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} %-5level %logger Line:%-3L - %msg%n</pattern>-->
            <charset>utf-8</charset>
        </encoder>
    </appender>

    <logger name="org.springframework" level="${log.lever}" />

    <!-- 生产环境下，将此级别配置为适合的级别，以免日志文件太多或影响程序性能 -->
    <root level="INFO">
        <!--<appender-ref ref="fileError" />
        <appender-ref ref="fileWarn" />
        <appender-ref ref="fileInfo" />-->
        <appender-ref ref="STDOUT" />
    </root>
</configuration>

修改application.properties文件

在application.properties文件中，新增如下配置

#日志
logging.config=classpath:logback-spring.xml

到这边整个项目就表写完成了，接下大家可以通过postman进行测试。

代码已经上传到GitHub，有需要可以自己去下载

https://github.com/colar2017/springboot-first-demo
