HCIP—BGP实验

酒酿祺子

于 2024-01-20 00:04:32 发布

阅读量423

点赞数 10

文章标签：网络

本文链接：https://blog.youkuaiyun.com/weixin_74984440/article/details/135709145

版权

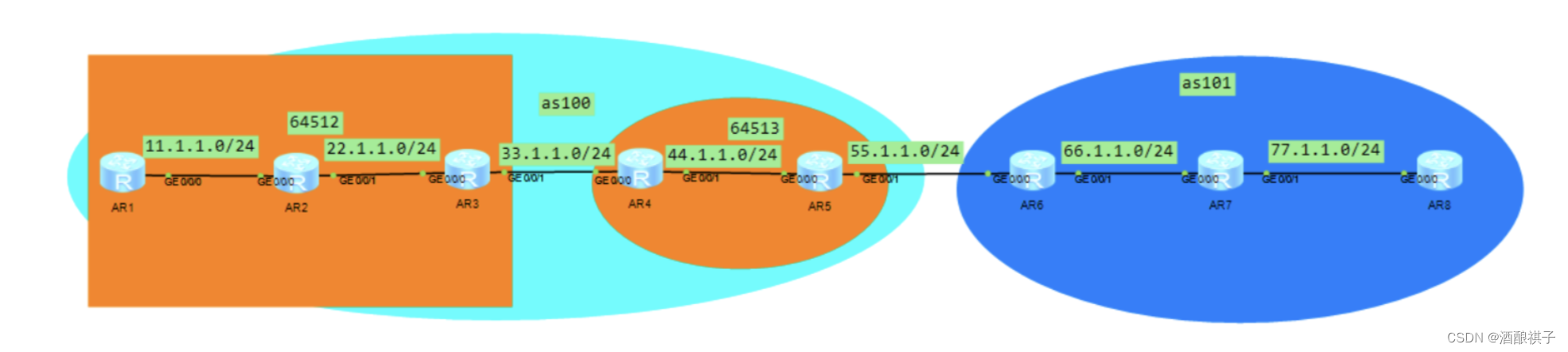

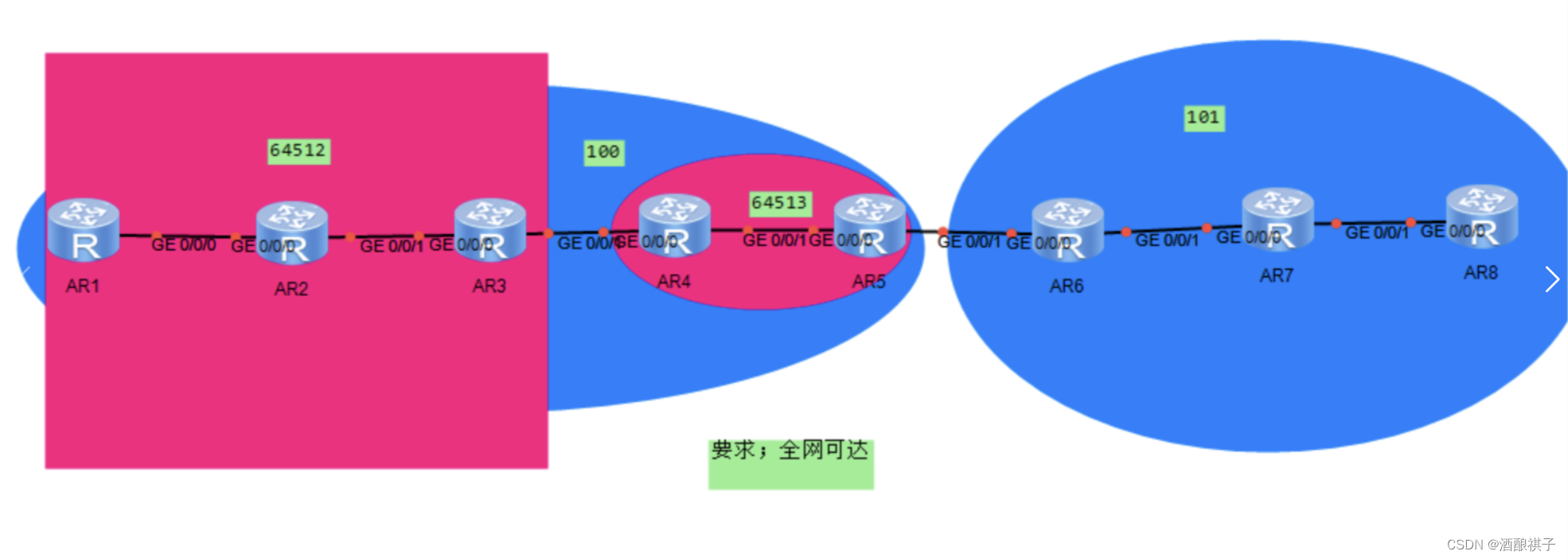

HCIP—BGP实验2一、实验拓扑

二、实验过程

1.基本配置，IP地址，环回地址

R1—R8

[R1]int g0/0/0
[R1-GigabitEthernet0/0/0]ip add 11.1.1.1 24
[R1-GigabitEthernet0/0/0]int  L0
[R1-LoopBack0]ip add 1.1.1.1 32

[R2]int g0/0/0
[R2-GigabitEthernet0/0/0]ip add 11.1.1.2 24
[R2-GigabitEthernet0/0/0]int L0
[R2-LoopBack0]ip add 2.2.2.2 32
[R2-GigabitEthernet0/0/1]ip add 22.1.1.1 24

[R3]int g0/0/0
[R3-GigabitEthernet0/0/0]ip add 22.1.1.2 24
[R3-GigabitEthernet0/0/0]int g0/0/1
[R3-GigabitEthernet0/0/1]ip add 33.1.1.1 24
[R3-GigabitEthernet0/0/1]int L0
[R3-LoopBack0]ip add 3.3.3.3 32

[R4]int g0/0/0
[R4-GigabitEthernet0/0/0]ip add 33.1.1.2 24
[R4-GigabitEthernet0/0/0]int g0/0/1
[R4-GigabitEthernet0/0/1]ip add 44.1.1.1 24
[R4-GigabitEthernet0/0/1]int L0
[R4-LoopBack0]ip add
