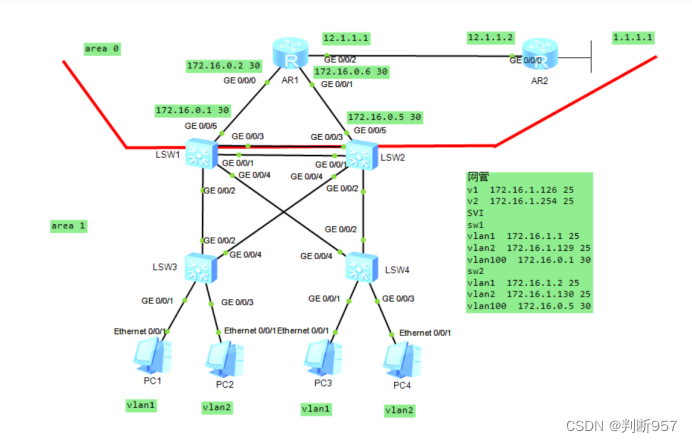

这篇博客详细记录了HCIP实验中的网络配置，包括Eth-Trunk接口配置，Trunk模式设置，VLAN划分，STP启用与配置，VRRP实现冗余，DHCP服务配置，以及OSPF路由协议的部署。通过这些配置，实现了网络的连通性和冗余备份，确保了网络的稳定运行。
交换机
Eth-trunk
[sw1]int Eth-Trunk 0
[sw1-GigabitEthernet0/0/3]eth-trunk 0
[sw1-GigabitEthernet0/0/1]eth-trunk 0
[sw2]int Eth-Trunk 0
[sw2-GigabitEthernet0/0/3]eth-trunk 0
[sw2-GigabitEthernet0/0/1]eth-trunk 0
Trunk
[sw1]port-group group-member g0/0/2 g0/0/4 eth-trunk 0
[sw1-port-group]port link-type trunk
[sw1-port-group]port trunk allow-pass vlan 1 2
[sw2]port-group group-member g0/0/2 g0/0/4 eth-trunk 0
[sw2-port-group]port link-type trunk
[sw2-port-group]port trunk allow-pass vlan 1 2
[sw3]port-group group-member g0/0/2 g0/0/4
[sw3-port-group]port link-type trunk
[sw3-port-group]port trunk allow-pass vlan 1 2
[sw4]port-group group-member g0/0/2 g0/0/4
[sw4-port-group]port link-type trunk
[sw4-port-group]port trunk allow-pass vlan 1 2
Vlan
[sw1]vlan 2
[sw2]vlan 2
[sw3]vlan 2
[sw3-GigabitEthernet0/0/1]port link-type access
[sw3-GigabitEthernet0/0/1]port default vlan 1
[sw3-GigabitEthernet0/0/3]port link-type access
[sw3-GigabitEthernet0/0/3]port default vlan 2
[sw4]vlan 2
[sw4-GigabitEthernet0/0/1]port link-type access
[sw4-GigabitEthernet0/0/1]port default vlan 1
[sw4-GigabitEthernet0/0/3]port link-type access
[sw4-GigabitEthernet0/0/3]port default vlan 2
Stp
