C++多进程框架（Linux环境），将进程绑定到对应CPU核心

本文链接：https://blog.youkuaiyun.com/weixin_63076889/article/details/143887352

完整代码如下：

//#define _GNU_SOURCE
#include <sys/wait.h> // 包含 wait 函数

#include <sched.h>
#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <stdint.h>

typedef void (*spawn_proc_pt) (void *data);
static void worker_process_cycle(void *data);
static void start_worker_processes(int n);
pid_t spawn_process(spawn_proc_pt proc, void *data, char *name);

int main(int argc,char **argv){
//产生4个子进程
start_worker_processes(4);
//管理子进程
    wait(NULL);
}

void start_worker_processes(int n){
    int i=0;
    for(i = n - 1; i >= 0; i--){
       spawn_process(worker_process_cycle,(void *)(intptr_t) i, "worker process");
    }
}
//返回类型是pid_t
pid_t spawn_process(spawn_proc_pt proc, void *data,  char *name){

    pid_t pid;
	//创建进程
    pid = fork();

    switch(pid){
    case -1:
        fprintf(stderr,"fork() failed while spawning \"%s\"\n",name);
        return -1;
    case 0:
	//进行工作，绑定内核,通过proc()函数指针指向的函数去完成.
          proc(data);
          return 0;
    default:
          break;
    }
    printf("start %s %ld\n",name,(long int)pid);
    return pid;
}


static void worker_process_init(int worker){
    cpu_set_t cpu_affinity;
    //worker = 2;
	//多核高并发处理  4core  0 - 0 core 1 - 1  2 -2 3 -3
    CPU_ZERO(&cpu_affinity);
    CPU_SET(worker % CPU_SETSIZE,&cpu_affinity);// 0 1 2 3
    //sched_setaffinity
    if(sched_setaffinity(0,sizeof(cpu_set_t),&cpu_affinity) == -1){
       fprintf(stderr,"sched_setaffinity() failed\n");
    }
}


void worker_process_cycle(void *data){
     int worker = (intptr_t) data;
    //初始化
     worker_process_init(worker);

    //干活
    for(;;){
      sleep(5);
      printf("pid %ld ,working ...\n",(long int)getpid());
    }
}

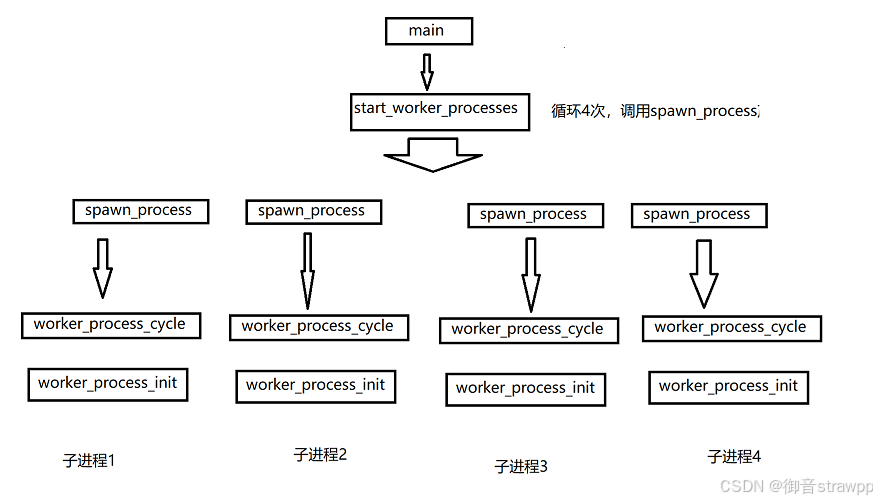

函数调用关系如下图：

各个函数的功能：

main函数，调用start_worker_processes(4)产生子进程后进入等待状态

int main(int argc,char **argv){
//产生4个子进程
start_worker_processes(4);
//管理子进程
    wait(NULL);
}

start_worker_processes函数，根据传入参数n，循环n次

n次调用 spawn_process产生n个子进程

void start_worker_processes(int n){
    int i=0;
    for(i = n - 1; i >= 0; i--){
       spawn_process(worker_process_cycle,(void *)(intptr_t) i, "worker process");
    }
}

spawn_process，真正创建进程通过该函数里的pid = fork()创建

并通过switch判断返回值，判断进程是否被成功创建

如果创建成功，通过函数指针proc调用worker_process_cycle函数

pid_t spawn_process(spawn_proc_pt proc, void *data,  char *name){

    pid_t pid;
	//创建进程
    pid = fork();

    switch(pid){
    case -1:
        fprintf(stderr,"fork() failed while spawning \"%s\"\n",name);
        return -1;
    case 0:
	//进行工作，绑定内核,通过proc()函数指针指向的函数去完成.
          proc(data);
          return 0;
    default:
          break;
    }
    printf("start %s %ld\n",name,(long int)pid);
    return pid;
}

worker_process_init函数，进程绑定内核在此处实现

static void worker_process_init(int worker){
    cpu_set_t cpu_affinity;
    //worker = 2;
	//多核高并发处理  4core  0 - 0 core 1 - 1  2 -2 3 -3
    CPU_ZERO(&cpu_affinity);
    CPU_SET(worker % CPU_SETSIZE,&cpu_affinity);// 0 1 2 3
    //sched_setaffinity
    if(sched_setaffinity(0,sizeof(cpu_set_t),&cpu_affinity) == -1){
       fprintf(stderr,"sched_setaffinity() failed\n");
    }
}

worker_process_cycle函数，调用 worker_process_init绑定进程

之后每五秒打印一次自己的进程号pid

void worker_process_cycle(void *data){
     int worker = (intptr_t) data;
    //初始化
     worker_process_init(worker);

    //干活
    for(;;){
      sleep(5);
      printf("pid %ld ,working ...\n",(long int)getpid());
    }
}

接下在ubuntu上来编译运行该程序

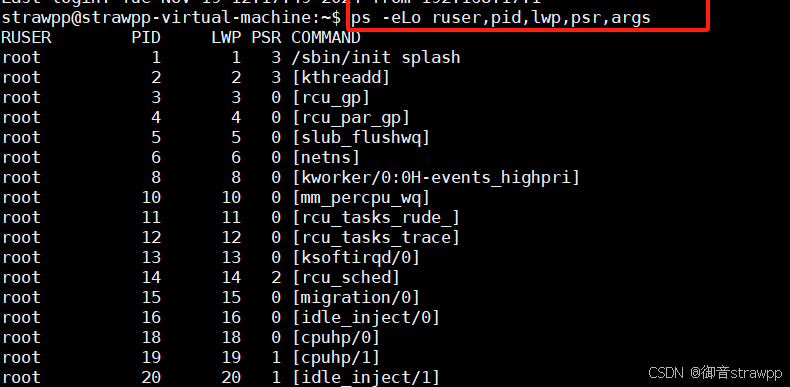

我的虚拟机是设置的4个内核，可通过这个命令查看内核情况：cat /proc/cpuinfo

所以我代码中绑定四个进程到四个内核上，数量刚刚好。

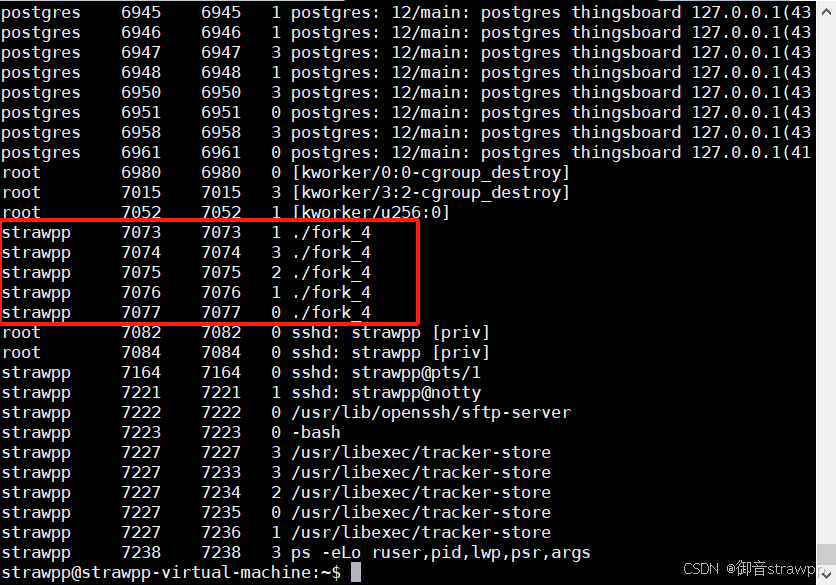

编译后，整段代码的运行结果如下：
