Spring(八）基于xml的AOP实现

基于xml与基于注解的AOP本质上是非常相似的，都是需要封装横切关注点，封装到切面中，然后把横切关注点封装为一个方法，再把该方法设置为当前的一个通知，再通过切入点表达式定位到横切点就可以了，思路是非常相似的。

我们的接口代码如下所示：

package com.rgf.spring.aop.annotation.xml;

import org.springframework.stereotype.Component;

@Component
public interface Calculator {
    int add(int i,int j);
    int sub(int i,int j);
    int mul(int i,int j);
    int div(int i,int j);
}

我们的实现类如下所示：

package com.rgf.spring.aop.annotation.xml;

import org.springframework.stereotype.Component;

/**
 *
 */
@Component
public class CalculatorImpl implements Calculator {
    @Override
    public int add(int i, int j) {
        int result=i+j;
        System.out.println("方法内部，result:"+result);
        return result;
    }

    @Override
    public int sub(int i, int j) {
        int result=i-j;
        System.out.println("方法内部，result:"+result);
        return  result;
    }

    @Override
    public int mul(int i, int j) {
       int result=i*j;
       System.out.println("方法内部，result:"+result);
       return  result;
    }

    @Override
    public int div(int i, int j) {
      int result=i/j;
      System.out.println("方法内部，result:"+result);
      return  result;
    }
}

我们封装的切面方法如下所示：

package com.rgf.spring.aop.annotation.xml;

import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.Signature;
import org.aspectj.lang.annotation.*;
import org.springframework.stereotype.Component;

import java.util.Arrays;


@Component
public class LoggerAspect {
     public  void  beforeAdviceMethod(JoinPoint joinPoint){
        Signature signature = joinPoint.getSignature();
        Object[] args = joinPoint.getArgs();
        System.out.println("LoggerAspect,方法:"+signature.getName()+",参数:"+ Arrays.toString(args));
    }
    public  void afterAdviceMethod(JoinPoint joinPoint){
        Signature signature = joinPoint.getSignature();
        Object[] args = joinPoint.getArgs();
        System.out.println("LoggerAspect,方法:"+signature.getName()+",执行完毕");


    }

    public  void afterReturningAdviceMethod(JoinPoint joinPoint,Object result){
        Signature signature = joinPoint.getSignature();
        Object[] args = joinPoint.getArgs();
        System.out.println("LoggerAspect,方法:"+signature.getName()+",结果:"+result);


    }

    public  void afterThrowingAdviceMethod(JoinPoint joinPoint,Throwable ex){
        Signature signature = joinPoint.getSignature();
        System.out.println("LoggerAspect,方法:"+signature.getName()+",异常:"+ex);


    }
    public  Object  aroundAdviceMethod(ProceedingJoinPoint joinPoint){
       Object result=null;
        try {
            System.out.println("环绕通知-->前置通知");
            //表示目标对象方法的执行
            result = joinPoint.proceed();
            System.out.println("环绕通知-->返回通知");
        } catch (Throwable throwable) {
           throwable.printStackTrace();
            System.out.println("环绕通知-->异常通知");
        }finally {
            System.out.println("环绕通知-->后置通知");
        }
      return result;
    }
}

我们封装的切面如下所示：

package com.rgf.spring.aop.annotation.xml;

import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Before;
import org.springframework.core.annotation.Order;
import org.springframework.stereotype.Component;

/**
 * 切面的优先级：
 * 可以通过@Order注解的value属性设置优先级，默认值Integer的最大值
 * @Order注解的value属性值越小，优先级越高
 *
 */
@Component
public class ValidateAspect {
    public void beforeMethod(){
        System.out.println("ValidateAspect-->前置通知");
    }

}

我们的配置文件如下：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/aop
       http://www.springframework.org/schema/aop/spring-aop.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd">
    <!--扫描组件-->
    <context:component-scan base-package="com.rgf.spring.aop.annotation.xml"></context:component-scan>
   <!-- <cop:aspectj-autoproxy:开启基于注解的aop-->
    <aop:config>
        <!--设置一个公共的切入点表达式-->
        <aop:pointcut id="pointcut" expression="execution(* com.rgf.spring.aop.annotation.xml.CalculatorImpl.*(..))"/>
        <!--aop:aspect:将IOC容器中的某个bean（某个组件）设置为切面，通过ref引用某一个besn的id,就可以将当前这一个bean来设置为一个切面-->
        <!--aop:advisor:设置当前的通知-->
        <!--aop:pointcut:设置切入点表达式-->
        <aop:aspect ref="loggerAspect">
            <aop:before method="beforeAdviceMethod" pointcut-ref="pointcut"></aop:before>
            <aop:after  method="afterAdviceMethod" pointcut-ref="pointcut"></aop:after>
            <aop:after-returning method="afterReturningAdviceMethod" returning="result" pointcut-ref="pointcut"></aop:after-returning>
            <aop:after-throwing method="afterThrowingAdviceMethod" throwing="ex" pointcut-ref="pointcut"></aop:after-throwing>
            <aop:around method="aroundAdviceMethod" pointcut-ref="pointcut"></aop:around>
        </aop:aspect>
        <!--order进行设置他的优先级.设置的值越小，优先级越高-->
        <aop:aspect ref="validateAspect" order="1">
            <aop:before method="beforeMethod" pointcut-ref="pointcut"></aop:before>
        </aop:aspect>
    </aop:config>
</beans>

我们进行测试如下所示：

package com.rgf.spring.test;

import com.rgf.spring.aop.annotation.xml.Calculator;
import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class AOPByXMLTest {
    @Test
    public  void  testAOPByXML(){

        ApplicationContext ioc = new ClassPathXmlApplicationContext("aop-xml.xml");
        Calculator calculator = ioc.getBean(Calculator.class);
        calculator.add(1,1);

    }
}

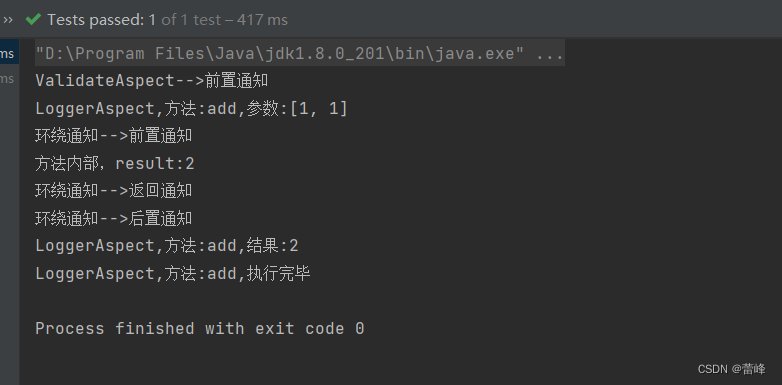

我们进行运行之后如下所示：
