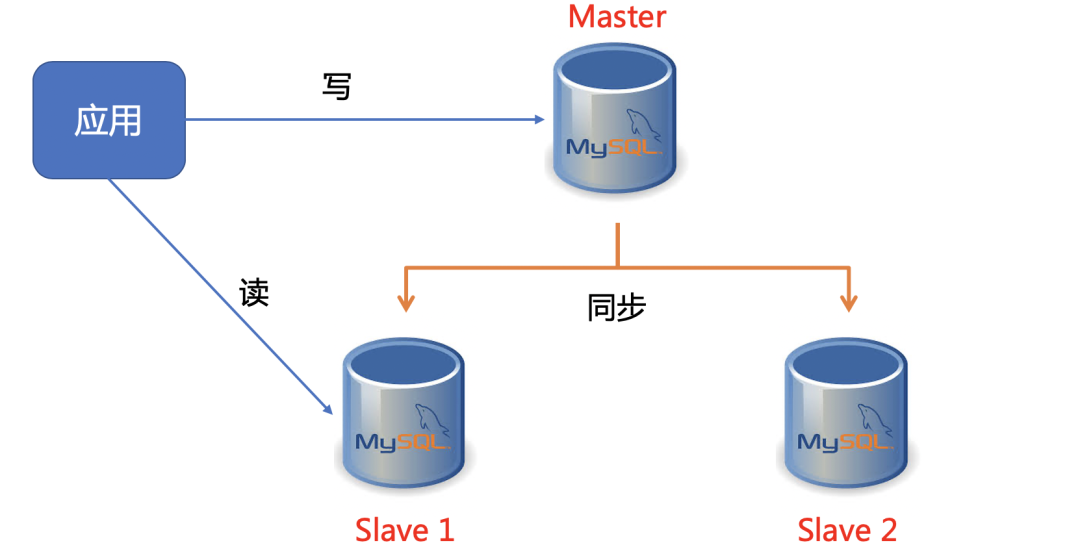

搭建一个主从复制（Master-Slave）的MySQL集群

本地存储原理

这里使用了本地存储，也就是说，用户希望Kubernetes能够直接使用宿主机上的本地磁盘目录，而不依赖于远程存储服务，来提供持久化的容器Volume
1、我们把存储固定在一个节点上，但是Pod在调度的时候，是飘来飘去的，怎么能让Pod通过PVC也能固定在PVC上？
2、给这个Pod加上一个nodeAffinity行不行？

当然行，但是这变相破坏了开发人员对资源对象的定义规范了，开发人员应该不需要时刻考虑调度的细节。调度的改动应该交给运维就行。所以我们为了实现本地存储，我们采用了延迟绑定的方法。方法很简单，我们都知道StorageClass一般由运维人员设计，我们只需要在StorageClass指定no-provisioner。这是因为Local Persistent Volume目前尚不支持Dynamic Provisioning，所以它没办法在用户创建PVC的时候，就自动创建出对应的PV。与此同时，这个StorageClass还定义了一个volumeBindingMode=WaitForFirstConsumer的属性。它是Local Persistent Volume里一个非常重要的特性，即：延迟绑定。

创建PV

先在Node （实验用的Node节点IP是node1）节点上，预先分配几个PV（不建议在生产上这样操作），要保证在node1上有对应的目录

ssh root@node1
mkdir -pv /data/svr/projects/{
   mysql,mysql2,mysql3}

vim 01-persistentVolume-1.yaml

apiVersion: v1
kind: PersistentVolume
metadata:
  name: example-mysql-pv
spec:
  capacity:
    storage: 15Gi
  volumeMode: Filesystem
  accessModes:
  - ReadWriteOnce
  persistentVolumeReclaimPolicy: Delete
  storageClassName: local-storage
  local:
    path: /data/svr/projects/mysql
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - node1

vim 01-persistentVolume-2.yaml

apiVersion: v1
kind: PersistentVolume
metadata:
  name: example-mysql-pv-2
spec:
  capacity:
    storage: 15Gi
  volumeMode: Filesystem
  accessModes:
  - ReadWriteOnce
  persistentVolumeReclaimPolicy: Delete
  storageClassName: local-storage
  local:
    path: /data/svr/projects/mysql2
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - node1

vim 01-persistentVolume-3.yaml

apiVersion: v1
kind: PersistentVolume
metadata:
  name: example-mysql-pv-3
spec:
  capacity:
    storage: 15Gi
  volumeMode: Filesystem
  accessModes:
  - ReadWriteOnce
  persistentVolumeReclaimPolicy: Delete
  storageClassName: local-storage
  local:
    path: /data/svr/projects/mysql3
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - node1

记住，这是在生产上不推荐的做法，我只是实验用途才这样手动预先创建，**正规的做法应该通过StorageClass采用Dynamic Provisioning， 而不是Static Provisioning机制生产PV

[root@master mysql]# kubectl apply -f 01-persistentVolume-1.yaml
persistentvolume/example-mysql-pv created
[root@master mysql]# kubectl apply -f 01-persistentVolume-2.yaml
persistentvolume/example-mysql-pv-2 created
[root@master mysql]# kubectl apply -f 01-persistentVolume-3.yaml
persistentvolume/example-mysql-pv-3 created
[root@master mysql]# kubectl get pv
NAME                 CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS      CLAIM   STORAGECLASS    REASON   AGE
example-mysql-pv     15Gi       RWO            Delete           Available           local-storage            8s
example-mysql-pv-2   15Gi       RWO            Delete           Available           local-storage            6s
example-mysql-pv-3   15Gi       RWO            Delete           Available           local-storage            3s

02-storageclass.yaml

kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
  name: local-storage
provisioner: kubernetes.io/no-provisioner
volumeBindingMode: WaitForFirstConsumer

[root@master mysql]# kubectl apply -f 02-storageclass.yaml
storageclass.storage.k8s.io/local-storage created
[root@master mysql]# kubectl get sc
NAME            PROVISIONER                    RECLAIMPOLICY   VOLUMEBINDINGMODE      ALLOWVOLUMEEXPANSION   AGE
local-storage   kubernetes.io/no-provisioner   Delete          WaitForFirstConsumer   false                  5s

创建Namespace

03-mysql-namespace.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: mysql
  labels:
    app: mysql

[root@master mysql]# kubectl apply -f 03-mysql-namespace.yaml
namespace/mysql unchanged
[root@master mysql]# kubectl get ns -n mysql
NAME              STATUS   AGE
mysql             Active   3d

创建数据库的配置文件configmap

使用ConfigMap为Master/Slave节点分配不同的配置文件

vim 04-mysql-configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: mysql
  namespace: mysql
  labels:
    app: mysql
data:
  master.cnf: |
    # Master配置
    [mysqld]
    log-bin=mysqllog
    skip-name-resolve
  slave.cnf: |
    # Slave配置
    [mysqld]
    super-read-only
    skip-name-resolve
    log-bin=mysql-bin
    replicate-ignore-db=mysql

[root@master mysql]# kubectl apply -f 04-mysql-configmap.yaml
configmap/mysql created
[root@master mysql]# kubectl get
