PPP和MGRE网络类型实验

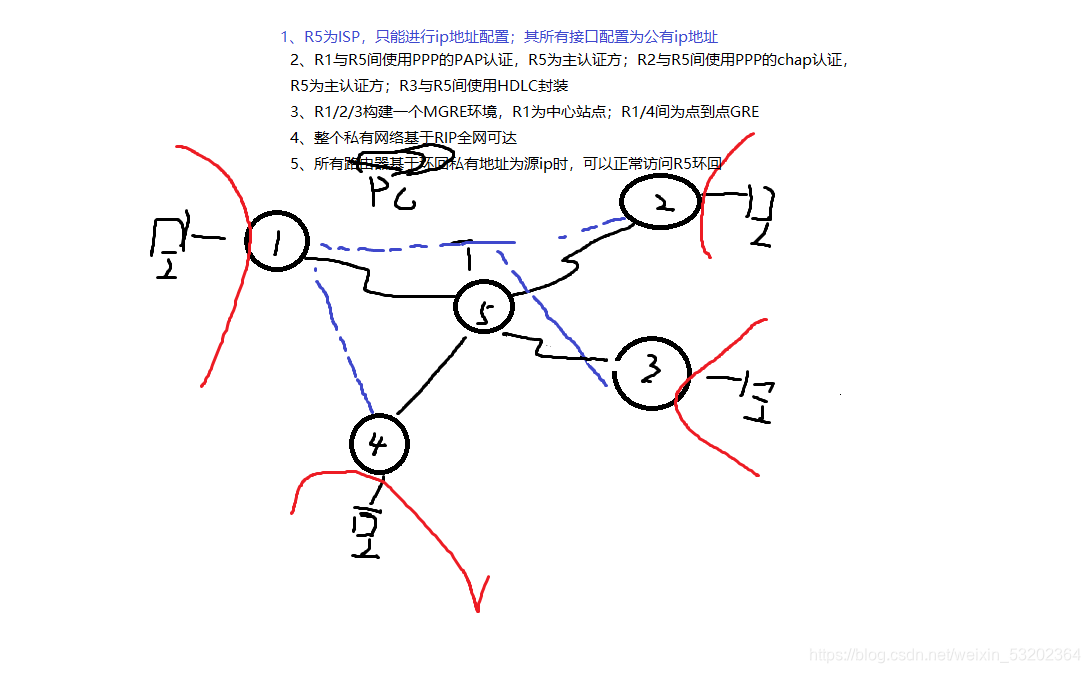

题目要求如下：

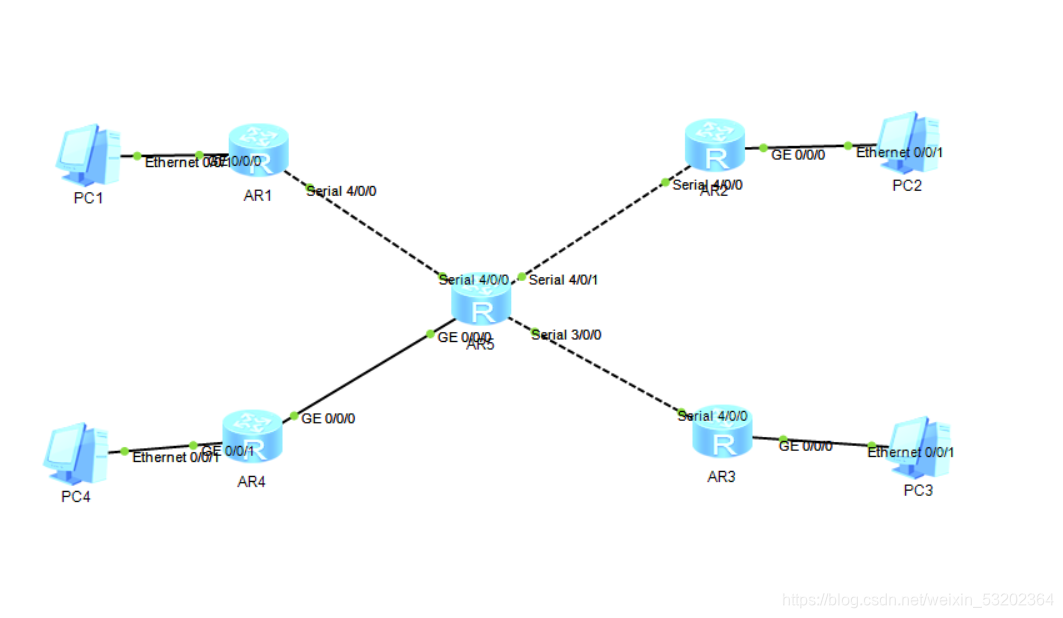

根据题目设计及出拓扑：

首先分析题目：
1.R5为isp，R1和R5之间为ppp的pap认证；
2.R2和R5之间为ppp的chap认证；
3.R3和R5之间为hdlc；
4.R1,R2,R3之间为mgre，且R1为中心；
5.R1和R4之间为GRE；
6.pc间的路由用rip；
7.R1,R2,R3,R4设置NAT。
一.给路由器间的接口（公网）配置ip地址，R5有个环回（5.5.5.5/24）

[r1]interface Serial 4/0/0
[r1-Serial4/0/0]ip address 15.1.1.1 24

[r2]interface Serial 4/0/0
[r2-Serial4/0/0]ip address 25.1.1.1 24

[r3]interface Serial 4/0/0
[r3-Serial4/0/0]ip address 35.1.1.1 24

[r4]interface GigabitEthernet 0/0/0
[r4-GigabitEthernet0/0/0]ip address 45.1.1.1 24

[isp]interface Serial 4/0/0
[isp-Serial4/0/0]ip address 15.1.1.2 24
[isp]interface Serial 4/0/1
[isp-Serial4/0/1]ip address 25.1.1.2 24
[isp]interface Serial 3/0/0
[isp-Serial3/0/0]ip address 35.1.1.2 24
[isp]interface GigabitEthernet 0/0/0
[isp-GigabitEthernet0/0/0]ip address 45.1.1.2 24
[isp]interface LoopBack 0
[isp-LoopBack0]ip address 5.5.5.5 24

二.配置R1和R5之间ppp的pap认证

[isp]aaa
[isp-aaa]local-user cisco password cipher redhat
Info: Add a new user.
[isp-aaa]local-user cisco service-type ppp
[isp-aaa]quit
[isp]interface Serial 4/0/0
[isp-Serial4/0/0]ppp authentication-mode pap

[r1]interface Serial 4/0/0
[r1-Serial4/0/0]ppp pap local-user cisco password cipher redhat

三.设置R2和R5之间ppp的chap认证

[isp]aaa
[isp-aaa]local-user cisco2 password cipher redhat
[isp-aaa]local-user cisco2 service-type ppp
[isp-aaa]quit
[isp]interface Serial 4/0/1
[isp-Serial4/0/1]ppp authentication-mode chap

[r2]interface Serial 4/0/0
[r2-Serial4/0/0]ppp chap password cipher redhat

四.R3和R5之间设置为hdlc

[isp]interface Serial 3/0/0
[isp-Serial3/0/0]link-protocol hdlc
Warning: The encapsulation protocol of the link will be changed. Continue? [Y/N]
:y

[r3]interface Serial 4/0/0
[r3-Serial4/0/0]link-protocol hdlc
Warning: The encapsulation protocol of the link will be changed. Continue? [Y/N]
:y

五.R1,R2,R3,R4到isp的缺省路由

[r1]ip route-static 0.0.0.0 0 15.1.1.2
[r2]ip route-static 0.0.0.0 0 25.1.1.2
[r3]ip route-static 0.0.0.0 0 35.1.1.2
[r4]ip route-static 0.0.0.0 0 45.1.1.2

六.将R1,R2,R3之间设置为mgre，且R1为中心

[r1]interface Tunnel 0/0/0
[r1-Tunnel0/0/0]ip address 10.1.1.1 24
[r1-Tunnel0/0/0]tunnel-protocol gre p2mp
[r1-Tunnel0/0/0]source 15.1.1.1
[r1-Tunnel0/0/0]nhrp entry multicast dynamic  //将r1设置为中心
[r1-Tunnel0/0/0]nhrp network-id 100

[r2]interface Tunnel 0/0/0
[r2-Tunnel0/0/0]ip address 10.1.1.2 24
[r2-Tunnel0/0/0]tunnel-protocol gre p2mp
[r2-Tunnel0/0/0]source Serial 4/0/0
[r2-Tunnel0/0/0]nhrp entry 10.1.1.1 15.1.1.1 register   //注册
[r2-Tunnel0/0/0]nhrp network-id 100

[r3]interface Tunnel 0/0/0
[r3-Tunnel0/0/0]ip address 10.1.1.3 24
[r3-Tunnel0/0/0]tunnel-protocol gre p2mp
[r3-Tunnel0/0/0]source Serial 4/0/0
[r3-Tunnel0/0/0]nhrp entry 10.1.1.1 15.1.1.1 register   //注册
[r3-Tunnel0/0/0]nhrp network-id 100

七.将R1和R4之间设置为GRE

[r1]interface Tunnel 0/0/1
[r1-Tunnel0/0/1]ip address 10.1.2.1 24
[r1-Tunnel0/0/1]tunnel-protocol gre
[r1-Tunnel0/0/1]source 15.1.1.1
[r1-Tunnel0/0/1]destination 45.1.1.1

[r4]interface Tunnel 0/0/1
[r4-Tunnel0/0/1]ip address 10.1.2.2 24
[r4-Tunnel0/0/1]tunnel-protocol gre
[r4-Tunnel0/0/1]source 45.1.1.1
[r4-Tunnel0/0/1]description 15.1.1.1

8.给私有网络配置RIP
（1）给路由器和pc端口配置ip地址，并手动给四台pc填写ip地址，子网掩码，网关。

[r1]interface GigabitEthernet 0/0/0
[r1-GigabitEthernet0/0/0]ip address 192.16.1.1 24

[r2]interface GigabitEthernet 0/0/0
[r2-GigabitEthernet0/0/0]ip address 192.16.2.1 24

[r3]interface GigabitEthernet 0/0/0
[r3-GigabitEthernet0/0/0]ip address 192.16.3.1 24

[r4]interface GigabitEthernet 0/0/1
[r4-GigabitEthernet0/0/1]ip address 192.16.4.1 24

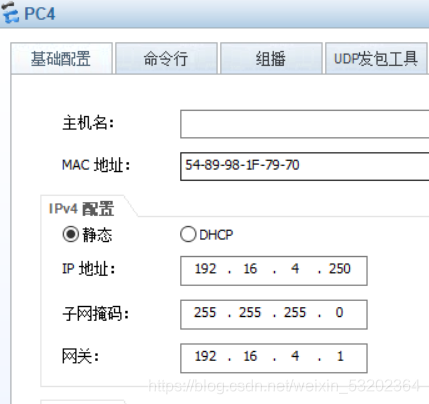

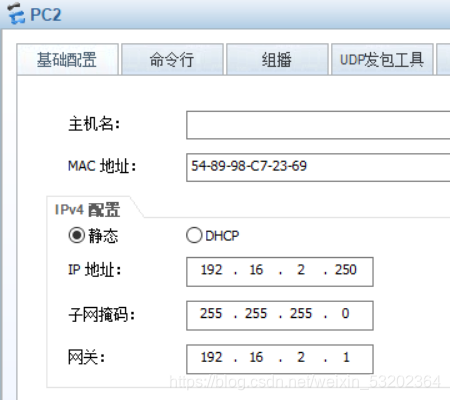

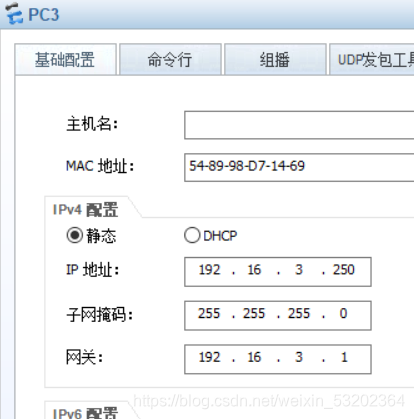

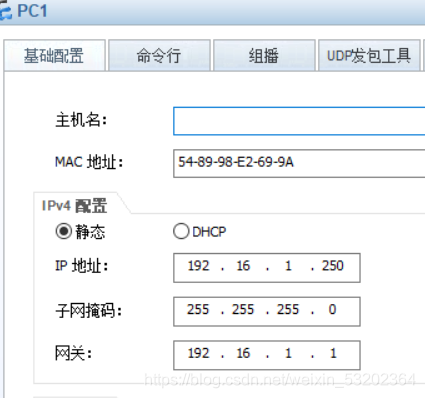

然后手动给pc配置地址。




（2）pc获取地址之后就是RIP了。（r1是mgre的中心，需要给其接口关闭rip，使其他路由器可以从它这里学到rip）

[r1]rip 1
[r1-rip-1]version 2
[r1-rip-1]undo summary
[r1-rip-1]network 192.16.1.0
[r1-rip-1]network 10.0.0.0
[r1]interface Tunnel 0/0/0
[r1-Tunnel0/0/0]undo rip split-horizon  //关闭tunnel接口的rip

[r2]rip 1
[r2-rip-1]version 2
[r2-rip-1]undo summary
[r2-rip-1]network 192.16.2.0
[r2-rip-1]network 10.0.0.0

[r3]rip 1
[r3-rip-1]version 2
[r3-rip-1]undo summary
[r3-rip-1]network 192.16.3.0
[r3-rip-1]network 10.0.0.0

[r4]rip 1
[r4-rip-1]version 2
[r4-rip-1]undo summary
[r4-rip-1]network 192.16.4.0
[r4-rip-1]network 10.0.0.0

九.给路由器开启NAT设置

[r1]acl 2000
[r1-acl-basic-2000]rule permit source 192.16.1.0 0.0.0.255
[r1]interface Serial 4/0/0
[r1-Serial4/0/0]nat outbound 2000

[r2]acl 2000
[r2-acl-basic-2000]rule permit source 192.16.2.0 0.0.0.255
[r2]interface Serial 4/0/0
[r2-Serial4/0/0]nat outbound 2000

[r3]acl 2000
[r3-acl-basic-2000]rule permit source 192.16.3.0 0.0.0.255
[r3]interface Serial 4/0/0
[r3-Serial4/0/0]nat outbound 2000

[r4]acl 2000
[r4-acl-basic-2000]rule permit source 192.16.4.0 0.0.0.255
[r4]interface GigabitEthernet 0/0/0
[r4-GigabitEthernet0/0/0]nat outbound 2000

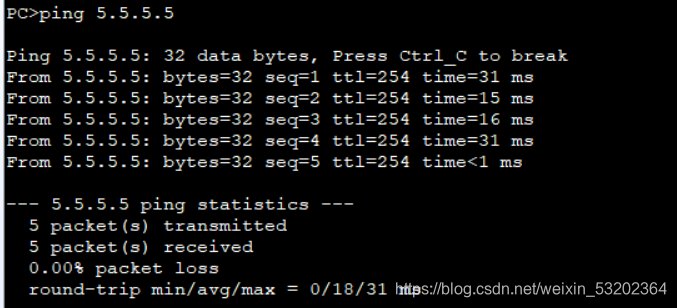

到这里我们就做完了，我们可以测试一下，用pc1来ping isp，看是否可以上网。

可以上网。
然后测试pc1和其他pc是否可以ping通。我们用pc2试试。

这里我们pc2 ping pc1可以通。说明我们已经完成了。
