虚拟机安装oracle docker后外部windows navicat无法连接oracle问题

先说结论

在ubuntu18的虚拟机中安装了oracle docker， 做了1521端口映射，虚拟机A的ip是192.168.80.6， oracle容器B的ip是172.17.0.2但是在windows navicat测试连接oracle一直超时
测试：

在虚拟机A中 telnet localhost 1521 成功
在虚拟机A中 telnet 192.168.80.6 1521 失败
在虚拟机A中 telnet 172.17.0.2 1521 失败

排查半天，
发现虚拟机与docker 互相ping都是失败
是虚拟机的docker网络问题，配置docker网络后连接成功

步骤

在虚拟机中查看网络 ip addr
发现docker0网络为

3: docker0: <BROADCAST,MULTICAST> mtu 1500 qdisc noqueue state DOWN group default
    link/ether 02:42:a1:f4:fe:28 brd ff:ff:ff:ff:ff:ff

执行

# 修改daemon.json中的配置，没有这个文件就创建一个，内容如下
> cat /etc/docker/daemon.json
{
  "bip": "8.8.8.8/24",
  "default-address-pools": [
          {"base": "172.17.1.0/24", "size": 24}
  ]
}

# 重启服务
> systemctl restart docker.service

# 新建网络
> docker network create my_net

完毕

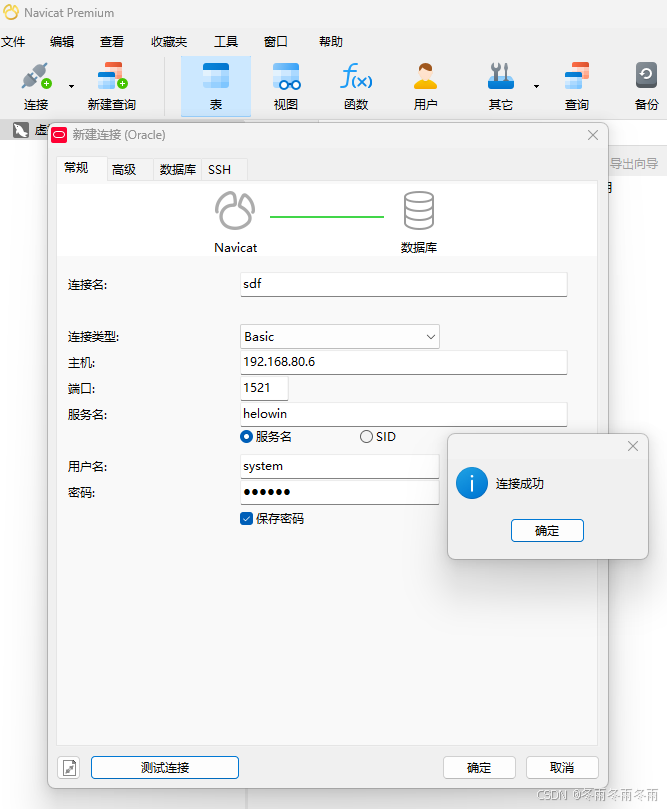

然后测试连接成功

---

下面记录一下oracle配置文件

oracle配置文件

listener.ora

# listener.ora Network Configuration File: /home/oracle/app/oracle/product/11.2.0/dbhome_2/network/admin/listener.ora
# Generated by Oracle configuration tools.

LISTENER =
  (DESCRIPTION_LIST =
    (DESCRIPTION =
      (ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))
      (ADDRESS = (PROTOCOL = TCP)(HOST = 0.0.0.0)(PORT = 1521))
    )
  )

ADR_BASE_LISTENER = /home/oracle/app/oracle

tnsnames.ora

# tnsnames.ora Network Configuration File: /home/oracle/app/oracle/product/11.2.0/dbhome_2/network/admin/tnsnames.ora
# Generated by Oracle configuration tools.

LISTENER_HELOWIN =
  (ADDRESS = (PROTOCOL = TCP)(HOST = 0.0.0.0)(PORT = 1521))


HELOWIN =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = 0.0.0.0)(PORT = 1521))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = helowin)
    )
  )
