001-springcloud-base工程创建

已于 2024-08-25 18:36:29 修改
阅读量952 收藏 18
点赞数 30
分类专栏： SpringCloud 文章标签： java spring cloud
于 2024-08-23 16:34:16 首次发布
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.youkuaiyun.com/weixin_47790139/article/details/123322429
版权

文章目录

前言

本章节项目地址:
通过百度网盘分享的文件：001-springcloud-base工程创建.7z
链接：https://pan.baidu.com/s/1BHq7veDv2Gc5jTvCNdJc1w
提取码：msr2

SpringCloud与SpringBoot 对应版本

参考:https://spring.io/projects/spring-cloud
在这里插入图片描述

SpringCloud与SpringCloudAlibaba对应版本

参考:https://github.com/alibaba/spring-cloud-alibaba/wiki/%E7%89%88%E6%9C%AC%E8%AF%B4%E6%98%8E
在这里插入图片描述

官方文档

Spring Cloud中文文档:https://www.bookstack.cn/read/spring-cloud-docs/docs-index.md
alibaba官方文档:https://spring-cloud-alibaba-group.github.io/zh-cn/
SpringBoot官网:https://spring.io/projects/spring-boot#learn

1 新建Project和Maven父工程

1.1 Maven父工程步骤

1.1.1 New Project

在这里插入图片描述

1.1.2 聚合总父工程名字

在这里插入图片描述

1.1.3 字符编码

在这里插入图片描述

1.1.4 注解生效激活

在这里插入图片描述

1.1.5 java编译版本选择JDK17

在这里插入图片描述

1.2 父工程POM文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.msr.cloud</groupId>
    <artifactId>cloud2024</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>pom</packaging>

    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <hutool.version>5.8.22</hutool.version>
        <lombok.version>1.18.26</lombok.version>
        <druid.version>1.1.20</druid.version>
        <mybatis.springboot.version>3.0.2</mybatis.springboot.version>
        <mysql.version>8.0.11</mysql.version>
        <swagger3.version>2.2.0</swagger3.version>
        <mapper.version>4.2.3</mapper.version>
        <fastjson2.version>2.0.40</fastjson2.version>
        <persistence-api.version>1.0.2</persistence-api.version>
        <spring.boot.test.version>3.1.5</spring.boot.test.version>
        <spring.boot.version>3.2.0</spring.boot.version>
        <spring.cloud.version>2023.0.0</spring.cloud.version>
        <spring.cloud.alibaba.version>2022.0.0.0-RC2</spring.cloud.alibaba.version>
    </properties>

    <dependencyManagement>
        <dependencies>
            <!--springboot 3.2.0-->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-parent</artifactId>
                <version>${spring.boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--springcloud 2023.0.0-->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring.cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--springcloud alibaba 2022.0.0.0-RC2-->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring.cloud.alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--SpringBoot集成mybatis-->
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>${mybatis.springboot.version}</version>
            </dependency>
            <!--Mysql数据库驱动8 -->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.version}</version>
            </dependency>
            <!--SpringBoot集成druid连接池-->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid-spring-boot-starter</artifactId>
                <version>${druid.version}</version>
            </dependency>
            <!--通用Mapper4之tk.mybatis-->
            <dependency>
                <groupId>tk.mybatis</groupId>
                <artifactId>mapper</artifactId>
                <version>${mapper.version}</version>
            </dependency>
            <!--persistence 数据持久化-->
            <dependency>
                <groupId>javax.persistence</groupId>
                <artifactId>persistence-api</artifactId>
                <version>${persistence-api.version}</version>
            </dependency>
            <!-- fastjson2 -->
            <dependency>
                <groupId>com.alibaba.fastjson2</groupId>
                <artifactId>fastjson2</artifactId>
                <version>${fastjson2.version}</version>
            </dependency>
            <!-- swagger3 调用方式 http://你的主机IP地址:5555/swagger-ui/index.html -->
            <dependency>
                <groupId>org.springdoc</groupId>
                <artifactId>springdoc-openapi-starter-webmvc-ui</artifactId>
                <version>${swagger3.version}</version>
            </dependency>
            <!--hutool-->
            <dependency>
                <groupId>cn.hutool</groupId>
                <artifactId>hutool-all</artifactId>
                <version>${hutool.version}</version>
            </dependency>
            <!--lombok-->
            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
                <version>${lombok.version}</version>
                <optional>true</optional>
            </dependency>
            <!-- spring-boot-starter-test -->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-test</artifactId>
                <version>${spring.boot.test.version}</version>
                <scope>test</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

</project>

1.3 Maven工程落地细节

dependencyManagement

Maven 使用dependencyManagement 元素来提供了一种管理依赖版本号的方式。

通常会在一个组织或者项目的最顶层的父POM 中看到dependencyManagement 元素。

使用pom.xml 中的dependencyManagement 元素能让所有在子项目中引用一个依赖而不用显式的列出版本号。Maven会沿着父子层次向上走，直到找到一个拥有dependencyManagement 元素的项目，然后它就会使用这个dependencyManagement 元素中指定的版本号。
在这里插入图片描述
这样做的好处就是：如果有多个子项目都引用同一样依赖，则可以避免在每个使用的子项目里都声明一个版本号，优势：

  1. 这样当想升级或切换到另一个版本时，只需要在顶层父容器里更新，而不需要一个一个子项目的修改；
  2. 另外如果某个子项目需要另外的一个版本，只需要声明version就可。

dependencyManagement里只是声明依赖，并不实现引入，因此子项目需要显示的声明需要用的依赖。

如果不在子项目中声明依赖，是不会从父项目中继承下来的，只有在子项目中写了该依赖项并且没有指定具体版本，才会从父项目中继承该项 且version和scope都读取自父pom;

如果子项目中指定了版本号，那么会使用子项目中指定的jar版本。

1.4 mysql驱动说明

1.4.1 mysql5版本

# mysql5.7---JDBC四件套
jdbc.driverClass = com.mysql.jdbc.Driver
jdbc.url= jdbc:mysql://localhost:3306/db2024?useUnicode=true&characterEncoding=UTF-8&useSSL=false
jdbc.user = root
jdbc.password =123456

# Maven的POM文件处理
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>5.1.47</version>
</dependency>

1.4.2 mysql8版本

# mysql8.0---JDBC四件套
jdbc.driverClass = com.mysql.cj.jdbc.Driver
jdbc.url= jdbc:mysql://localhost:3306/db2024?characterEncoding=utf8&useSSL=false&serverTimezone=GMT%2B8&rewriteBatchedStatements=true&allowPublicKeyRetrieval=true
jdbc.user = root
jdbc.password =123456

# Maven的POM
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>8.0.11</version>
</dependency>

2 mapper一键生成

2.1 本次使用Mapper4

官网:https://github.com/abel533/Mapper

2.2 数据库SQL

准备t_pay表

DROP TABLE IF EXISTS `t_pay`;

CREATE TABLE `t_pay` (
  `id` INT(10) UNSIGNED NOT NULL AUTO_INCREMENT,
  `pay_no` VARCHAR(50) NOT NULL COMMENT '支付流水号',
  `order_no` VARCHAR(50) NOT NULL COMMENT '订单流水号',
  `user_id` INT(10) DEFAULT '1' COMMENT '用户账号ID',
  `amount` DECIMAL(8,2) NOT NULL DEFAULT '9.9' COMMENT '交易金额',
  `deleted` TINYINT(4) UNSIGNED NOT NULL DEFAULT '0' COMMENT '删除标志，默认0不删除，1删除',
  `create_time` TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `update_time` TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',
  PRIMARY KEY (`id`)
) ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8mb4 COMMENT='支付交易表';

INSERT INTO t_pay(pay_no,order_no) VALUES('pay17203699','6544bafb424a');

SELECT * FROM t_pay;

2.3 Module

准备模块:mybatis_generator2024
在这里插入图片描述

2.4 POM

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.msr.cloud</groupId>
        <artifactId>cloud2024</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <artifactId>mybatis_generator2024</artifactId>

    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <!--Mybatis 通用mapper tk单独使用，自己独有+自带版本号-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.13</version>
        </dependency>
        <!-- Mybatis Generator 自己独有+自带版本号-->
        <dependency>
            <groupId>org.mybatis.generator</groupId>
            <artifactId>mybatis-generator-core</artifactId>
            <version>1.4.2</version>
        </dependency>
        <!--通用Mapper-->
        <dependency>
            <groupId>tk.mybatis</groupId>
            <artifactId>mapper</artifactId>
        </dependency>
        <!--mysql8.0-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!--persistence-->
        <dependency>
            <groupId>javax.persistence</groupId>
            <artifactId>persistence-api</artifactId>
        </dependency>
        <!--hutool-->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
        </dependency>
        <!--lombok-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
    </dependencies>

    <build>
        <resources>
            <resource>
                <directory>${basedir}/src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                </includes>
            </resource>
            <resource>
                <directory>${basedir}/src/main/resources</directory>
            </resource>
        </resources>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <version>1.4.2</version>
                <configuration>
                    <configurationFile>${basedir}/src/main/resources/generatorConfig.xml</configurationFile>
                    <overwrite>true</overwrite>
                    <verbose>true</verbose>
                </configuration>
                <dependencies>
                    <dependency>
                        <groupId>mysql</groupId>
                        <artifactId>mysql-connector-java</artifactId>
                        <version>8.0.33</version>
                    </dependency>
                    <dependency>
                        <groupId>tk.mybatis</groupId>
                        <artifactId>mapper</artifactId>
                        <version>4.2.3</version>
                    </dependency>
                </dependencies>
            </plugin>
        </plugins>
    </build>

</project>

2.5 配置

2.5.1 config.properties

src\main\resources路径下新建config.properties

2.5.1.1 mysql5版本
#t_pay表包名
package.name=com.msr.cloud

# mysql5.7
#jdbc.driverClass = com.mysql.jdbc.Driver
#jdbc.url= jdbc:mysql://localhost:3306/db2024?useUnicode=true&characterEncoding=UTF-8&useSSL=false
#jdbc.user = root
#jdbc.password =123456
2.5.1.2 mysql8版本
#t_pay表包名
package.name=com.msr.cloud

# mysql8.0
jdbc.driverClass = com.mysql.cj.jdbc.Driver
jdbc.url= jdbc:mysql://localhost:3306/db2024?characterEncoding=utf8&useSSL=false&serverTimezone=GMT%2B8&rewriteBatchedStatements=true&allowPublicKeyRetrieval=true
jdbc.user = root
jdbc.password =123456

2.5.2 generatorConfig.xml

src\main\resources路径下新建generatorConfig.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>
    <properties resource="config.properties"/>

    <context id="Mysql" targetRuntime="MyBatis3Simple" defaultModelType="flat">
        <property name="beginningDelimiter" value="`"/>
        <property name="endingDelimiter" value="`"/>

        <plugin type="tk.mybatis.mapper.generator.MapperPlugin">
            <property name="mappers" value="tk.mybatis.mapper.common.Mapper"/>
            <property name="caseSensitive" value="true"/>
        </plugin>

        <jdbcConnection driverClass="${jdbc.driverClass}"
                        connectionURL="${jdbc.url}"
                        userId="${jdbc.user}"
                        password="${jdbc.password}">
        </jdbcConnection>

        <javaModelGenerator targetPackage="${package.name}.entities" targetProject="src/main/java"/>

        <sqlMapGenerator targetPackage="${package.name}.mapper" targetProject="src/main/java"/>

        <javaClientGenerator targetPackage="${package.name}.mapper" targetProject="src/main/java" type="XMLMAPPER"/>

        <table tableName="t_pay" domainObjectName="Pay">
            <generatedKey column="id" sqlStatement="JDBC"/>
        </table>
    </context>
</generatorConfiguration>

2.6 一键生成

双击mybatis-generator:gererate
在这里插入图片描述

3 Rest通用Base工程构建

3.1 cloud-provider-payment8001 微服务提供者支付Module

3.1.1 创建module

cloud-provider-payment8001
在这里插入图片描述

3.1.2 改POM

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.msr.cloud</groupId>
        <artifactId>cloud2024</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <artifactId>cloud-provider-payment8001</artifactId>

    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <!--SpringBoot通用依赖模块-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--SpringBoot集成druid连接池-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
        </dependency>
        <!-- Swagger3 调用方式 http://你的主机IP地址:5555/swagger-ui/index.html -->
        <dependency>
            <groupId>org.springdoc</groupId>
            <artifactId>springdoc-openapi-starter-webmvc-ui</artifactId>
        </dependency>
        <!--mybatis和springboot整合-->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>
        <!--Mysql数据库驱动8 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!--persistence-->
        <dependency>
            <groupId>javax.persistence</groupId>
            <artifactId>persistence-api</artifactId>
        </dependency>
        <!--通用Mapper4-->
        <dependency>
            <groupId>tk.mybatis</groupId>
            <artifactId>mapper</artifactId>
        </dependency>
        <!--hutool-->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
        </dependency>
        <!-- fastjson2 -->
        <dependency>
            <groupId>com.alibaba.fastjson2</groupId>
            <artifactId>fastjson2</artifactId>
        </dependency>
        <!--lombok-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.28</version>
            <scope>provided</scope>
        </dependency>
        <!--test-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

3.1.2 写YML

application.yml
在这里插入图片描述

server:
  port: 8001

# ==========applicationName + druid-mysql8 driver===================
spring:
  application:
    name: cloud-payment-service

  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:3306/db2024?characterEncoding=utf8&useSSL=false&serverTimezone=GMT%2B8&rewriteBatchedStatements=true&allowPublicKeyRetrieval=true
    username: root
    password: root

# ========================mybatis===================
mybatis:
  mapper-locations: classpath:mapper/*.xml
  type-aliases-package: com.msr.cloud.entities
  configuration:
    map-underscore-to-camel-case: true

3.1.3 该主启动类

在这里插入图片描述

package com.msr.cloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import tk.mybatis.spring.annotation.MapperScan;

@SpringBootApplication
@MapperScan("com.msr.cloud.mapper") //import tk.mybatis.spring.annotation.MapperScan;
public class Main8001 {
    public static void main(String[] args) {
        SpringApplication.run(Main8001.class,args);
    }
}

3.1.4 业务类

将之前一键生成的代码直接拷贝进8001模块
在这里插入图片描述

3.1.4.1 entities

创建传递数值PayDTO

	private Integer id;
    //支付流水号
    private String payNo;
    //订单流水号
    private String orderNo;
    //用户账号ID
    private Integer userId;
    //交易金额
    private BigDecimal amount;

在这里插入图片描述

3.1.4.2 mapper

mapper接口是复制进来的

3.1.1.3 serivce

PayService

public interface PayService {
    public int add(Pay pay);
    public int delete(Integer id);
    public int update(Pay pay);
    public Pay getAByid(Integer id);
    public List<Pay> getAll();
}

PayServiceImpl

@Service
public class PayServiceImpl implements PayService{
    @Resource
    private PayMapper payMapper;
    @Override
    public int add(Pay pay) {
        return payMapper.insertSelective(pay);
    }

    @Override
    public int delete(Integer id) {
        return payMapper.deleteByPrimaryKey(id);
    }

    @Override
    public int update(Pay pay) {
        return payMapper.updateByPrimaryKeySelective(pay);
    }

    @Override
    public Pay getAByid(Integer id) {
        return payMapper.selectByPrimaryKey(id);
    }

    @Override
    public List<Pay> getAll() {
        return payMapper.selectAll();
    }
}
3.1.4.4 controller
@RestController
@Slf4j
public class PayController {
    @Resource
    private PayService payService;

    @PostMapping(value = "/pay/add")
    public String addPay(@RequestBody Pay pay){
        System.out.println(pay.toString());
        int i = payService.add(pay);
        return "成功插入记录,返回值:" + i;
    }
    @DeleteMapping(value ="/pay/del/{id}")
    public Integer deletePay(@PathVariable("id") Integer id){
        return payService.delete(id);
    }
    @PutMapping(value ="/pay/update")
    public String updatePay(@RequestBody PayDTO payDTO){
        Pay pay = new Pay();
        BeanUtils.copyProperties(payDTO,pay);
        int i = payService.update(pay);
        return "成功修改记录,返回值:" + i;
    }
    @GetMapping(value="/pay/get/{id}")
    public Pay getById(@PathVariable("id") Integer id){
    return payService.getAByid(id);
    }

    @GetMapping(value="/pay/getAll")
    public List<Pay> getAll(){
        return payService.getAll();
    }
}
3.1.4.5 Swagger3

访问地址:http://localhost:8001/swagger-ui/index.html

3.1.1.4.5.1 简单实用说明

@Tag
描述：用于给 API 分组，用途类似于为 API 文档添加标签。
可用于：方法、类、接口。
使用： @Tag(name = “支付微服务模块”,description = “支付CRUD”)

@Operation
描述：用于描述 API 的操作。
可用于：方法。
使用：@Operation(summary = “新增”,description = “新增支付流水方法,json串做参数”)

@Schema
描述：用于描述数据模型的属性。
可用于：方法、类、接口。
使用：@Schema(title = “支付交易表实体类”) , @Schema(title =“支付流水号”)

	<dependency>
        <groupId>org.springdoc</groupId>
		<artifactId>springdoc-openapi-starter-webmvc-ui</artifactId>
	</dependency>

在这里插入图片描述

@Configuration
public class Swagger3 {
    @Bean
    public GroupedOpenApi PayApi()
    {
        return GroupedOpenApi.builder().group("支付微服务模块").pathsToMatch("/pay/**").build();
    }
    @Bean
    public GroupedOpenApi OtherApi()
    {
        return GroupedOpenApi.builder().group("其它微服务模块").pathsToMatch("/other/**", "/others").build();
    }
    /*@Bean
    public GroupedOpenApi CustomerApi()
    {
        return GroupedOpenApi.builder().group("客户微服务模块").pathsToMatch("/customer/**", "/customers").build();
    }*/

    @Bean
    public OpenAPI docsOpenApi()
    {
        return new OpenAPI()
                .info(new Info().title("cloud2024")
                        .description("通用设计rest")
                        .version("v1.0"))
                .externalDocs(new ExternalDocumentation()
                        .description("www.msr.com")
                        .url("https://yiyan.baidu.com/"));
    }
}
3.1.4.6 统一返回格式

枚举类: ReturnCodeEnum
返回类: ResultData

  • ReturnCodeEnum
@Getter
public enum ReturnCodeEnum {
    /**操作失败**/
    RC999("999","操作XXX失败"),
    /**操作成功**/
    RC200("200","success"),
    /**服务降级**/
    RC201("201","服务开启降级保护,请稍后再试!"),
    /**热点参数限流**/
    RC202("202","热点参数限流,请稍后再试!"),
    /**系统规则不满足**/
    RC203("203","系统规则不满足要求,请稍后再试!"),
    /**授权规则不通过**/
    RC204("204","授权规则不通过,请稍后再试!"),
    /**access_denied**/
    RC403("403","无访问权限,请联系管理员授予权限"),
    /**access_denied**/
    RC401("401","匿名用户访问无权限资源时的异常"),
    RC404("404","404页面找不到的异常"),
    /**服务异常**/
    RC500("500","系统异常，请稍后重试"),
    RC375("375","数学运算异常，请稍后重试"),

    INVALID_TOKEN("2001","访问令牌不合法"),
    ACCESS_DENIED("2003","没有权限访问该资源"),
    CLIENT_AUTHENTICATION_FAILED("1001","客户端认证失败"),
    USERNAME_OR_PASSWORD_ERROR("1002","用户名或密码错误"),
    BUSINESS_ERROR("1004","业务逻辑异常"),
    UNSUPPORTED_GRANT_TYPE("1003", "不支持的认证模式");


    private final String code;
    private final String message;
    ReturnCodeEnum(String code, String message) {
        this.code=code;
        this.message=message;
    }
    //传统版
    public static ReturnCodeEnum getReturnCodeNumberV1(String code){
        for (ReturnCodeEnum element : ReturnCodeEnum.values()) {
                if(element.getCode().equalsIgnoreCase(code)){
                    return element;
                }
        }
        return null;
    }
    //stream流式计算版
    public static ReturnCodeEnum getReturnCodeNumberV2(String code){
        return Arrays.stream(ReturnCodeEnum.values())
                .filter(x -> x.getCode().equalsIgnoreCase(code))
                .findFirst().orElse(null);
    }

//    public static void main(String[] args) {
//        System.out.println(getReturnCodeNumberV1("200"));
//        System.out.println(getReturnCodeNumberV1("200").getCode());
//        System.out.println(getReturnCodeNumberV1("200").getMessage());
//        System.out.println(getReturnCodeNumberV2("404"));
//        System.out.println(getReturnCodeNumberV2("404").getCode());
//        System.out.println(getReturnCodeNumberV2("404").getMessage());
//    }

}
  • ResultData
@Data
@Accessors(chain = true)
public class ResultData<T> {
    private String code;
    private String message;
    private T data;
    private long timestamp;

    public ResultData() {
        this.timestamp = System.currentTimeMillis();
    }
    public static <T> ResultData<T> success(T data){
        ResultData resultData = new ResultData<>();
        resultData.setCode(ReturnCodeEnum.RC200.getCode());
        resultData.setMessage(ReturnCodeEnum.RC200.getMessage());
        resultData.setData(data);
        return resultData;
    }

    public static <T> ResultData<T> fail(String code,String message){
        ResultData resultData = new ResultData<>();
        resultData.setCode(code);
        resultData.setMessage(message);
        resultData.setData(null);
        return resultData;
    }
}
3.1.4.7 全局异常处理

全局异常类: GlobalExceptionHandler

@Slf4j
@RestControllerAdvice
public class GlobalExceptionHandler {
    @ExceptionHandler(RuntimeException.class)
    @ResponseStatus(HttpStatus.INTERNAL_SERVER_ERROR)
    public ResultData<String> exception(Exception e){
        System.out.println("####come in GlobalExceptionHandler");
        log.error("全局异常信息:{}",e.getMessage(),e);
        return ResultData.fail(ReturnCodeEnum.RC500.getCode(), e.getMessage());
    }
}

3.2 cloud-consumer-order80 微服务调用者订单Module

3.2.1 建module

创建模块:cloud-consumer-order80
如何创建请定位目录:3.1.1 创建module

3.2.2 改POM

 <dependencies>
        <!--web + actuator-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--lombok-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <!--hutool-all-->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
        </dependency>
        <!--fastjson2-->
        <dependency>
            <groupId>com.alibaba.fastjson2</groupId>
            <artifactId>fastjson2</artifactId>
        </dependency>
        <!-- swagger3 调用方式 http://你的主机IP地址:5555/swagger-ui/index.html -->
        <dependency>
            <groupId>org.springdoc</groupId>
            <artifactId>springdoc-openapi-starter-webmvc-ui</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

3.2.2 写YML

server:
  port: 80

3.2.3 主启动类

修改类名为Main80
如何创建请定位目录:3.1.4 该启动类

3.2.4 业务类

3.2.4.1 复制

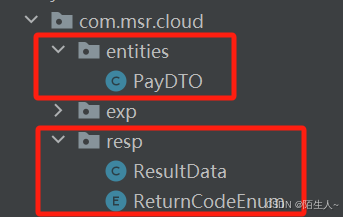

将8001模块中PayDTO,ResultData,ReturnCodeEnum复制到80模块中
在这里插入图片描述

3.2.4.2 引入RestTemplate
3.2.4.2.1 是什么

RestTemplate提供了多种便捷访问远程Http服务的方法，

是一种简单便捷的访问restful服务模板类，是Spring提供的用于访问Rest服务的客户端模板工具集

3.2.4.2.2 官网地址

官网地址:https://docs.spring.io/spring-framework/docs/6.0.11/javadoc-api/org/springframework/web/client/RestTemplate.html

3.2.4.2.3 简单说明
使用说明

使用restTemplate访问restful接口非常的简单粗暴无脑。
(url, requestMap, ResponseBean.class)这三个参数分别代表
REST请求地址、请求参数、HTTP响应转换被转换成的对象类型。

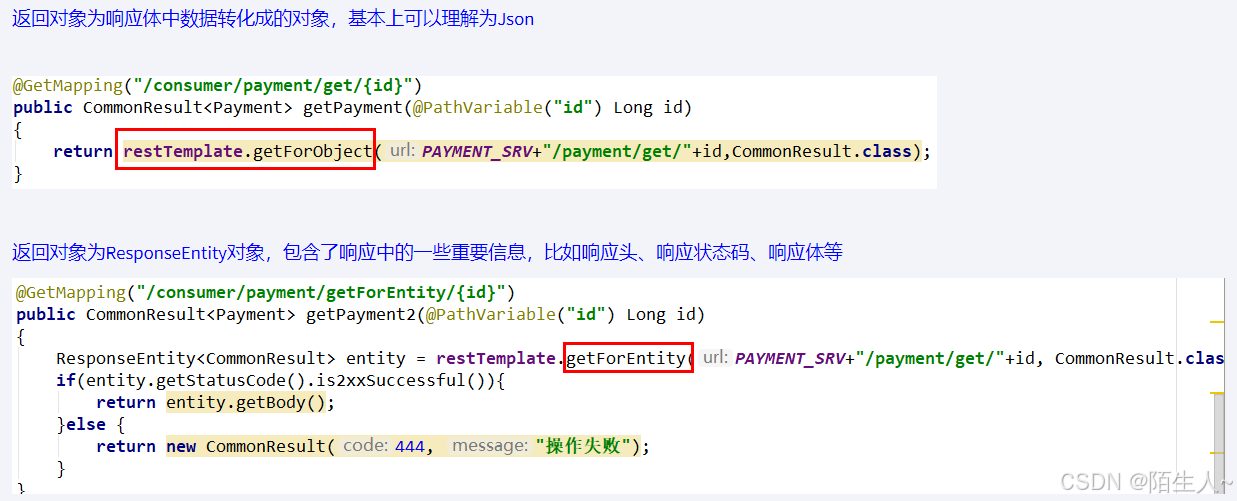

getForObject方法/getForEntity方法

在这里插入图片描述

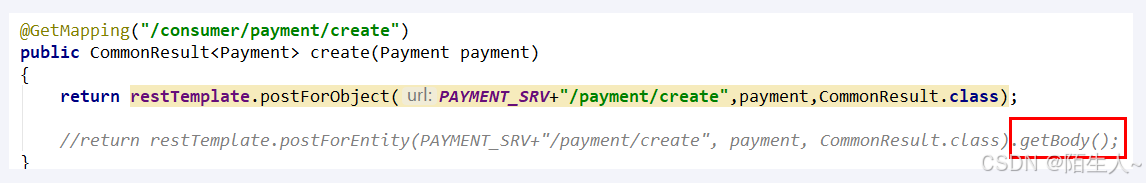

postForObject/postForEntity

在这里插入图片描述

GET请求方法
<T> T getForObject(String url, Class<T> responseType, Object... uriVariables);
<T> T getForObject(String url, Class<T> responseType, Map<String, ?> uriVariables);
<T> T getForObject(URI url, Class<T> responseType);

<T> ResponseEntity<T> getForEntity(String url, Class<T> responseType, Object... uriVariables);
<T> ResponseEntity<T> getForEntity(String url, Class<T> responseType, Map<String, ?> uriVariables);
<T> ResponseEntity<T> getForEntity(URI var1, Class<T> responseType);
POST请求方法
<T> T postForObject(String url, @Nullable Object request, Class<T> responseType, Object... uriVariables);
<T> T postForObject(String url, @Nullable Object request, Class<T> responseType, Map<String, ?> uriVariables);
<T> T postForObject(URI url, @Nullable Object request, Class<T> responseType);

<T> ResponseEntity<T> postForEntity(String url, @Nullable Object request, Class<T> responseType, Object... uriVariables);
<T> ResponseEntity<T> postForEntity(String url, @Nullable Object request, Class<T> responseType, Map<String, ?> uriVariables);
<T> ResponseEntity<T> postForEntity(URI url, @Nullable Object request, Class<T> responseType);
3.2.4.3 config配置类
@Configuration
public class RestTemplateConfig{
    @Bean
    public RestTemplate restTemplate(){
        return new RestTemplate();
    }
}
3.2.4.3 controller

OrderController

@RestController
public class OrderController {
    public static final String PaymentSrv_URL = "http://localhost:8001";

    @Resource
    private RestTemplate restTemplate;

    /**
     * 新增
     * @param payDTO
     * @return
     */
    @GetMapping("/consumer/pay/add")
    public ResultData addOrder(PayDTO payDTO){
       return restTemplate.postForObject(PaymentSrv_URL+"/pay/add",payDTO, ResultData.class);
    }

    /**
     * 查询
     * @param id
     * @return
     */
    @GetMapping("/consumer/pay/get/{id}")
    public ResultData getPayInfo(@PathVariable("id") Integer id){
        return restTemplate.getForObject(PaymentSrv_URL + "/pay/get/"+id, ResultData.class, id);

    }
    /**
     * 删除
     * @param id
     * @return
     */
    @DeleteMapping(value ="/consumer/pay/del/{id}")
    public ResultData<Integer> deletePay(@PathVariable("id") Integer id){
        return restTemplate.getForObject(PaymentSrv_URL+"pay/del/"+id,ResultData.class,id);
    }
    /**
     * 修改
     * @param payDTO
     * @return
     */
    @PutMapping(value ="/consumer/pay/update")
    public ResultData<String> updatePay(@RequestBody PayDTO payDTO){
        return restTemplate.postForObject(PaymentSrv_URL+"pay/update", payDTO,ResultData.class);

    }
}
3.2.4.4 postman测试

http://localhost/consumer/pay/get/1
http://localhost/consumer/pay/add?payNo=1213&orderNo=1213&userId=2&amount=3.33

3.3工程重构

3.3.1 观察问题

系统中有重复部分，重构

3.3.2 新建Module

新建模块:cloud-api-commons
对外暴露通用的组件/api/接口/工具类等

3.3.3 改POM

 <dependencies>
        <!--SpringBoot通用依赖模块-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <!--hutool-->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
        </dependency>
    </dependencies>

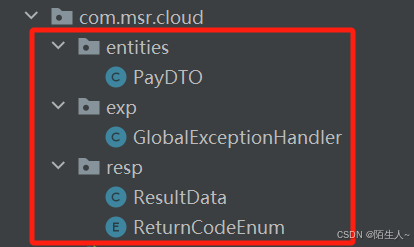

3.3.4 类迁移

在这里插入图片描述

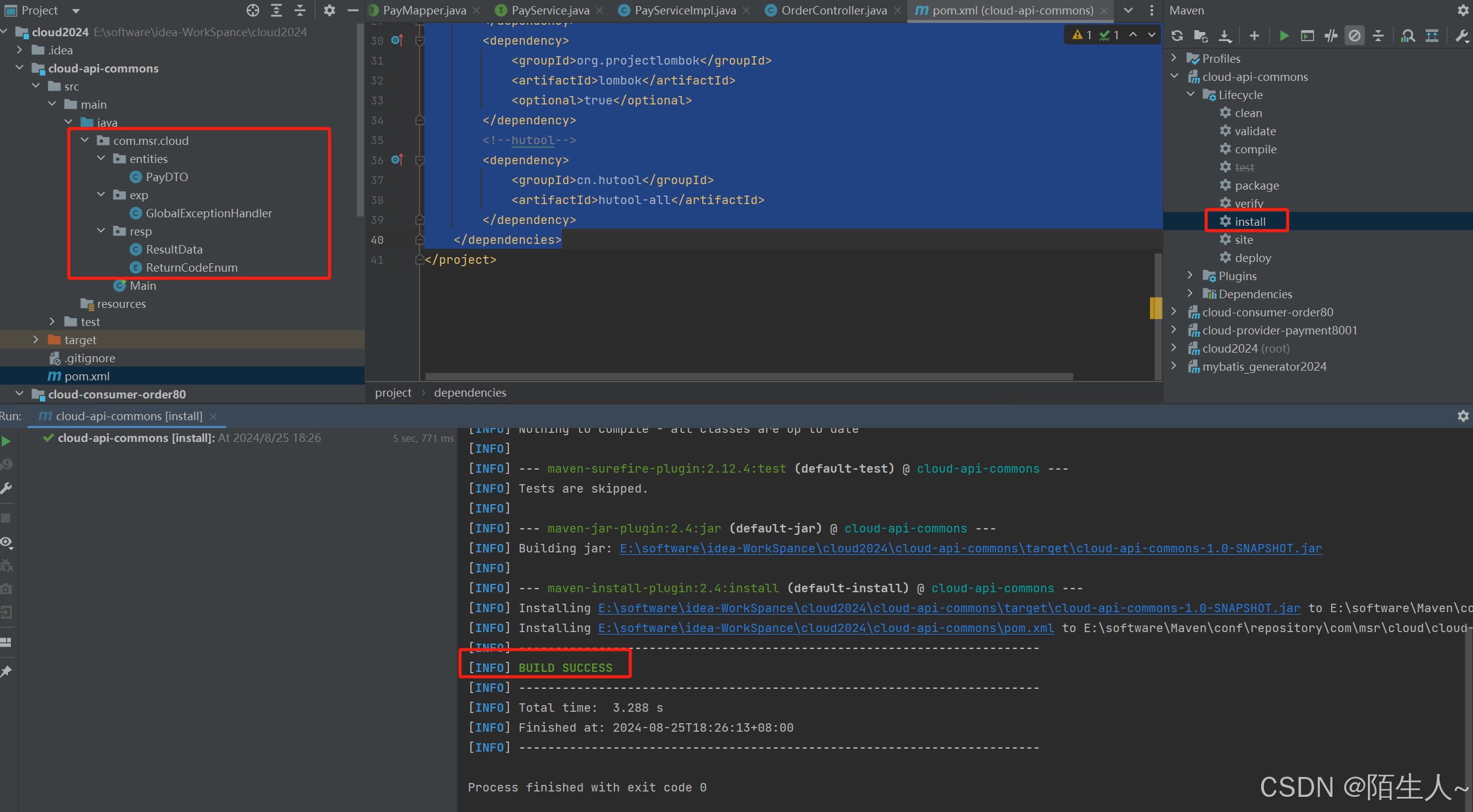

3.3.5 maven命令clean install

在这里插入图片描述

3.3.6 订单80和支付8001分别改造

删除各自的原先有过的entities和统一返回体等内容

各自粘贴POM内容

<!-- 引入自己定义的api通用包 -->
<dependency>
    <groupId>com.atguigu.cloud</groupId>
    <artifactId>cloud-api-commons</artifactId>
    <version>1.0-SNAPSHOT</version>
</dependency>

3.3.6 postman测试

http://localhost/consumer/pay/get/1
http://localhost/consumer/pay/add?payNo=1213&orderNo=1213&userId=2&amount=3.33

评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
