springboot+mybatisplus快速构建项目模板

最新推荐文章于 2025-04-21 15:55:41 发布

熙默

最新推荐文章于 2025-04-21 15:55:41 发布

阅读量237

点赞数 1

文章标签： java

本文链接：https://blog.youkuaiyun.com/weixin_47475332/article/details/117604307

版权

文章目录

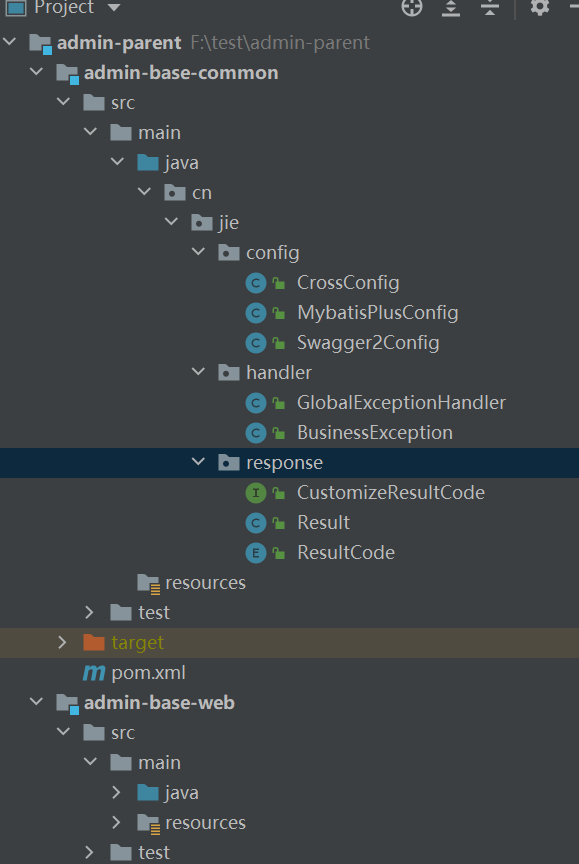

创建项目流程->

创建项目时，父项目用springboot，子模块用maven，父项目用dependencyManagement统一管理jar包版本，子项目、子子模块按需求导入即可

1、pom文件示范

父工程pom.xml

<properties>
    <!--java8-->
    <java.version>1.8</java.version>
    <!--mybatis-plus-->
    <mp.version>3.4.2</mp.version>
    <!--swagger-->
    <swagger.version>3.0.0</swagger.version>
    <!--velocity模板引擎-->
    <velocity.version>2.3</velocity.version>
    <!--java连接数据库-->
    <mysql-connect-java.version>8.0.25</mysql-connect-java.version>
    <!--velocity-->
    <velocity.version>2.3</velocity.version>
    <!--mybatis-plus-generator-->
    <mybatis-plus-generator.version>3.4.1</mybatis-plus-generator.version>
    <!--knife4j-->
    <knife4j.version>3.0.2</knife4j.version>
</properties>

<dependencyManagement>

    <dependencies>

        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>${mp.version}</version>
        </dependency>

        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-generator</artifactId>
            <version>${mybatis-plus-generator.version}</version>
        </dependency>

        <dependency>
            <groupId>org.apache.velocity</groupId>
            <artifactId>velocity-engine-core</artifactId>
            <version>${velocity.version}</version>
        </dependency>

        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>${swagger.version}</version>
        </dependency>

        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>${swagger.version}</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>${mysql-connect-java.version}</version>
        </dependency>

        <dependency>
                <groupId>com.github.xiaoymin</groupId>
                <artifactId>knife4j-spring-boot-starter</artifactId>
                <version>${knife4j.version}</version>
        </dependency>

    </dependencies>

</dependencyManagement>


<build>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
            <configuration>
                <skip>true</skip>
            </configuration>
        </plugin>
    </plugins>
</build>

子项目pom.xml：

<dependencies>

    <!--controller相关-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <!--mybatis-plus-->
    <dependency>
        <groupId>com.baomidou</groupId>
        <artifactId>mybatis-plus-boot-starter</artifactId>
    </dependency>

    <!--代码生成器-->
    <dependency>
        <groupId>com.baomidou</groupId>
        <artifactId>mybatis-plus-generator</artifactId>
    </dependency>
    <dependency>
        <groupId>org.apache.velocity</groupId>
        <artifactId>velocity-engine-core</artifactId>
    </dependency>

    <!--swagger-->
    <dependency>
        <groupId>io.springfox</groupId>
        <artifactId>springfox-swagger2</artifactId>
    </dependency>
    <dependency>
        <groupId>io.springfox</groupId>
        <artifactId>springfox-swagger-ui</artifactId>
    </dependency>

    <!--java连接数据库-->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
    </dependency>

    <!--lombok-->
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
    </dependency>

    <!--knife4j-->
    <dependency>
                <groupId>com.github.xiaoymin</groupId>
                <artifactId>knife4j-spring-boot-starter</artifactId>
    </dependency>

</dependencies>

<build>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
            <configuration>
                <skip>true</skip>
            </configuration>
        </plugin>
    </plugins>
</build>

子项目web模块pom.xml（直接引用common模块）

<dependencies>
    <dependency>
        <groupId>cn.jie</groupId>
        <artifactId>admin-base-common</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </dependency>
</dependencies>

2、mybatis-plus代码生成器

public class CodeGenerator {

    /**
     * <p>
     * 读取控制台内容
     * </p>
     */
    public static String scanner(String tip) {
        Scanner scanner = new Scanner(System.in);
        StringBuilder help = new StringBuilder();
        help.append("请输入" + tip + "：");
        System.out.println(help.toString());
        if (scanner.hasNext()) {
            String ipt = scanner.next();
            if (StringUtils.isNotBlank(ipt)) {
                return ipt;
            }
        }
        throw new MybatisPlusException("请输入正确的" + tip + "！");
    }

    public static void main(String[] args) {
        // 代码生成器
        AutoGenerator mpg = new AutoGenerator();

        // 全局配置
        GlobalConfig gc = new GlobalConfig();
        String projectPath = scanner("项目路径");
        //项目生成路径
        gc.setOutputDir(projectPath + "/src/main/java");
        gc.setAuthor("sky");
        //打开资源管理器
        gc.setOpen(false);
        //开启swagger
        gc.setSwagger2(true);
        //覆盖文件
        gc.setFileOverride(false);

        gc.setServiceName("%sService");
        //主键自增
        gc.setIdType(IdType.AUTO);
        //java.util.date
        gc.setDateType(DateType.ONLY_DATE);
        mpg.setGlobalConfig(gc);


        // 数据源配置
        DataSourceConfig dsc = new DataSourceConfig();
        dsc.setUrl("jdbc:mysql://localhost:3306/adminweb?useUnicode=true&useSSL=false&characterEncoding=utf8&serverTimezone=GMT%2B8");
        // dsc.setSchemaName("public");
        dsc.setDriverName("com.mysql.cj.jdbc.Driver");
        dsc.setUsername("root");
        dsc.setPassword("root");
        dsc.setDbType(DbType.MYSQL);
        mpg.setDataSource(dsc);

        // 包配置
        PackageConfig pc = new PackageConfig();
        pc.setModuleName(scanner("模块名"));
        pc.setParent("cn.jie");
        pc.setEntity("entity");
        pc.setMapper("mapper");
        pc.setController("controller");
        pc.setService("service");
        pc.setServiceImpl("service.impl");
        mpg.setPackageInfo(pc);


        // 策略配置
        StrategyConfig strategy = new StrategyConfig();
        //表
        strategy.setInclude(scanner("表名，多个英文逗号分割").split(","));
        //驼峰命名
        strategy.setNaming(NamingStrategy.underline_to_camel);
        strategy.setColumnNaming(NamingStrategy.underline_to_camel);

        //lombok
        strategy.setEntityLombokModel(true);
        //restful
        strategy.setRestControllerStyle(true);

        strategy.setControllerMappingHyphenStyle(true);
        mpg.setStrategy(strategy);
        mpg.execute();
    }

}

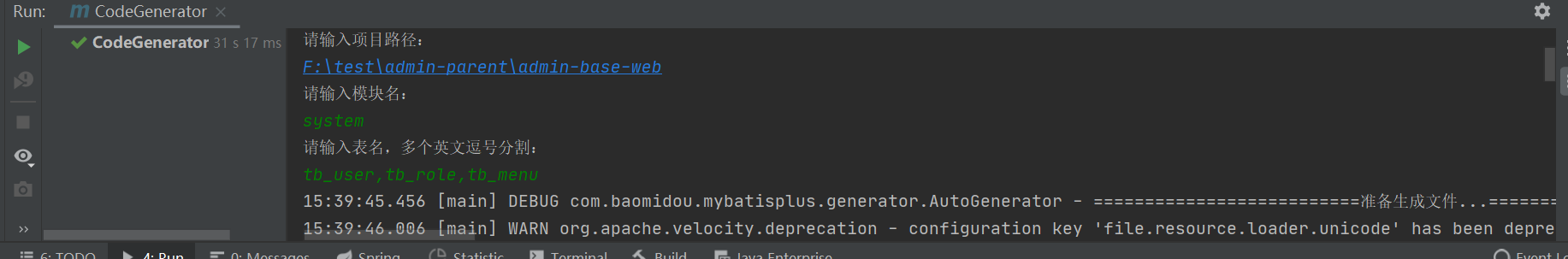

生成结果如图所示：（需要提前创建数据库）

3、springboot配置文件

spring:
  application:
    name: admin-base-web

  datasource:
    type:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:3306/adminweb?useUnicode=true&useSSL=false&characterEncoding=utf8&serverTimezone=GMT%2B8
    username: root
    password: root
  jackson:
    date-format: yyyy-MM-dd HH:mm:ss
    time-zone: GMT+8

server:
  port: 8081

mybatis-plus:
  global-config:
    db-config:
      logic-delete-field: deleted  # 全局逻辑删除的实体字段名(since 3.3.0,配置后可以忽略不配置步骤2)
      logic-delete-value: 1 # 逻辑已删除值(默认为 1)
      logic-not-delete-value: 0 # 逻辑未删除值(默认为 0)

  mapper-locations: classpath*:/mapper/*.xml

4、日志配置：logback-spring.xml

<?xml version="1.0" encoding="UTF-8" ?>

<!-- 级别从高到低 OFF 、 FATAL 、 ERROR 、 WARN 、 INFO 、 DEBUG 、 TRACE 、 ALL -->
<!-- 日志输出规则 根据当前ROOT 级别，日志输出时，级别高于root默认的级别时 会输出 -->
<!-- 以下 每个配置的 filter 是过滤掉输出文件里面，会出现高级别文件，依然出现低级别的日志信息，通过filter 过滤只记录本级别的日志 -->
<!-- scan 当此属性设置为true时，配置文件如果发生改变，将会被重新加载，默认值为true。 -->
<!-- scanPeriod 设置监测配置文件是否有修改的时间间隔，如果没有给出时间单位，默认单位是毫秒。当scan为true时，此属性生效。默认的时间间隔为1分钟。 -->
<!-- debug 当此属性设置为true时，将打印出logback内部日志信息，实时查看logback运行状态。默认值为false。 -->
<configuration scan="true" scanPeriod="60 seconds" debug="false">

    <!-- 动态日志级别 -->
    <jmxConfigurator/>

    <!--*****************************************************************************-->
    <!--自定义项 开始-->
    <!--*****************************************************************************-->

    <!-- 定义日志文件 输出位置 -->
    <property name="log.home_dir" value="F:/test/admin-parent/log"/>
    <property name="log.app_name" value="http-demo"/>
    <!-- 日志最大的历史 30天 -->
    <property name="log.maxHistory" value="30"/>
    <property name="log.maxSize" value="5MB"/>
    <!-- 日志界别 -->
    <property name="log.level" value="info"/>
    <!-- 打印sql语句 需要指定dao/mapper层包的位置 -->
    <property name="mapper.package" value="cn.jie.system.mapper"/>

    <!-- 彩色日志 -->
    <!-- 配置格式变量：CONSOLE_LOG_PATTERN 彩色日志格式 -->
    <!-- magenta:洋红 -->
    <!-- boldMagenta:粗红-->
    <!-- cyan:青色 -->
    <!-- white:白色 -->
    <!-- magenta:洋红 -->
    <property name="CONSOLE_LOG_PATTERN"
              value="%yellow(%date{yyyy-MM-dd HH:mm:ss}) |%highlight(%-5level) |%blue(%thread) |%blue(%file:%line) |%green(%logger) |%cyan(%msg%n)"/>

    <!--*****************************************************************************-->
    <!--自定义项 结束-->
    <!--*****************************************************************************-->

    <!-- ConsoleAppender 控制台输出日志 -->
    <appender name="CONSOLE" class="ch.qos.logback.core.ConsoleAppender">
        <encoder>
            <pattern>
                <!-- 设置日志输出格式 -->
                ${CONSOLE_LOG_PATTERN}
            </pattern>
        </encoder>
    </appender>

    <!-- ERROR级别日志 -->
    <!-- 滚动记录文件，先将日志记录到指定文件，当符合某个条件时，将日志记录到其他文件 RollingFileAppender -->
    <appender name="ERROR" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <!-- 过滤器，只记录WARN级别的日志 -->
        <!-- 果日志级别等于配置级别，过滤器会根据onMath 和 onMismatch接收或拒绝日志。 -->
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <!-- 设置过滤级别 -->
            <level>ERROR</level>
            <!-- 用于配置符合过滤条件的操作 -->
            <onMatch>ACCEPT</onMatch>
            <!-- 用于配置不符合过滤条件的操作 -->
            <onMismatch>DENY</onMismatch>
        </filter>
        <!-- 最常用的滚动策略，它根据时间来制定滚动策略.既负责滚动也负责触发滚动 -->
        <rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
            <!--日志输出位置 可相对、和绝对路径 -->
            <fileNamePattern>
                ${log.home_dir}/error/%d{yyyy-MM-dd}/${log.app_name}-%i.log
            </fileNamePattern>
            <!-- 可选节点，控制保留的归档文件的最大数量，超出数量就删除旧文件,假设设置每个月滚动，且<maxHistory>是6，
            则只保存最近6个月的文件，删除之前的旧文件。注意，删除旧文件是，那些为了归档而创建的目录也会被删除 -->
            <maxHistory>${log.maxHistory}</maxHistory>
            <!--日志文件最大的大小-->
            <MaxFileSize>${log.maxSize}</MaxFileSize>
        </rollingPolicy>
        <encoder>
            <pattern>
                <!-- 设置日志输出格式 -->
                %d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} - %msg%n
            </pattern>
        </encoder>
    </appender>


    <!-- WARN级别日志 appender -->
    <appender name="WARN" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <!-- 过滤器，只记录WARN级别的日志 -->
        <!-- 果日志级别等于配置级别，过滤器会根据onMath 和 onMismatch接收或拒绝日志。 -->
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <!-- 设置过滤级别 -->
            <level>WARN</level>
            <!-- 用于配置符合过滤条件的操作 -->
            <onMatch>ACCEPT</onMatch>
            <!-- 用于配置不符合过滤条件的操作 -->
            <onMismatch>DENY</onMismatch>
        </filter>
        <rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
            <!--日志输出位置 可相对、和绝对路径 -->
            <fileNamePattern>${log.home_dir}/warn/%d{yyyy-MM-dd}/${log.app_name}-%i.log</fileNamePattern>
            <maxHistory>${log.maxHistory}</maxHistory>
            <!--当天的日志大小 超过MaxFileSize时,压缩日志并保存-->
            <MaxFileSize>${log.maxSize}</MaxFileSize>
        </rollingPolicy>
        <encoder>
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} - %msg%n</pattern>
        </encoder>
    </appender>


    <!-- INFO级别日志 appender -->
    <appender name="INFO" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>INFO</level>
            <onMatch>ACCEPT</onMatch>
            <onMismatch>DENY</onMismatch>
        </filter>
        <rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
            <fileNamePattern>${log.home_dir}/info/%d{yyyy-MM-dd}/${log.app_name}-%i.log</fileNamePattern>
            <maxHistory>${log.maxHistory}</maxHistory>
            <MaxFileSize>${log.maxSize}</MaxFileSize>
        </rollingPolicy>
        <encoder>
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%-5level] %logger - %msg%n</pattern>
        </encoder>
    </appender>


    <!-- DEBUG级别日志 appender -->
    <appender name="DEBUG" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>DEBUG</level>
            <onMatch>ACCEPT</onMatch>
            <onMismatch>DENY</onMismatch>
        </filter>
        <rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
            <fileNamePattern>${log.home_dir}/debug/%d{yyyy-MM-dd}/${log.app_name}-%i.log</fileNamePattern>
            <maxHistory>${log.maxHistory}</maxHistory>
            <MaxFileSize>${log.maxSize}</MaxFileSize>
        </rollingPolicy>
        <encoder>
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%-5level] %logger - %msg%n</pattern>
        </encoder>
    </appender>


    <!-- TRACE级别日志 appender -->
    <appender name="TRACE" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>TRACE</level>
            <onMatch>ACCEPT</onMatch>
            <onMismatch>DENY</onMismatch>
        </filter>
        <rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
            <fileNamePattern>${log.home_dir}/trace/%d{yyyy-MM-dd}/${log.app_name}-%i.log</fileNamePattern>
            <maxHistory>${log.maxHistory}</maxHistory>
            <MaxFileSize>${log.maxSize}</MaxFileSize>
        </rollingPolicy>
        <encoder>
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%-5level] %logger - %msg%n</pattern>
        </encoder>
    </appender>


    <!--设置一个向上传递的appender,所有级别的日志都会输出-->
    <appender name="app" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
            <fileNamePattern>${log.home_dir}/app/%d{yyyy-MM-dd}/${log.app_name}-%i.log</fileNamePattern>
            <maxHistory>${log.maxHistory}</maxHistory>
            <MaxFileSize>${log.maxSize}</MaxFileSize>
        </rollingPolicy>
        <encoder>
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%-5level] %logger - %msg%n</pattern>
        </encoder>
    </appender>


    <!--org.springframework.web包下的类的日志输出-->
    <logger name="org.springframework.web" additivity="false" level="WARN">
        <appender-ref ref="WARN"/>
    </logger>
    <!--dao层包下的类的日志输出-->
    <logger name="${mapper.package}" additivity="false" level="DEBUG">
        <appender-ref ref="app"/>
        <appender-ref ref="ERROR"/>
        <appender-ref ref="DEBUG"/>
        <!--打印控制台-->
        <appender-ref ref="CONSOLE"/>
    </logger>


    <!-- root级别   DEBUG -->
    <root>
        <!-- 打印debug级别日志及以上级别日志 -->
        <level value="${log.level}"/>
        <!-- 控制台输出 -->
        <appender-ref ref="CONSOLE"/>
        <!-- 不管什么包下的日志都输出文件 -->
        <appender-ref ref="ERROR"/>
        <appender-ref ref="INFO"/>
        <appender-ref ref="WARN"/>
        <appender-ref ref="DEBUG"/>
        <appender-ref ref="TRACE"/>
    </root>

</configuration>

5、swagger结合knife4j配置类

swagger注意要用3.0.0版本

配置完swagger2config

@Configuration
@EnableSwagger2
@EnableKnife4j
@Import(BeanValidatorPluginsConfiguration.class)
public class Swagger2Config {

    @Bean(value = "defaultApi2")
    public Docket defaultApi2() {
        Docket docket=new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(new ApiInfoBuilder()
                        //.title("swagger-bootstrap-ui-demo RESTful APIs")
                        .description("物资管理系统API文档")
                        .termsOfServiceUrl("https://www.cnblogs.com/thatbluesky/")
                        .contact(new Contact("我的博客","https://www.cnblogs.com/thatbluesky/","1879186403@qq.com"))
                        .version("1.0")
                        .build())
                //分组名称
                .groupName("1.0版本")
                .select()
                //这里指定Controller扫描包路径
                .apis(RequestHandlerSelectors.basePackage("cn.jie.system.controller"))
                .paths(PathSelectors.any())
                .build();
        return docket;
    }


}

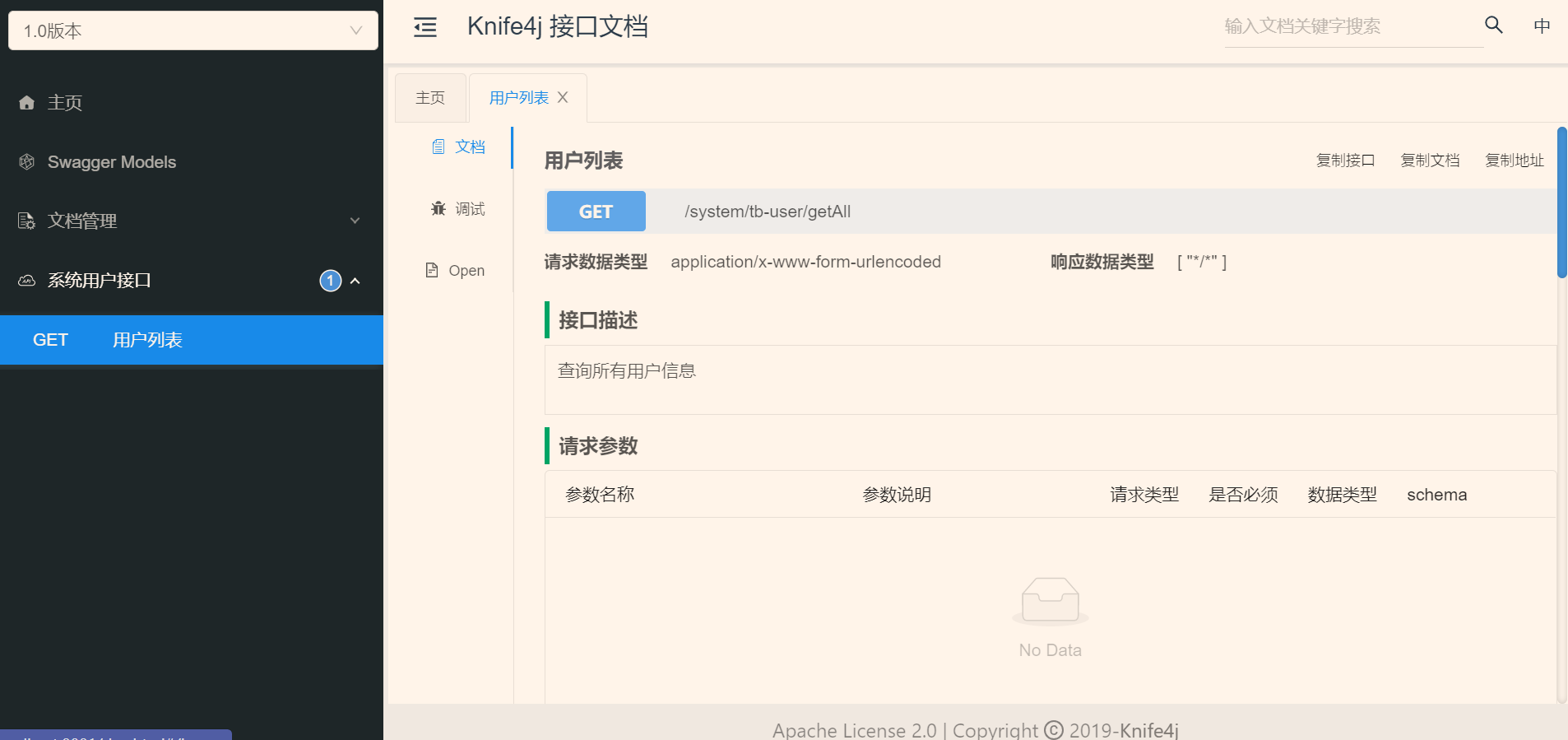

启动访问：http://localhost:8081/doc.html

6、返回前端结果集处理

结构展示：

config->配置包
handler->异常处理包
response->返回结果处理包

跨域处理：

@Configuration
public class CrossConfig implements WebMvcConfigurer {

    @Override
    public void addCorsMappings(CorsRegistry registry) {
        registry.addMapping("/**")
                .allowedOriginPatterns("*")
                .allowedMethods("GET","POST","PUT","DELETE","OPTIONS","HEAD")
                .allowCredentials(true)
                .maxAge(3600)
                .allowedHeaders("*");
    }
}

结果处理：

Result：

@Data
public class Result {

    @ApiModelProperty(value = "返回码")
    private Integer code;

    @ApiModelProperty(value = "返回消息")
    private String message;

    @ApiModelProperty(value = "是否成功")
    private Boolean success;

    @ApiModelProperty(value = "返回数据")
    private Map<String,Object> data = new HashMap<String,Object>();

    private Result() {}

    /**
     * 成功
     * @return
     */
    public static Result ok(){
        Result result = new Result();
        result.setSuccess(true);
        result.setCode(ResultCode.SUCCESS.getCode());
        result.setMessage(ResultCode.SUCCESS.getMsg());
        return result;
    }

    /**
     * 失败
     * @return
     */
    public static Result error(){
        Result result = new Result();
        result.setSuccess(false);
        result.setCode(ResultCode.COMMON_FAIL.getCode());
        result.setMessage(ResultCode.COMMON_FAIL.getMsg());
        return result;
    }

    /**
     * 自定义失败返回码
     * @param resultCode
     * @return
     */
    public static Result error(ResultCode resultCode){
        Result result = new Result();
        result.setSuccess(false);
        result.setCode(resultCode.getCode());
        return result;
    }


    /*链式编程 定制返回结果*/

    public Result success(Boolean success){
        this.setSuccess(success);
        return this;
    }

    public Result code(Integer code){
        this.setCode(code);
        return this;
    }

    public Result msg(String msg){
        this.setMessage(msg);
        return this;
    }

    public Result data(String key,Object value){
        this.data.put(key,value);
        return this;
    }

    public Result data(Map<String,Object> map){
        this.setData(map);
        return this;
    }
}

定制接口CustomizeResultCod：

public interface CustomizeResultCode {

    Integer getCode();

    String getMsg();

}

定制ResultCode：

public enum ResultCode implements CustomizeResultCode{

    SUCCESS(200,"操作成功"),

    COMMON_FAIL(999,"操作失败"),

    /*参数异常 1000-1999 */

    /*用户相关 2000-2999 */
    USER_NOT_EXIST_ERROR(2000,"用户不存在"),

    /*部门相关 3000-3999 */
    DEPT_NOT_FOUND_EXCEPTION(3000,"未查找到部门信息")
    /*权限相关*/

    /*其他*/

    ;

    private Integer code;
    private String msg;


    ResultCode(Integer code, String msg) {
        this.code = code;
        this.msg = msg;
    }

    @Override
    public Integer getCode() {
        return code;
    }

    @Override
    public String getMsg() {
        return msg;
    }
}

7、异常统一处理

自定义异常BusinessException：

@Data
@AllArgsConstructor
@NoArgsConstructor
public class BusinessException extends RuntimeException{

    @ApiModelProperty(value = "异常状态码")
    private Integer code;

    @ApiModelProperty(value = "异常信息")
    private String errMsg;

}

统一处理controller全局异常

@ControllerAdvice
@Slf4j
public class GlobalExceptionHandler {

    /**
     * 所有异常
     * @param e
     * @return
     */
    @ExceptionHandler(Exception.class)
    @ResponseBody
    public Result error(Exception e){
        log.error(e.getMessage());//
        return Result.error();
    }

    /**
     * 自定义异常
     * @param businessException
     * @return
     */
    @ExceptionHandler(BusinessException.class)
    @ResponseBody
    public Result error(BusinessException businessException){
        log.error(businessException.getErrMsg());
        return Result.error().code(businessException.getCode())
                .msg(businessException.getErrMsg());
    }

}
