Swagger的增强工具Knife4j的使用

第一步：导入相关依赖

pom.xml文件的配置如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.6.11</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo</name>
    <description>demo</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>com.github.xiaoymin</groupId>
            <artifactId>knife4j-spring-boot-starter</artifactId>
            <version>3.0.3</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-boot-starter</artifactId>
            <version>3.0.0</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.1</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

第二步：编写配置类

Knife4jConfiguration.java配置类如下：

package com.example.demo.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
public class Knife4jConfiguration {
    @Bean(value = "dockerBean")
    public Docket dockerBean() {
        //指定使用Swagger2规范
        Docket docket=new Docket(DocumentationType.OAS_30)
                .apiInfo(new ApiInfoBuilder()
                        //描述字段支持Markdown语法
                        .description("# Knife4j RESTful APIs")
                        .termsOfServiceUrl("https://doc.xiaominfo.com/")
                        .contact(new Contact("xiaoymin@foxmail.com","xiaoymin@foxmail.com", "xiaoymin@foxmail.com"))
                        .version("1.0")
                        .build())
                //分组名称
                .groupName("用户服务")
                .select()
                //这里指定Controller扫描包路径
                .apis(RequestHandlerSelectors.basePackage("com.example.demo.controller"))
                .paths(PathSelectors.any())
                .build();
        return docket;
    }
}

第三步：编写实体类

User.java实体类如下：

package com.example.demo.pojo;

import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;

@Data
@ApiModel("用户实体类")
public class User {
    @ApiModelProperty("年龄")
    private Integer age;
    @ApiModelProperty(value = "姓名")
    private String name;
}

第五步：编写测试用的控制器类

TestContorller.java测试控制器类如下：

package com.example.demo.controller;

import com.example.demo.pojo.User;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import io.swagger.annotations.ApiParam;
import org.springframework.web.bind.annotation.*;

@RestController
@CrossOrigin(origins = "{*}", maxAge = 3600)
@RequestMapping("/test")
@Api(tags = "测试控制器")
public class TestContorller {

    @GetMapping("/getById/{id}")
    @ApiOperation("获取id")
    @ApiParam(value = "id", name = "用户id")
    public String getById(@PathVariable long id) {
        System.out.println(id);
        return "ok";
    }

    @PostMapping("/info")
    @ApiOperation("用户信息")
    public String info(@RequestBody User user) {
        System.out.println(user);
        return "ok";
    }
}

第6步：编写SpringBoot启动器类

package com.example.demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class DemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(DemoApplication.class, args);
    }

}

第七步：编写SpringBoot启动时使用的配置文件

application.yml文件如下：

# 应用名称
spring:
  application:
    name: fpddownloaddemo
  mvc:
    pathmatch:
      # spring2.6及其以上版本需要设置
      matching-strategy: ant_path_matcher

# 应用服务 WEB 访问端口
server:
  port: 8080

knife4j:
  # 开启增强配置
  enable: true
  # 开启生产环境屏蔽
  production: false
  # 开启登录认证
  basic:
    enable: false
    username: admin
    password: 123456

第八步：启动SpringBoot启动类

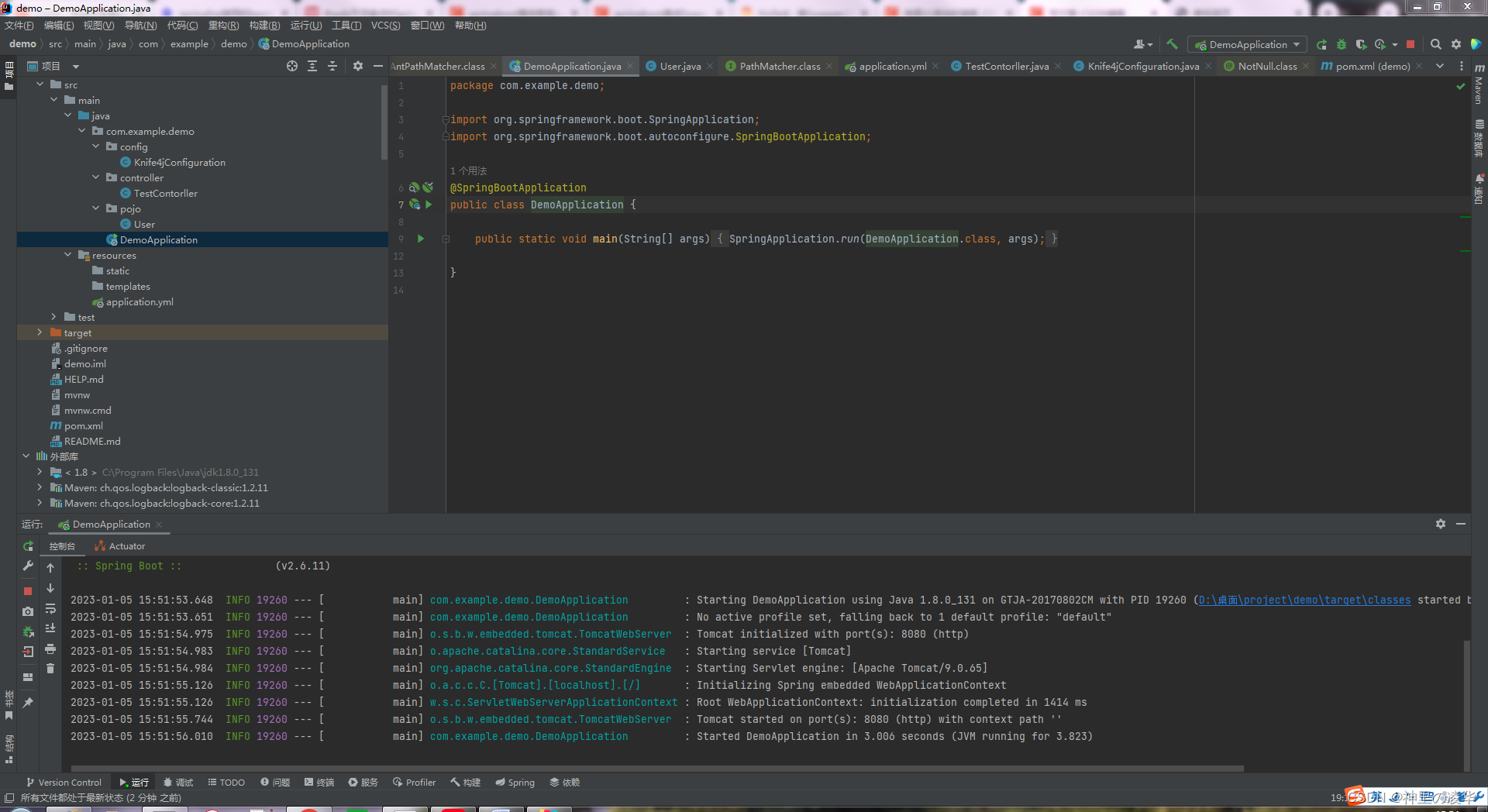

运行结果如下图：

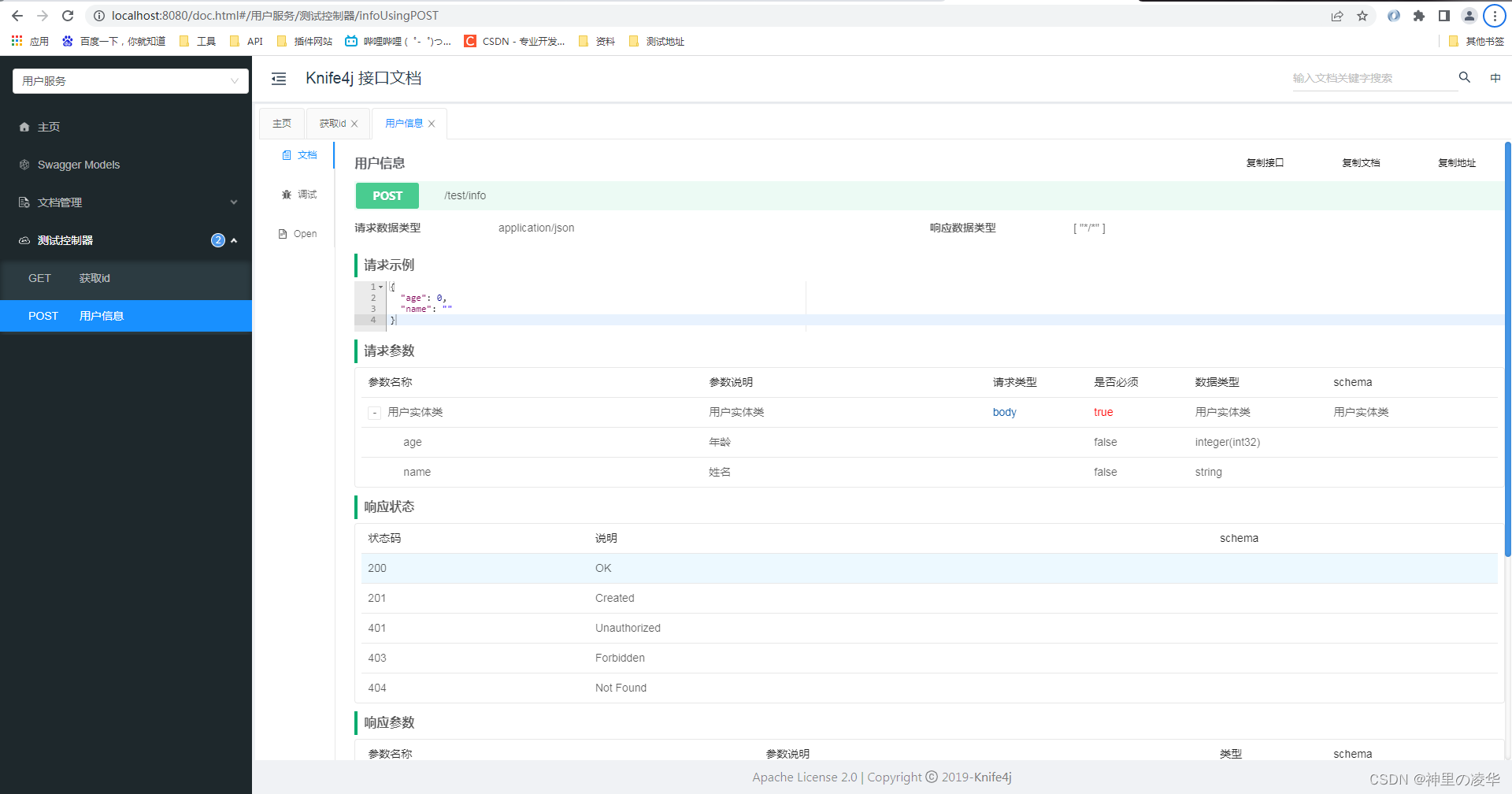

第九步：访问Kinfe4j增强文档地址

默认地址如下：
http://localhost:8080/doc.html
