三、Zookeeper客户端API

1、环境搭建

创建一个maven项目导入zookeeper的坐标即可

<!--        导入zookeeper的坐标-->
<dependency>
    <groupId>org.apache.zookeeper</groupId>
    <artifactId>zookeeper</artifactId>
    <version>3.5.7</version>
</dependency>

我是用了Junit5的测试

2、创建Zookeeper客户端

//表示连接的Zookeeper地址端口，,两端不能有空格
private String connect = "zookeeper01:2181,zookeeper02:2181,zookeeper03:2181";
//还要这里面不能直接使用ip地址：需要到windows的C:\Windows\System32\drivers\etc\hosts文件下配置地址映射
//否则就会出现连接不上的异常
//设置超时时间
private Integer timeout = 2000;
private ZooKeeper zkClient = null;
@BeforeEach//Junit5注解表示在测试方法执行前都执行
public void init() throws IOException {
   zkClient = new ZooKeeper(connect, timeout, new Watcher() {//Watcher : 监听函数
       @Override
       public void process(WatchedEvent event) {
			//监听代码
       }
   });
}

3、创建子节点

测试代码

//创建节点方法
@Test
public void createNode() throws Exception {
    String createNode = zkClient.create("/mnyuan", //参数1：要创建节点的路径
            "java".getBytes(), //参数2：节点数据
            ZooDefs.Ids.OPEN_ACL_UNSAFE, //参数3：节点权限
            CreateMode.PERSISTENT);//参数4：节点的类型
    System.out.println(createNode);
}

在本机上查看节点

[zk: localhost:2181(CONNECTED) 0] ls /
[mnyuan, zookeeper]

4、监听子节点

使用之前的监听

    @BeforeEach//Junit5注解表示在测试方法执行前都执行
    public void init() throws IOException {
        zkClient = new ZooKeeper(connect, timeout, new Watcher() {//Watcher : 监听函数
            @Override
            public void process(WatchedEvent event) {
                System.out.println("-------------------");
                try {
                    List<String> children = zkClient.getChildren("/", true);
                    for (String child : children) {
                        System.out.println(child);
                    }
                } catch (KeeperException e) {
                    e.printStackTrace();
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                System.out.println("-------------------");
            }
        });
    }

监听测试

    //监听子节点
    @Test
    public void watchNode() throws KeeperException, InterruptedException {
        List<String> children = zkClient.getChildren("/", true);
        //使用true表示使用的之前创建的监听，参数二也可以自己编写一个监听
        for (String child : children) {
            System.out.println(child);
        }
        Thread.sleep(15000);//让该方法延迟一会，方法不能太早结束，
    }

5、判断节点是否存在

    //判断节点是否存在
    @Test
    public void exitsNode() throws KeeperException, InterruptedException {
        Stat stat = zkClient.exists("/mnyuan", false);//false : 不监听
        System.out.println(stat == null ? "node not exists" : "yes");
    }

6、客户端向服务端写数据的流程

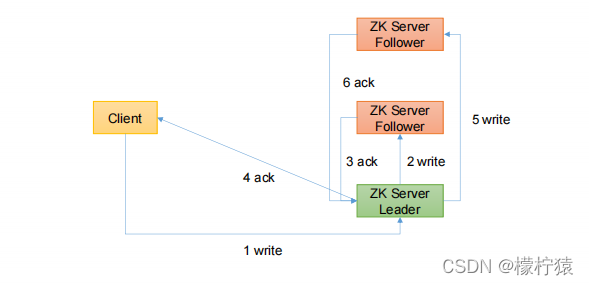

写流程的写入请求直接发给Leader节点

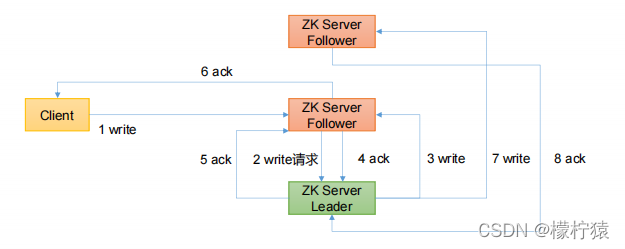

写流程的写入请求发送给Follower节点

7、服务器动态上下线监听案例

1、现在集群上创建/servers节点

[zk: localhost:2181(CONNECTED) 4] create /servers
Created /servers

2、服务器端向Zookeeper注册的代码

public class ZookeeperServer {
    private String connect = "zookeeper01:2181,zookeeper02:2181,zookeeper03:2181";
    private int timeOut = 2000;
    private ZooKeeper zK = null;

    public static void main(String[] args) throws IOException, KeeperException, InterruptedException {
        ZookeeperServer server = new ZookeeperServer();
        //1. 获取连接
        server.connect();
        //2.注册服务器
        server.registServer(args[0]);
        //3.业务功能
        server.business();
    }

    private void business() throws InterruptedException {
        Thread.sleep(Long.MAX_VALUE);
    }

    private void registServer(String hostName) throws KeeperException, InterruptedException {
        String servers = zK.create("/servers/" + hostName, hostName.getBytes(), ZooDefs.Ids.OPEN_ACL_UNSAFE, CreateMode.PERSISTENT_SEQUENTIAL);
        System.out.println(servers + "on line");
    }

    private void connect() throws IOException {
        zK = new ZooKeeper(connect, timeOut, new Watcher() {
            @Override
            public void process(WatchedEvent event) {

            }
        });
    }
}

3、进行测试

使用main方法传递参数，注意注意观察控制台参数

2、服务器上下线，客户端监听的代码

public class ZookeeperClient {
    private String connect = "zookeeper01:2181,zookeeper02:2181,zookeeper03:2181";
    private int timeOut = 2000;
    private ZooKeeper zk = null;
    public static void main(String[] args) throws IOException, KeeperException, InterruptedException {
        ZookeeperClient client = new ZookeeperClient();
        //1.获取连接
        client.connect();
        //2.获取服务器列表信息
        client.getServerList();
        //3.业务逻辑
        client.business();
    }

    private void business() throws InterruptedException {
        Thread.sleep(Long.MAX_VALUE);
    }

    private void getServerList() throws KeeperException, InterruptedException {
        //监听/servers节点
        List<String> children = zk.getChildren("/servers", true);
        //servers用来保存节点信息
        List<String> servers = new ArrayList<>();
        for (String child : children) {
            //获取节点信息
            byte[] data = zk.getData("/servers/" + child, false, null);
            if (data != null){
                servers.add(data.toString());
            }
        }
        //打印节点列表
        System.out.println(servers);
    }

    private void connect() throws IOException {
        zk = new ZooKeeper(connect, timeOut, new Watcher() {
            @Override
            public void process(WatchedEvent event) {
                try {
                    //只有再次调用才能监听
                    getServerList();
                } catch (KeeperException e) {
                    e.printStackTrace();
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }
        });
    }
}

3、测试，注意观察控制台打印情况

[zk: localhost:2181(CONNECTED) 13] create -e -s /servers/zookeeper01 "zookeeper01"
Created /servers/zookeeper010000000001
[zk: localhost:2181(CONNECTED) 14] create -e -s /servers/zookeeper02 "zookeeper02"
Created /servers/zookeeper020000000002
[zk: localhost:2181(CONNECTED) 15] delete /servers/zookeeper010000000001

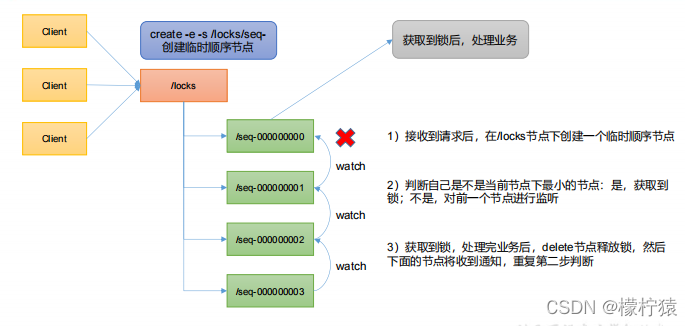

8、Zookeeper分布式锁

原生代码实现

public class DistributedLock {

    private final String connectString = "hadoop102:2181,hadoop103:2181,hadoop104:2181";
    private final int sessionTimeout = 2000;
    private final ZooKeeper zk;

    private CountDownLatch connectLatch = new CountDownLatch(1);
    private CountDownLatch waitLatch = new CountDownLatch(1);

    private String waitPath;
    private String currentMode;

    public DistributedLock() throws IOException, InterruptedException, KeeperException {
        // 获取连接
        zk = new ZooKeeper(connectString, sessionTimeout, new Watcher() {
            @Override
            public void process(WatchedEvent watchedEvent) {
                // connectLatch  如果连接上zk  可以释放
                if (watchedEvent.getState() == Event.KeeperState.SyncConnected){
                    connectLatch.countDown();
                }
                // waitLatch  需要释放
                if (watchedEvent.getType()== Event.EventType.NodeDeleted && watchedEvent.getPath().equals(waitPath)){
                    waitLatch.countDown();
                }
            }
        });
        // 等待zk正常连接后，往下走程序
        connectLatch.await();
        // 判断根节点/locks是否存在
        Stat stat = zk.exists("/locks", false);
        if (stat == null) {
            // 创建一下根节点
            zk.create("/locks", "locks".getBytes(), ZooDefs.Ids.OPEN_ACL_UNSAFE, CreateMode.PERSISTENT);
        }
    }
    // 对zk加锁
    public void zklock() {
        // 创建对应的临时带序号节点
        try {
            currentMode = zk.create("/locks/" + "seq-", null, ZooDefs.Ids.OPEN_ACL_UNSAFE, CreateMode.EPHEMERAL_SEQUENTIAL);
            // wait一小会, 让结果更清晰一些
            Thread.sleep(10);
            // 判断创建的节点是否是最小的序号节点，如果是获取到锁；如果不是，监听他序号前一个节点
            List<String> children = zk.getChildren("/locks", false);
            // 如果children 只有一个值，那就直接获取锁； 如果有多个节点，需要判断，谁最小
            if (children.size() == 1) {
                return;
            } else {
                Collections.sort(children);
                // 获取节点名称 seq-00000000
                String thisNode = currentMode.substring("/locks/".length());
                // 通过seq-00000000获取该节点在children集合的位置
                int index = children.indexOf(thisNode);
                // 判断
                if (index == -1) {
                    System.out.println("数据异常");
                } else if (index == 0) {
                    // 就一个节点，可以获取锁了
                    return;
                } else {
                    // 需要监听  他前一个节点变化
                    waitPath = "/locks/" + children.get(index - 1);
                    zk.getData(waitPath,true,new Stat());
                    // 等待监听
                    waitLatch.await();
                    return;
                }
            }
        } catch (KeeperException e) {
            e.printStackTrace();
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
    }
    // 解锁
    public void unZkLock() {
        // 删除节点
        try {
            zk.delete(this.currentMode,-1);
        } catch (InterruptedException e) {
            e.printStackTrace();
        } catch (KeeperException e) {
            e.printStackTrace();
        }
    }
}

测试

public class DistributedLockTest {
    public static void main(String[] args) throws InterruptedException, IOException, KeeperException {
       final  DistributedLock lock1 = new DistributedLock();
       final  DistributedLock lock2 = new DistributedLock();
       new Thread(new Runnable() {
           @Override
           public void run() {
               try {
                   lock1.zklock();
                   System.out.println("线程1 启动，获取到锁");
                   Thread.sleep(5 * 1000);
                   lock1.unZkLock();
                   System.out.println("线程1 释放锁");
               } catch (InterruptedException e) {
                   e.printStackTrace();
               }
           }
       }).start();
        new Thread(new Runnable() {
            @Override
            public void run() {
                try {
                    lock2.zklock();
                    System.out.println("线程2 启动，获取到锁");
                    Thread.sleep(5 * 1000);
                    lock2.unZkLock();
                    System.out.println("线程2 释放锁");
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }
        }).start();
    }
}

9、使用Curator框架实现分布式锁案例

1》原生的javaAPI开发存在的问题
- 1、会话连接是异步的，需要自己去处理，比如使用CountDownLatch
- 2、Watch需要重复注册，不然就不能生效
- 3、开发的复杂性较高
- 不支持多节点删除和创建。需要自己去递归
2》Curator是一个专门解决分布式锁的框架，解决原生javaAPI开发分布式遇到的问题
官方文档：Apache Curator

使用演示

1、导入maven坐标

<!--        引入Curator坐标-->
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-framework</artifactId>
            <version>4.3.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-recipes</artifactId>
            <version>4.3.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-client</artifactId>
            <version>4.3.0</version>
        </dependency>

2、编写测试

public class ZookeeperLocks {
    public static void main(String[] args) {
        //创建分布式锁1 ： lock1
        InterProcessMutex lock1 = new InterProcessMutex(getCuratorFramework(), "/locks");
        //创建分布式锁2 ： lock2
        InterProcessMutex lock2 = new InterProcessMutex(getCuratorFramework(), "/locks");

        new Thread(new Runnable() {
            @Override
            public void run() {
                try {
                    lock1.acquire();
                } catch (Exception e) {
                    e.printStackTrace();
                }
                System.out.println("线程1 获取到锁");
            }
        }).start();
        new Thread(new Runnable() {
            @Override
            public void run() {
                try {
                    lock2.acquire();
                } catch (Exception e) {
                    e.printStackTrace();
                }
                System.out.println("线程2 获取到锁");
            }
        }).start();
    }

    public static CuratorFramework getCuratorFramework(){
        ExponentialBackoffRetry policy = new ExponentialBackoffRetry(3000, 3);
        CuratorFramework client = CuratorFrameworkFactory
                .builder()
                .connectString("zookeeper01:2181,zookeeper02:2182,zookeeper03:2181")
                .connectionTimeoutMs(2000)
                .sessionTimeoutMs(2000)
                .retryPolicy(policy).build();
        client.start();//启动客户端
        System.out.println("Zookeeper启动成功");
        return client;
    }
}
