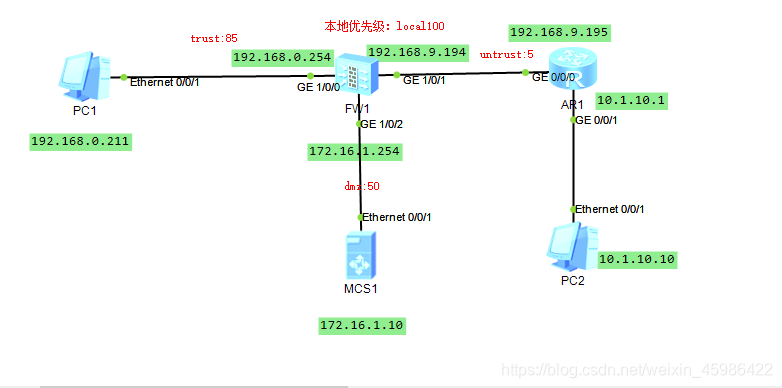

华为防火墙配置命令-trust-dmz-untrust

R1配置命令

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]undo inf enable
Info: Information center is disabled.
[Huawei]sys R1
[R1]int g0/0/0
[R1-GigabitEthernet0/0/0]ip add 192.168.9.195 24
[R1-GigabitEthernet0/0/0]undo sh
Info: Interface GigabitEthernet0/0/0 is not shutdown.
[R1-GigabitEthernet0/0/0]int g0/0/1
[R1-GigabitEthernet0/0/1]ip add 10.1.10.1 24
[R1-GigabitEthernet0/0/1]undo sh

USG防火墙配置命令

<USG6000V1>sys
Enter system view, return user view with Ctrl+Z.
[USG6000V1]undo inf enable
Info: Information center is disabled.
[USG6000V1]int g1/0/0
[USG6000V1-GigabitEthernet1/0/0]ip add 192.168.0.254 24
[USG6000V1-GigabitEthernet1/0/0]undo sh
Info: Interface GigabitEthernet1/0/0 is not shutdown.
[USG6000V1-GigabitEthernet1/0/0]int g1/0/1
[USG6000V1-GigabitEthernet1/0/
