LinkedHashMap源码详解

Map接口的哈希表和链表实现，迭代顺序可预测。 此实现与HashMap 的不同之处在于它维护一个双向链表，贯穿其所有条目。

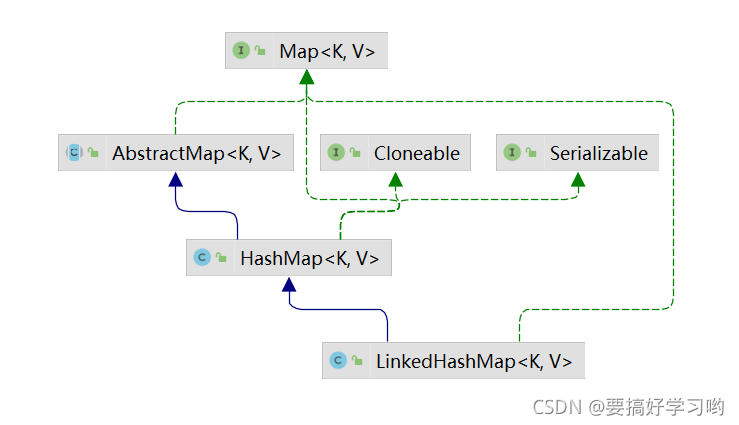

一、结构图

二、LinkedHashMap类介绍

1、内部节点结构

static class Entry<K,V> extends HashMap.Node<K,V> {
    Entry<K,V> before, after;
    Entry(int hash, K key, V value, Node<K,V> next) {
        super(hash, key, value, next);
    }
}

这里Entry类继承了HashMap中的Node类，这样就可以通过创建节点为Entry并赋值来实现按照插入顺序来访问。同时，我们还可以调用钩子方法来保证hashMap修改时，顺序也跟着修改。但是这里你可能会想，Entry类没有继承TreeNode类呀，如果转成红黑树了，节点怎么进行访问呢？它是这样实现的：TreeNode类继承了Entry类，所以树节点也可以根据插入顺序进行访问。其中，当桶中数据结构由链表变为红黑树也不会改变顺序，因为在将链表替换为红黑树的replacementTreeNode方法中LinkedHashMap做了一些手脚。

2、属性

// 头节点指针
transient LinkedHashMap.Entry<K,V> head;

// 尾节点指针
transient LinkedHashMap.Entry<K,V> tail;

// true代表访问会修改顺序，false代表只有插入会修改顺序
final boolean accessOrder;

3、构造方法

public LinkedHashMap(int initialCapacity, float loadFactor) {
    super(initialCapacity, loadFactor);
    accessOrder = false;
}

public LinkedHashMap(int initialCapacity) {
    super(initialCapacity);
    accessOrder = false;
}

public LinkedHashMap() {
    super();
    accessOrder = false;
}

public LinkedHashMap(Map<? extends K, ? extends V> m) {
    super();
    accessOrder = false;
    putMapEntries(m, false);
}

public LinkedHashMap(int initialCapacity,
                     float loadFactor,
                     boolean accessOrder) {
    super(initialCapacity, loadFactor);
    this.accessOrder = accessOrder;
}

都是调用的父类的构造方法。

4、方法介绍

private void linkNodeLast(LinkedHashMap.Entry<K,V> p) {
    LinkedHashMap.Entry<K,V> last = tail;
    tail = p;
    if (last == null)
        head = p;
    else {
        p.before = last;
        last.after = p;
    }
}

将指定entry添加到链表最后。

private void transferLinks(LinkedHashMap.Entry<K,V> src,
                           LinkedHashMap.Entry<K,V> dst) {
    LinkedHashMap.Entry<K,V> b = dst.before = src.before;
    LinkedHashMap.Entry<K,V> a = dst.after = src.after;
    if (b == null)
        head = dst;
    else
        b.after = dst;
    if (a == null)
        tail = dst;
    else
        a.before = dst;
}

将src节点替换为dst节点。

Node<K,V> newNode(int hash, K key, V value, Node<K,V> e) {
    LinkedHashMap.Entry<K,V> p =
        new LinkedHashMap.Entry<K,V>(hash, key, value, e);
    linkNodeLast(p);
    return p;
}

创建一个新的链表节点，这个方法覆盖了父类HashMap中的newNode方法，主要目的是将该节点添加到链表尾部，使得可以根据插入顺序进行遍历。

TreeNode<K,V> newTreeNode(int hash, K key, V value, Node<K,V> next) {
    TreeNode<K,V> p = new TreeNode<K,V>(hash, key, value, next);
    linkNodeLast(p);
    return p;
}

创建一个新的树节点，这个方法覆盖了父类HashMap中的newTreeNode方法，主要目的同上。

TreeNode<K,V> replacementTreeNode(Node<K,V> p, Node<K,V> next) {
    LinkedHashMap.Entry<K,V> q = (LinkedHashMap.Entry<K,V>)p;
    TreeNode<K,V> t = new TreeNode<K,V>(q.hash, q.key, q.value, next);
    transferLinks(q, t);
    return t;
}

将链表节点转换为树节点，节点改变时需要调用transferLinks方法修改链表结构。

Node<K,V> replacementNode(Node<K,V> p, Node<K,V> next) {
    LinkedHashMap.Entry<K,V> q = (LinkedHashMap.Entry<K,V>)p;
    LinkedHashMap.Entry<K,V> t =
        new LinkedHashMap.Entry<K,V>(q.hash, q.key, q.value, next);
    transferLinks(q, t);
    return t;
}

将树节点转换为链表节点。

void afterNodeRemoval(Node<K,V> e) { // unlink
    LinkedHashMap.Entry<K,V> p =
        (LinkedHashMap.Entry<K,V>)e, b = p.before, a = p.after;
    p.before = p.after = null;
    if (b == null)
        head = a;
    else
        b.after = a;
    if (a == null)
        tail = b;
    else
        a.before = b;
}

钩子方法，在HashMap中调用removeNode方法最后会调用这个方法，保证链表与hashTable一致。

void afterNodeAccess(Node<K,V> e) { // move node to last
    LinkedHashMap.Entry<K,V> last;
    if (accessOrder && (last = tail) != e) {
        LinkedHashMap.Entry<K,V> p =
            (LinkedHashMap.Entry<K,V>)e, b = p.before, a = p.after;
        p.after = null;
        if (b == null)
            head = a;
        else
            b.after = a;
        if (a != null)
            a.before = b;
        else
            last = b;
        if (last == null)
            head = p;
        else {
            p.before = last;
            last.after = p;
        }
        tail = p;
        ++modCount;
    }
}

当accessOrder为true时，将访问过的节点放在链表的最后，遍历不算访问，替换算。

public boolean containsValue(Object value) {
    for (LinkedHashMap.Entry<K,V> e = head; e != null; e = e.after) {
        V v = e.value;
        if (v == value || (value != null && value.equals(v)))
            return true;
    }
    return false;
}

只有遍历value方法，因为在链表中遍历比在hashTable中遍历更容易，但是遍历key通过hashCode来得更快。

public V get(Object key) {
    Node<K,V> e;
    if ((e = getNode(hash(key), key)) == null)
        return null;
    if (accessOrder)
        afterNodeAccess(e);
    return e.value;
}

public V getOrDefault(Object key, V defaultValue) {
   Node<K,V> e;
   if ((e = getNode(hash(key), key)) == null)
       return defaultValue;
   if (accessOrder)
       afterNodeAccess(e);
   return e.value;
}

兼容accessOrder。

public void clear() {
    super.clear();
    head = tail = null;
}

清除数据。

public Set<K> keySet() {
    Set<K> ks;
    return (ks = keySet) == null ? (keySet = new LinkedKeySet()) : ks;
}

public Collection<V> values() {
    Collection<V> vs;
    return (vs = values) == null ? (values = new LinkedValues()) : vs;
}

public Set<Map.Entry<K,V>> entrySet() {
    Set<Map.Entry<K,V>> es;
    return (es = entrySet) == null ? (entrySet = new LinkedEntrySet()) : es;
}

分别返回相应的集合。

final class LinkedKeySet extends AbstractSet<K> {
    public final int size()                 { return size; }
    public final void clear()               { LinkedHashMap.this.clear(); }
    public final Iterator<K> iterator() {
        return new LinkedKeyIterator();
    }
    public final boolean contains(Object o) { return containsKey(o); }
    public final boolean remove(Object key) {
        return removeNode(hash(key), key, null, false, true) != null;
    }
    public final Spliterator<K> spliterator()  {
        return Spliterators.spliterator(this, Spliterator.SIZED |
                                        Spliterator.ORDERED |
                                        Spliterator.DISTINCT);
    }
    public final void forEach(Consumer<? super K> action) {
        if (action == null)
            throw new NullPointerException();
        int mc = modCount;
        for (LinkedHashMap.Entry<K,V> e = head; e != null; e = e.after)
            action.accept(e.key);
        if (modCount != mc)
            throw new ConcurrentModificationException();
    }
}

final class LinkedValues extends AbstractCollection<V> {
    public final int size()                 { return size; }
    public final void clear()               { LinkedHashMap.this.clear(); }
    public final Iterator<V> iterator() {
        return new LinkedValueIterator();
    }
    public final boolean contains(Object o) { return containsValue(o); }
    public final Spliterator<V> spliterator() {
        return Spliterators.spliterator(this, Spliterator.SIZED |
                                        Spliterator.ORDERED);
    }
    public final void forEach(Consumer<? super V> action) {
        if (action == null)
            throw new NullPointerException();
        int mc = modCount;
        for (LinkedHashMap.Entry<K,V> e = head; e != null; e = e.after)
            action.accept(e.value);
        if (modCount != mc)
            throw new ConcurrentModificationException();
    }
}

final class LinkedEntrySet extends AbstractSet<Map.Entry<K,V>> {
    public final int size()                 { return size; }
    public final void clear()               { LinkedHashMap.this.clear(); }
    public final Iterator<Map.Entry<K,V>> iterator() {
        return new LinkedEntryIterator();
    }
    public final boolean contains(Object o) {
        if (!(o instanceof Map.Entry))
            return false;
        Map.Entry<?,?> e = (Map.Entry<?,?>) o;
        Object key = e.getKey();
        Node<K,V> candidate = getNode(hash(key), key);
        return candidate != null && candidate.equals(e);
    }
    public final boolean remove(Object o) {
        if (o instanceof Map.Entry) {
            Map.Entry<?,?> e = (Map.Entry<?,?>) o;
            Object key = e.getKey();
            Object value = e.getValue();
            return removeNode(hash(key), key, value, true, true) != null;
        }
        return false;
    }
    public final Spliterator<Map.Entry<K,V>> spliterator() {
        return Spliterators.spliterator(this, Spliterator.SIZED |
                                        Spliterator.ORDERED |
                                        Spliterator.DISTINCT);
    }
    public final void forEach(Consumer<? super Map.Entry<K,V>> action) {
        if (action == null)
            throw new NullPointerException();
        int mc = modCount;
        for (LinkedHashMap.Entry<K,V> e = head; e != null; e = e.after)
            action.accept(e);
        if (modCount != mc)
            throw new ConcurrentModificationException();
    }
}

这里需要注意的是每个集合的迭代器不同。

abstract class LinkedHashIterator {
    LinkedHashMap.Entry<K,V> next;
    LinkedHashMap.Entry<K,V> current;
    int expectedModCount;

    LinkedHashIterator() {
        next = head;
        expectedModCount = modCount;
        current = null;
    }

    public final boolean hasNext() {
        return next != null;
    }

    final LinkedHashMap.Entry<K,V> nextNode() {
        LinkedHashMap.Entry<K,V> e = next;
        if (modCount != expectedModCount)
            throw new ConcurrentModificationException();
        if (e == null)
            throw new NoSuchElementException();
        current = e;
        next = e.after;
        return e;
    }

    public final void remove() {
        Node<K,V> p = current;
        if (p == null)
            throw new IllegalStateException();
        if (modCount != expectedModCount)
            throw new ConcurrentModificationException();
        current = null;
        K key = p.key;
        removeNode(hash(key), key, null, false, false);
        expectedModCount = modCount;
    }
}

final class LinkedKeyIterator extends LinkedHashIterator
    implements Iterator<K> {
    public final K next() { return nextNode().getKey(); }
}

final class LinkedValueIterator extends LinkedHashIterator
    implements Iterator<V> {
    public final V next() { return nextNode().value; }
}

final class LinkedEntryIterator extends LinkedHashIterator
    implements Iterator<Map.Entry<K,V>> {
    public final Map.Entry<K,V> next() { return nextNode(); }
}

根据数据不同创建不同的迭代器。
完结撒花★,°:.☆(￣▽￣)/$:.°★ 。
