目前来看，flowable工作流引擎支持的回退功能仅能实现回退简单的串行流程，对于并行流程则需要我们自己去实现额外的逻辑

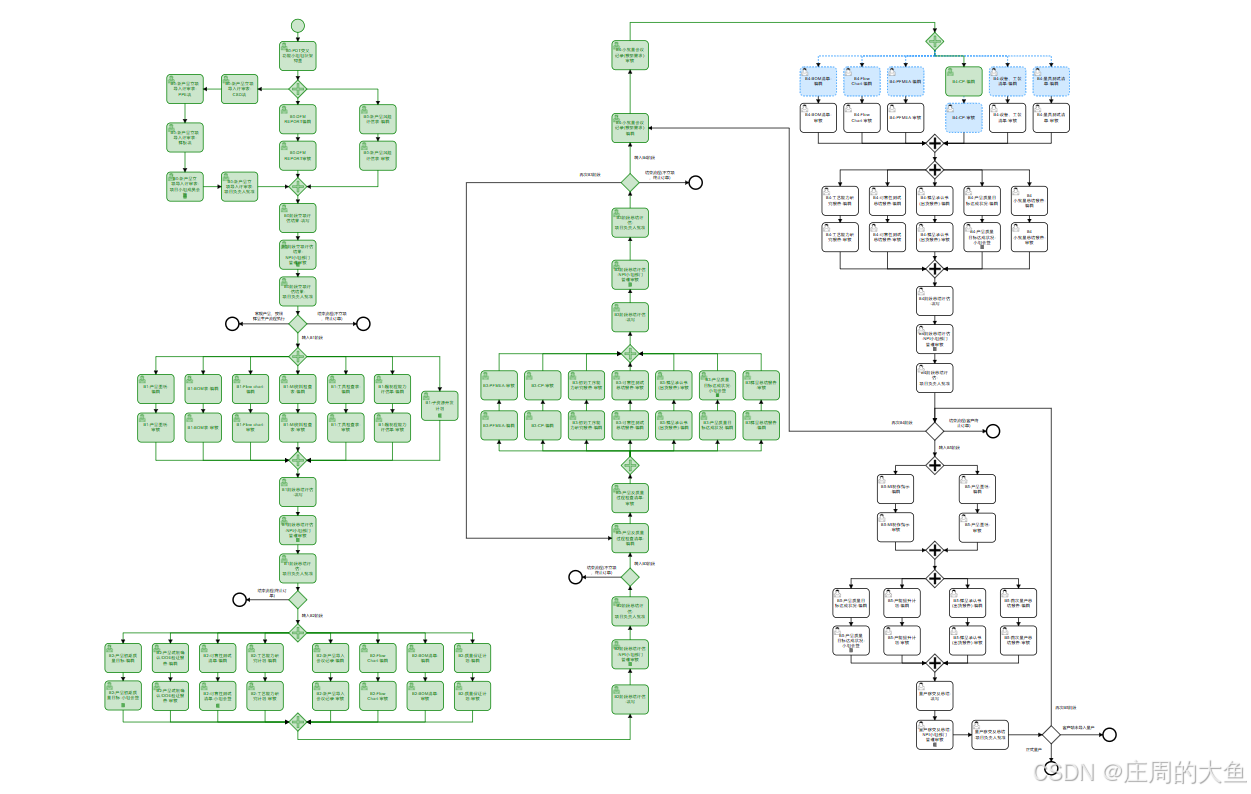

像这样一个庞大的串行与并行结合的流程，如何实现处处可回退呢

一、保证流程图并行流程部分均使用成对的并行网关（fork和join）

因为当流程从并行网关外回退到并行网关内的其中一个任务节点时，此对网关内的其他任务节点将丢失状态，具体表现为ACT_RU_EXECUTION表中数据只有一个任务节点对应的记录。

因此使用成对的并行网关可以在流程运行到网关内时，遍历得到当前应有多少个任务节点记录，再与ACT_RU_EXECUTION表中数据对比，判断是否需要补充任务节点对应的记录以及补充多少

二、在流程走到join网关前补充ACT_RU_EXECUTION表的记录

1.在BpmTaskServiceImpl中引入processEngineConfiguration

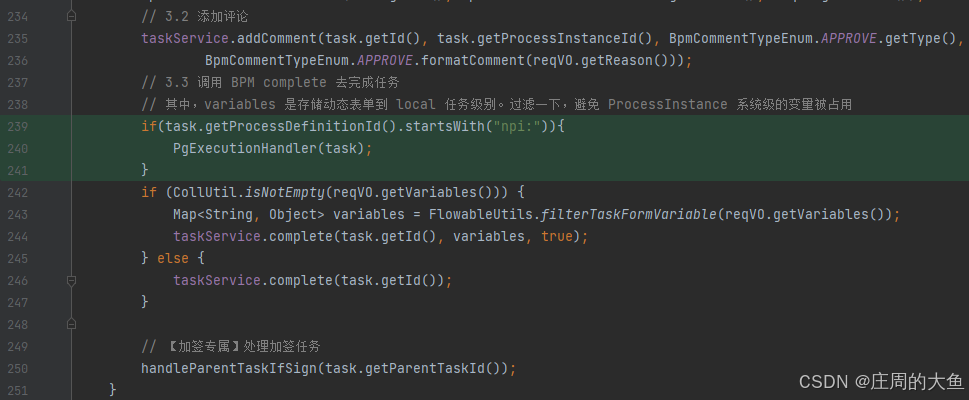

2.在BpmTaskServiceImpl中的approveTask方法里调用PgExecutionHandler()方法

因为此方法不适用所有流程，所有用if包裹使其在特定流程模型才能使用，防止对其他流程造成影响

3.定义PgExecutionHandler()方法

    //并行网关任务回退处理,补充任务execution记录
    void PgExecutionHandler(Task task){
        BpmnModel bpmnModel = bpmModelService.getBpmnModelByDefinitionId(task.getProcessDefinitionId());
        FlowElement source = BpmnModelUtils.getFlowElementById(bpmnModel, task.getTaskDefinitionKey());
        if (source == null) {
            throw exception(TASK_NOT_EXISTS);
        }
        //获取任务出线
        List<SequenceFlow> outFlow = ((FlowNode) source).getOutgoingFlows();
        if(outFlow != null && outFlow.size() > 0){
            ExecutionEntityManager executionEntityManager = processEngineConfiguration.getExecutionEntityManager();
            for(SequenceFlow sequenceFlow : outFlow){
                //如果下一个节点是并行网关,那么获取并行网关信息
                FlowElement nextElement = sequenceFlow.getTargetFlowElement();
                if(nextElement instanceof ParallelGateway){//判断下一个节点是不是并行网关
                    List<SequenceFlow> inFlows = ((FlowNode) nextElement).getIncomingFlows();
                    if(inFlows != null && inFlows.size() > 1){//以入线数判断是不是join网关
                        //获取execution记录
                        List<Execution> executions = runtimeService.createExecutionQuery().processInstanceId(task.getProcessInstanceId()).list();
                        executions = executions.stream().filter(e ->e.getParentId() != null).collect(Collectors.toList());//把父excution过滤掉
                        List<String> flowIds = new ArrayList<>();//存储走过的线路
                        Set<String> activitIds = new HashSet<>();//存储活动的节点
                        List<String> executionActIds = executions.stream().map(e ->e.getActivityId()).collect(Collectors.toList());
                        for(SequenceFlow inSequenceFlow : inFlows){//遍历join网关每一条入线分支寻找活动节点，活动节点数加上join网关execution数等于join网关入线数说明当前join网关不需要补充数据,反之则需要补充
                            traverseBranches(executionActIds, inSequenceFlow,1,flowIds,activitIds);
                        }
                        int joinExecution = executionActIds.stream().filter(e ->e.equals(nextElement.getId())).collect(Collectors.toList()).size();
                        if((activitIds.size() + joinExecution) < inFlows.size()){
                            for(int i = 0 ; i <inFlows.size() - (activitIds.size() + joinExecution);i ++){
                                saveExecution(executionEntityManager,task,nextElement);
                            }
                        }
                    }
                }
            }
        }
    }

4.定义PgExecutionHandler()中所用的traverseBranches()方法

    //从join网关往回遍历直到fork网关，寻找活动节点
    void traverseBranches(List<String> executionActIds,SequenceFlow inFlow,int num,List<String> flowIds,Set<String> activitIds){//这里num初始设1
        if(flowIds.contains(inFlow.getId())){
            return;//走过的线就不走了
        }else {
            flowIds.add(inFlow.getId());
        }
        FlowElement flowElement = inFlow.getSourceFlowElement();
        if(flowElement != null){
            if(flowElement instanceof ParallelGateway){ //如果迭代到并行网关，判断是不是子join并行网关，通过入线条数判断，入线条数大于1则为join网关，num+1，这种通过计数的方法要求fork和join必须成对出现，否则失效
                List<SequenceFlow> nextInFlows = ((FlowNode) flowElement).getIncomingFlows();
                if(nextInFlows.size() > 1){
                    num = num + 1;
                }else {
                    num = num - 1;
                }
                if(num != 0){
                    for(SequenceFlow sequenceFlow : nextInFlows) {
                        traverseBranches(executionActIds, sequenceFlow, num, flowIds,activitIds);
                    }
                }
            }else {
                if(executionActIds.contains(flowElement.getId())){
                    activitIds.add(flowElement.getId());
                }else {//继续迭代直到遇到fork网关
                    List<SequenceFlow> inFlows = ((FlowNode) flowElement).getIncomingFlows();
                    for(SequenceFlow sequenceFlow : inFlows){
                        traverseBranches(executionActIds,sequenceFlow,num,flowIds,activitIds);
                    }
                }
            }
        }
    }

5.定义保存exection记录的方法saveExecution()

    //保存exection记录
    void saveExecution(ExecutionEntityManager executionEntityManager,Task task,FlowElement joinElement){
        IdGenerator idGenerator = processEngineConfiguration.getIdGenerator();
        ExecutionEntity execution = executionEntityManager.create();
        execution.setId(idGenerator.getNextId());
        execution.setProcessDefinitionId(task.getProcessDefinitionId());
        execution.setParentId(task.getProcessInstanceId());
        execution.setProcessInstanceId(task.getProcessInstanceId());
        execution.setRootProcessInstanceId(task.getProcessInstanceId());
        execution.setActive(false);
        ((ExecutionEntityImpl) execution).setActivityId(joinElement.getId());
        execution.setSuspensionState(1);
        execution.setRevision(0);
        execution.setStartTime(new Date());
        execution.setTenantId(null);
        ((ExecutionEntityImpl) execution).setIsScope(false);
        ((ExecutionEntityImpl) execution).setCountEnabled(true);
        managementService.executeCommand(new SaveExecutionCmd(execution,idGenerator));
    }

6.修改BpmTaskServiceImpl中的returnTask(Task currentTask, FlowElement targetElement, BpmTaskReturnReqVO reqVO)方法

因为普通任务在ACT_RU_EXECUTION表中对应一条记录，而会签任务对应多条记录，所有在此处需要做额外处理

将方法中最后的

runtimeService.createChangeActivityStateBuilder()
                    .processInstanceId(currentTask.getProcessInstanceId())
                    .moveActivityIdsToSingleActivityId(returnTaskKeyList, // 当前要跳转的节点列表( 1 或多)
                            reqVO.getTargetTaskDefinitionKey()) // targetKey 跳转到的节点(1)
                    .changeState();

改为

if(currentTask.getProcessDefinitionId().startsWith("npi:")){
            List<Execution> executions = runtimeService.createExecutionQuery().processInstanceId(currentTask.getProcessInstanceId()).list();
            List<String> executionIds = executions.stream().filter(e ->returnTaskKeyList.contains(e.getActivityId()) && e.getParentId().equals(currentTask.getProcessInstanceId())).map(e ->e.getId()).collect(Collectors.toList());
            // 3. 执行驳回
            runtimeService.createChangeActivityStateBuilder()
                    .processInstanceId(currentTask.getProcessInstanceId())
                    .moveExecutionsToSingleActivityId(executionIds, // 当前要跳转的任务对应的execution( 1 或多)
                            reqVO.getTargetTaskDefinitionKey()) // targetKey 跳转到的节点(1)
                    .changeState();
            mesNpiProjectMapper.deleteGatewayExecutesByProcessInstanceId(currentTask.getProcessInstanceId());
        }else{
            runtimeService.createChangeActivityStateBuilder()
                    .processInstanceId(currentTask.getProcessInstanceId())
                    .moveActivityIdsToSingleActivityId(returnTaskKeyList, // 当前要跳转的节点列表( 1 或多)
                            reqVO.getTargetTaskDefinitionKey()) // targetKey 跳转到的节点(1)
                    .changeState();
        }

if中的条件根据自己的情况修改，目的也是使其在特定流程下使用

7.新增类SaveExecutionCmd，可放在BpmTaskServiceImpl相同目录下

package cn.iocoder.yudao.module.bpm.service.task;

import org.flowable.common.engine.impl.cfg.IdGenerator;
import org.flowable.common.engine.impl.interceptor.Command;
import org.flowable.common.engine.impl.interceptor.CommandContext;
import org.flowable.engine.impl.persistence.entity.ExecutionEntity;
import org.flowable.idm.engine.impl.util.CommandContextUtil;
import org.jeecg.common.exception.JeecgBootException;

import java.io.Serializable;

public class SaveExecutionCmd implements Command<Void>, Serializable {
    private static final long serialVersionUID = 1L;
    protected ExecutionEntity entity;
    protected IdGenerator idGenerator;

    public SaveExecutionCmd(ExecutionEntity entity, IdGenerator idGenerator) {
        this.entity = entity;
        this.idGenerator = idGenerator;
    }

    @Override
    public Void execute(CommandContext commandContext) {
        if (this.entity == null) {
            throw new JeecgBootException("executionEntity is null");
        } else {
            CommandContextUtil.getDbSqlSession(commandContext).insert(this.entity,idGenerator);
        }
        return null;
    }
}

这样总体就完成了

参考：Flowable回退到并行任务的bug解决思路_flowable并行网关回退-优快云博客
