华为综合实验RIP OSPF 桥接 单臂 VLAN 聚合

华为综合实验

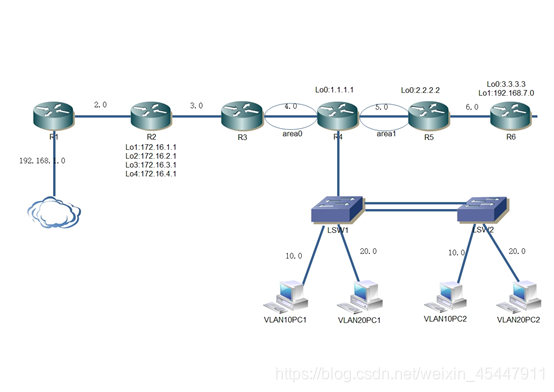

实验拓扑图

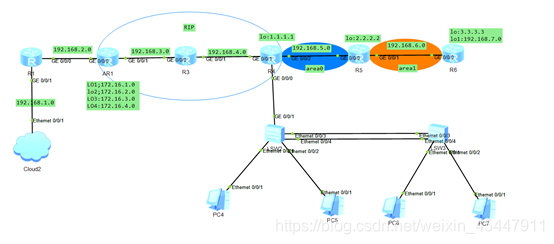

模拟器拓扑图

实验步骤

一、配置单臂路由
二、配置RIPv2，RIP路由汇总，开启身份验证
三、配置多区域OSPf，开启身份验证
四、配置路由重分发
五、将R6 的Telnet发布到外网，桥接远程访问
六、全网互通
实验过程
**一、给路由器配置IP地址

[R1]int g0/0/1
[R1-GigabitEthernet0/0/1]ip address 192.168.1.254 24
[R1-GigabitEthernet0/0/1]quit
[R1]int g0/0/0
[R1-GigabitEthernet0/0/0]ip address 192.168.2.1 24
[R1-GigabitEthernet0/0/0]quit

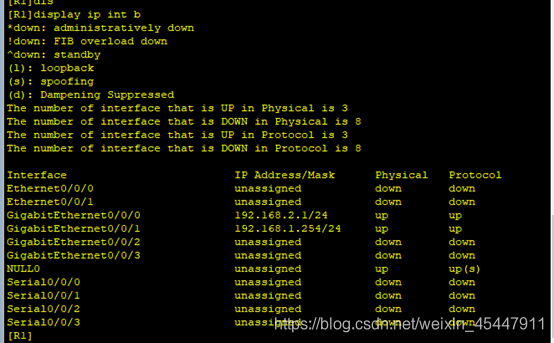

[R2]int g0/0/0
[R2-GigabitEthernet0/0/0]ip address 192.168.2.2 24
[R2-GigabitEthernet0/0/0]quit
[R2]int g0/0/1
[R2-GigabitEthernet0/0/1]ip address 192.168.3.1 24
[R2-GigabitEthernet0/0/1]quit
[R2]int loo1
[R2-LoopBack1]ip address 172.16.1.1 24
[R2-LoopBack1]quit
[R2]int loo2
[R2-LoopBack2]ip address 172.16.2.1 24
[R2-LoopBack2]quit
[R2]int loo3
[R2-LoopBack3]ip address 172.16.3.1 24
[R2-LoopBack3]quit
[R2]int loo4
[R2-LoopBack4]ip address 172.16.4.1 24

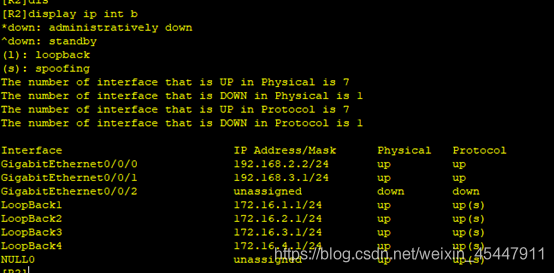

[R3]int g0/0/0
[R3-GigabitEthernet0/0/0]ip address 192.168.3.2 24
[R3-GigabitEthernet0/0/0]quit
[R3]int g0/0/1
[R3-GigabitEthernet0/0/1]ip address 192.168.4.1 24
[R3-GigabitEthernet0/0/1]quit

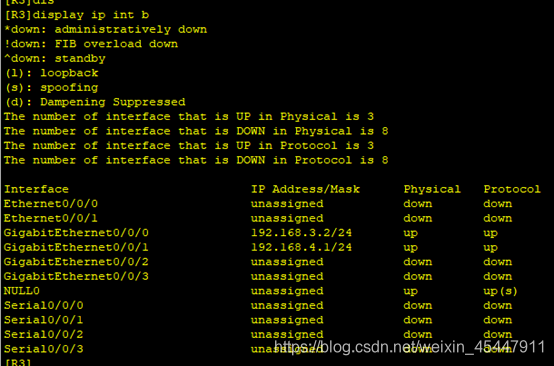

[R4]int g0/0/1
[R4-GigabitEthernet0/0/1]ip address 192.168.4.2 24
[R4-GigabitEthernet0/0/1]
