Spring Cloud 是一套完整的微服务解决方案，基于 Spring Boot 框架，准确的说，它不是一个框架，而是一个大的容器，它将市面上较好的微服务框架集成进来，从而简化了开发者的代码量。

Spring Cloud 是什么？

Spring Cloud 是一系列框架的有序集合，它利用 Spring Boot 的开发便利性简化了分布式系统的开发，比如服务发现、服务网关、服务路由、链路追踪等。Spring Cloud 并不重复造轮子，而是将市面上开发得比较好的模块集成进去，进行封装，从而减少了各模块的开发成本。换句话说：Spring Cloud 提供了构建分布式系统所需的“全家桶”。

Spring Cloud优缺点：

1.把模块拆分，使用接口通信，降低模块之间的耦合度。
2.把项目拆分成若干个子项目，不同的团队负责不同的子项目。
3.增加功能时只需要再增加一个子项目，调用其它系统的接口就可以。
4.可以灵活的进行分布式部署。
有优点就有缺点，缺点如下：
1.系统之间交互需要使用远程通信，接口开发增加工作量。
2.各个模块有一些通用的业务逻辑无法共用。
为了解决上面分布式架构的缺点，我们引入了soa架构，SOA：Service Oriented Architecture面向服务的架构。也就是把工程拆分成服务层、表现层两个工程。服务层中包含业务逻辑，只需要对外提供服务即可。表现层只需要处理和页面的交互，业务逻辑都是调用服务层的服务来实现。

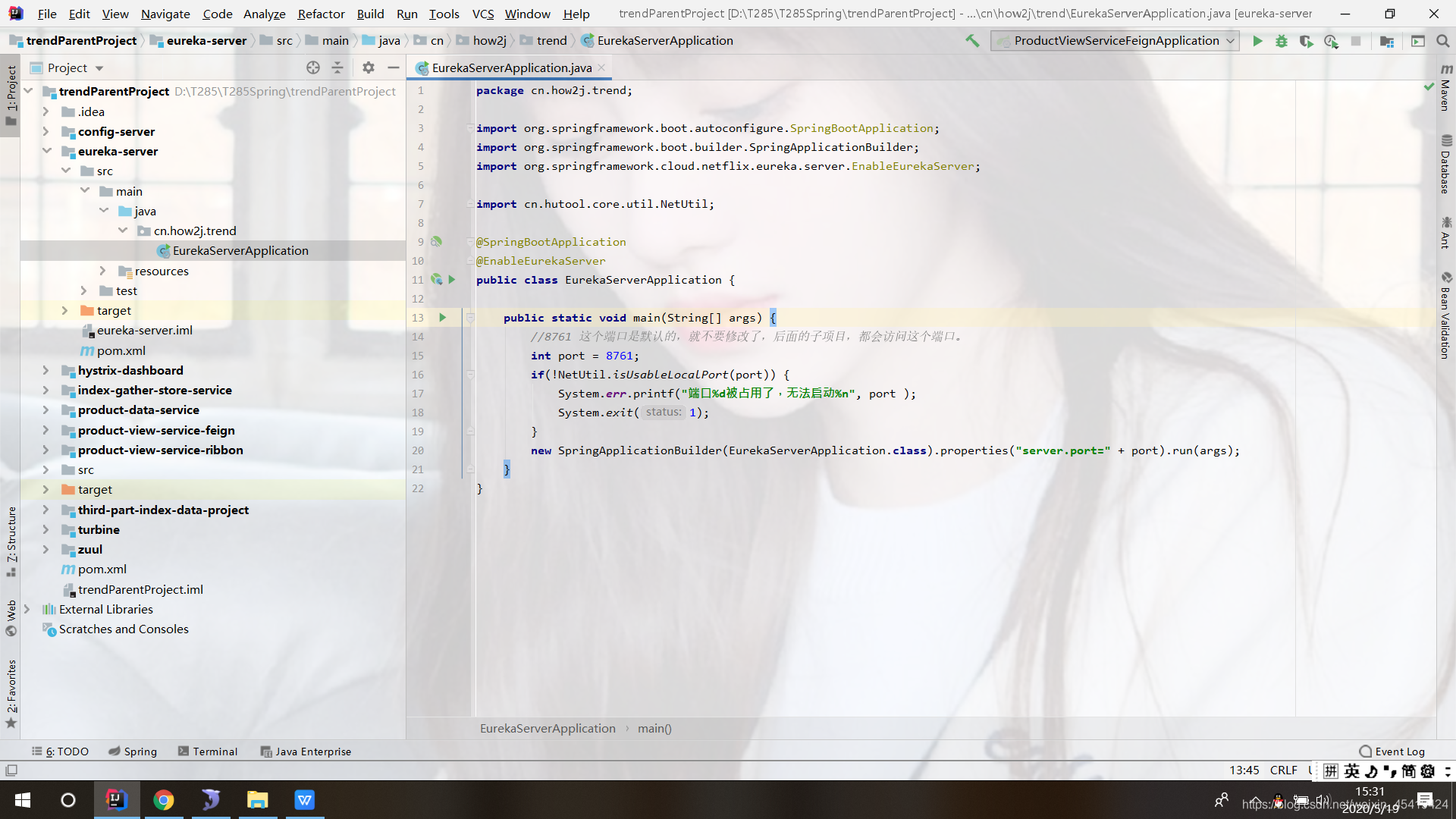

[Spring Cloud整体结构

这里引用我学习的网站：https://how2j.cn/k/springcloud/springcloud-zipkin/2052.html
Spring Cloud整体结构

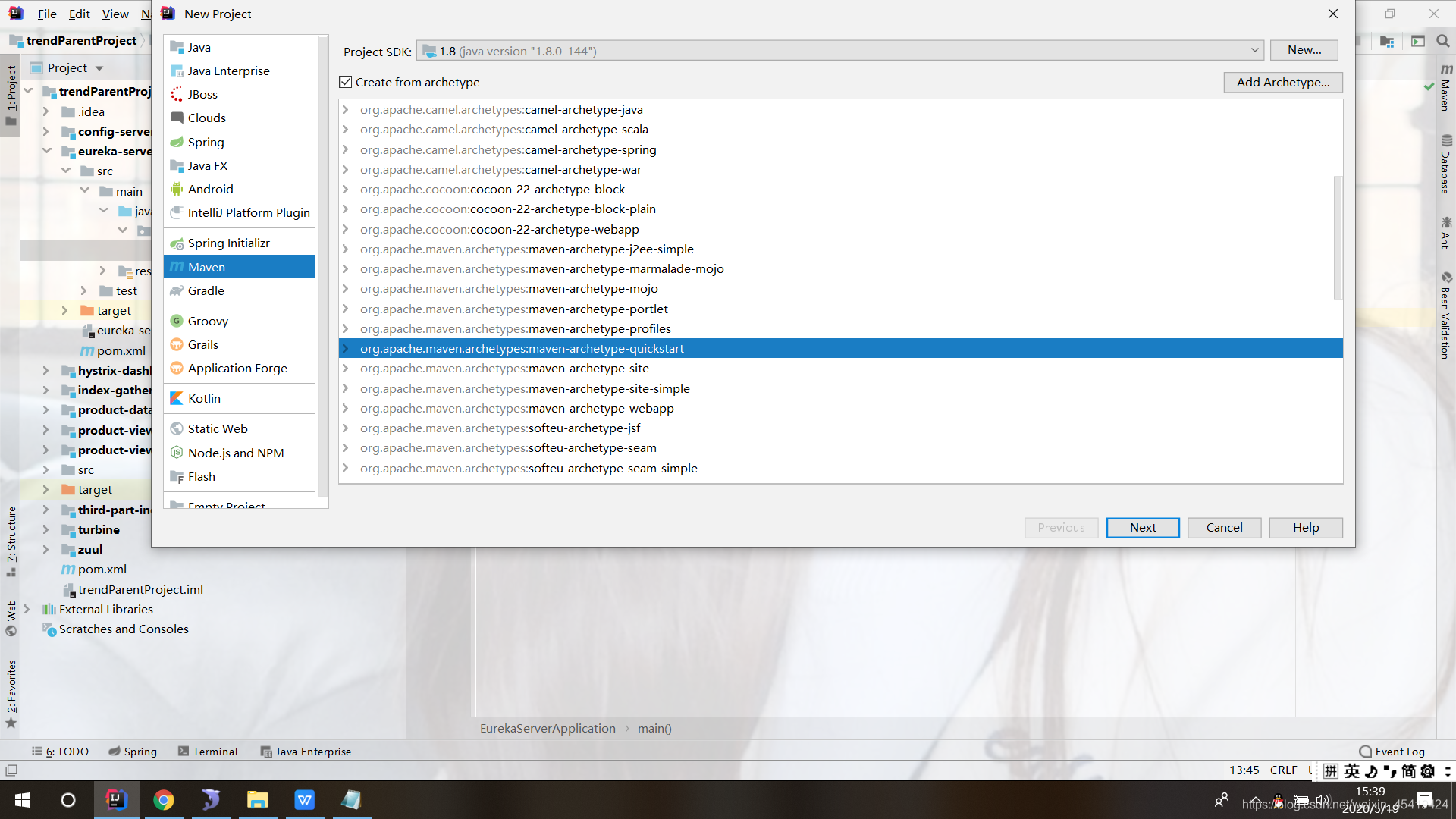

创建项目步骤： File—>new–>project–>然后找到
在这里插入图片描述

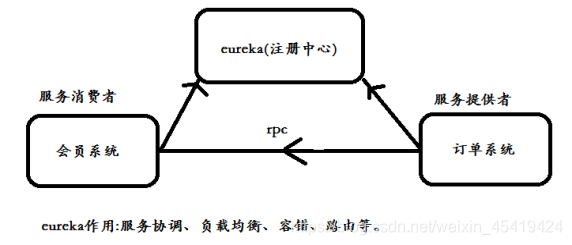

Spring Cloud图结构：

在这里插入图片描述

（eureka-server

）注册中心的创建
pom.xml文件

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <parent>
    <artifactId>trendParentProject</artifactId>
    <groupId>cn.how2j.trend</groupId>
    <version>0.0.1-SNAPSHOT</version>
  </parent>
  <modelVersion>4.0.0</modelVersion>

  <artifactId>eureka-server</artifactId>

  <dependencies>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
    </dependency>
  </dependencies>

</project>

创建一个启动类EurekaServerApplication

package cn.how2j.trend;

import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

import cn.hutool.core.util.NetUtil;

@SpringBootApplication
@EnableEurekaServer
public class EurekaServerApplication {

    public static void main(String[] args) {
        //8761 这个端口是默认的，就不要修改了，后面的子项目，都会访问这个端口。
        int port = 8761;
        if(!NetUtil.isUsableLocalPort(port)) {
            System.err.printf("端口%d被占用了，无法启动%n", port );
            System.exit(1);
        }
        new SpringApplicationBuilder(EurekaServerApplication.class).properties("server.port=" + port).run(args);
    }
}

application.yml

eureka:
  instance:
    hostname: localhost
  client:
    registerWithEureka: false
    fetchRegistry: false
    serviceUrl:
      defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/

spring:
  application:
    name: eureka-server

运行效果
在这里插入图片描述

product-data-service（服务提供者）创建

pom.xml文件

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <parent>
    <groupId>cn.how2j.trend</groupId>
    <artifactId>trendParentProject</artifactId>
    <version>0.0.1-SNAPSHOT</version>
  </parent>
  <artifactId>productDataservice</artifactId>

  <dependencies>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-zipkin</artifactId>
    </dependency>
  </dependencies>
</project>

创建实体层Product类

package cn.how2j.trend.pojo;

public class Product {

    private int id;
    private String name;
    private int price;
    public int getId() {
        return id;
    }
    public void setId(int id) {
        this.id = id;
    }
    public String getName() {
        return name;
    }
    public void setName(String name) {
        this.name = name;
    }
    public int getPrice() {
        return price;
    }
    public void setPrice(int price) {
        this.price = price;
    }

    public Product() {

    }
    public Product(int id, String name, int price) {
        super();
        this.id = id;
        this.name = name;
        this.price = price;
    }

}

创建service层ProductService

package cn.how2j.trend.service;

import java.util.ArrayList;
import java.util.List;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Service;


import cn.how2j.trend.pojo.Product;

@Service
public class ProductService {
    @Value("${server.port}")
    String port;

    public List<Product> listProducts(){
        List<Product> ps = new ArrayList<>();
        ps.add(new Product(101,"哇哈哈:"+port, 50));
        ps.add(new Product(102,"苹果:"+port, 150));
        ps.add(new Product(103,"可口可乐:"+port, 250));
        return ps;
    }
}

创建controller层ProductController

package cn.how2j.trend.controller;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.bind.annotation.RestController;
import cn.how2j.trend.pojo.Product;
import cn.how2j.trend.service.ProductService;


@RestController
@RequestMapping("p")
public class ProductController {

    @Autowired
    ProductService productService;

    @RequestMapping("/products")
    @ResponseBody
    public Object products() {
        List<Product> ps = productService.listProducts();
        return ps;
    }
}

启动类ProductDataServiceApplication

package cn.how2j.trend;

import java.util.Scanner;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.Future;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;

import brave.sampler.Sampler;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import cn.hutool.core.convert.Convert;
import cn.hutool.core.thread.ThreadUtil;
import cn.hutool.core.util.NetUtil;
import cn.hutool.core.util.NumberUtil;
import org.springframework.context.annotation.Bean;

@SpringBootApplication
@EnableEurekaClient
public class ProductDataServiceApplication {
    public static void main(String[] args) {
        int port = 0;
        int defaultPort = 8002;
        Future<Integer> future = ThreadUtil.execAsync(() ->{
            int p = 0;
            System.out.println("请于5秒钟内输入端口号, 推荐  8001 、 8002  或者  8003，8004 超过5秒将默认使用 " + defaultPort);
            Scanner scanner = new Scanner(System.in);
            while(true) {
                String strPort = scanner.nextLine();
                if(!NumberUtil.isInteger(strPort)) {
                    System.err.println("只能是数字");
                    continue;
                }
                else {
                    p = Convert.toInt(strPort);
                    scanner.close();
                    break;
                }
            }
            return p;
        });
        try{
            port=future.get(5,TimeUnit.SECONDS);
        }
        catch (InterruptedException | ExecutionException | TimeoutException e){
            port = defaultPort;
        }

        if(!NetUtil.isUsableLocalPort(port)) {
            System.err.printf("端口%d被占用了，无法启动%n", port );
            System.exit(1);
        }

        new SpringApplicationBuilder(ProductDataServiceApplication.class).properties("server.port=" + port).run(args);
    }
    @Bean
    public Sampler defaultSampler() {
        return Sampler.ALWAYS_SAMPLE;
    }
}

application.yml

#   server:
#   port: 因为会启动多个 product-data-service, 所以端口号由用户自动设置，推荐 8001,8002,8003

spring:
  application:
    name: product-data-service
    zipkin:
      base-url: http://localhost:9411
server:
  port: 8002
eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:8761/eureka/

product-view-service-feign（服务消费者）创建

pom.xml文件

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <parent>
    <groupId>cn.how2j.trend</groupId>
    <artifactId>trendParentProject</artifactId>
    <version>0.0.1-SNAPSHOT</version>
  </parent>

  <artifactId>product-view-service-feign</artifactId>

  <dependencies>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-openfeign</artifactId>
    </dependency>

    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-thymeleaf</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-zipkin</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-config</artifactId>
    </dependency>

    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-bus-amqp</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-netflix-hystrix</artifactId>
    </dependency>
  </dependencies>
</project>

实体类Product

package cn.how2j.trend.pojo;

public class Product {

    private int id;
    private String name;
    private int price;
    public int getId() {
        return id;
    }
    public void setId(int id) {
        this.id = id;
    }
    public String getName() {
        return name;
    }
    public void setName(String name) {
        this.name = name;
    }
    public int getPrice() {
        return price;
    }
    public void setPrice(int price) {
        this.price = price;
    }
    public Product() {

    }
    public Product(int id, String name, int price) {
        super();
        this.id = id;
        this.name = name;
        this.price = price;
    }

}

service----》ProductService

package cn.how2j.trend.service;

import java.util.List;

import cn.how2j.trend.client.ProductClientFeign;
import cn.how2j.trend.pojo.Product;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;


@Service
public class ProductService {

    @Resource
    ProductClientFeign productClientFeign;
    public List<Product> listProducts(){
        return productClientFeign.listProdcuts();

    }
}

client----》ProductClientFeign，ProductClientFeignHystrix

import cn.how2j.trend.pojo.Product;
import cn.how2j.trend.service.ProductService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;



@FeignClient(value = "PRODUCT-DATA-SERVICE",fallback = ProductClientFeignHystrix.class)
public interface ProductClientFeign {

    //service的控制器地址
    @GetMapping("p/products")
    public List<Product> listProdcuts();
}

package cn.how2j.trend.client;

import java.util.ArrayList;
import java.util.List;

import cn.how2j.trend.pojo.Product;
import org.springframework.stereotype.Component;



@Component
public class ProductClientFeignHystrix implements ProductClientFeign{
    public List<Product> listProdcuts(){
        List<Product> result = new ArrayList<>();
        result.add(new Product(0,"产品数据微服务不可用",0));
        return result;
    }

}

web------》ProductController

package cn.how2j.trend.web;

import java.util.List;

import cn.how2j.trend.pojo.Product;
import cn.how2j.trend.service.ProductService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.context.config.annotation.RefreshScope;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;

import javax.annotation.Resource;


@Controller
@RefreshScope
public class ProductController {

    @Autowired
    ProductService productService;

    @Value("${version}")
    String version;

    @RequestMapping("/pc/products")//调用服务提供者里面的路径
    public Object products(Model m) {
        List<Product> ps = productService.listProducts();
        m.addAttribute("ps", ps);
        m.addAttribute("version", version);
        return "products";
    }
}

application.yml

spring:
  application:
    name:  product-view-service-feign
  thymeleaf:
    cache: false
    prefix: classpath:/templates/
    suffix: .html
    encoding: UTF-8
    mode: HTML5
    servlet:
      content-type: text/html

  zipkin:
    base-url: http://localhost:9411

feign.hystrix.enabled: true

management:
  endpoints:
    web:
      exposure:
        include: "*"
      cors:
        allowed-origins: "*"
        allowed-methods: "*"

bootstrap.yml

spring:
  cloud:
    config:
      label: master
      profile: dev
      discovery:
        enabled:  true
        serviceId:  config-server
    bus:
      enabled: true
      trace:
        enabled: true
  client:
    serviceUrl:
      defaultZone:  http://localhost:8761/eureka/

rabbitmq:
  host: localhost
  port: 5672
  username: guest
  password: guest

templates创建页面products.html

<!DOCTYPE HTML>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <title>products</title>
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8" />
    <style>

        table {
            border-collapse:collapse;
            width:400px;
            margin:20px auto;
        }
        td,th{
            border:1px solid gray;
        }

    </style>
</head>
<body>

<div class="workingArea">
    <table>
        <thead>
        <tr>
            <th>id</th>
            <th>产品名称</th>
            <th>价格</th>
        </tr>
        </thead>
        <tbody>
        <tr th:each="p: ${ps}">
            <td th:text="${p.id}"></td>
            <td th:text="${p.name}"></td>
            <td th:text="${p.price}"></td>
        </tr>
        <tr>
            <td align="center" colspan="3">
                <p th:text="${version}" >mohongxia2 trendParentProject version unknown</p>
            </td>
        </tr>
        </tbody>
    </table>
</div>

</body>

</html>

创建启动类ProductViewServiceFeignApplication

package cn.how2j.trend;


import java.util.Scanner;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.Future;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;

import brave.sampler.Sampler;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.cloud.client.circuitbreaker.EnableCircuitBreaker;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.openfeign.EnableFeignClients;

import cn.hutool.core.convert.Convert;
import cn.hutool.core.thread.ThreadUtil;
import cn.hutool.core.util.NetUtil;
import cn.hutool.core.util.NumberUtil;
import org.springframework.context.annotation.Bean;

@SpringBootApplication
@EnableEurekaClient
@EnableDiscoveryClient
@EnableFeignClients
@EnableCircuitBreaker
public class ProductViewServiceFeignApplication {

    public static void main(String[] args) {
        //判断 rabiitMQ 是否启动
        int rabbitMQPort = 5672;
        if(NetUtil.isUsableLocalPort(rabbitMQPort)) {
            System.err.printf("未在端口%d 发现 rabbitMQ服务，请检查rabbitMQ 是否启动", rabbitMQPort );
            System.exit(1);
        }
        int port = 0;
        int defaultPort = 8012;
        Future<Integer> future = ThreadUtil.execAsync(() ->{
            int p = 0;
            System.out.println("请于5秒钟内输入端口号, 推荐  8012 、 8013  或者  8014，超过5秒将默认使用"+defaultPort);
            Scanner scanner = new Scanner(System.in);
            while(true) {
                String strPort = scanner.nextLine();
                if(!NumberUtil.isInteger(strPort)) {
                    System.err.println("只能是数字");
                    continue;
                }
                else {
                    p = Convert.toInt(strPort);
                    scanner.close();
                    break;
                }
            }
            return p;
        });
        try{
            port=future.get(5,TimeUnit.SECONDS);
        }
        catch (InterruptedException | ExecutionException | TimeoutException e){
            port = defaultPort;
        }
        if(!NetUtil.isUsableLocalPort(port)) {
            System.err.printf("端口%d被占用了，无法启动%n", port );
            System.exit(1);
        }
        new SpringApplicationBuilder(ProductViewServiceFeignApplication.class).properties("server.port=" + port).run(args);

    }
    @Bean
    public Sampler defaultSampler() {
        return Sampler.ALWAYS_SAMPLE;
    }
}
峡
关注
专栏目录
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
