android进程保活-单进程广播守护

单进程广播守护

本方案主要是通过Service销毁发出广播通知BroadcastReceiver“复活”自己实现进程保活。

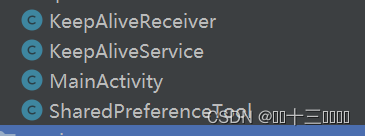

项目结构

AndroidManifest.xml：

<receiver
    android:name=".KeepAliveReceiver"
    android:enabled="true"
    android:exported="true" />

<service
    android:name=".KeepAliveService"
    android:enabled="true"
    android:exported="true" />

KeepAliveReceiver ：为啥用BroadcastReceiver 而不直接在 Service的onDestroy()方法中重启服务？因为这种方式启动的Service仍旧和原进程"在一起"，会被一并杀死，而BroadcastReceiver 接到广播启动的则与原进程有隔离性，可以存活。

package com.dzdpencrypt.dzdp;

import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.util.Log;

public class KeepAliveReceiver extends BroadcastReceiver {

    @Override
    public void onReceive(Context context, Intent intent) {
        Log.d(MainActivity.LOG_TAG, "收到保活广播");
        if (!MainActivity.isServiceRunning(context.getApplicationContext(), KeepAliveService.class)) {
            Log.d(MainActivity.LOG_TAG, "检测到服务未在运行,启动服务");
            Intent serviceIntent = new Intent(context, KeepAliveService.class);
            context.startService(serviceIntent);
        } else {
            Log.d(MainActivity.LOG_TAG, "检测到服务正在运行,无需再次启动");
        }
    }

}

KeepAliveService ：该Service会在创建后会对变量count 执行 +1/秒 定时任务，在服务终止/创建时会保存/读取count ，以保证count 的状态不会丢失。保活手段体现在：

• onStartCommand()返回
• START_STICKY，Service所在进程被杀死后系统会尝试再次启动，但具体启动时机由系统决定。 onDestroy()方法发送出Broadcast，等KeepAliveReceiver 收到后来启动自己

package com.dzdpencrypt.dzdp;

import android.app.Service;
import android.content.Intent;
import android.os.IBinder;
import android.util.Log;

import java.util.Timer;
import java.util.TimerTask;

public class KeepAliveService extends Service {
    private Timer timer;
    private TimerTask timerTask;
    public static int count;

    @Override
    public void onCreate() {
        Log.d(MainActivity.LOG_TAG, "服务创建了");

        int save = SharedPreferenceTool.getInstance(getApplicationContext()).getInt("count", -1);
        if (save == -1) {
            this.count = 0;
            Log.d(MainActivity.LOG_TAG, "count首次启动，从0开始计数");
        } else {
            this.count = save;
            Log.d(MainActivity.LOG_TAG, "count从上次保存的 " + save + " 开始计数");
        }
    }

    @Override
    public int onStartCommand(Intent intent, int flags, int startId) {
        startTask();
        Log.d(MainActivity.LOG_TAG, "服务启动了");

        return START_STICKY;
    }

    /**
     * 开启定时任务，count每秒+1
     */
    private void startTask() {
        timer = new Timer();
        timerTask = new TimerTask() {
            @Override
            public void run() {
                Log.d(MainActivity.LOG_TAG, "服务运行中，count: " + count);
                count++;
            }
        };
        timer.schedule(timerTask, 0, 1000);
    }

    /**
     * 结束定时任务
     */
    private void stopTask() {
        if (timer != null) {
            timer.cancel();
            timer = null;
        }
        if (timerTask != null) {
            timerTask.cancel();
            timerTask = null;
        }
        count = 0;
    }

    @Override
    public void onDestroy() {
        stopTask();
        Log.d(MainActivity.LOG_TAG, "服务停止了");

        Intent intent = new Intent(this, KeepAliveReceiver.class);
        sendBroadcast(intent);
        Log.d(MainActivity.LOG_TAG, "发送保活广播");
    }

    @Override
    public IBinder onBind(Intent intent) {
        return null;
    }
}

MainActivity ：主要用于开启Service，并提供了判断指定Service是否运行的工具方法。count放在MainActivity 而不是Service是因为Service的onDestroy()在异常结束时不一定被调用。

package com.dzdpencrypt.dzdp;

import android.app.ActivityManager;
import android.content.Context;
import android.content.Intent;
import android.os.Bundle;
import android.util.Log;

import androidx.appcompat.app.AppCompatActivity;

public class MainActivity extends AppCompatActivity {
    public static String LOG_TAG = "MyLog";
    private Intent serviceIntent;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        if (!isServiceRunning(getApplicationContext(), KeepAliveService.class)) {
            Log.d(LOG_TAG, "检测到服务未在运行,启动服务");
            serviceIntent = new Intent(this, KeepAliveService.class);
            startService(serviceIntent);
        } else {
            Log.d(LOG_TAG, "检测到服务正在运行,无需再次启动");
        }
    }

    /**
     * 判断某个Service是否在运行
     * @param context
     * @param serviceClass 需要查看的Service的Class
     * @return
     */
    public static boolean isServiceRunning(Context context, Class serviceClass) {
        ActivityManager activityManager = (ActivityManager) context.getSystemService(Context.ACTIVITY_SERVICE);
        for (ActivityManager.RunningServiceInfo runningServiceInfo : activityManager.getRunningServices(Integer.MAX_VALUE)) {
            if (serviceClass.getName().equals(runningServiceInfo.service.getClassName())) {
                return true;
            }
        }
        return false;
    }

    @Override
    protected void onDestroy() {
        if (serviceIntent != null) {
            stopService(serviceIntent);
        }
        SharedPreferenceTool.getInstance(getApplicationContext()).putInt("count", KeepAliveService.count);
        Log.d(LOG_TAG, "count保存了");

        super.onDestroy();
    }
}

参考文章链接：
https://blog.youkuaiyun.com/zyc3545/article/details/109150010
